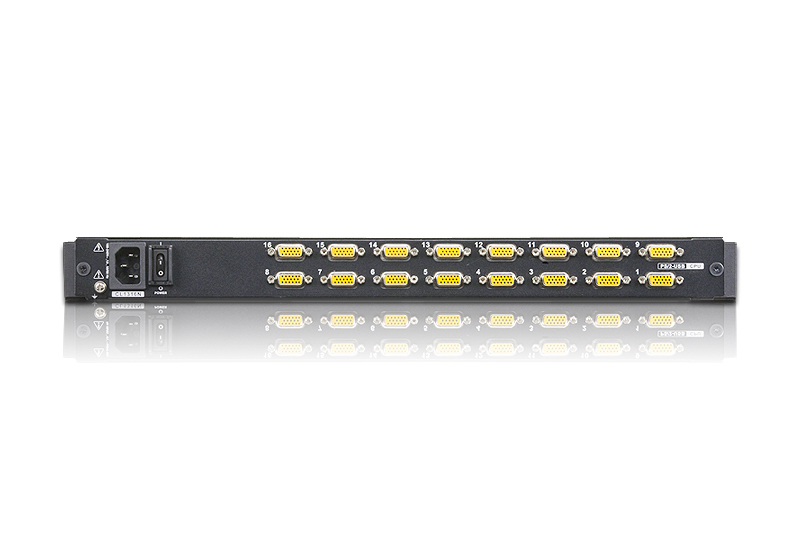

16-Port 19" LCD KVM Switch (USB - PS/2 VGA)
Model CL1316Part no. CL1316N-ATA-AGEAN 4719264642418
47 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Weight13.3 kg
- ColourBlack
- Rack capacity1U
- Built-in touchpadYes
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Weight
- 13.3 kg
- Colour
- Black
- Rack capacity
- 1U
- Built-in touchpad
- Yes
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL1316
- Part number
- CL1316N-ATA-AG
- EAN / UPC
- 4719264642418
- Also known as
- ATEN 16-Port 19" LCD KVM Switch (USB - PS/2 VGA)
Specifications
47 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.294 x 0.294 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal, Plastic |
| Connector type | SPHD |
| Daisy chain | Yes |
| Hot-Plug support | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 16 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Rack mounting | Yes |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 26.1 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 689 mm |
| Height | 44 mm |
| Depth | 483 mm |
| Weight | 13.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 16.3 kg |
| Package width | 668 mm |
| Package depth | 833 mm |
| Package height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 13.3 kg |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 833 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 1 pc(s) |
