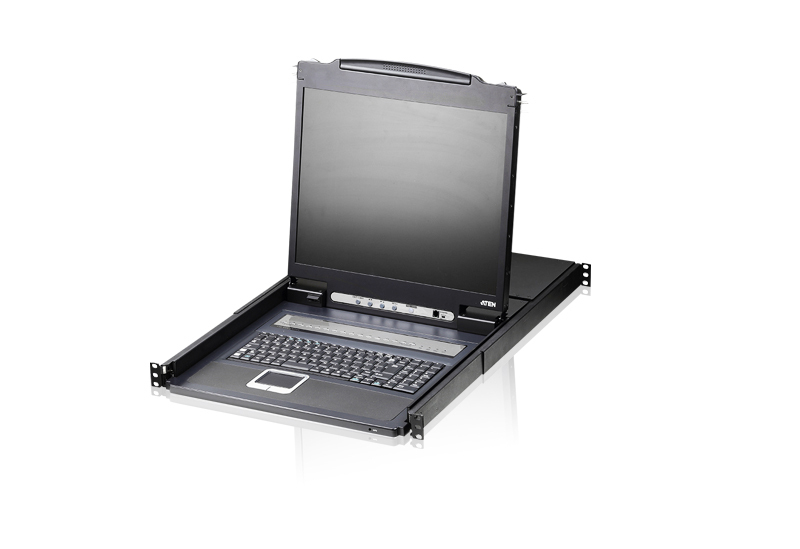

CL1308N-ATA-AU rack console
48.3 cm (19") Black 1U
Model CL1308N-ATA-AUPart no. CL1308N-ATA-AGEAN 4719264642401
39 specifications
- Display48.3 cm (19")
- Weight12.7 kg
- ColourBlack
- Rack capacity1U
- VGA (D-Sub) ports quantity8
- Hot keysYes
Overview
- Display
- 48.3 cm (19")
- Weight
- 12.7 kg
- Colour
- Black
- Rack capacity
- 1U
- VGA (D-Sub) ports quantity
- 8
- Hot keys
- Yes
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL1308N-ATA-AU
- Part number
- CL1308N-ATA-AG
- EAN / UPC
- 4719264642401
- Also known as
- ATEN CL1308N-ATA-AU rack console 48.3 cm (19") Black 1U
Specifications
39 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display | LCD |
| On Screen Display (OSD) | Yes |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Hot-Plug support | Yes |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 128 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

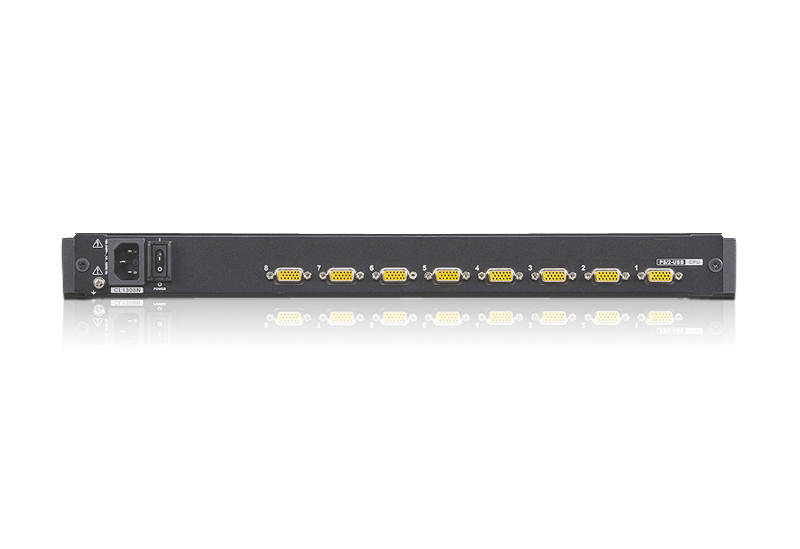

| VGA (D-Sub) ports quantity | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | USB |
| Video port type | VGA |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 22 W |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Height | 44 mm |
| Depth | 689.2 mm |
| Weight | 12.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 16.1 kg |
| Package width | 668 mm |
| Package depth | 833 mm |
| Package height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
