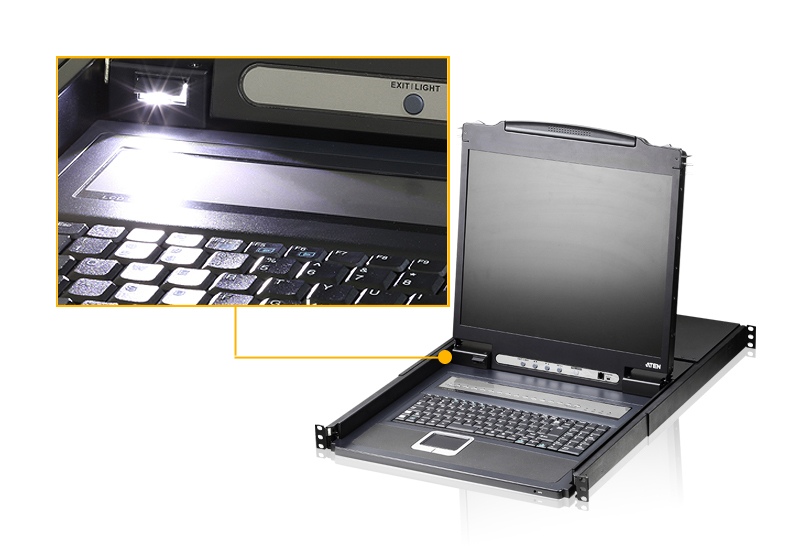

CL1308N rack console
48.3 cm (19") Black 1U
Model CL1308NPart no. CL1308N-ATA-DNGEAN 5711783159971
34 specifications
- Display48.3 cm (19")
- Weight12.6 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typePS/2
- Hot keysYes
Overview
- Display
- 48.3 cm (19")
- Weight
- 12.6 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- PS/2
- Hot keys
- Yes
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL1308N
- Part numbers
- CL1308N-ATA-DNG, CL1308N-ATA-FG, CL1308N-ATA-GG, CL1308N-ATA-ITG, CL1308N-ATA-SG, CL1308N-ATA-EG +10 more
- EAN / UPC
- 5711783159971, 4710469343681, 5712505825068, 5715063528082 +16 more
- Also known as
- ATEN CL1308N rack console 48.3 cm (19") Black 1U
Specifications
34 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display | LCD |
| On Screen Display (OSD) | Yes |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Hot-Plug support | Yes |
| LED indicators | Yes |
| Maximum resolution | 1280 x 1024 pixels |
| Number of computers controlled | 128 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | PS/2 |
| Mouse port type | USB |
| Video port type | VGA |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
| Keyboard language | French |
| Keyboard layout | AZERTY |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 22 W |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 689.2 mm |
| Height | 44 mm |
| Depth | 483 mm |
| Weight | 12.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
