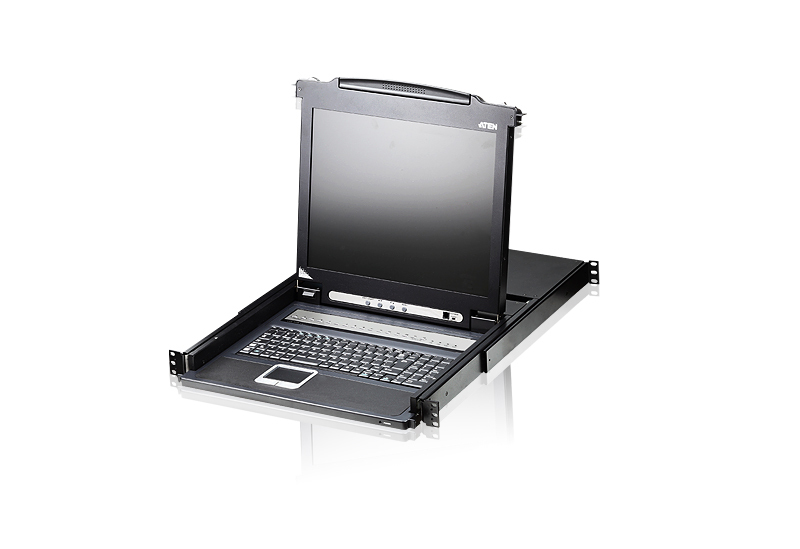

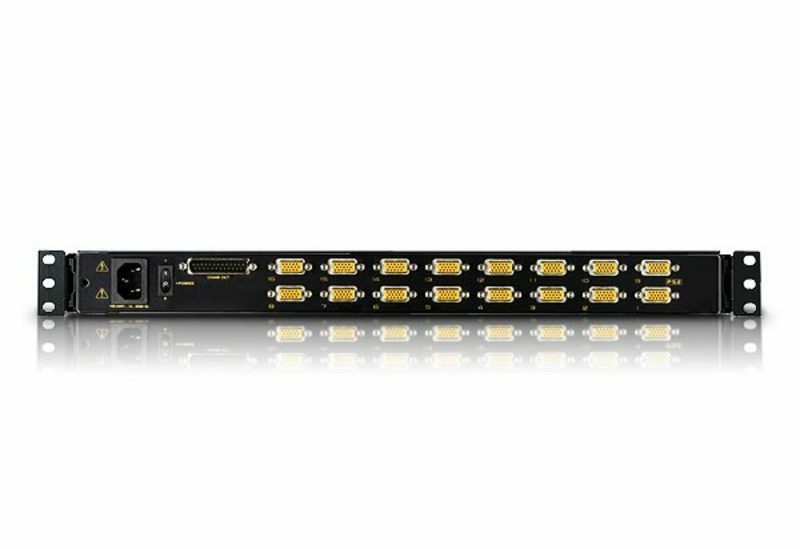

CL1016M-ATA-AG rack console
43.2 cm (17") 1280 x 1024 pixels Metal, Plastic Black 1U
Model CL1016M-ATA-AG
42 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight13.6 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typePS/2
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 13.6 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- PS/2
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL1016M-ATA-AG
- Part number
- CL1016M-ATA-AG
- Also known as
- ATEN CL1016M-ATA-AG rack console 43.2 cm (17") 1280 x 1024 pixels Metal, Plastic Black 1U
Specifications
42 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT-LCD |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.264 x 0.264 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal, Plastic |
| Connector type | SPHD |
| Daisy chain | Yes |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 16 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 24.5 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 640.2 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 13.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 16.8 kg |
| Package width | 668 mm |
| Package depth | 718 mm |
| Package height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
