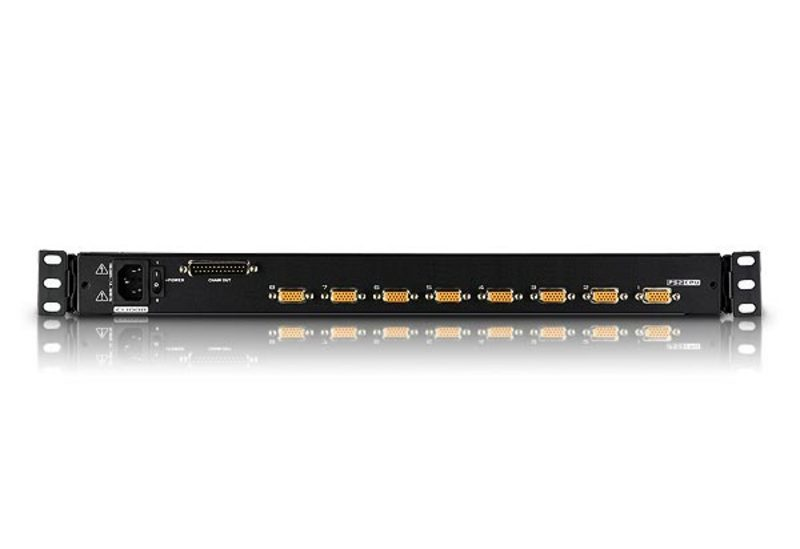

ATEN 8-Port 17" LCD KVM Switch (USB - PS/2 VGA)
ATEN

8-Port 17" LCD KVM Switch (USB - PS/2 VGA)

Model CL1008MPart no. CL1008M-ATA-XGEAN 4719264642425

48 specifications
  • Display43.2 cm (17")
  • Resolution1280 x 1024 pixels
  • Weight13.8 kg
  • ColourBlack
  • Rack capacity1U
  • Keyboard port typePS/2
See all specifications

Overview

Display
43.2 cm (17")
Resolution
1280 x 1024 pixels
Weight
13.8 kg
Colour
Black
Rack capacity
1U
Keyboard port type
PS/2
Brand
ATEN
Category
Rack Console
Model
CL1008M
Part number
CL1008M-ATA-XG
EAN / UPC
4719264642425
Also known as
ATEN 8-Port 17" LCD KVM Switch (USB - PS/2 VGA)

Specifications

48 specifications in 11 groups

Display

Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
DisplayLCD
Contrast ratio (typical)1000:1
Display brightness250 cd/m²
Display number of colours16.78 million colours
On Screen Display (OSD)Yes
Pixel pitch0.264 x 0.264 mm
Response time5 ms
Viewing angle, horizontal170°
Viewing angle, vertical160°

Technical details

Rack capacity1U
MaterialMetal, Plastic
Connector typeSPHD
Daisy chainYes
LED indicatorsYes
Maximum resolution1920 x 1200 pixels
Number of computers controlled8
Operating relative humidity (H-H)0 - 80%
Product colourBlack
Rack mountingYes

Ports & interfaces

Keyboard port typePS/2
Mouse port typePS/2

Keyboard

Hot keysYes

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedFreeBSD

Power

Power consumption (typical)23.6 W
AC adapter input voltage100 - 240 V
AC adapter frequency50 - 60 Hz
Input current1 A

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width640.2 mm
Height44 mm
Depth480 mm
Weight13.8 kg

Packaging data

Package weight16.6 kg
Package width668 mm
Package depth718 mm
Package height135 mm

Packaging content

ManualYes

Logistics data

Master (outer) case net weight13.8 kg
Master (outer) case width668 mm
Master (outer) case length718 mm
Master (outer) case height135 mm
Master (outer) case gross weight16.6 kg
Products per master (outer) case1 pc(s)
