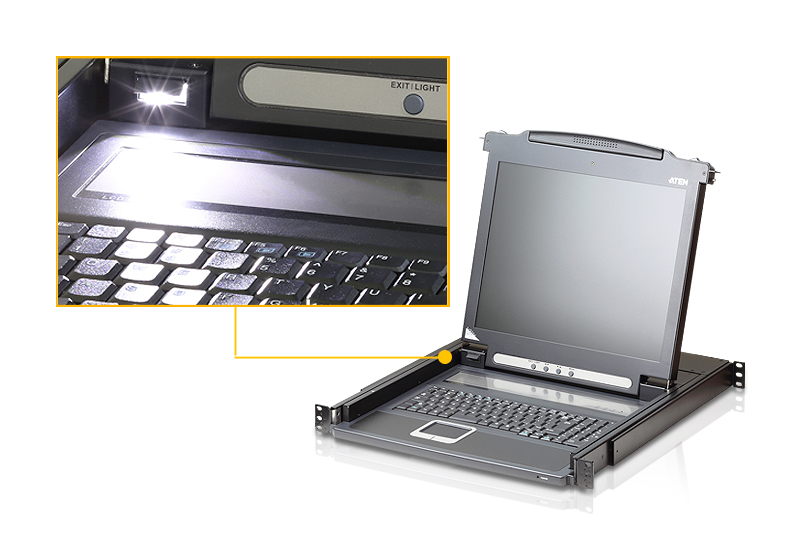

CL1000M-ATA-ITG rack console
43.2 cm (17") Black 1U
Model CL1000M-ATA-ITG
31 specifications
- Display43.2 cm (17")
- Weight12 kg
- ColourBlack
- Rack capacity1U
- VGA (D-Sub) ports quantity1
- Keyboard languageItalian
Overview
- Display
- 43.2 cm (17")
- Weight
- 12 kg
- Colour
- Black
- Rack capacity
- 1U
- VGA (D-Sub) ports quantity
- 1
- Keyboard language
- Italian
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL1000M-ATA-ITG
- Part number
- CL1000M-ATA-ITG
- Also known as
- ATEN CL1000M-ATA-ITG rack console 43.2 cm (17") Black 1U
Specifications
31 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display | LCD |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 1 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |

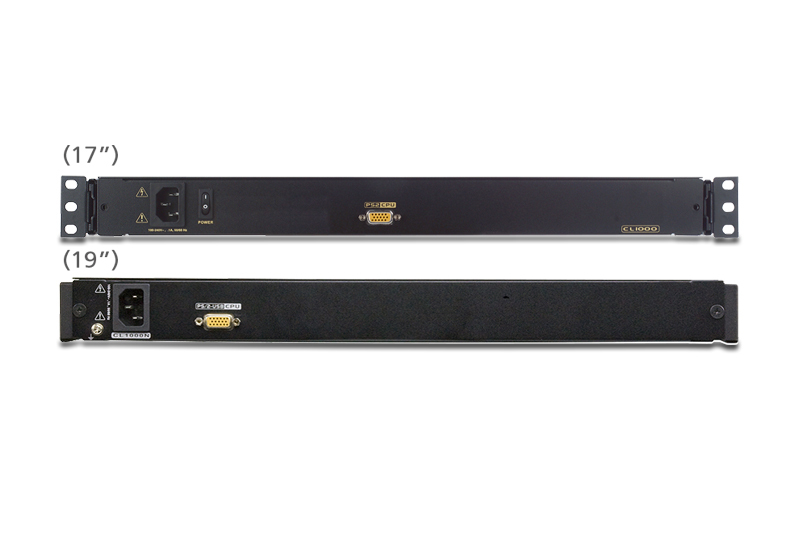

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
Keyboard
| Specification | Value |
|---|---|
| Keyboard language | Italian |
| Keyboard layout | QWERTY |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 16 W |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 538.3 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 12 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
