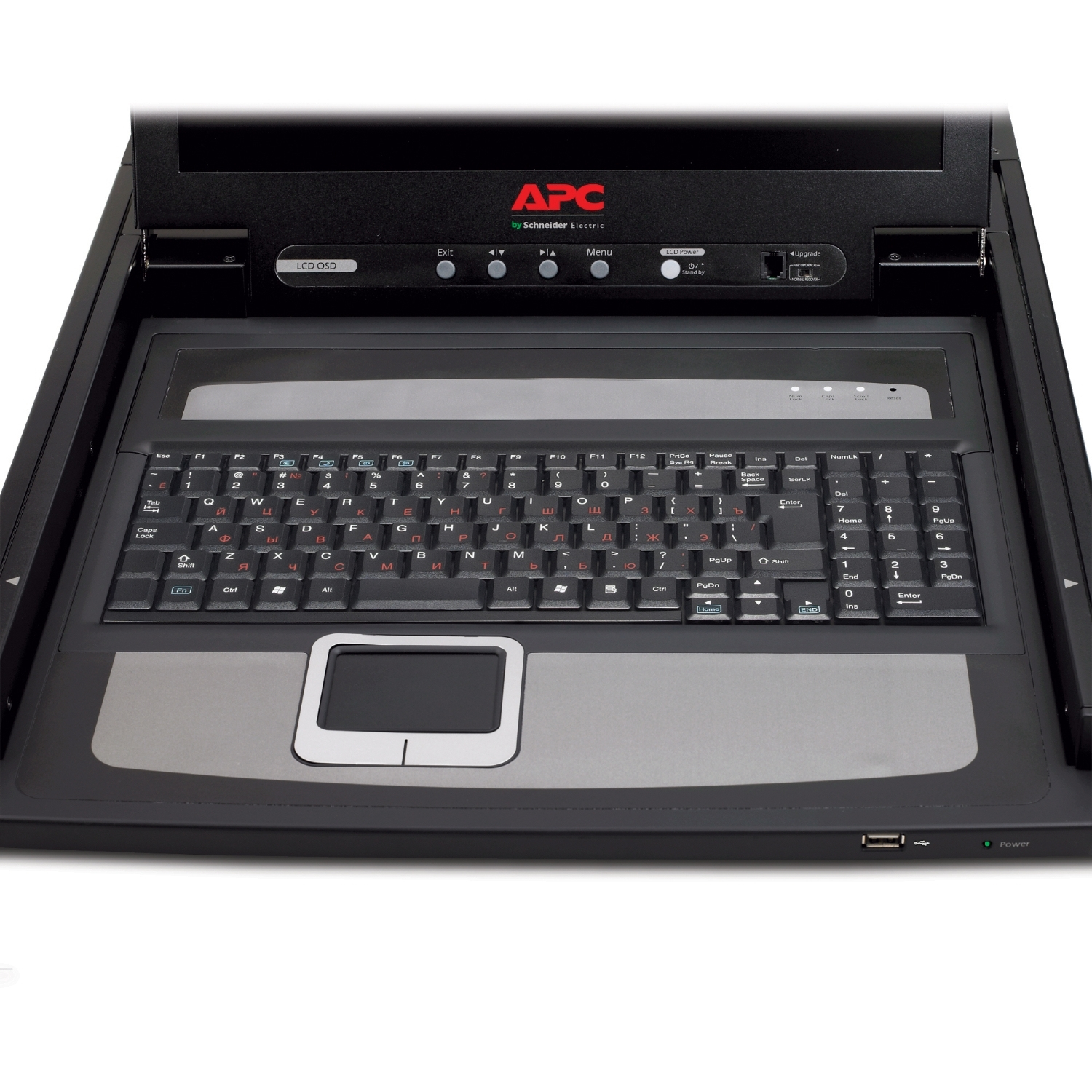

17" Rack LCD Console - Russian
Model AP5717REAN 731304283270
35 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight15.9 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typePS/2
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 15.9 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- PS/2
- Brand
- APC
- Category
- Rack Console
- Model
- AP5717R
- Part number
- AP5717R
- EAN / UPC
- 731304283270
- Also known as
- APC 17" Rack LCD Console - Russian
Specifications
35 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Pixel pitch | 0.26 x 0.26 mm |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Console port | SPHD-18 |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | PS/2 |
| Mouse port type | USB |
| USB 2.0 Type-A ports quantity | 2 |
| I/O ports | RJ-11, 3-prong AC, USB Type-B |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Certification | C-tick, EN 55022 Class A, EN 55024, EN 60950, FCC Part 15 Class A, GOST, IEC 60950, Industry Canada, NOM, UL Listed, VCCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 44 mm |
| Depth | 614 mm |
| Weight | 15.9 kg |
| Mounting depth (min) | 68 cm |
| Mounting depth (max) | 105 cm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 19.5 kg |
| Package width | 673 mm |
| Package depth | 826 mm |
| Package height | 152 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM, USB |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Packaging content | Firmware upgrade cable |
