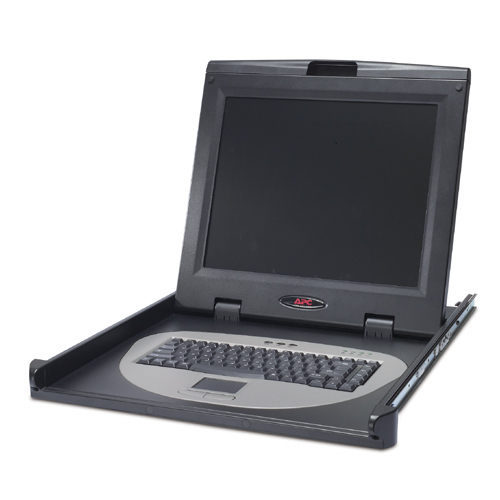

AP5017G rack console
43.2 cm (17") 1280 x 960 pixels
Model AP5017GEAN 731304234074
16 specifications
- Display43.2 cm (17")
- Resolution1280 x 960 pixels
- Type1U
- Weight14.8 kg
- Built-in touchpadYes
- AC adapter input voltage90 - 264 V
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 960 pixels
- Type
- 1U
- Weight
- 14.8 kg
- Built-in touchpad
- Yes
- AC adapter input voltage
- 90 - 264 V
- Brand
- APC
- Category
- Rack Console
- Model
- AP5017G
- Part number
- AP5017G
- EAN / UPC
- 731304234074
- Also known as
- APC AP5017G rack console 43.2 cm (17") 1280 x 960 pixels
Specifications
16 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 960 pixels |
| Display | LCD |
| Contrast ratio (typical) | 300:1 |
| On Screen Display (OSD) | Yes |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
Technical details
| Specification | Value |
|---|---|
| Form factor | 1U |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 445 x 743 x 44 mm |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 90 - 264 V |
| AC adapter frequency | 50 - 60 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL,CCC,CE,CSA,CSA C22.2 No. 60960,EN 55022 A,EN 55024,EN 60950,EN 61000-3-2,EN 61000-3-3,FCC 15 A,GOST,ICES-003,IEC 60950,IRAM,UL 60950-1,UL,VCCI A,VDE |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 14.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 19.8 kg |
| Package dimensions (WxDxH) | 603 x 826 x 241 mm |
