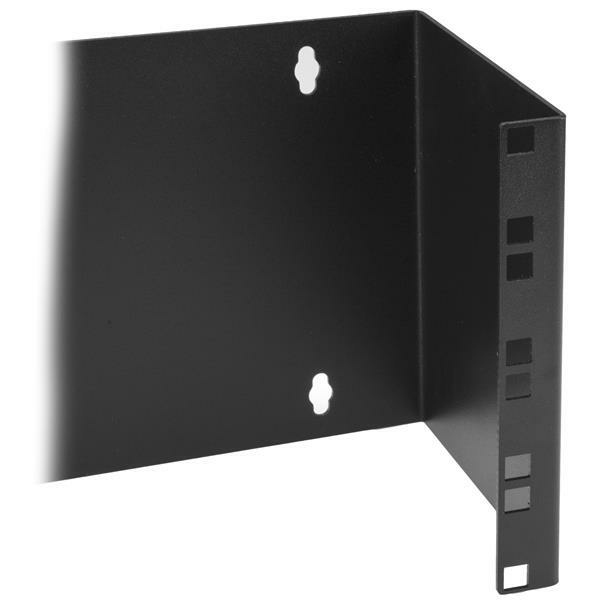

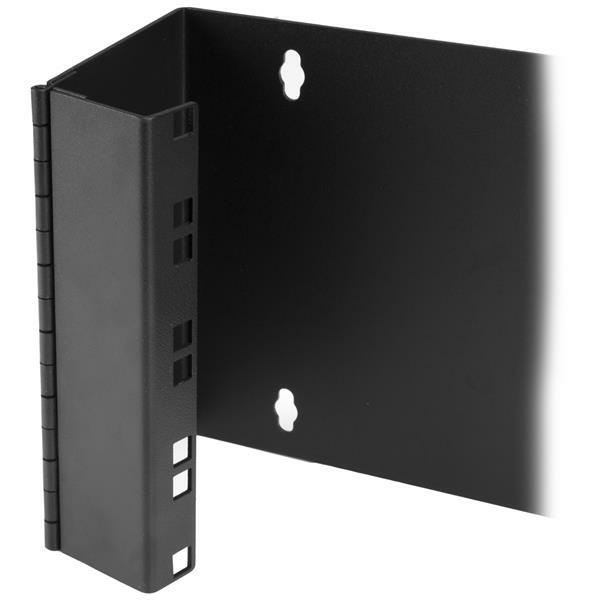

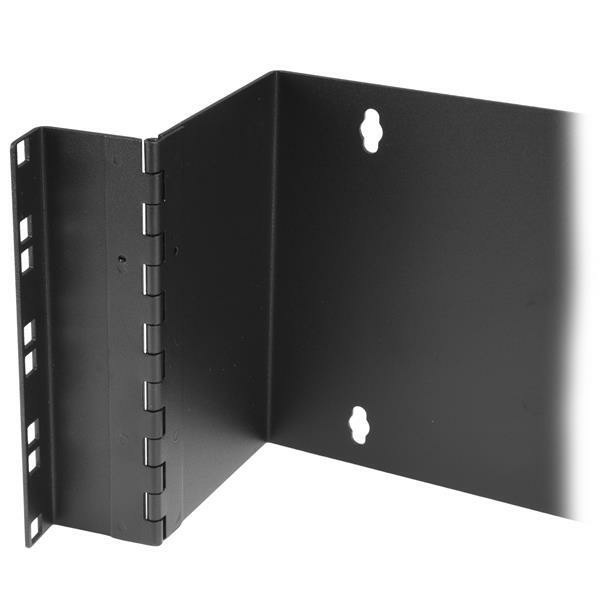

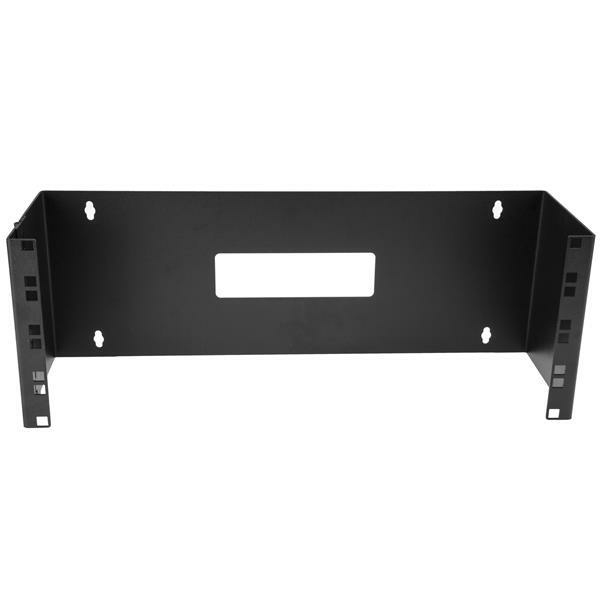

StarTech.com 4U Hinged Wall Mount Patch Panel Bracket
6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 33lbs
Model WALLMOUNTH4EAN 5054629103128
33 specifications
- TypeWall mounted rack
- Weight2.2 kg
- ColourBlack
- Rack capacity4U
- Width501 mm
- Compliance certificatesRoHS
Overview
- Type
- Wall mounted rack
- Weight
- 2.2 kg
- Colour
- Black
- Rack capacity
- 4U
- Width
- 501 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- WALLMOUNTH4
- Part number
- WALLMOUNTH4
- EAN / UPC
- 5054629103128, 065030783521, 650307835210, 769118351564 +3 more
- Also known as
- StarTech.com 4U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 33lbs
Specifications
33 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 4U |
| Type | Wall mounted rack |
| Maximum weight capacity | 15 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | RoHS |

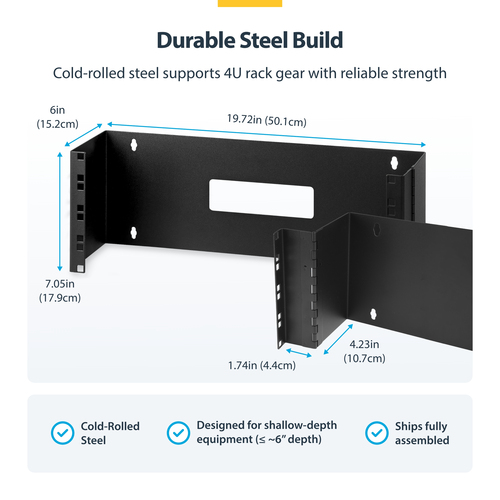

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 501 mm |
| Depth | 152 mm |
| Height | 179 mm |
| Weight | 2.2 kg |
| Mounting depth (max) | 14.8 cm |
Packaging data
| Specification | Value |
|---|---|

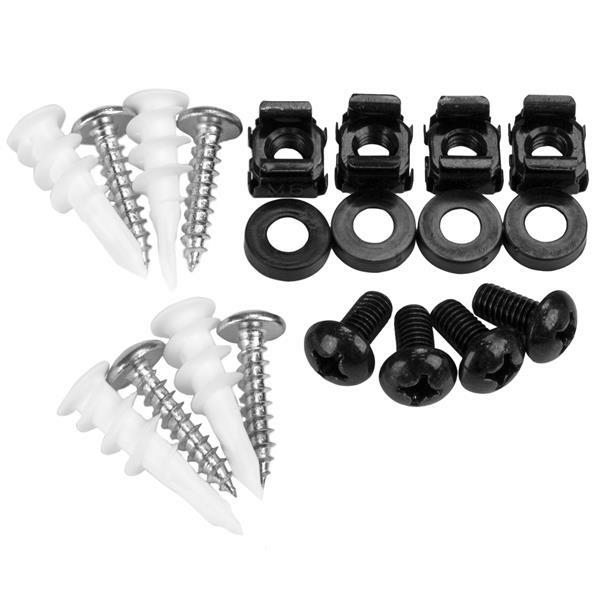

| Nuts included | Yes |
| Number of nuts | 8 |
| Number of screws | 12 |
| Screws included | Yes |
| Number of washers included | 4 |
| Package width | 528 mm |
| Package depth | 190 mm |
| Package height | 226 mm |
| Package weight | 2.7 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 222 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 188 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
Compare StarTech.com 4U Hinged Wall Mount Patch Panel Bracket
Compare any products- StarTech.com 4U Hinged Wall Mount Patch Panel Bracket vsStarTech.com 2-Post 8U Heavy-Duty Wall-Mount Network RackCompare specs
- StarTech.com 4U Hinged Wall Mount Patch Panel Bracket vsStarTech.com 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket - TAACompare specs
- StarTech.com 4U Hinged Wall Mount Patch Panel Bracket vsStarTech.com 6U Wall Mount Network RackCompare specs
- StarTech.com 4U Hinged Wall Mount Patch Panel Bracket vsStarTech.com 41U Rack Enclosure Server CabinetCompare specs

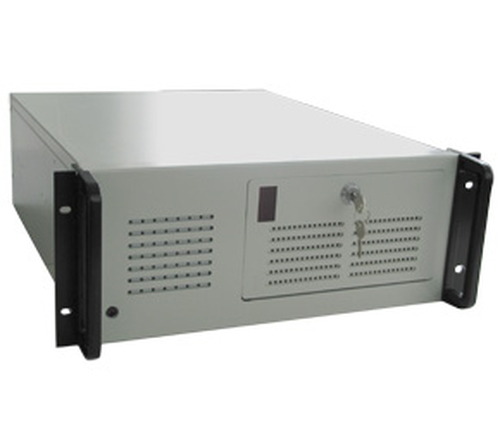

- StarTech.com 4U Hinged Wall Mount Patch Panel Bracket vsLindy 19" Rackmount Server CaseCompare specs

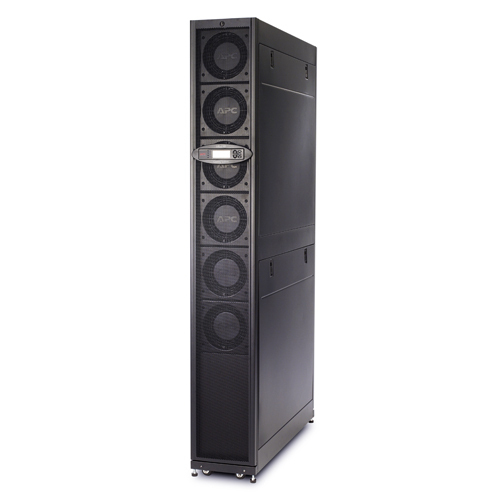

- StarTech.com 4U Hinged Wall Mount Patch Panel Bracket vsAPC InRow RD, 300mm, Fluid Cooled, 208-230V, 60HzCompare specs

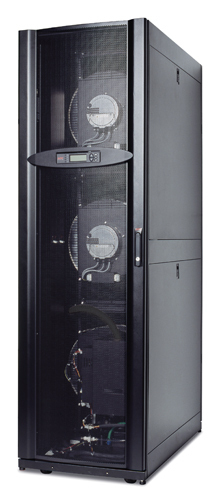

- StarTech.com 4U Hinged Wall Mount Patch Panel Bracket vsAPC InRow RP Chilled Water 200-240V 50/60HzCompare specs
