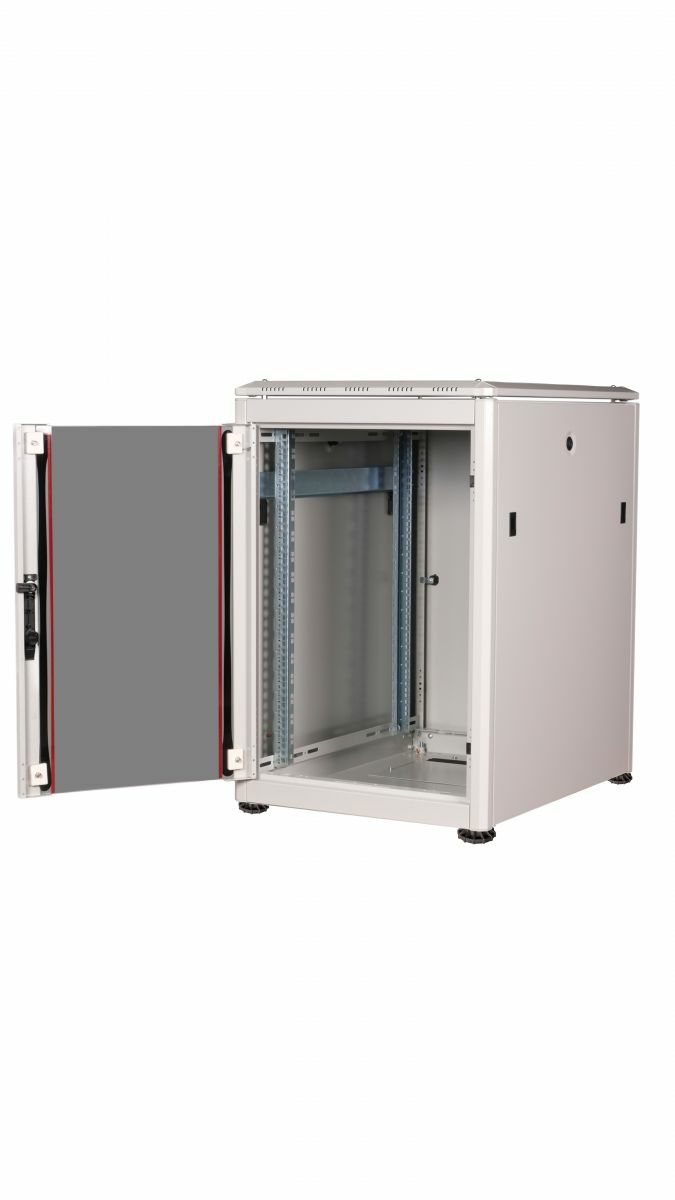

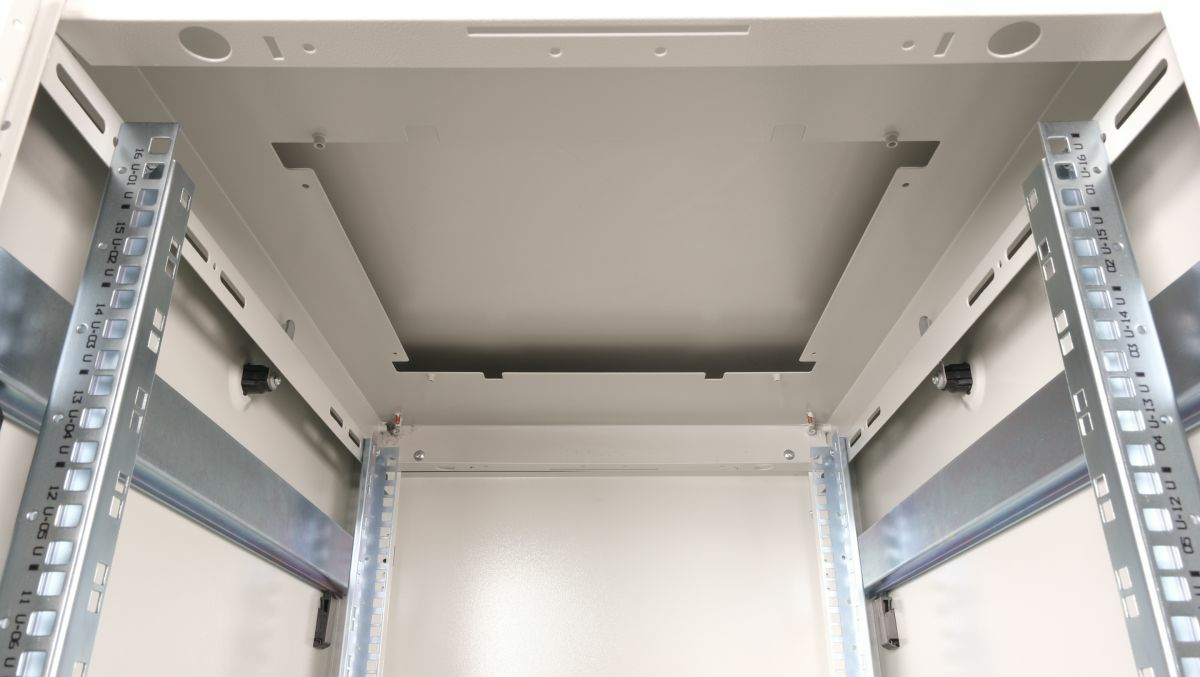

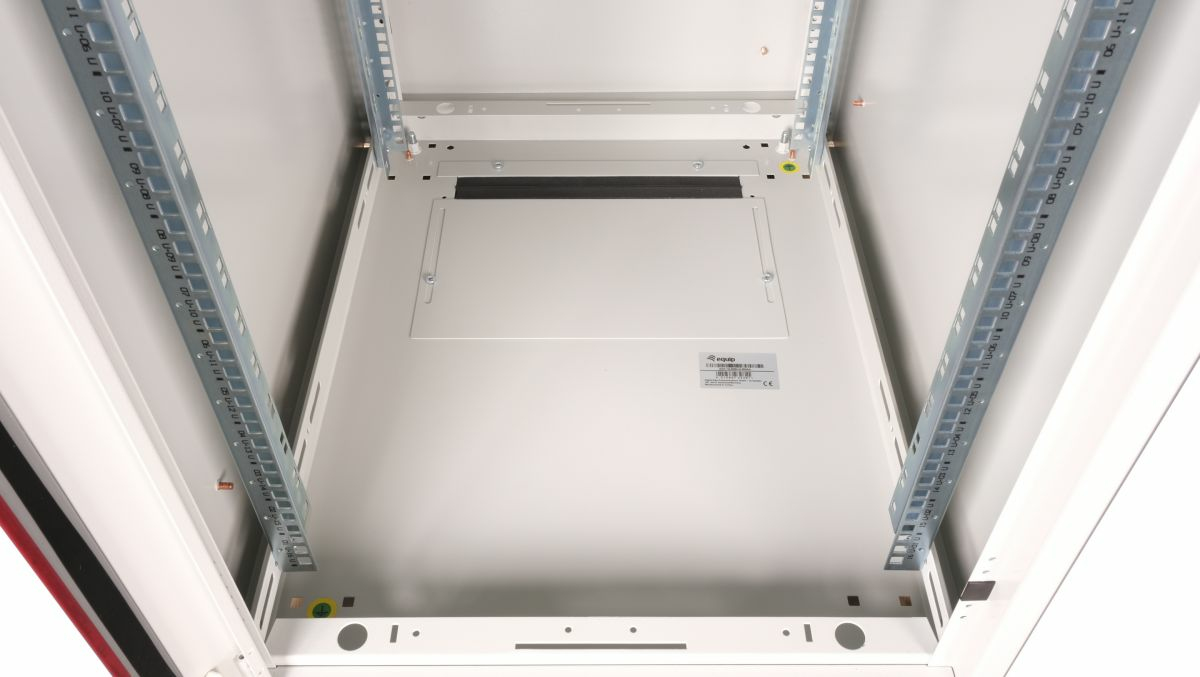

Dynamic Flex 19' Cabinet, 16U
600X800MM, RAL7035 Grey
Model EDF-16-6080-G-BMAAEAN 4015867232811
70 specifications
- TypeFreestanding rack
- Weight48 kg
- ColourLight grey
- Rack capacity16U
- Size (imperial)56.9 cm (22.4")
- Pallet gross weight119 kg
Overview
- Type
- Freestanding rack
- Weight
- 48 kg
- Colour
- Light grey
- Rack capacity
- 16U
- Size (imperial)
- 56.9 cm (22.4")
- Pallet gross weight
- 119 kg
- Brand
- Equip
- Category
- Rack Cabinet
- Model
- EDF-16-6080-G-BMAA
- Part number
- EDF-16-6080-G-BMAA
- EAN / UPC
- 4015867232811
- Also known as
- Equip Dynamic Flex 19' Cabinet, 16U, 600X800MM, RAL7035 Grey
Specifications
70 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 16U |
| Type | Freestanding rack |
| Maximum weight capacity | 600 kg |
| Maximum weight capacity (rolling) | 600 kg |
| Product colour | Light grey |
| Material | Steel |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Steel |
| Front door construction | Tempered glass |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Rack rail thickness | 1.5 mm |
| Rack rails | Yes |
| Adjustable depth | No |
| Adjustable stand | No |
| Adjustable feet | Yes |
| Feet adjustment | 3 cm |
| Cooling type | Passive |
| Soundproof | No |
| Main PDU | No |
| Monitoring | No |
| Cable management | No |
| Stabilising foot screw | Yes |
| Number of stabilising foot screws | 4 pc(s) |
| Castor wheels | No |
| Door opening angle | 120° |
| Assembly required | No |
| Preassembled | Yes |
| Built-in UPS | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 56.9 cm (22.4") |
| Width | 600 mm |
| Depth | 800 mm |
| Height | 898 mm |
| Inner width | 59.5 cm |
| Inner depth | 79 cm |
| Inner height | 71.1 cm |
| Weight | 48 kg |
| Mounting depth (min) | 56 cm |
| Mounting depth (max) | 74 cm |
Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 28 |
| Number of screws | 28 |
| Screws included | Yes |
| Plinth panel | No |
| Temperature sensor | No |
| Grounding kit | Yes |
| Mounting kit | No |
| Wall mounting kit | No |
| Quick installation guide | No |
| Manual | Yes |
| Package width | 680 mm |
| Package depth | 880 mm |
| Package height | 1020 mm |
Technical details
| Specification | Value |
|---|---|
| Pallet gross weight | 119 kg |
| Pallet net height | 15 cm |
| Pallet net length | 88 cm |
| Pallet net weight | 8 kg |
| Pallet net width | 68 cm |
| Total carbon footprint (kg of CO2e) | 8.208 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Turkey |
| Harmonized System (HS) code | 853710980019 |
| Products per master (outer) case | 1 pc(s) |
