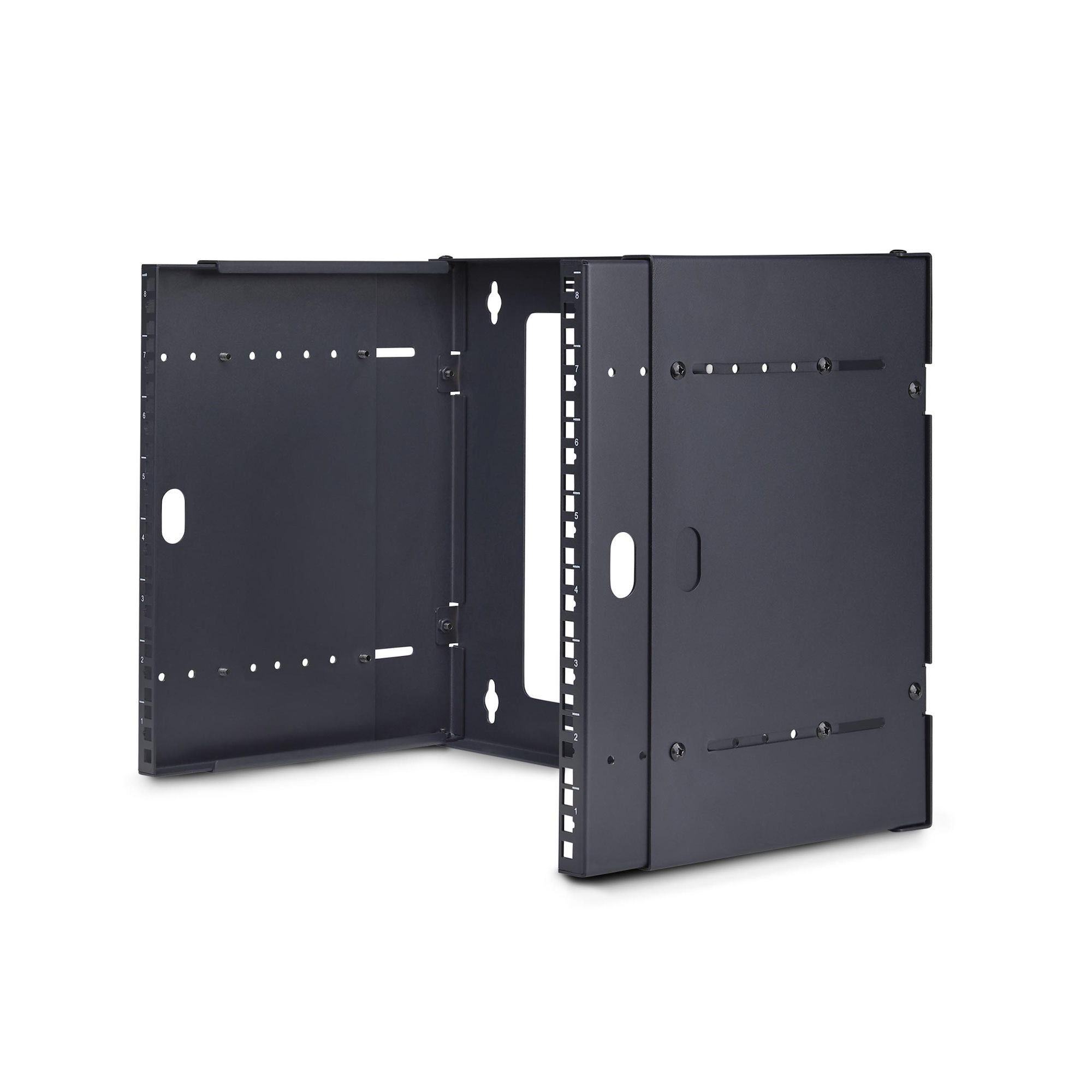

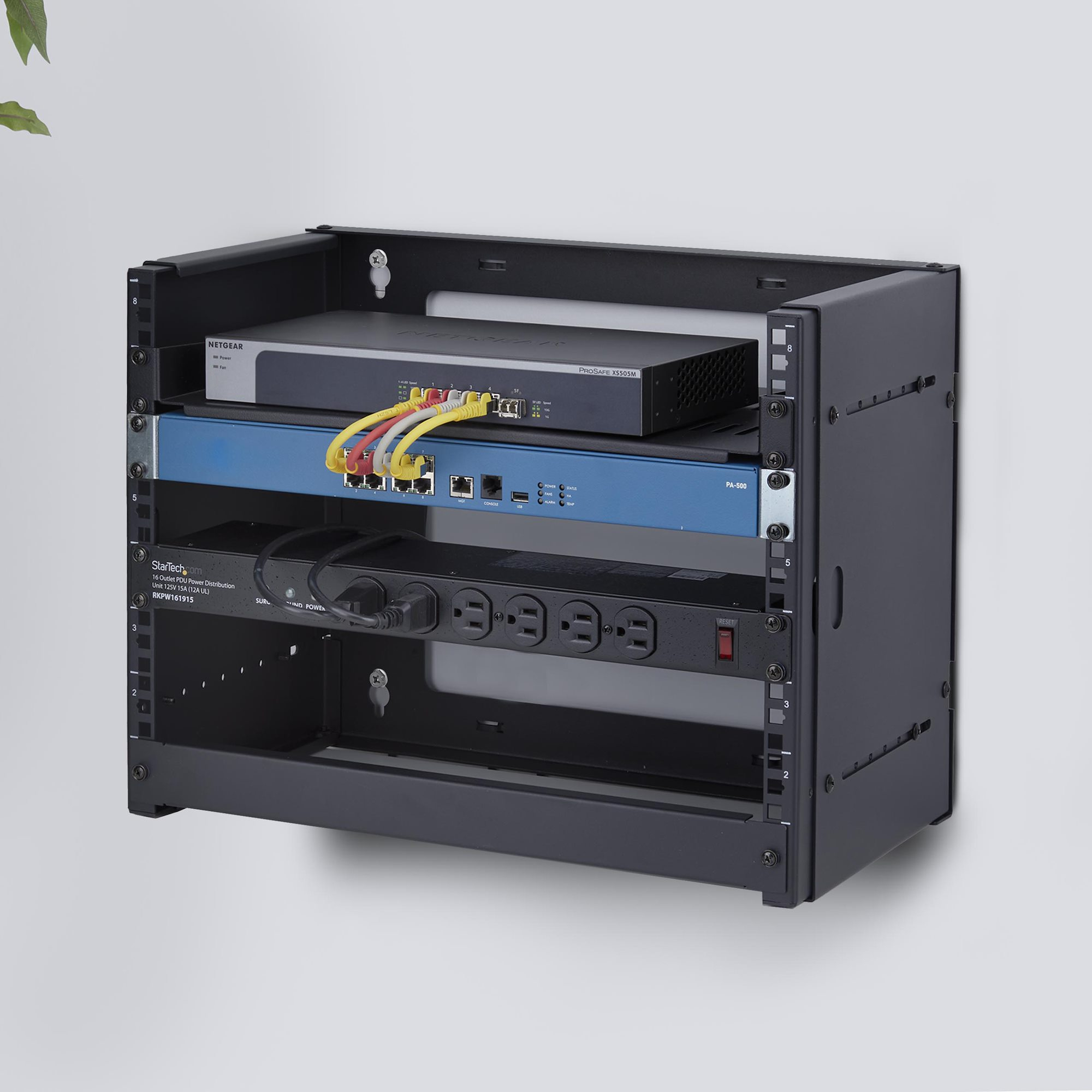

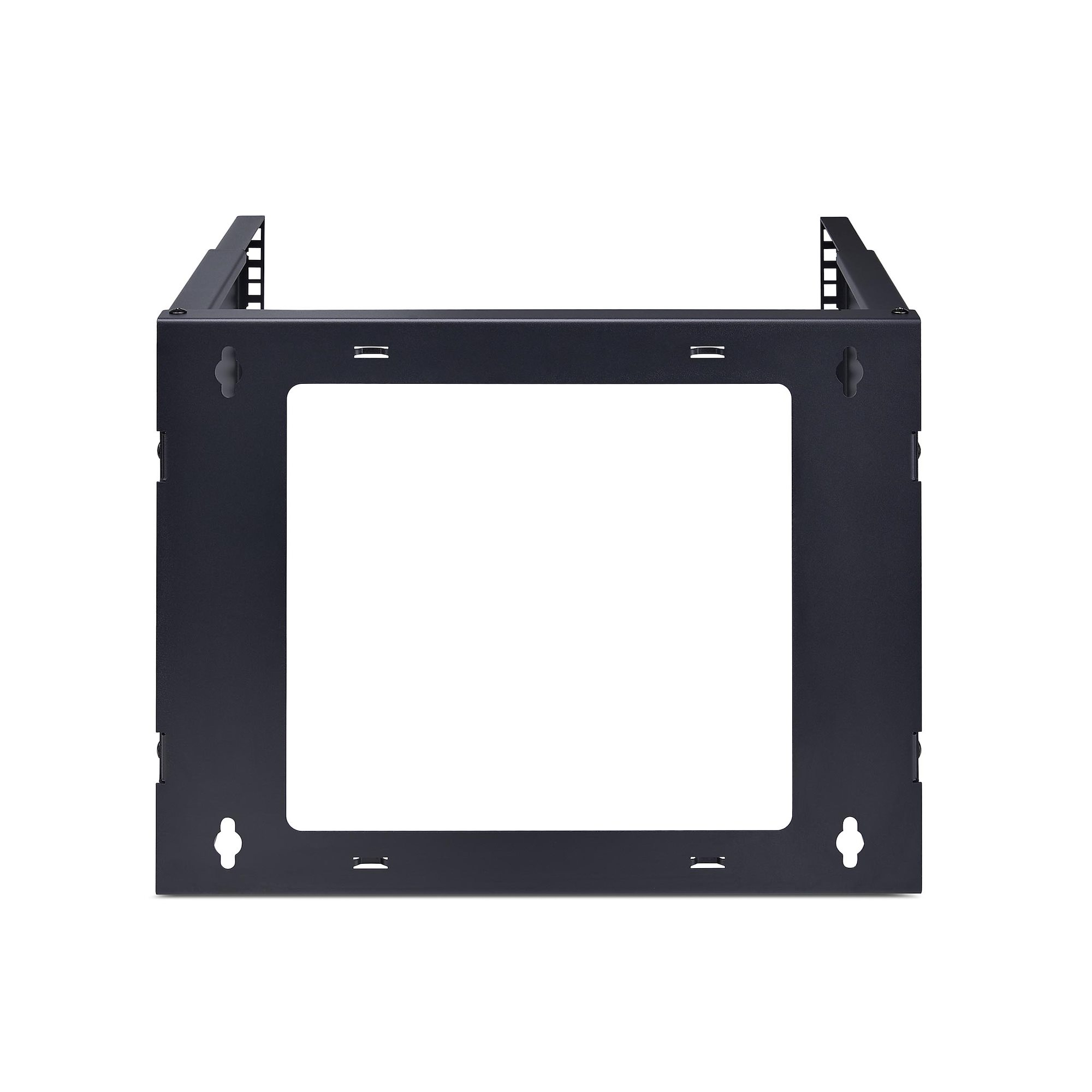

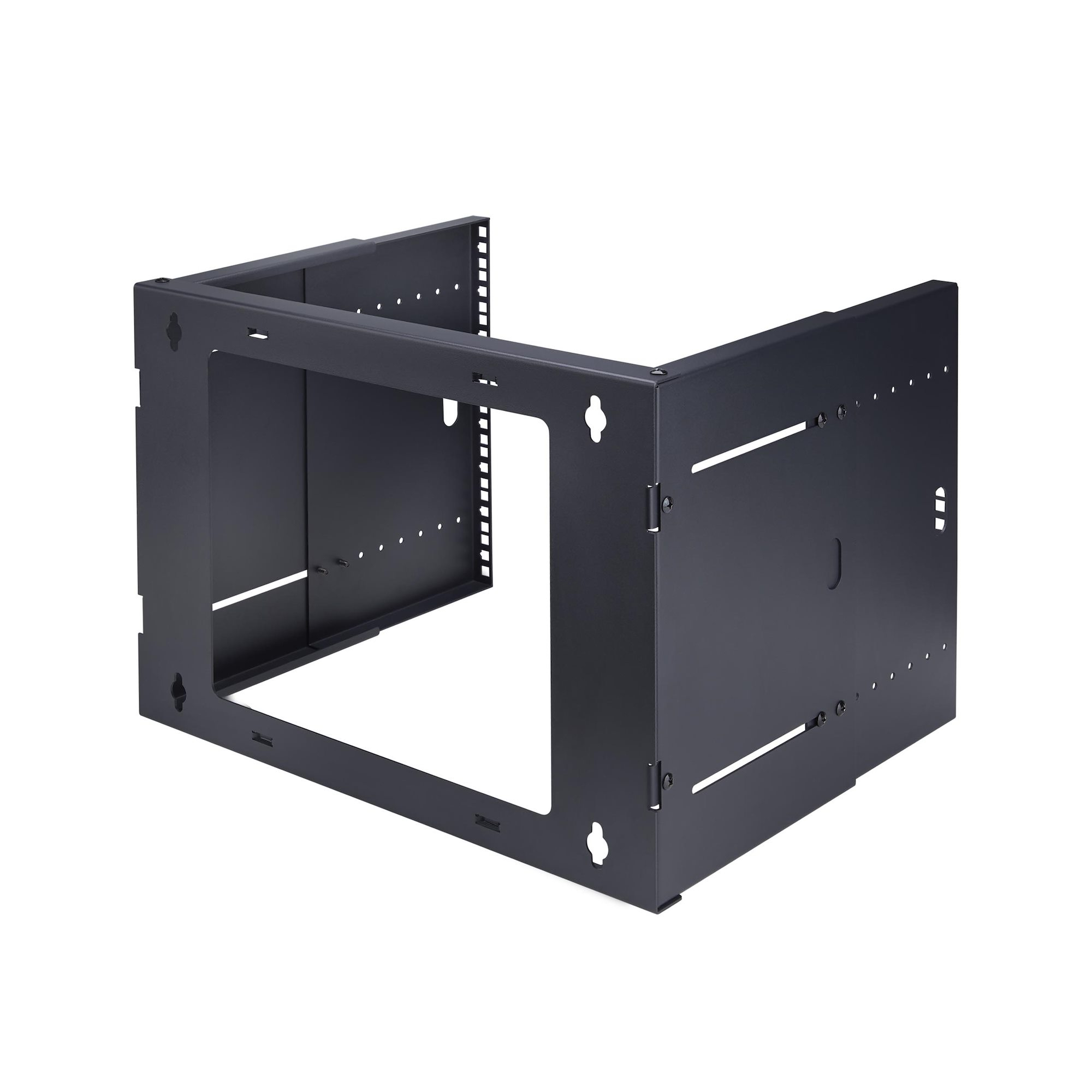

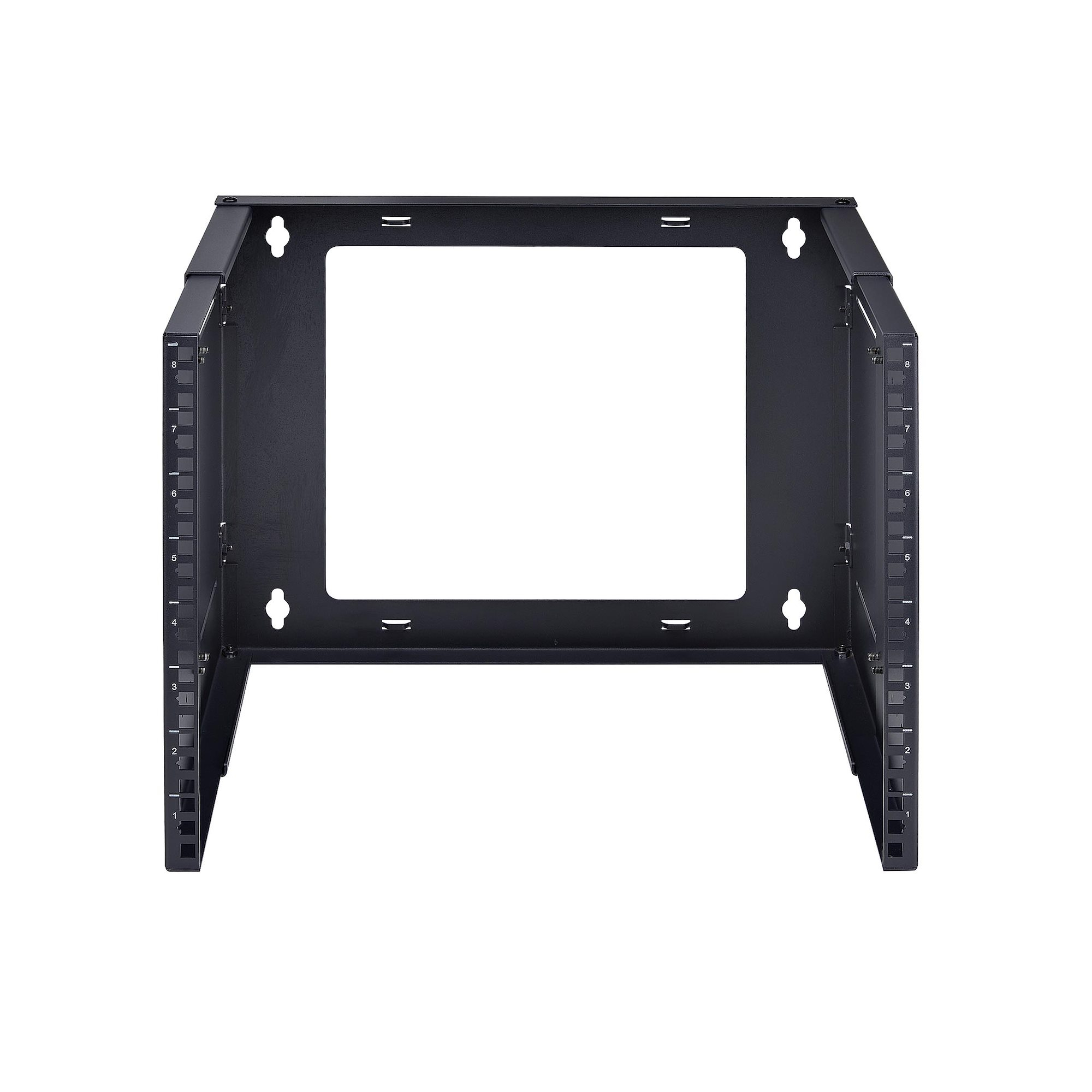

2-Post 6U Wall Mounted Rack, Adjustable Depth up to
16in (40cm), Bracket for 19-inch Server/Data/Networking Equipment, Open Frame, Max 88lb (40kg)
Model WALLMOUNT6-HAFEAN 065030912860
29 specifications
- TypeWall mounted rack
- Weight6.8 kg
- ColourBlack
- Rack capacity6U
- Width397.7 mm
Overview
- Type
- Wall mounted rack
- Weight
- 6.8 kg
- Colour
- Black
- Rack capacity
- 6U
- Width
- 397.7 mm
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- WALLMOUNT6-HAF
- Part number
- WALLMOUNT6-HAF
- EAN / UPC
- 065030912860
- Also known as
- StarTech.com 2-Post 6U Wall Mounted Rack, Adjustable Depth up to 16in (40cm), Bracket for 19-inch Server/Data/Networking Equipment, Open Frame, Max 88lb (40kg)
Specifications
29 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 40 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Mounting hole shape | Square |
| Preassembled | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 397.7 mm |
| Depth | 500 mm |
| Height | 294.6 mm |
| Weight | 6.8 kg |
| Mounting depth (min) | 24.5 cm |
| Mounting depth (max) | 39.8 cm |
Packaging data
| Specification | Value |
|---|---|

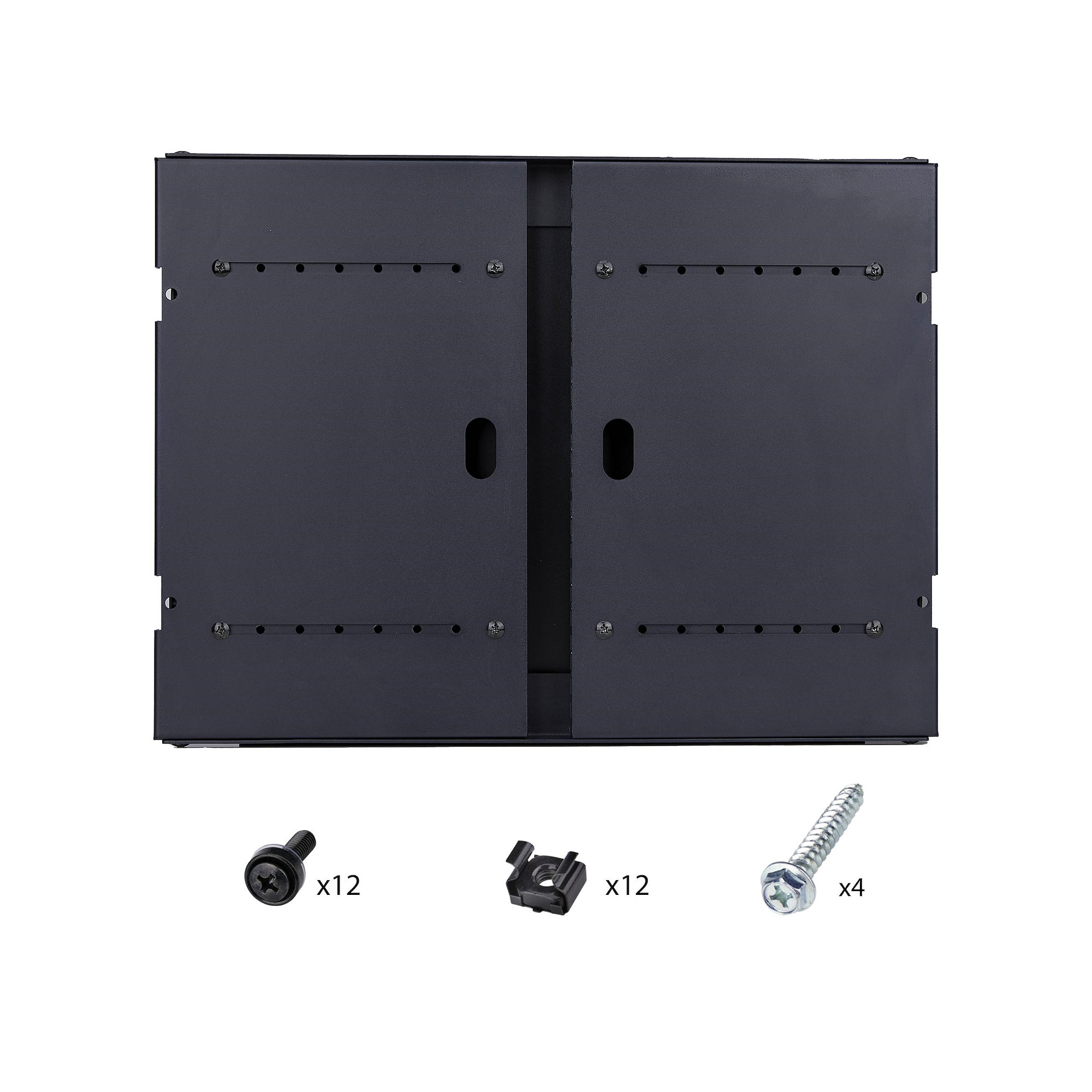

| Nuts included | Yes |
| Number of nuts | 12 |
| Number of screws | 20 |
| Screws included | Yes |
| Quick installation guide | Yes |
| Package width | 375 mm |
| Package depth | 565 mm |
| Package height | 100 mm |
| Package weight | 7.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 100 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
