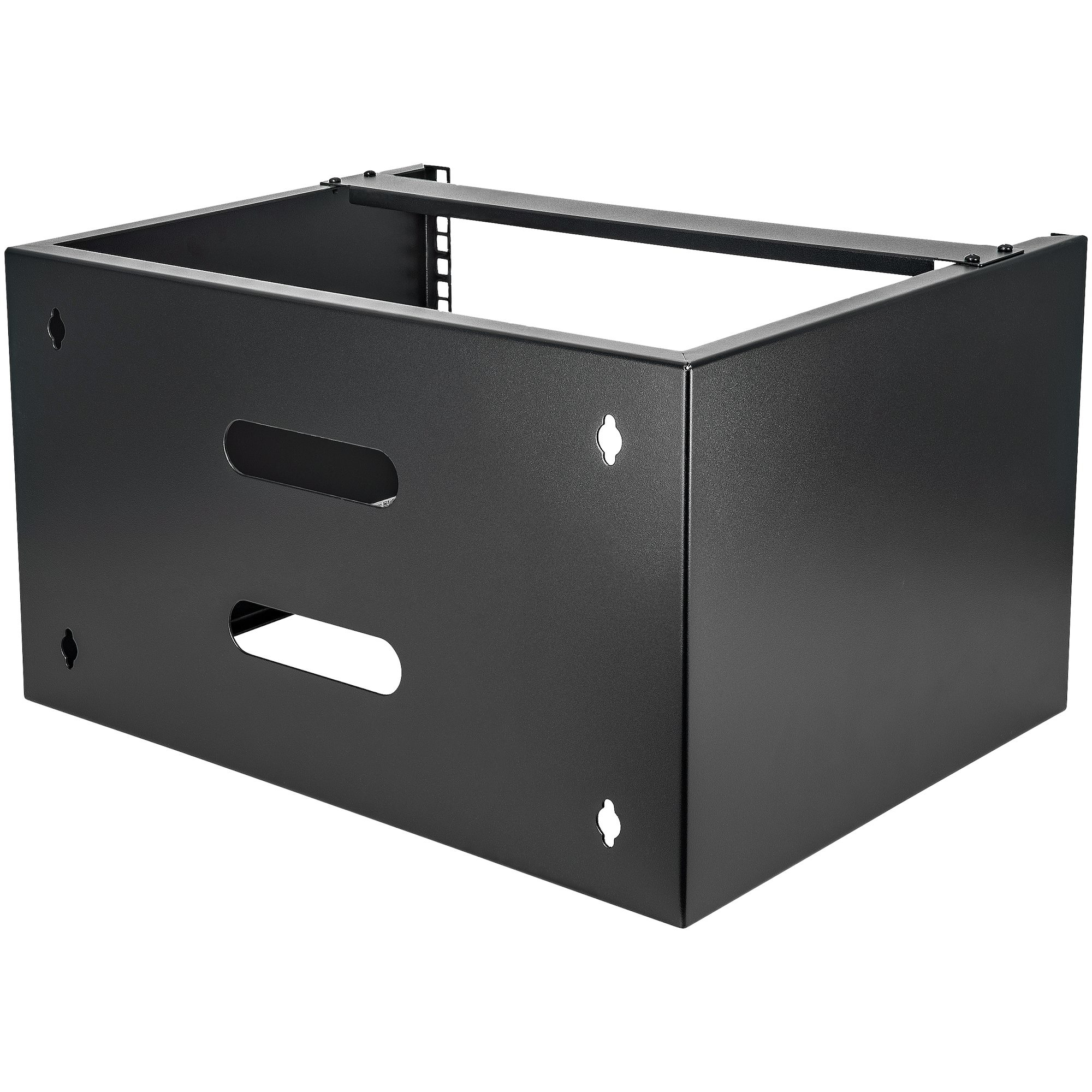

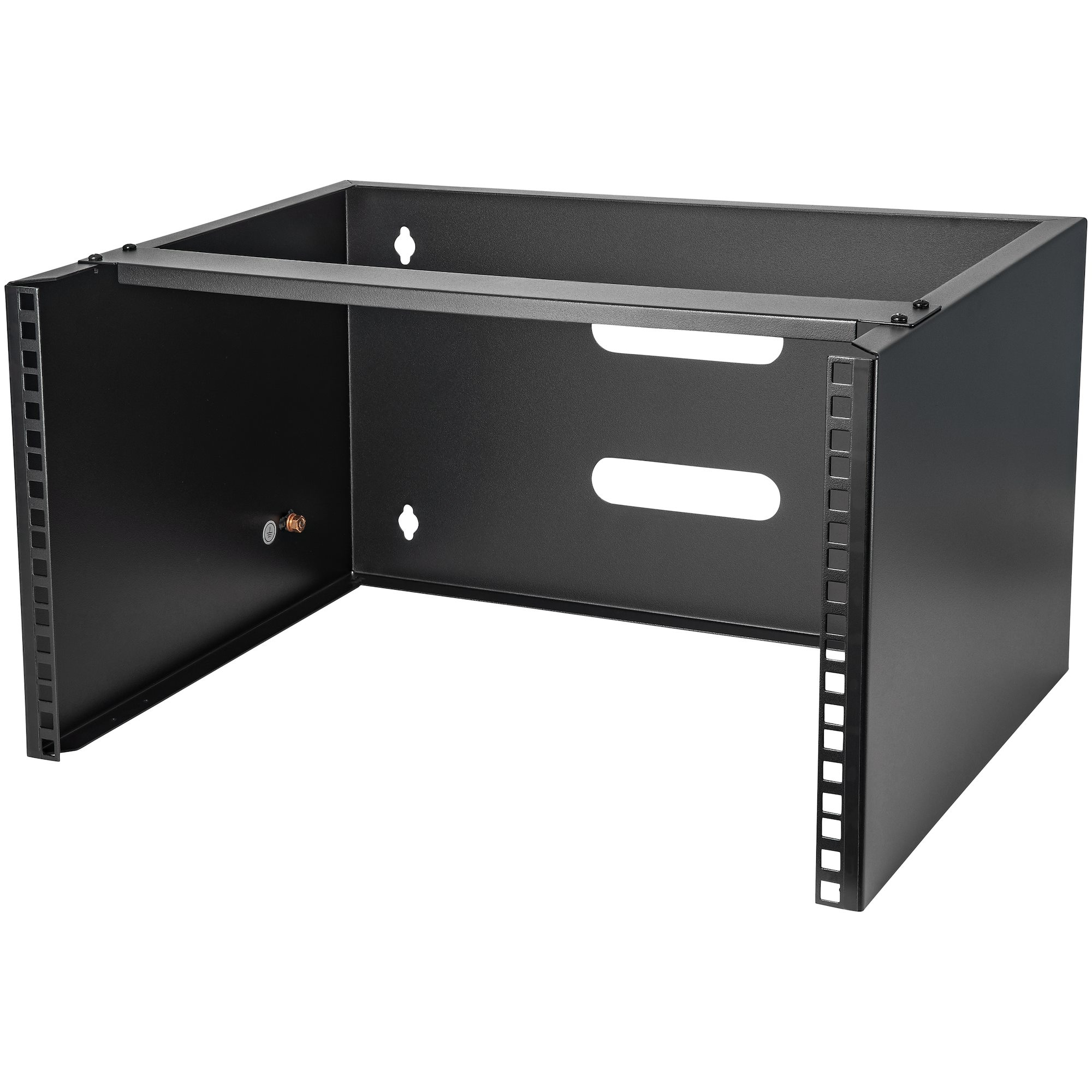

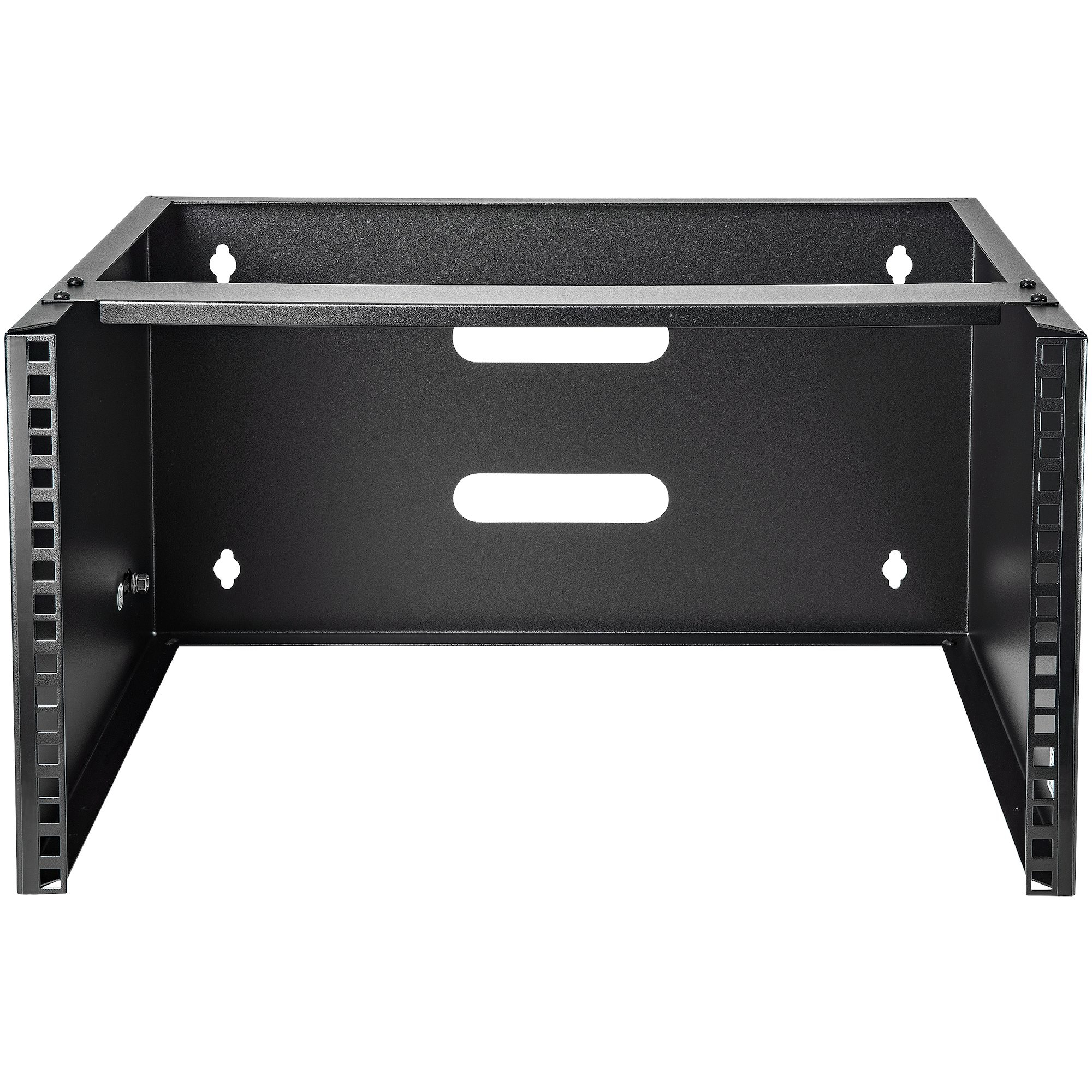

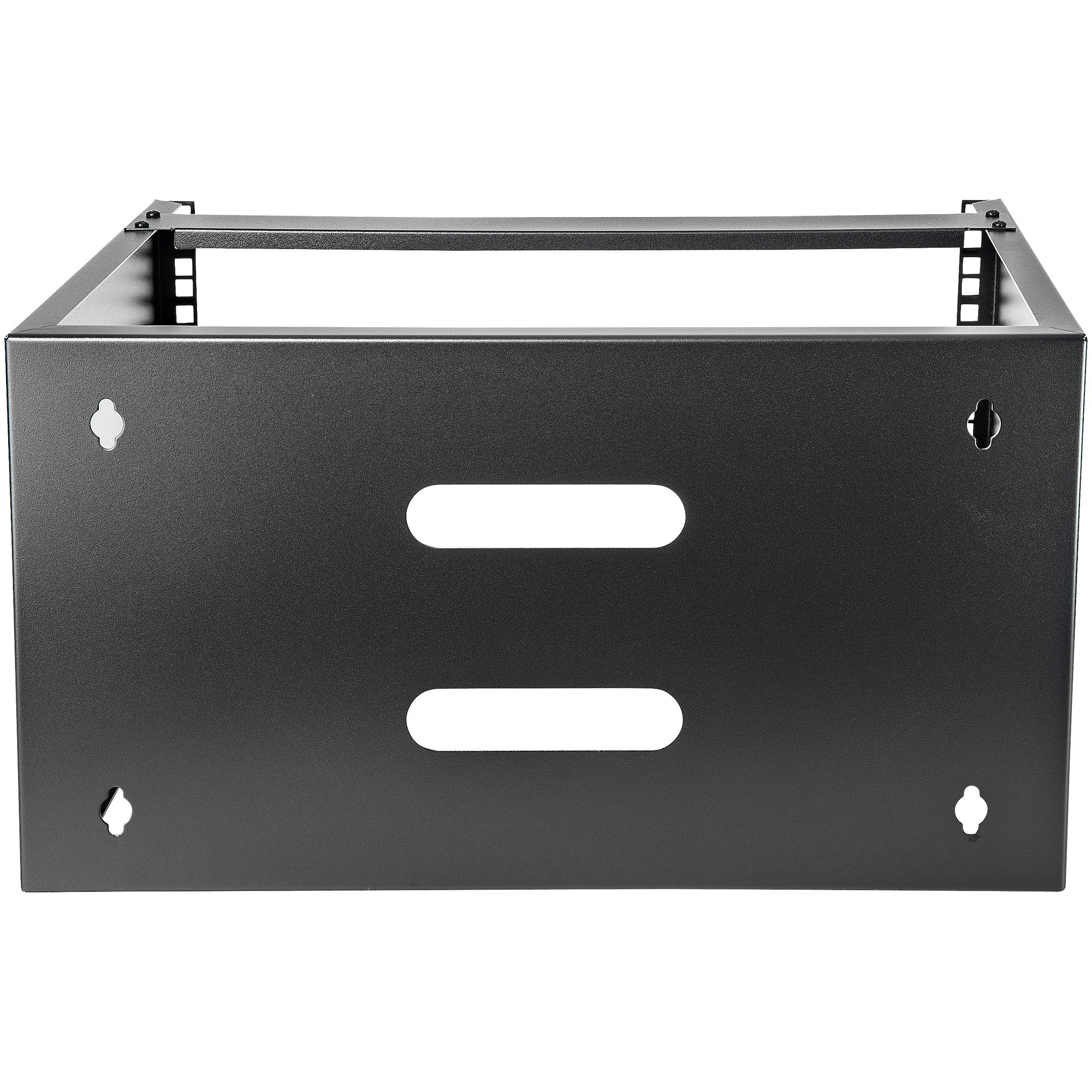

StarTech.com 6U Wall Mount Network Rack
14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20k
Model WALLMOUNT6EAN 4058829195397
33 specifications
- TypeWall mounted rack
- Weight4.5 kg
- ColourBlack
- Rack capacity6U
- Width498 mm
- Compliance certificatesRoHS
Overview
- Type
- Wall mounted rack
- Weight
- 4.5 kg
- Colour
- Black
- Rack capacity
- 6U
- Width
- 498 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- WALLMOUNT6
- Part number
- WALLMOUNT6
- EAN / UPC
- 4058829195397, 021111376785, 065030822831, 132017765129 +9 more
- Also known as
- StarTech.com 6U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20k
Specifications
33 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 20 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Adjustable mounting rails | No |
| Number of fans | 0 fan(s) |
| Cable management | No |

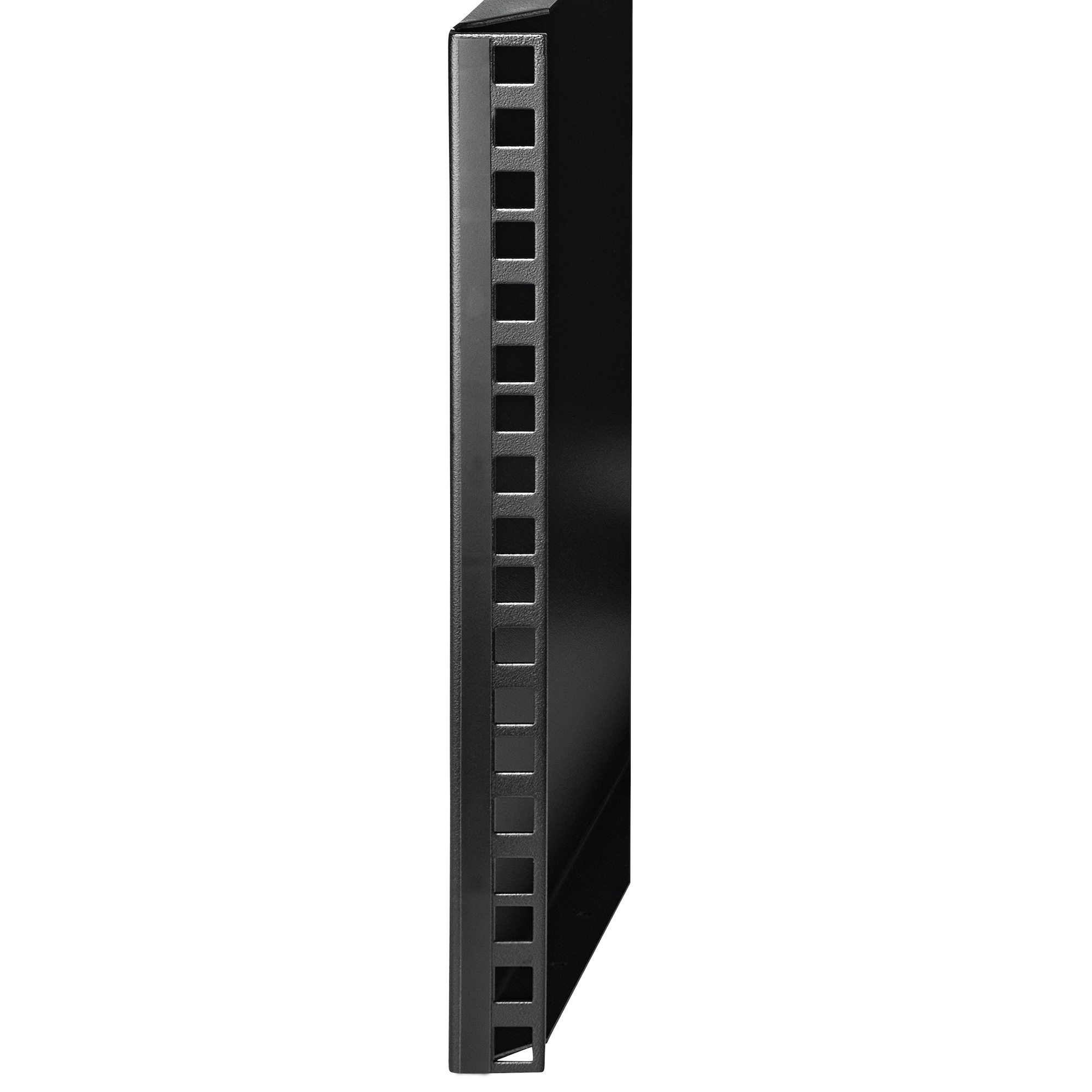

| Mounting hole shape | Square |
| Castor wheels | No |

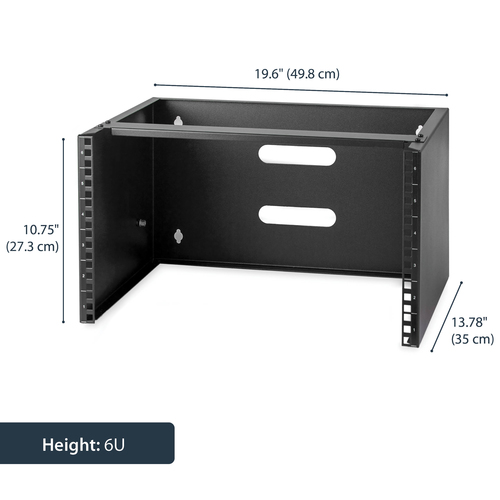

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 498 mm |
| Depth | 350 mm |
| Height | 273 mm |
| Weight | 4.5 kg |
| Mounting depth (max) | 35 cm |

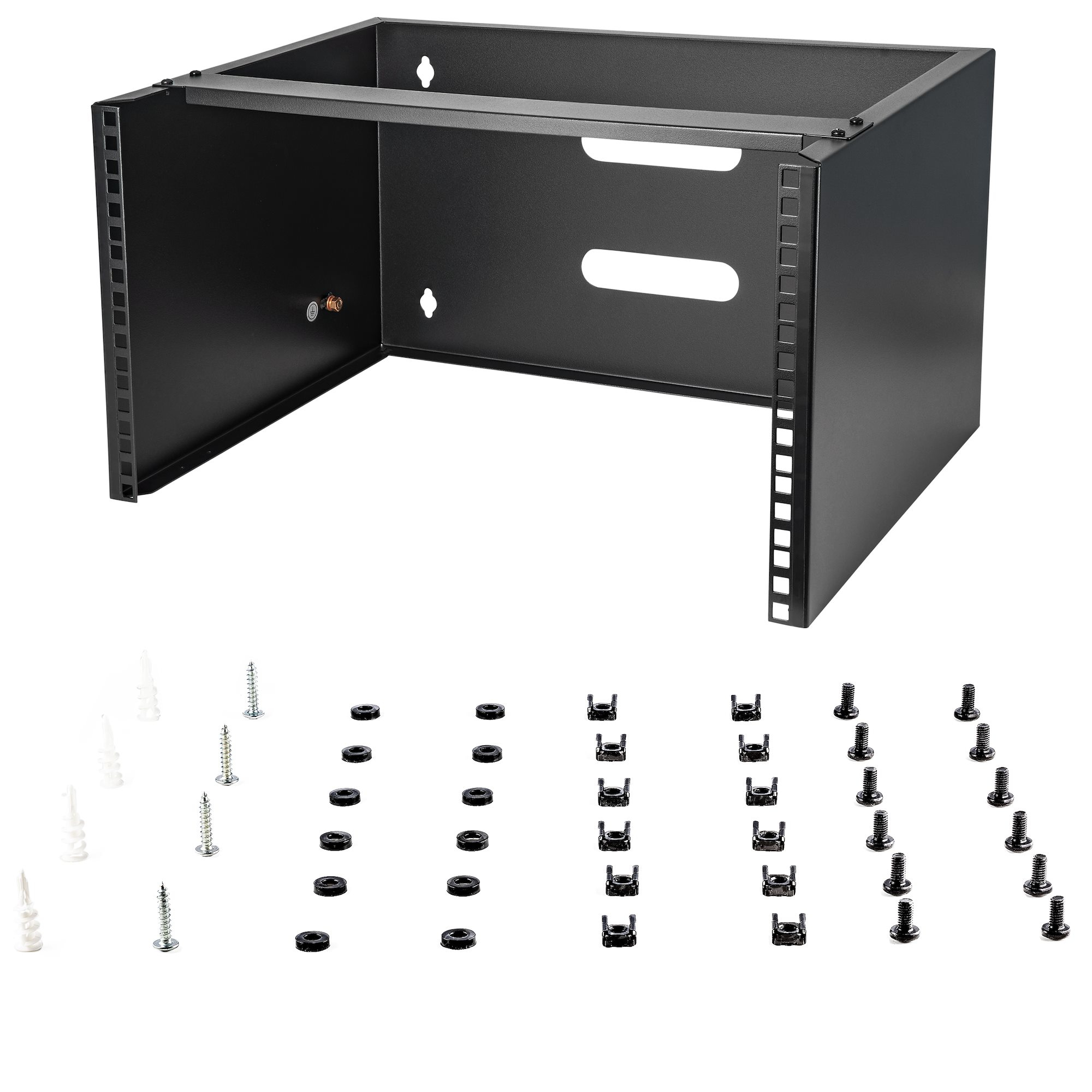

Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 12 |
| Number of screws | 12 |
| Screws included | Yes |
| Manual | Yes |
| Package width | 543 mm |
| Package depth | 444 mm |
| Package height | 312 mm |
| Package weight | 6.3 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 535 mm |
| Master (outer) case height | 325 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
