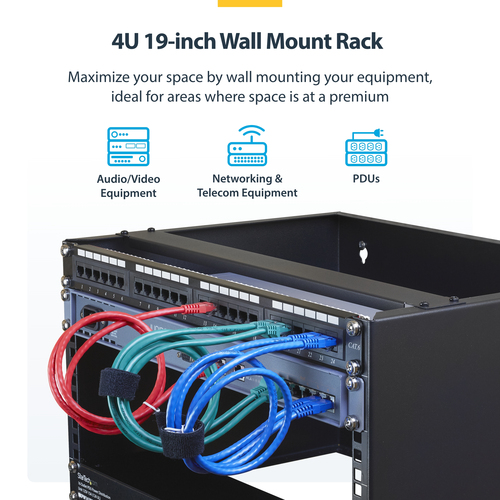

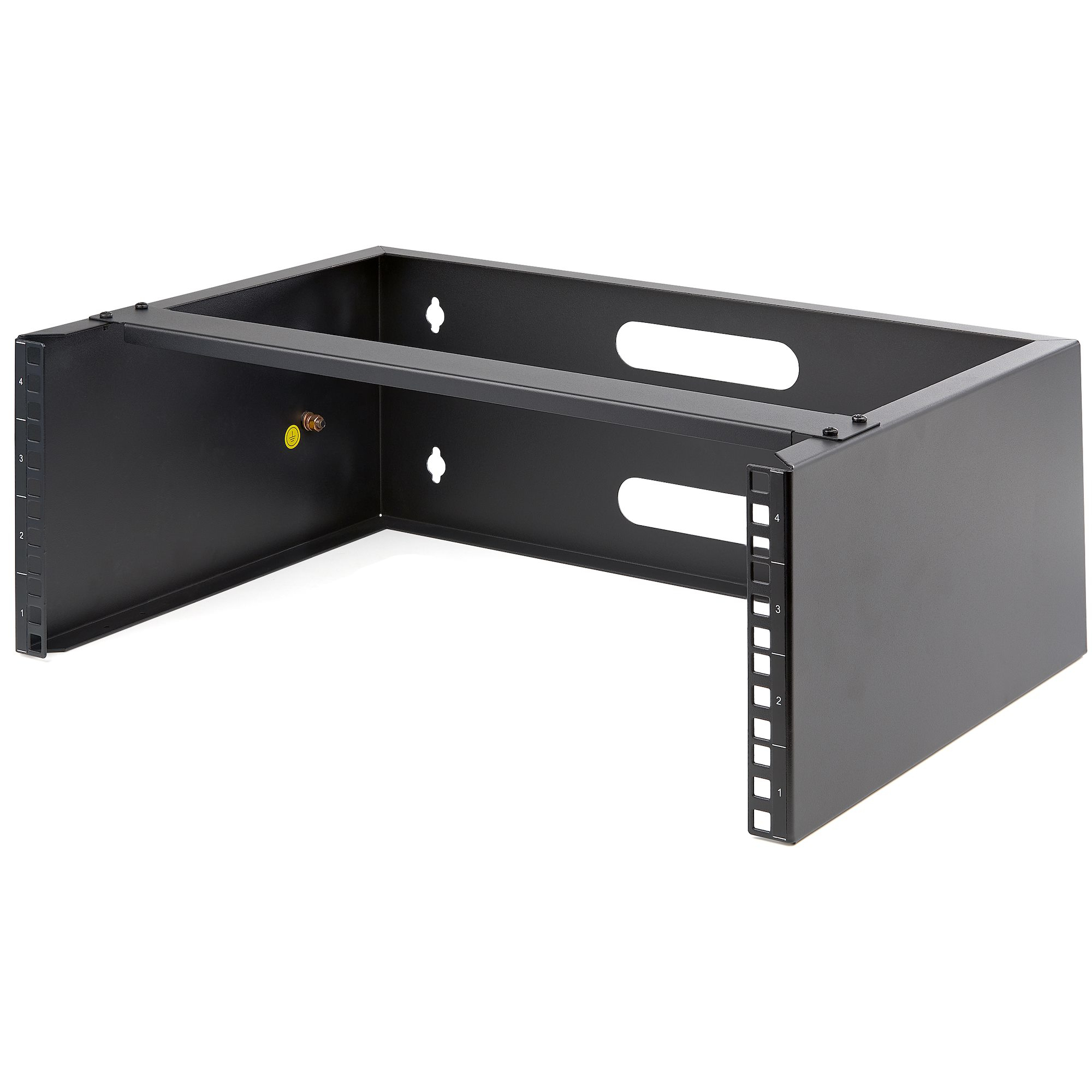

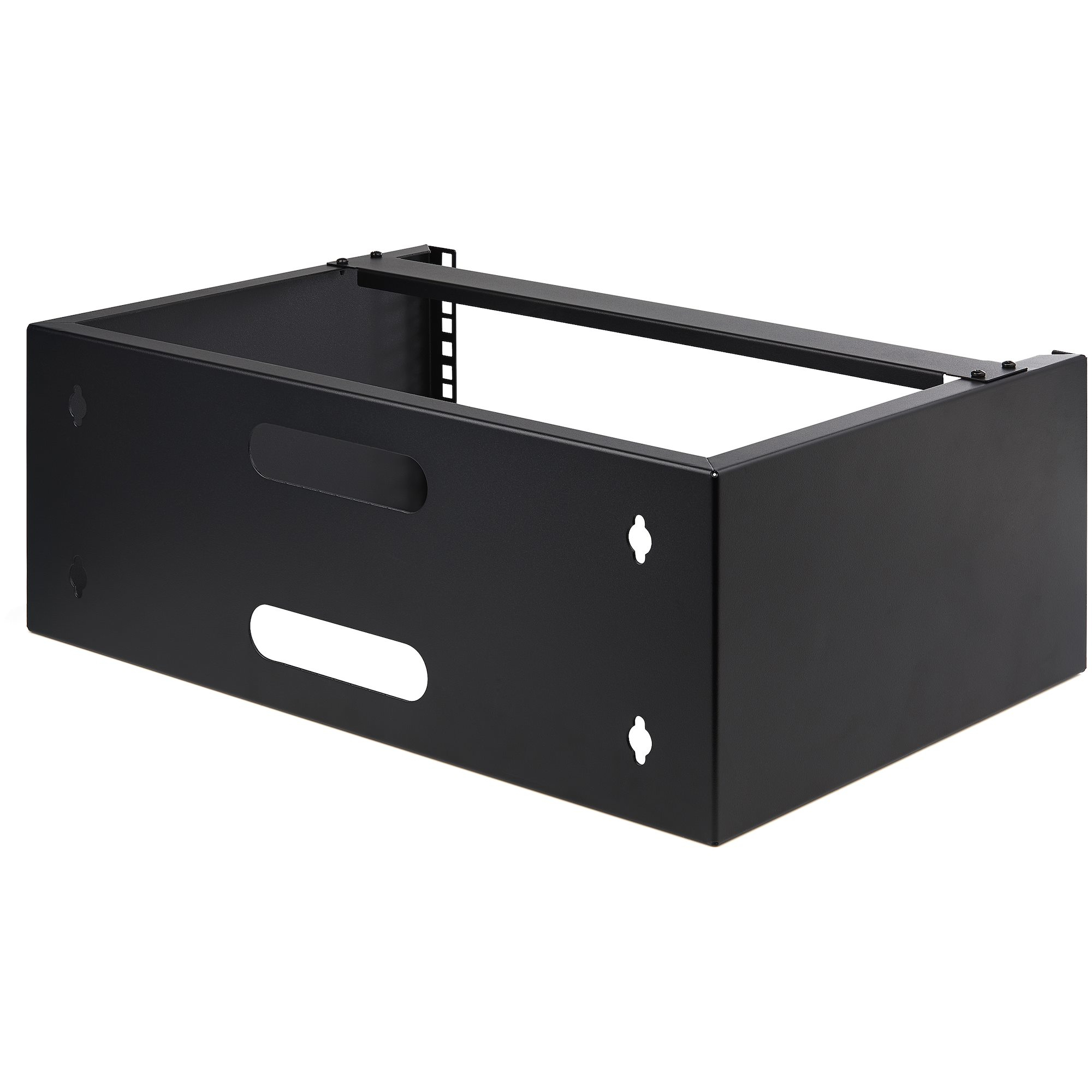

4U Wall Mount Network Rack
14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20k
Model WALLMOUNT4EAN 065030887854
30 specifications
- TypeWall mounted rack
- Weight5 kg
- ColourBlack
- Rack capacity4U
- Width498 mm
- Compliance certificatesCE, RoHS
Overview
- Type
- Wall mounted rack
- Weight
- 5 kg
- Colour
- Black
- Rack capacity
- 4U
- Width
- 498 mm
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- WALLMOUNT4
- Part number
- WALLMOUNT4
- EAN / UPC
- 065030887854
- Also known as
- StarTech.com 4U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20k
Specifications
30 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 4U |
| Type | Wall mounted rack |

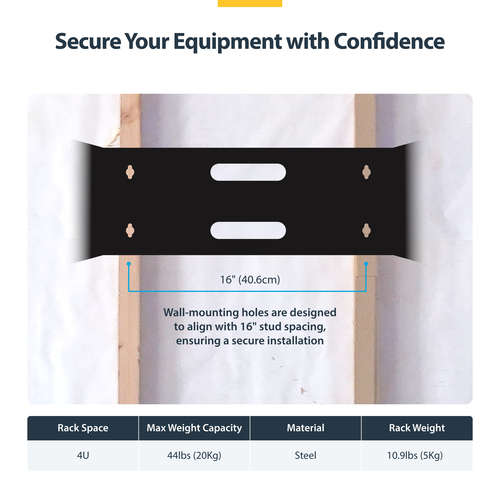

| Maximum weight capacity | 20 kg |
| Product colour | Black |

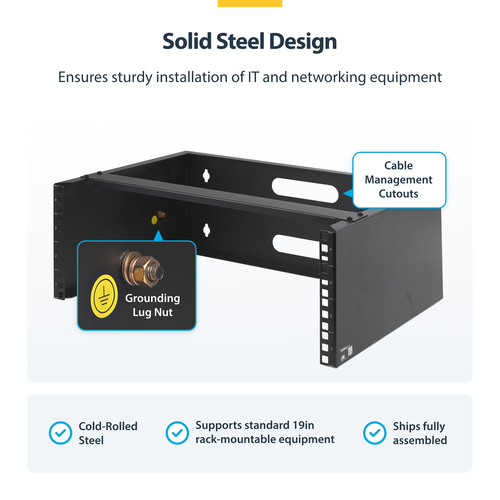

| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Cable management | Yes |

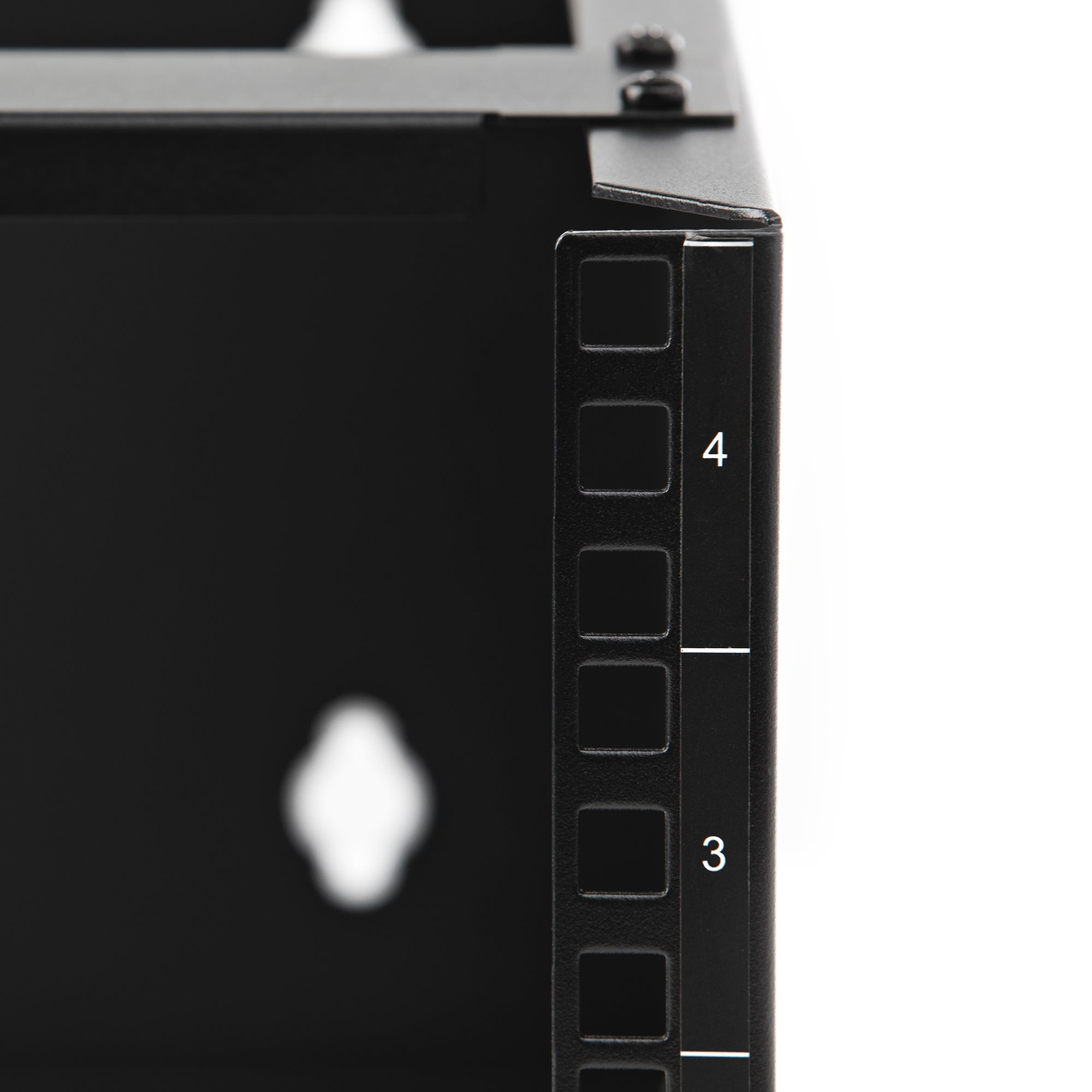

| Mounting hole shape | Square |

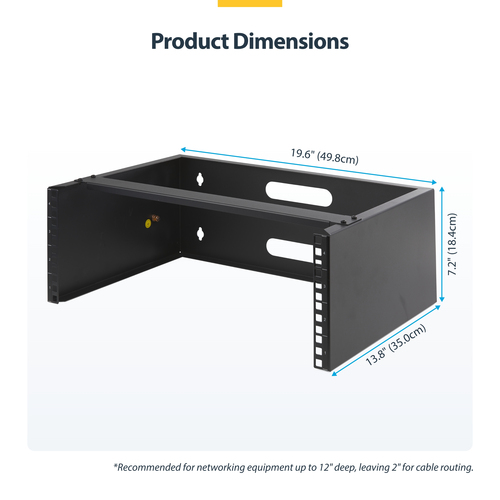

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 498 mm |
| Depth | 350 mm |
| Height | 184 mm |
| Weight | 5 kg |
| Mounting depth (max) | 35 cm |

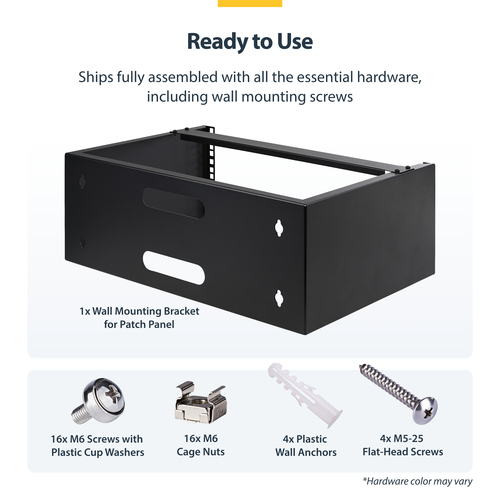

Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 16 |
| Number of screws | 20 |
| Screws included | Yes |
| Number of washers included | 16 |
| Package width | 537 mm |
| Package depth | 390 mm |
| Package height | 228 mm |
| Package weight | 5 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 534 mm |
| Master (outer) case length | 387 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
