12U Rack Enclosure Server Cabinet
21.5 in. Deep - Quiet - Wood Finish
Model RKQMCAB12V2EAN 065030881500
43 specifications
- Noise36 dB
- TypeFreestanding rack
- Weight82.6 kg
- ColourGrey, Wood
- Rack capacity12U
- Width705 mm
Overview
- Noise
- 36 dB
- Type
- Freestanding rack
- Weight
- 82.6 kg
- Colour
- Grey, Wood
- Rack capacity
- 12U
- Width
- 705 mm
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- RKQMCAB12V2
- Part number
- RKQMCAB12V2
- EAN / UPC
- 065030881500
- Also known as
- StarTech.com 12U Rack Enclosure Server Cabinet - 21.5 in. Deep - Quiet - Wood Finish
Specifications
43 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 12U |
| Type | Freestanding rack |
| Maximum weight capacity | 271.5 kg |
| Product colour | Grey, Wood |
| Material | Steel, Wood |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Steel |
| Front door construction | Glass |
| Side panel construction | Steel |
| Removable back door | Yes |
| Key lock | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 2 mm |
| Rack rails | Yes |
| Adjustable mounting rails | Yes |
| Number of fans | 3 fan(s) |
| Fan diameter | 9.2 cm |
| Noise level | 36 dB |
| Mounting hole shape | Square |
| Castor wheels | Yes |
| Certification | TAA, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 705 mm |
| Depth | 783 mm |
| Height | 642 mm |
| Inner width | 47.2 cm |
| Inner depth | 72.1 cm |
| Inner height | 53.7 cm |
| Weight | 82.6 kg |
| Mounting depth (min) | 35.9 cm |
| Mounting depth (max) | 54.8 cm |
Packaging data
| Specification | Value |
|---|---|

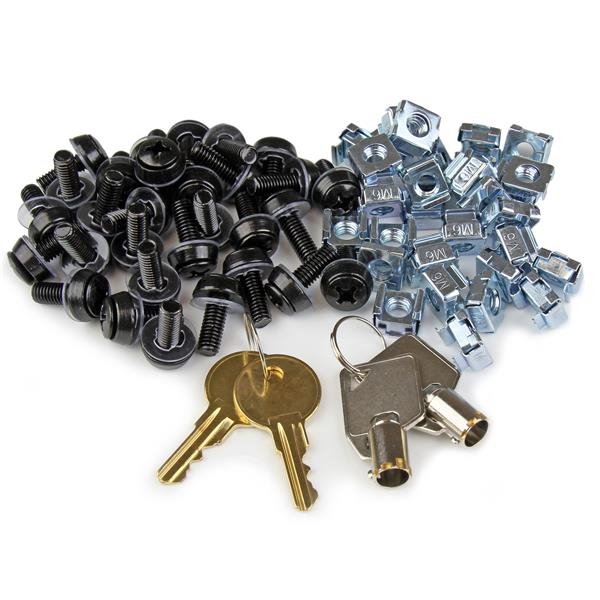

| Nuts included | Yes |
| Number of nuts | 30 |
| Number of screws | 30 |
| Screws included | Yes |
| Package width | 757 mm |
| Package depth | 795 mm |
| Package height | 868 mm |
| Package weight | 87.1 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
| Airflow | 40 |
