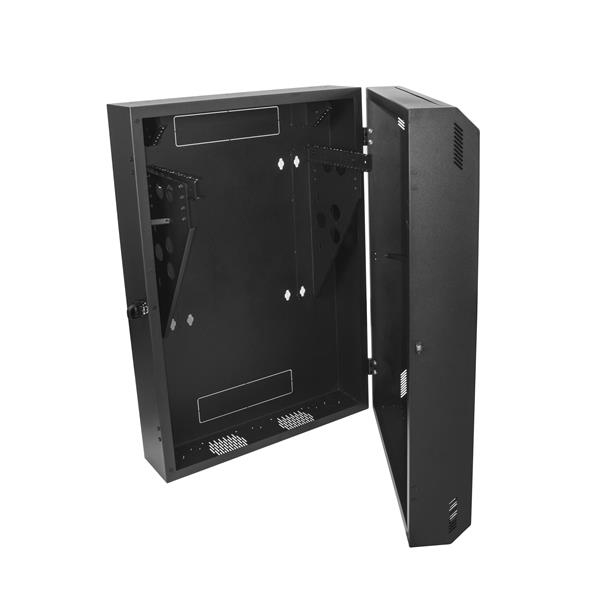

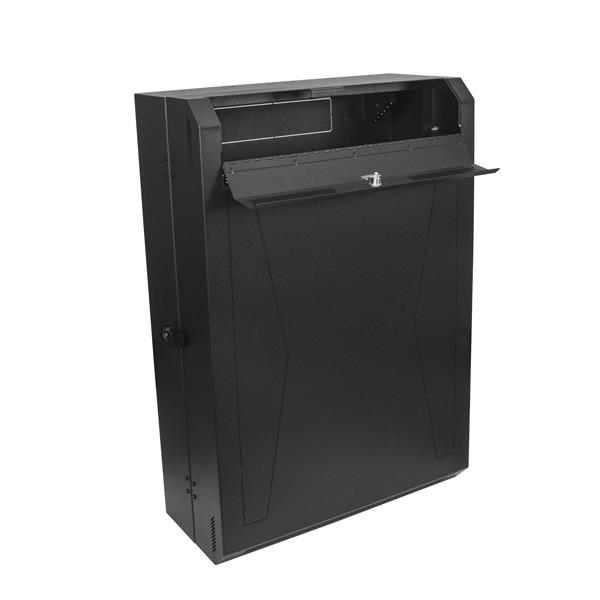

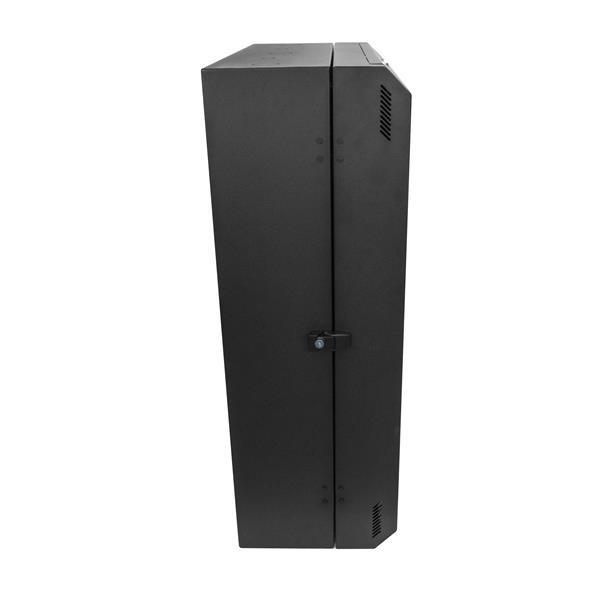

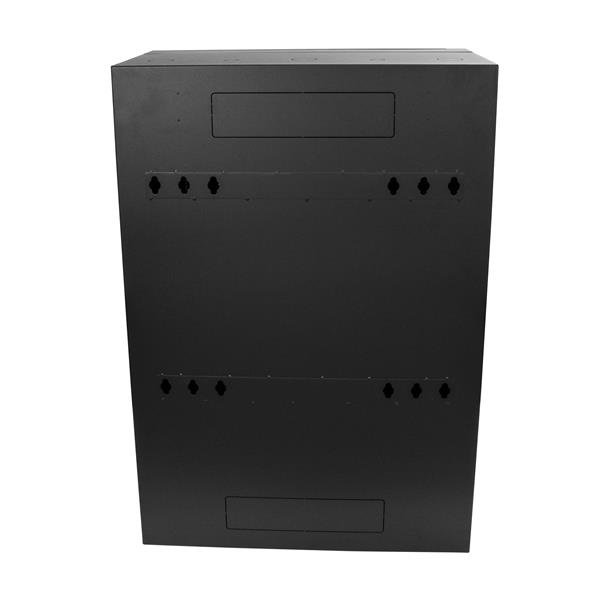

6U Wall Mount Network Cabinet - Vertical Wall Mount Patch Panel Rack
30" Server Room Cabinet
Model RK630WALVSEAN 065030870078
45 specifications
- TypeWall mounted rack
- Weight33 kg
- ColourBlack
- Rack capacity6U
- Width645 mm
- Compliance certificatesRoHS
Overview
- Type
- Wall mounted rack
- Weight
- 33 kg
- Colour
- Black
- Rack capacity
- 6U
- Width
- 645 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- RK630WALVS
- Part number
- RK630WALVS
- EAN / UPC
- 065030870078, 650308700784
- Also known as
- StarTech.com 6U Wall Mount Network Cabinet - Vertical Wall Mount Patch Panel Rack - 30" Server Room Cabinet
Specifications
45 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 2-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable back door | No |
| Removable front door | No |
| Removable side panels | No |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |

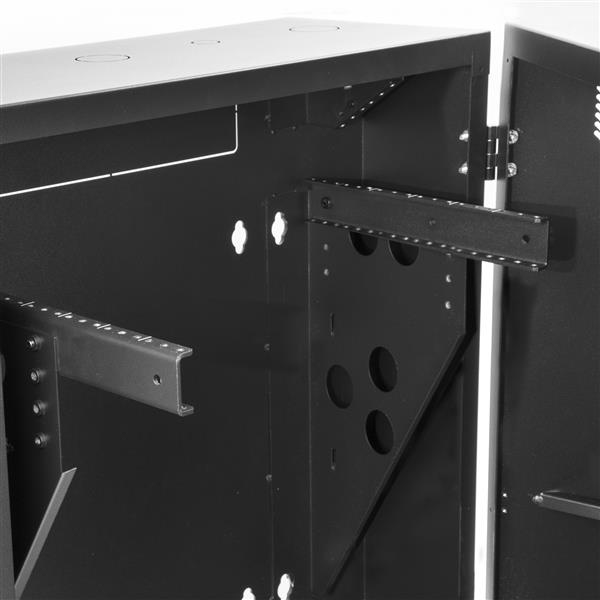

| Adjustable mounting rails | Yes |
| Number of fans | 0 fan(s) |
| Cable management | Yes |
| Castor wheels | No |
| Certification | CE, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 645 mm |
| Depth | 294 mm |
| Height | 941 mm |
| Inner width | 64.1 cm |
| Inner depth | 28.8 cm |
| Weight | 33 kg |
| Mounting depth (max) | 76 cm |
Packaging data
| Specification | Value |
|---|---|

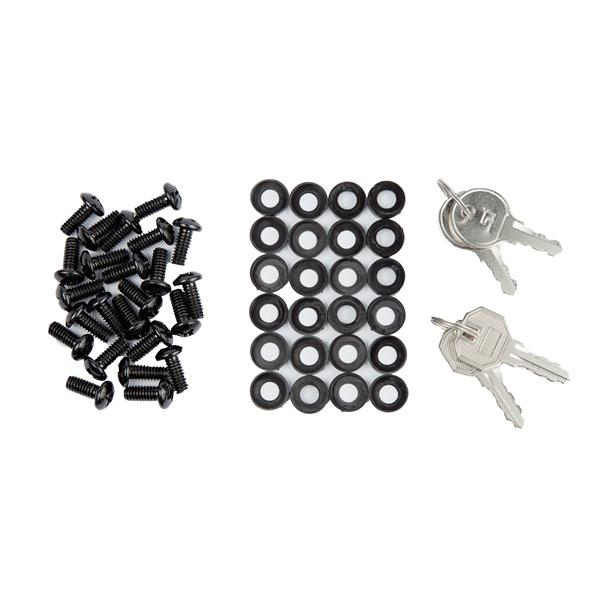

| Nuts included | Yes |
| Number of nuts | 24 |
| Number of screws | 24 |
| Screws included | Yes |
| Number of washers included | 24 |
| Manual | Yes |
| Package width | 1040 mm |
| Package depth | 718 mm |
| Package height | 375 mm |
| Package weight | 35 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 720 mm |
| Master (outer) case height | 1020 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
