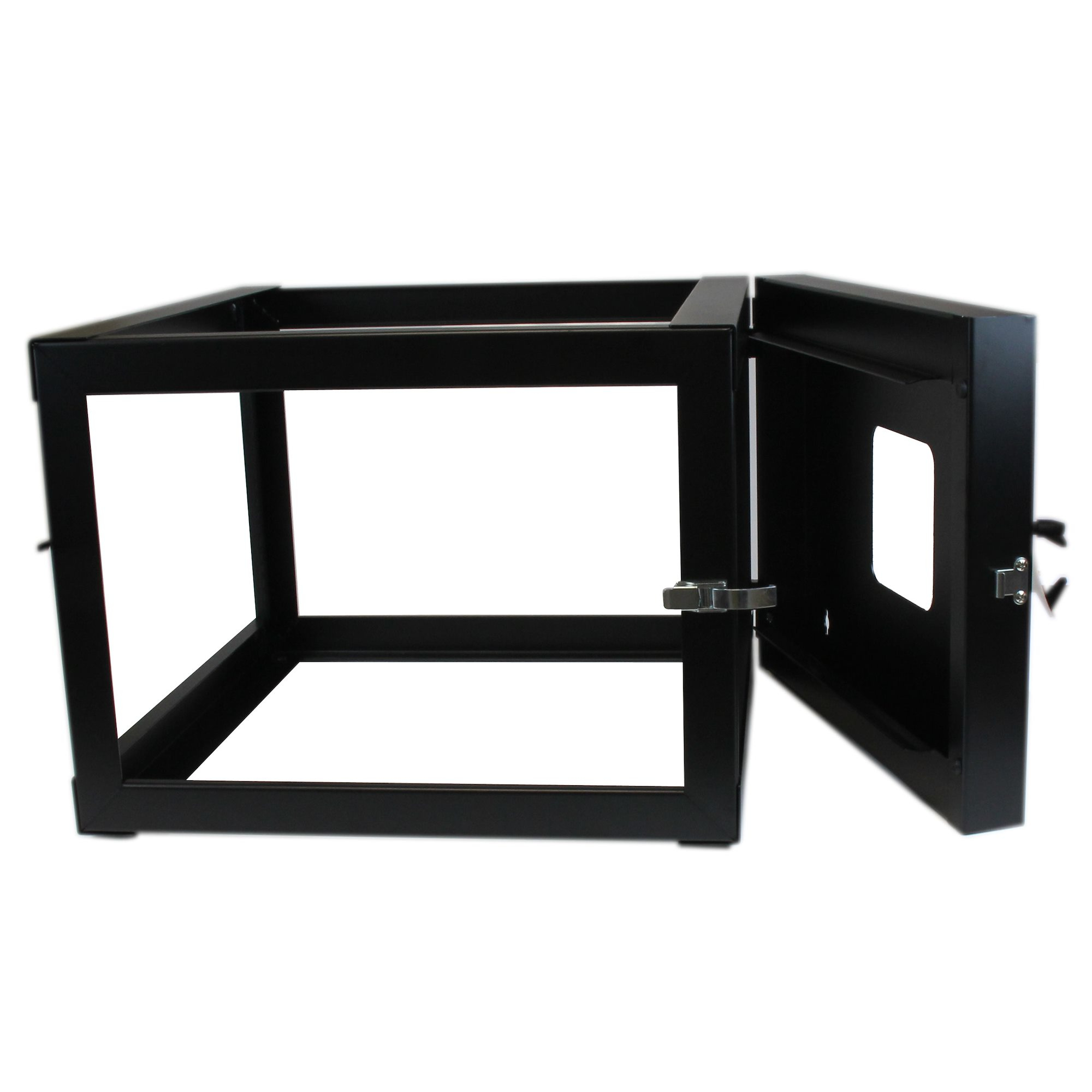

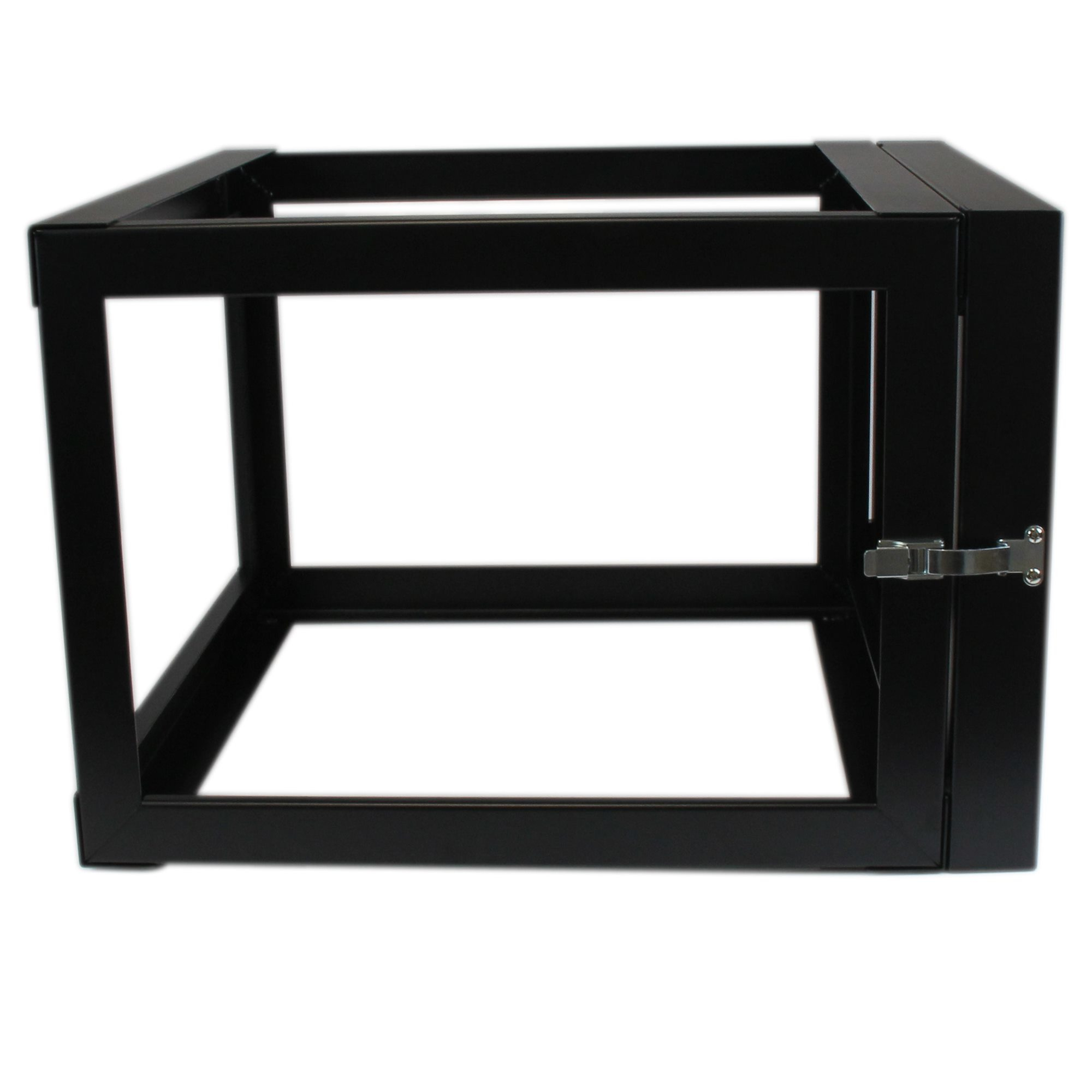

4-Post 6U Hinged Wall-Mount Network Rack
19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Patch
Model RK619WALLOHEAN 5054629175354
35 specifications
- TypeWall mounted rack
- Weight14 kg
- ColourBlack
- Rack capacity6U
- Width556 mm
- Compliance certificatesCE, RoHS
Overview
- Type
- Wall mounted rack
- Weight
- 14 kg
- Colour
- Black
- Rack capacity
- 6U
- Width
- 556 mm
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- RK619WALLOH
- Part number
- RK619WALLOH
- EAN / UPC
- 5054629175354, 012304313670, 065030848831, 080000332103 +6 more
- Also known as
- StarTech.com 4-Post 6U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Patch
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 49.8 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 4-post |
| Key lock | No |
| Front door key lock | No |
| Adjustable mounting rails | No |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 556 mm |
| Depth | 602 mm |
| Height | 408 mm |
| Weight | 14 kg |
| Mounting depth (max) | 50.2 cm |
Packaging data
| Specification | Value |
|---|---|

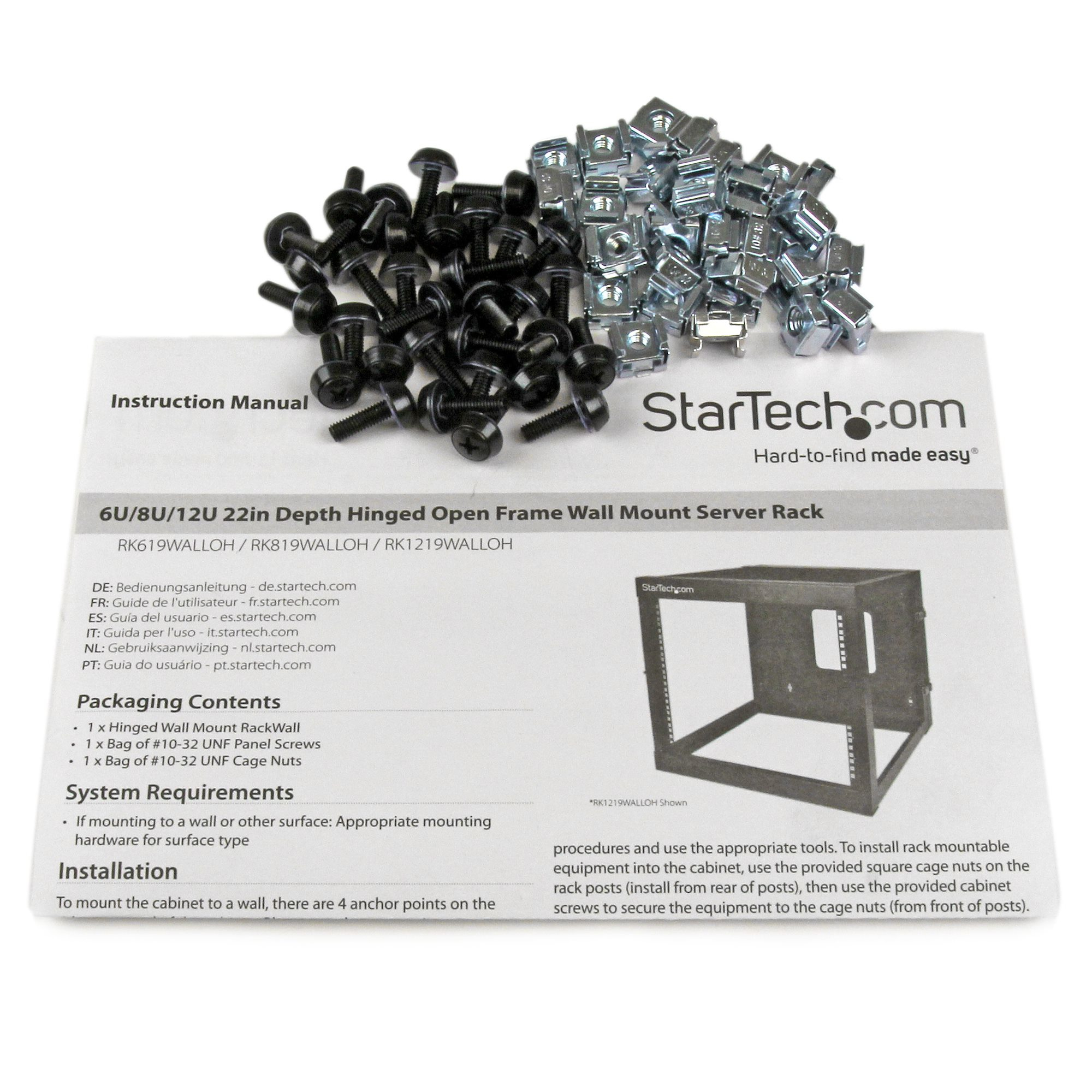

| Nuts included | Yes |
| Number of nuts | 24 |
| Number of screws | 24 |
| Screws included | Yes |
| Manual | Yes |
| Package width | 665 mm |
| Package depth | 720 mm |
| Package height | 522 mm |
| Package weight | 16.4 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 665 mm |
| Master (outer) case length | 720 mm |
| Master (outer) case height | 522 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
