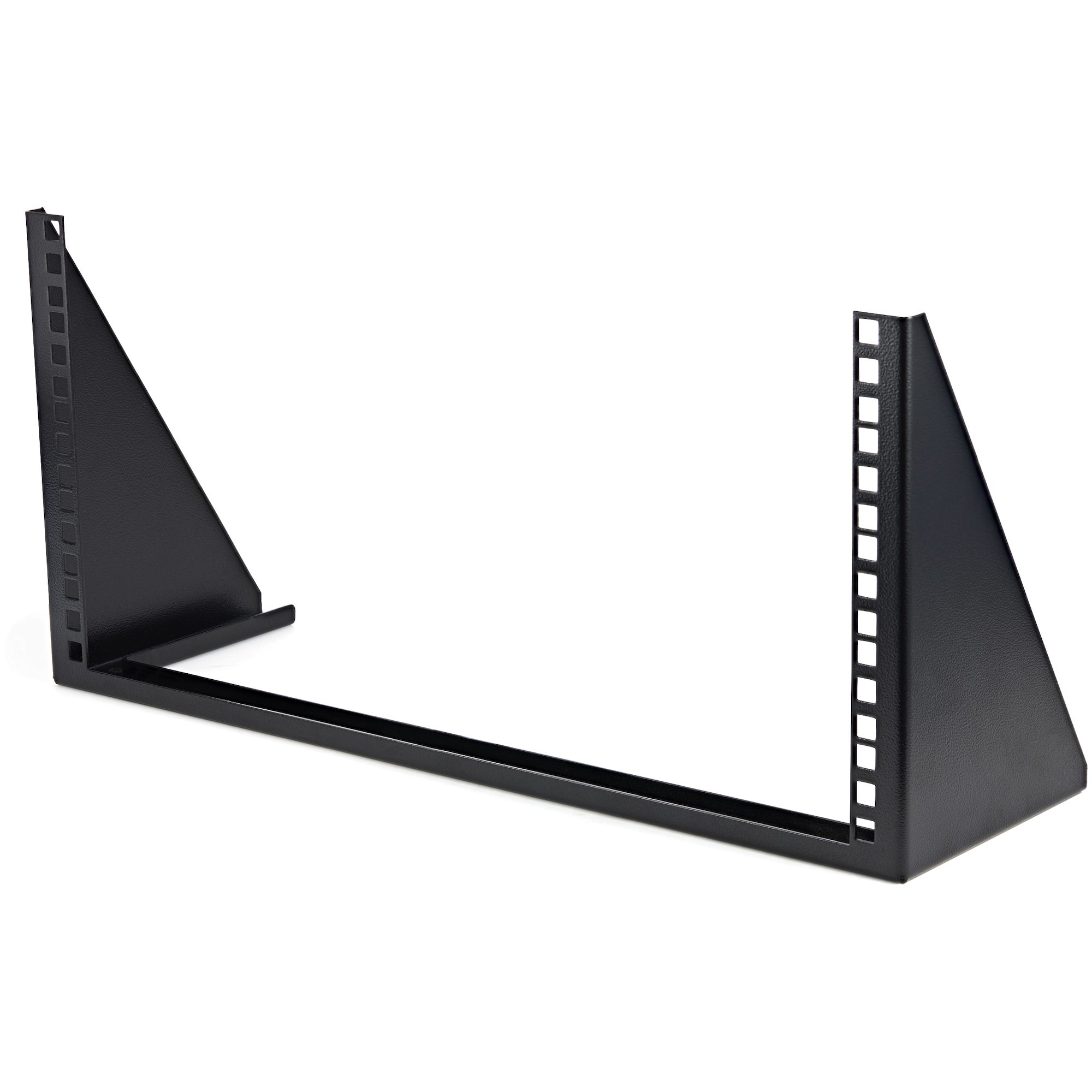

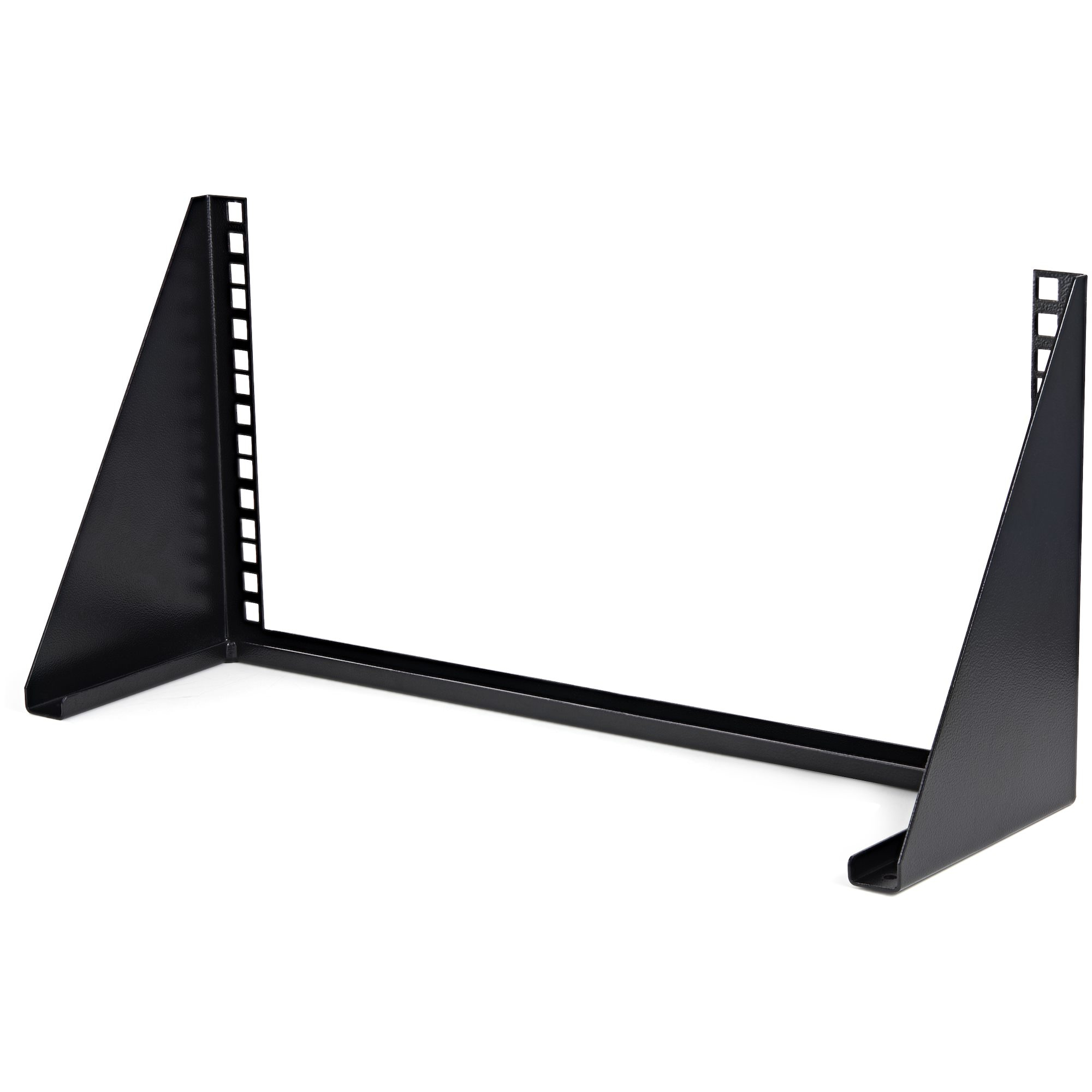

5U Vertical Wall Mount Rack
19in Low Profile Open Wall Mounting Bracket - Network/Server Room/Data/AV/IT/Patch Panel/Communication/Computer Equip
Model RK519WALLVEAN 065030887847
27 specifications
- TypeWall mounted rack
- Weight1.4 kg
- ColourBlack
- Rack capacity5U
- Width235 mm
- Compliance certificatesCE, RoHS
Overview
- Type
- Wall mounted rack
- Weight
- 1.4 kg
- Colour
- Black
- Rack capacity
- 5U
- Width
- 235 mm
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- RK519WALLV
- Part number
- RK519WALLV
- EAN / UPC
- 065030887847
- Also known as
- StarTech.com 5U Vertical Wall Mount Rack - 19in Low Profile Open Wall Mounting Bracket - Network/Server Room/Data/AV/IT/Patch Panel/Communication/Computer Equip
Specifications
27 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 5U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Mounting hole shape | Square |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 235 mm |
| Depth | 500 mm |
| Height | 140 mm |
| Weight | 1.4 kg |

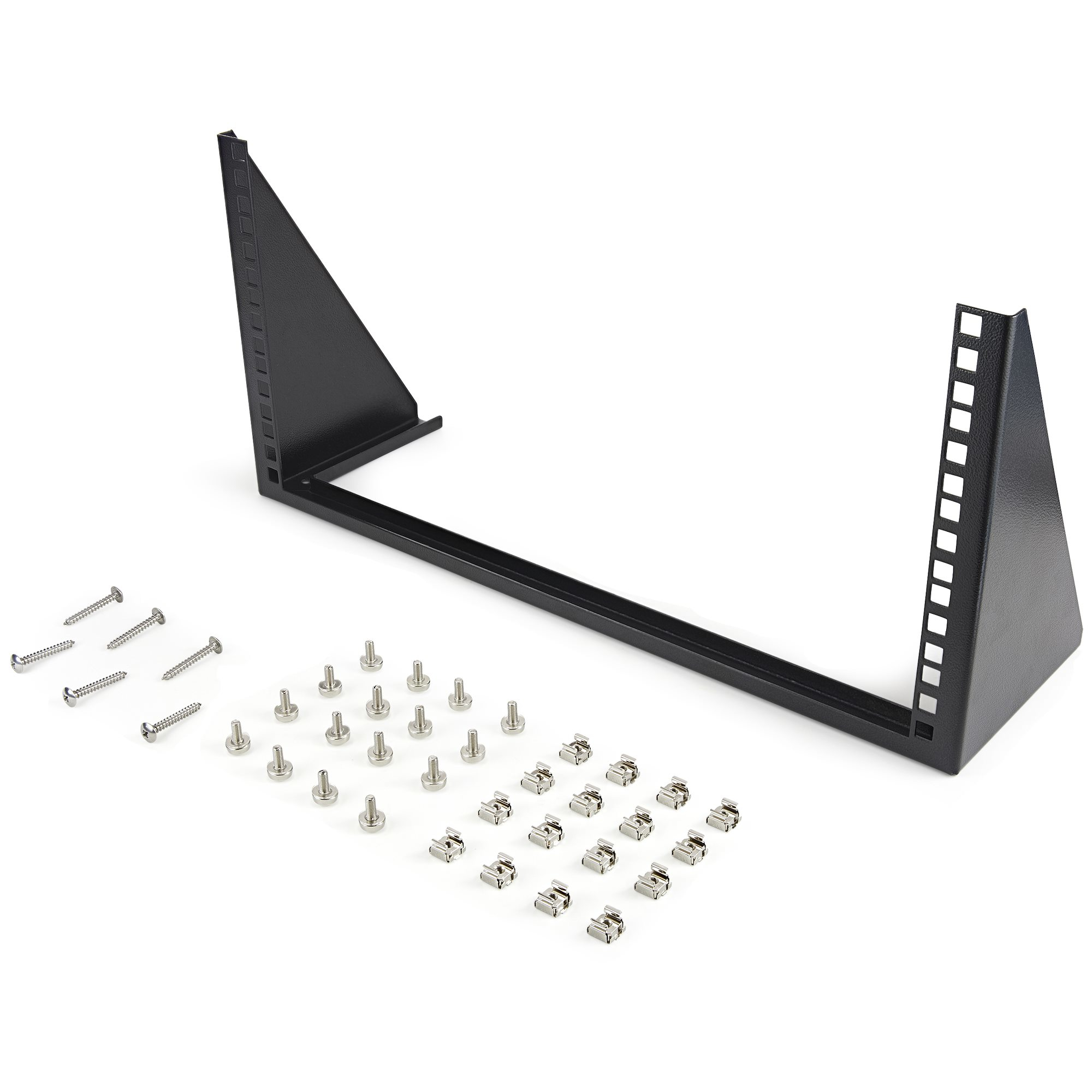

Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 16 |
| Number of screws | 22 |
| Screws included | Yes |
| Package width | 562 mm |
| Package depth | 259 mm |
| Package height | 181 mm |
| Package weight | 2.2 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 560 mm |
| Master (outer) case length | 175 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
