StarTech.com 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket - TAA
Model RK419WALLVEAN 799296235462
39 specifications
- TypeWall mounted rack
- Weight1.1 kg
- ColourBlack
- Rack capacity4U
- Size (imperial)48.3 cm (19")
- Compliance certificatesRoHS
Overview
- Type
- Wall mounted rack
- Weight
- 1.1 kg
- Colour
- Black
- Rack capacity
- 4U
- Size (imperial)
- 48.3 cm (19")
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- RK419WALLV
- Part number
- RK419WALLV
- EAN / UPC
- 799296235462, 012951593067, 013040044569, 065030834414 +13 more
- Also known as
- StarTech.com 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket - TAA
Specifications
39 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 4U |
| Type | Wall mounted rack |
| Maximum weight capacity | 56.7 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Back door key lock | No |
| Front door key lock | No |
| Side panel key lock | No |
| Adjustable mounting rails | No |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | TAA, CE, UL, REACH |

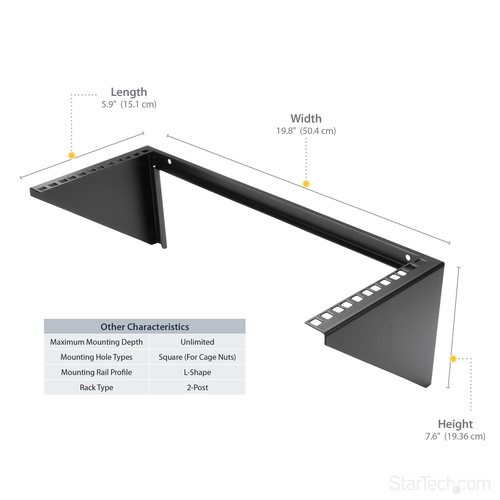

Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 504 mm |
| Depth | 193 mm |
| Height | 151 mm |
| Inner width | 45 cm |
| Weight | 1.1 kg |
Packaging data
| Specification | Value |
|---|---|

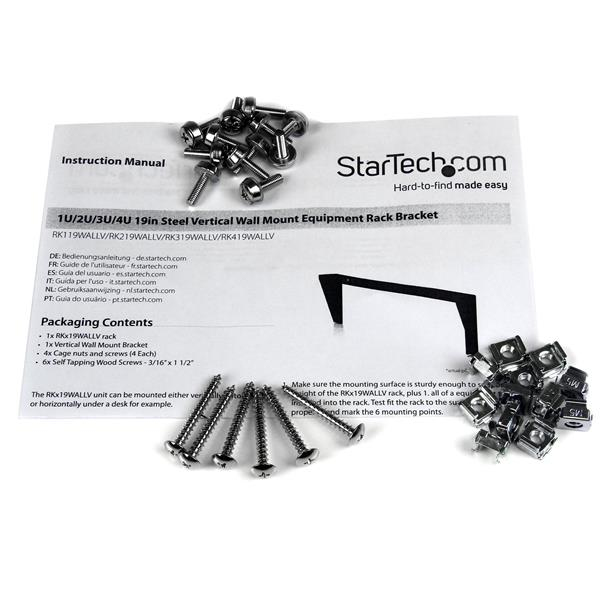

| Nuts included | Yes |
| Number of nuts | 16 |
| Number of screws | 22 |
| Screws included | Yes |
| Mounting kit | Yes |
| Wall mounting kit | Yes |
| Package width | 549 mm |
| Package depth | 219 mm |
| Package height | 179 mm |
| Package weight | 1.69 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 212 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 174 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
