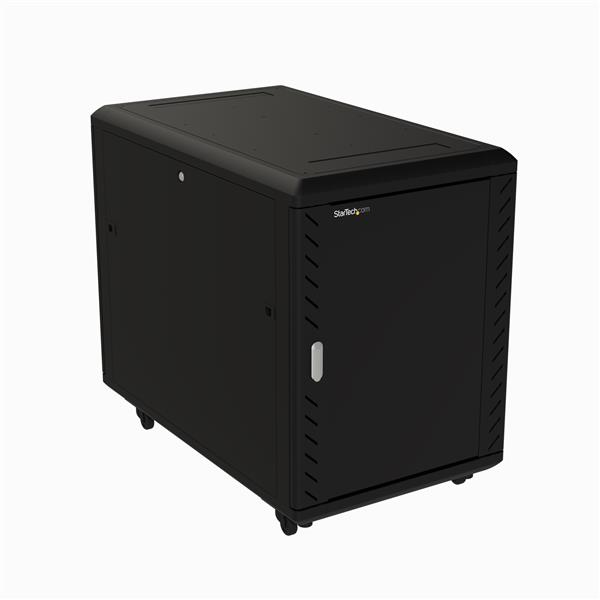

15U Enterprise-Grade Flat Pack Server Rack Cabinet
19in Enclosed 4-Post Rack with 29in (75cm) Mounting Depth and 1764lb (800kg) Weight Capacity
Model RK1536BKFEAN 065030887151
50 specifications
- TypeFreestanding rack
- Weight58 kg
- ColourBlack
- Rack capacity15U
- Width600 mm
- Compliance certificatesRoHS
Overview
- Type
- Freestanding rack
- Weight
- 58 kg
- Colour
- Black
- Rack capacity
- 15U
- Width
- 600 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- RK1536BKF
- Part number
- RK1536BKF
- EAN / UPC
- 065030887151
- Also known as
- StarTech.com 15U Enterprise-Grade Flat Pack Server Rack Cabinet, 19in Enclosed 4-Post Rack with 29in (75cm) Mounting Depth and 1764lb (800kg) Weight Capacity
Specifications
50 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 15U |
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Mesh |
| Front door construction | Glass/Steel |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Key lock | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Adjustable mounting rails | Yes |
| Cable management | Yes |
| Mounting hole shape | Square |
| Castor wheels | Yes |
| Certification | REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 1000 mm |
| Height | 796 mm |
| Inner width | 59.6 cm |
| Inner depth | 99.2 cm |
| Weight | 58 kg |
| Mounting depth (min) | 14 cm |
| Mounting depth (max) | 81.3 cm |
Packaging data
| Specification | Value |
|---|---|
| Number of wrenches included | 2 |
| Number of screwdrivers | 1 |
| Nuts included | Yes |
| Number of nuts | 24 |
| Number of screws | 50 |
| Screws included | Yes |
| Number of leveling feets included | 4 pc(s) |
| Number of bolts | 16 |
| Number of washers included | 32 |
| Package width | 1077 mm |
| Package depth | 884 mm |
| Package height | 327 mm |
| Package weight | 62.6 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 873 mm |
| Master (outer) case length | 1067 mm |
| Master (outer) case height | 327 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
