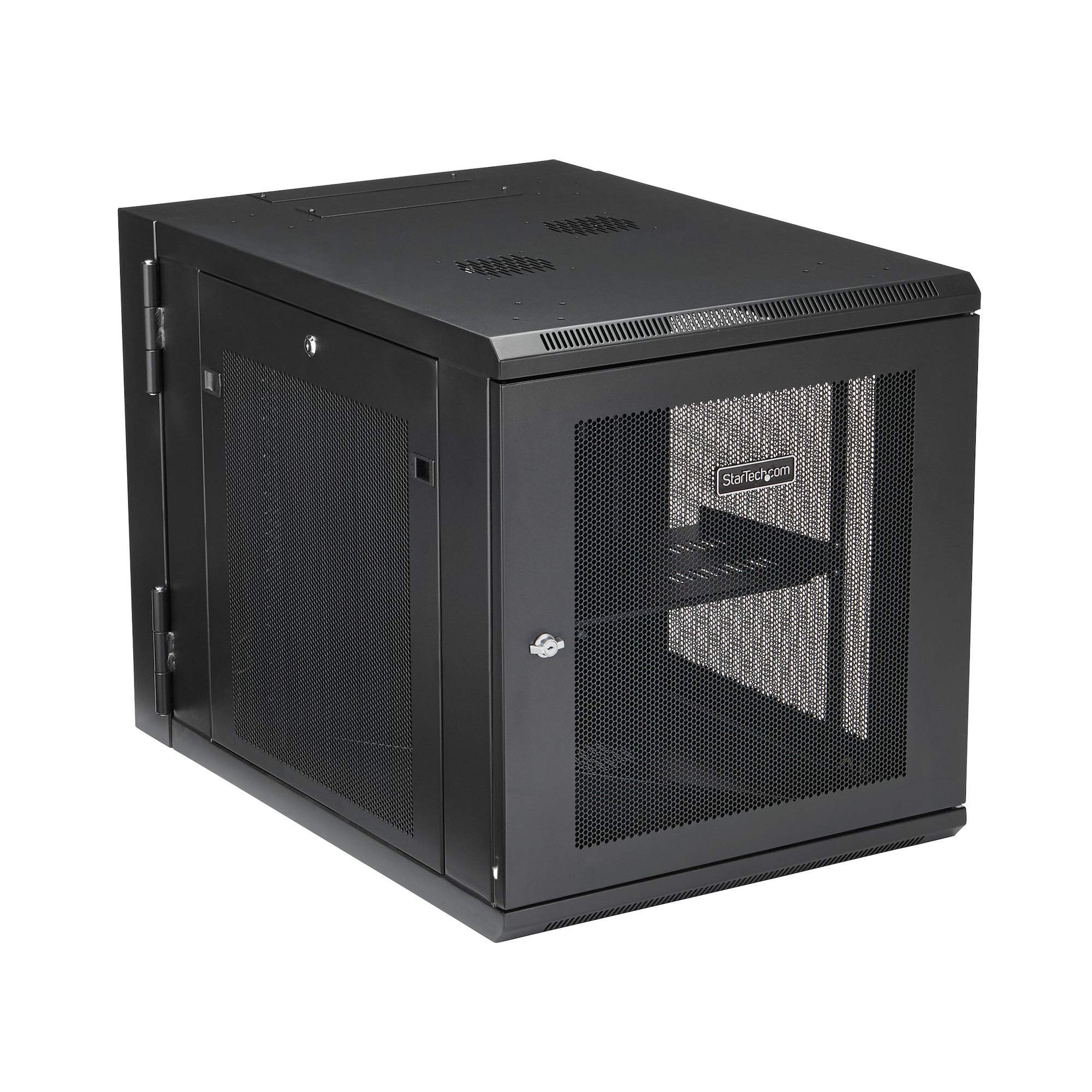

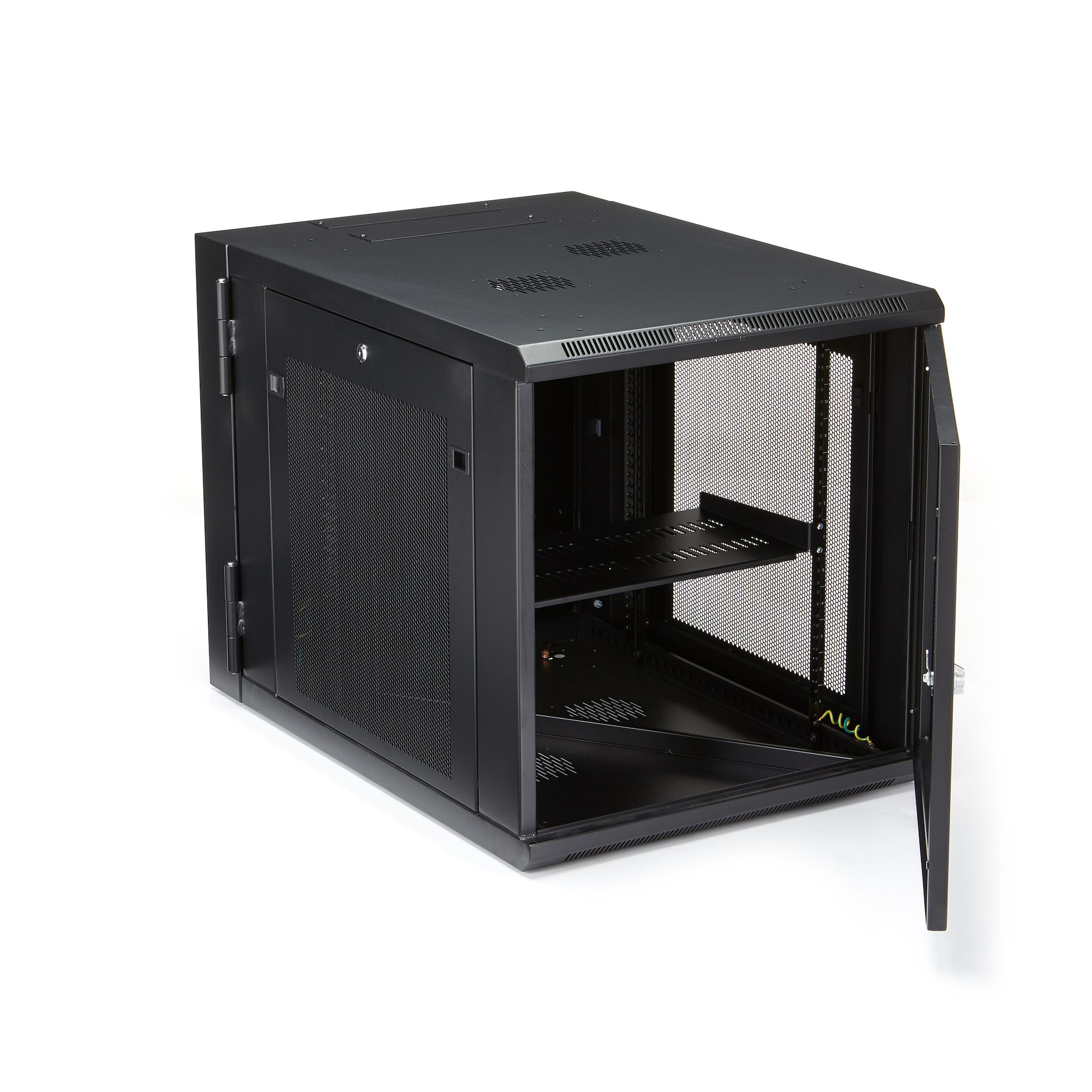

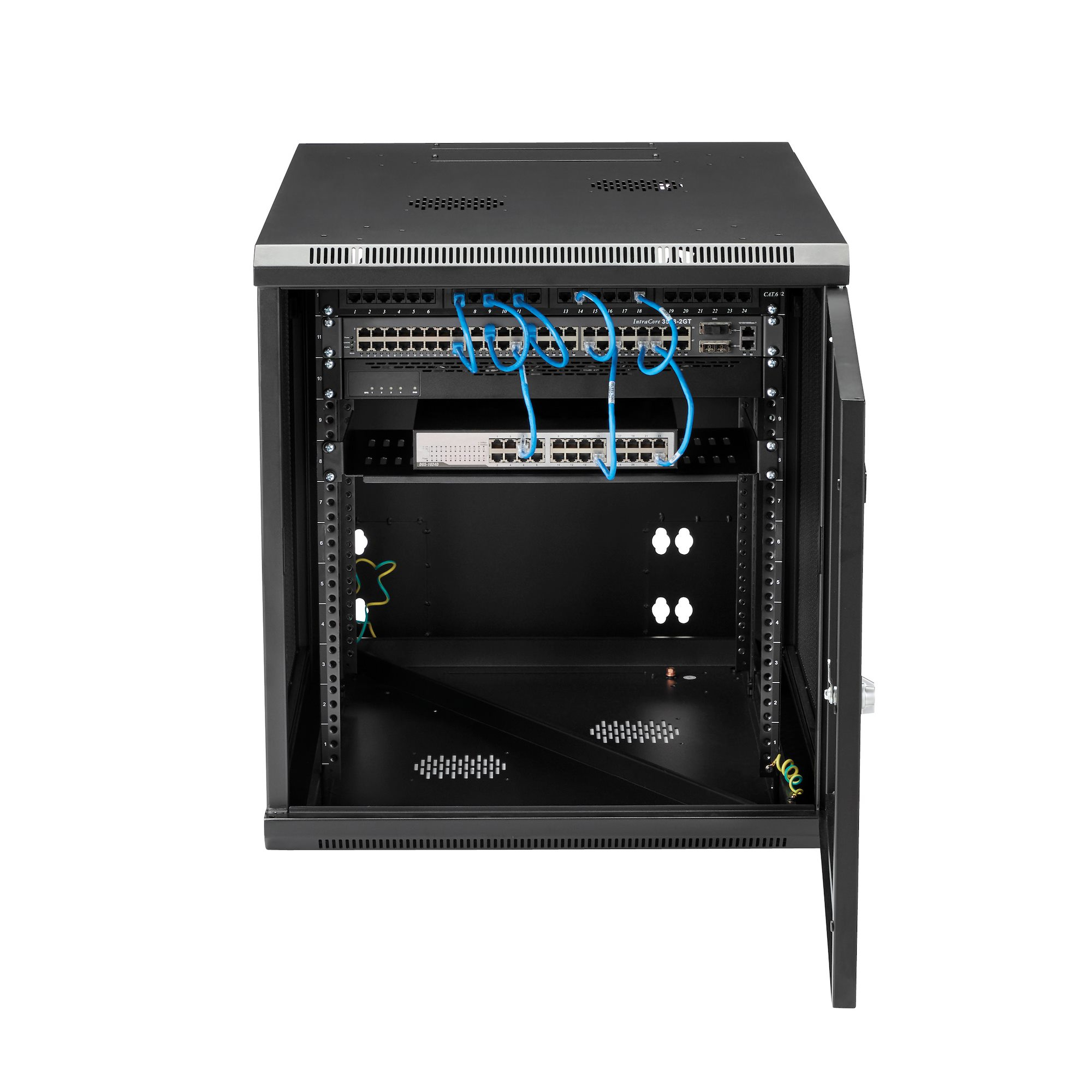

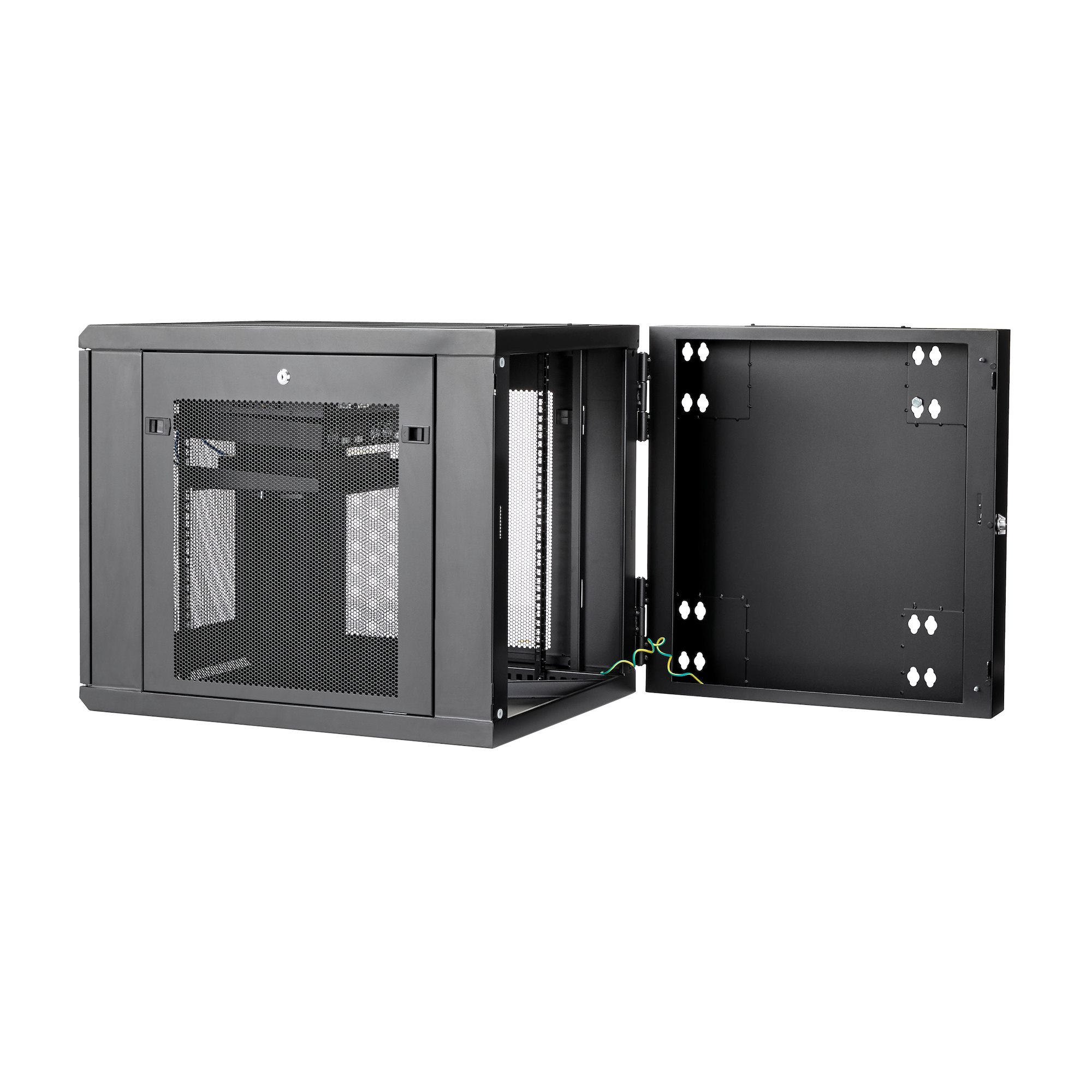

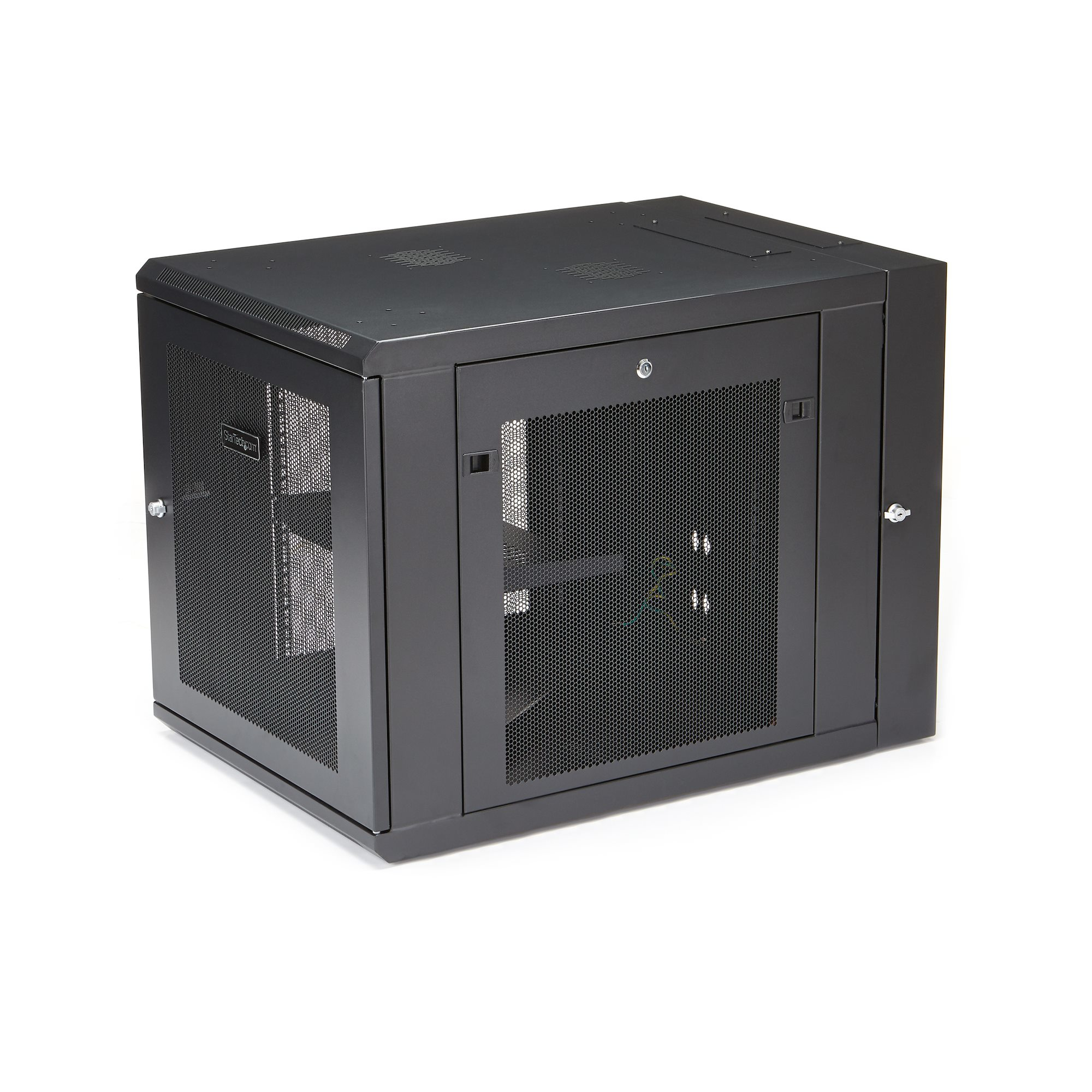

StarTech.com 4-Post 12U Wall Mount Network Cabinet with 1U Shelf
19" Hinged Wall-Mounted Server Rack for Data / AV / Electronics / Computer Equipment, Flexible
Model RK1232WALHMEAN 065030870436
42 specifications
- TypeWall mounted rack
- Weight45.1 kg
- ColourBlack
- Rack capacity12U
- Width610 mm
- Compliance certificatesCE, RoHS
Overview
- Type
- Wall mounted rack
- Weight
- 45.1 kg
- Colour
- Black
- Rack capacity
- 12U
- Width
- 610 mm
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- RK1232WALHM
- Part number
- RK1232WALHM
- EAN / UPC
- 065030870436, 650308704362
- Also known as
- StarTech.com 4-Post 12U Wall Mount Network Cabinet with 1U Shelf, 19" Hinged Wall-Mounted Server Rack for Data / AV / Electronics / Computer Equipment, Flexible
Specifications
42 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Removable front door | Yes |
| Removable side panels | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Adjustable mounting rails | Yes |
| Cable management | Yes |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | REACH, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 610 mm |
| Depth | 854 mm |
| Height | 640 mm |
| Inner width | 59.5 cm |
| Inner depth | 84.8 cm |
| Weight | 45.1 kg |
| Mounting depth (min) | 6 cm |
| Mounting depth (max) | 60.5 cm |
Packaging data
| Specification | Value |
|---|---|

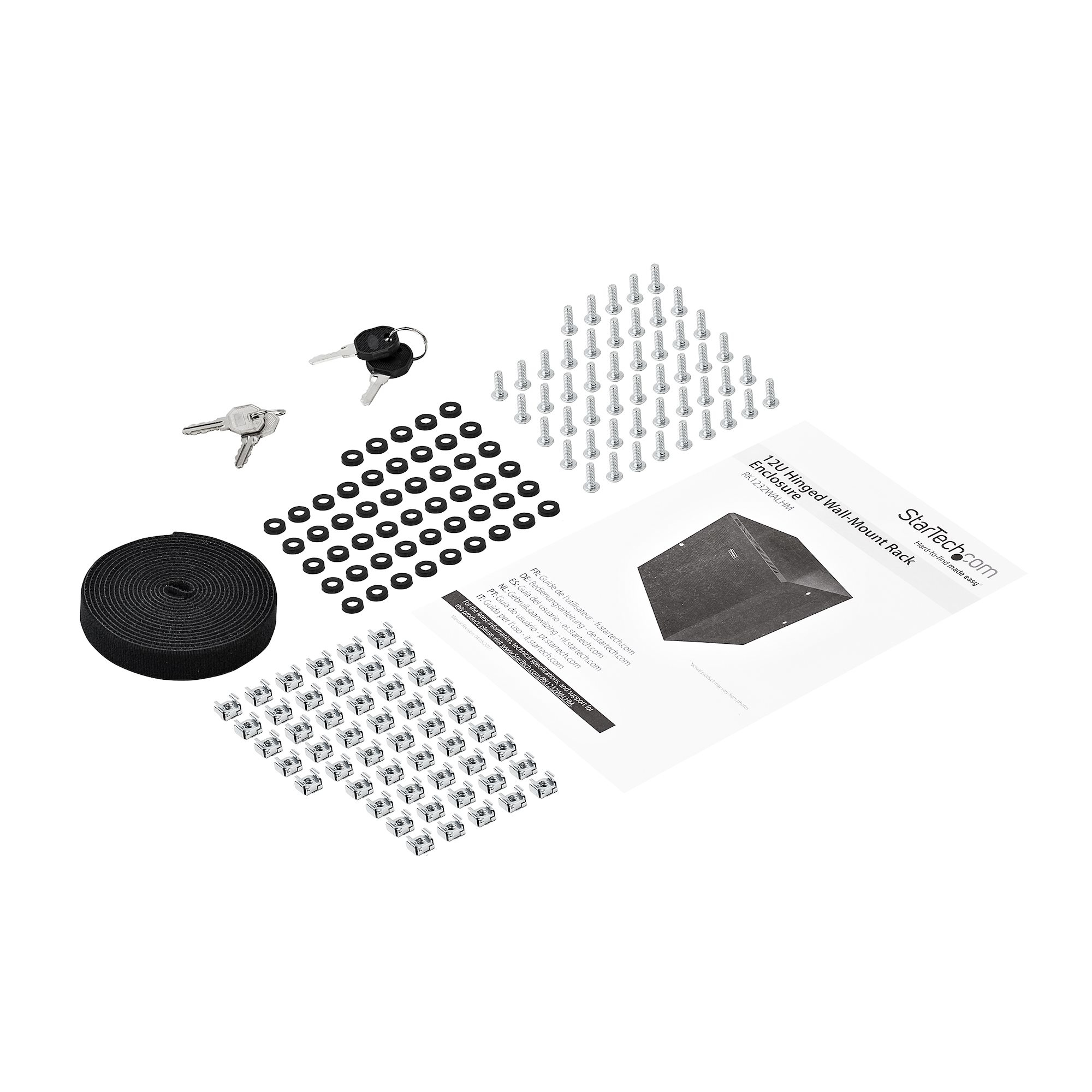

| Nuts included | Yes |
| Number of nuts | 50 |
| Number of screws | 50 |
| Screws included | Yes |
| Manual | Yes |
| Package width | 640 mm |
| Package depth | 895 mm |
| Package height | 778 mm |
| Package weight | 59 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 885 mm |
| Master (outer) case length | 640 mm |
| Master (outer) case height | 660 mm |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
