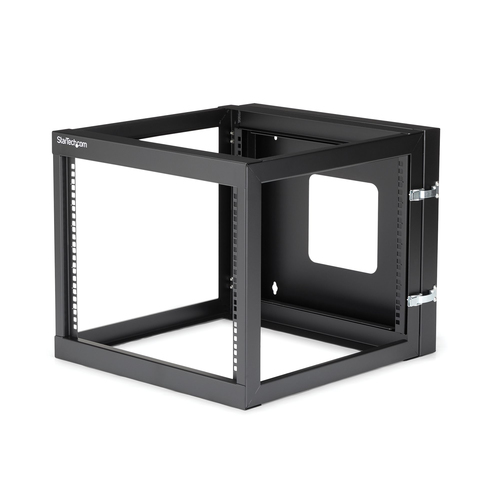

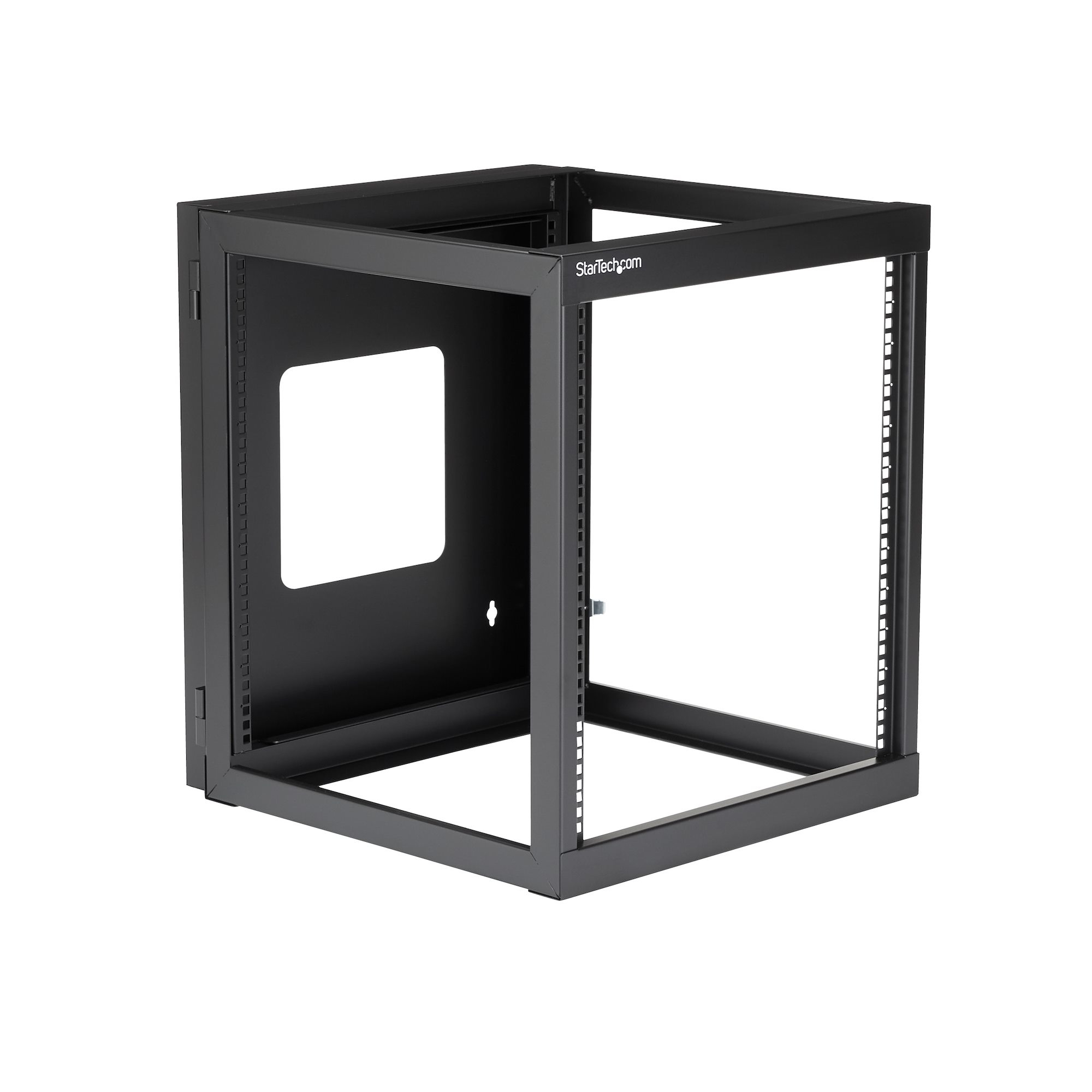

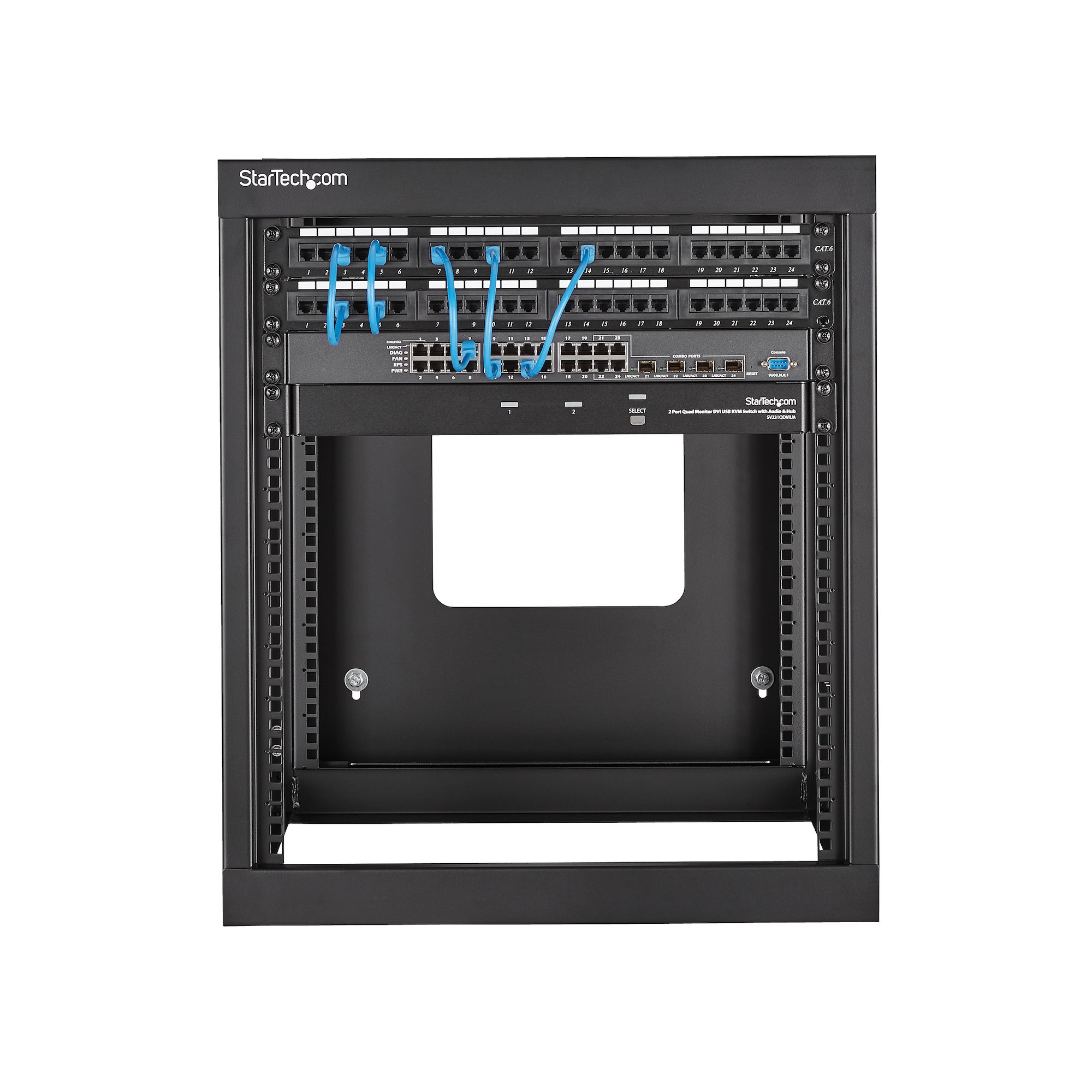

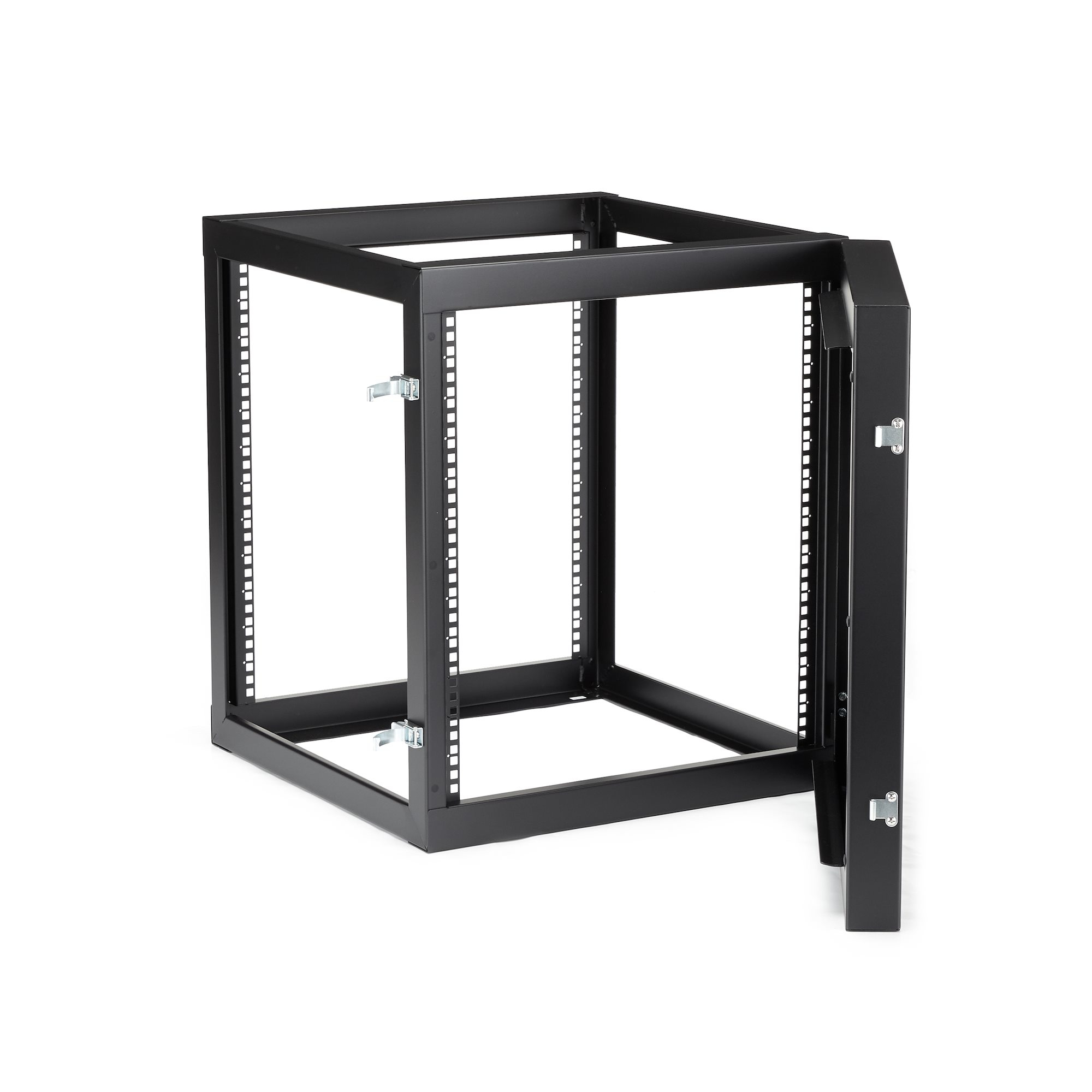

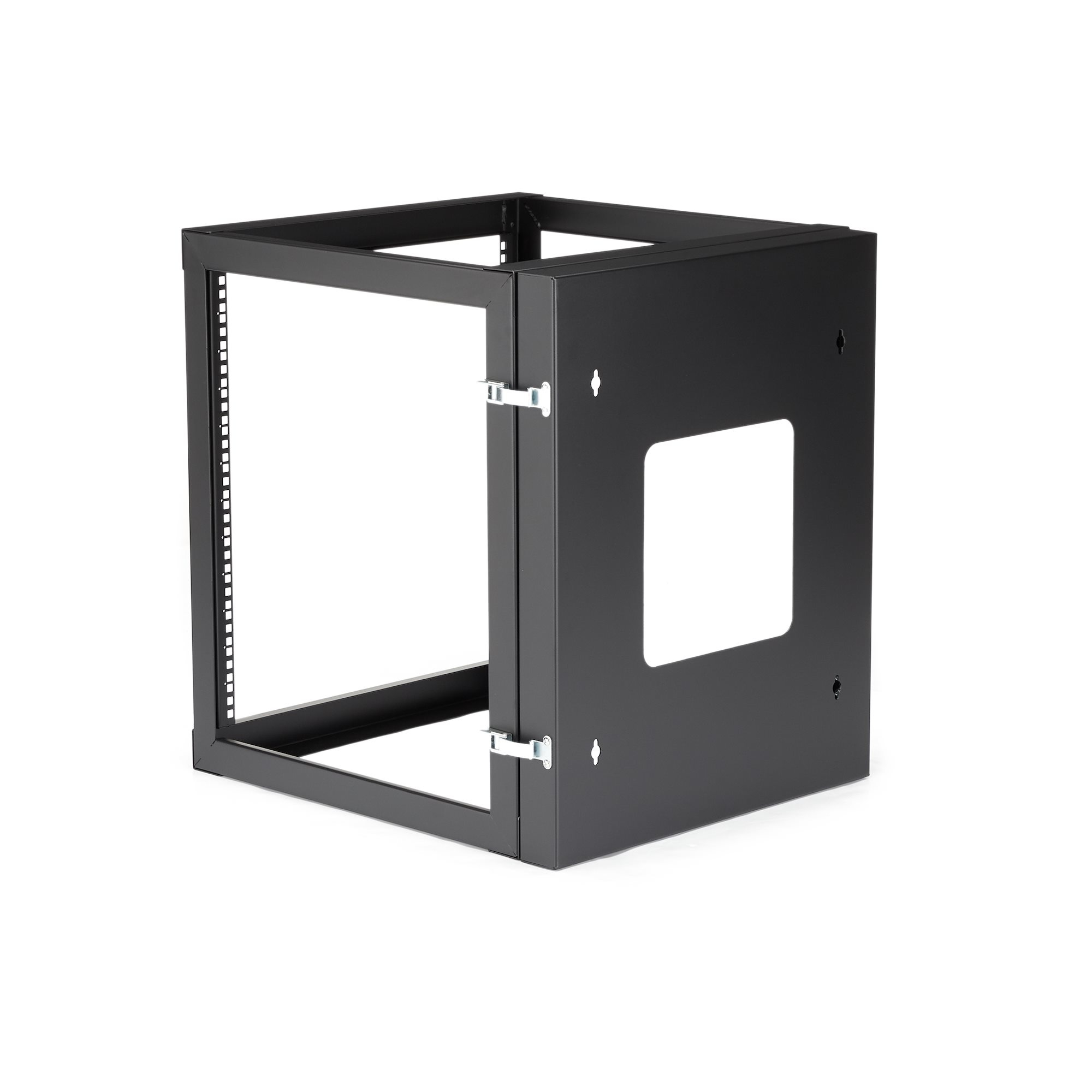

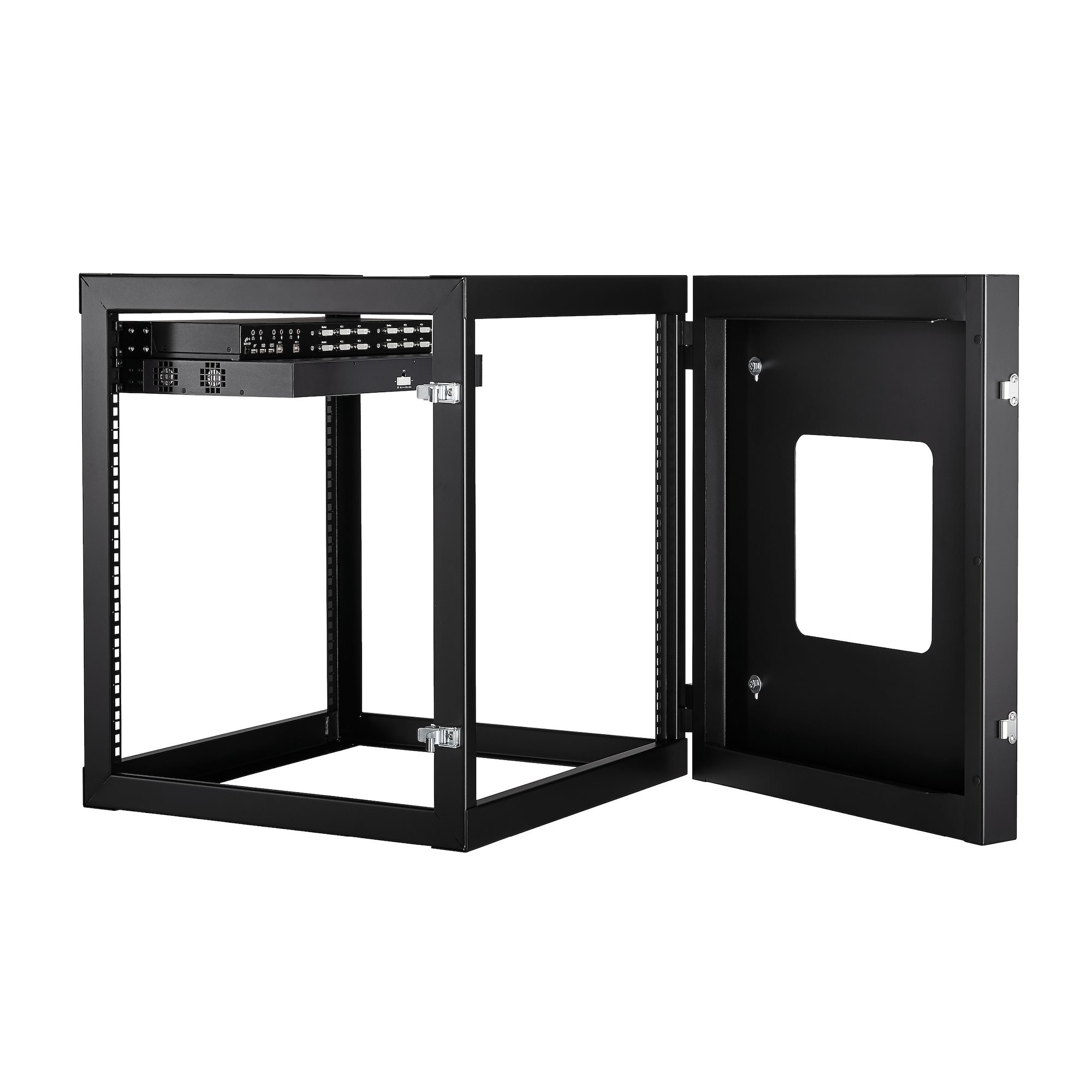

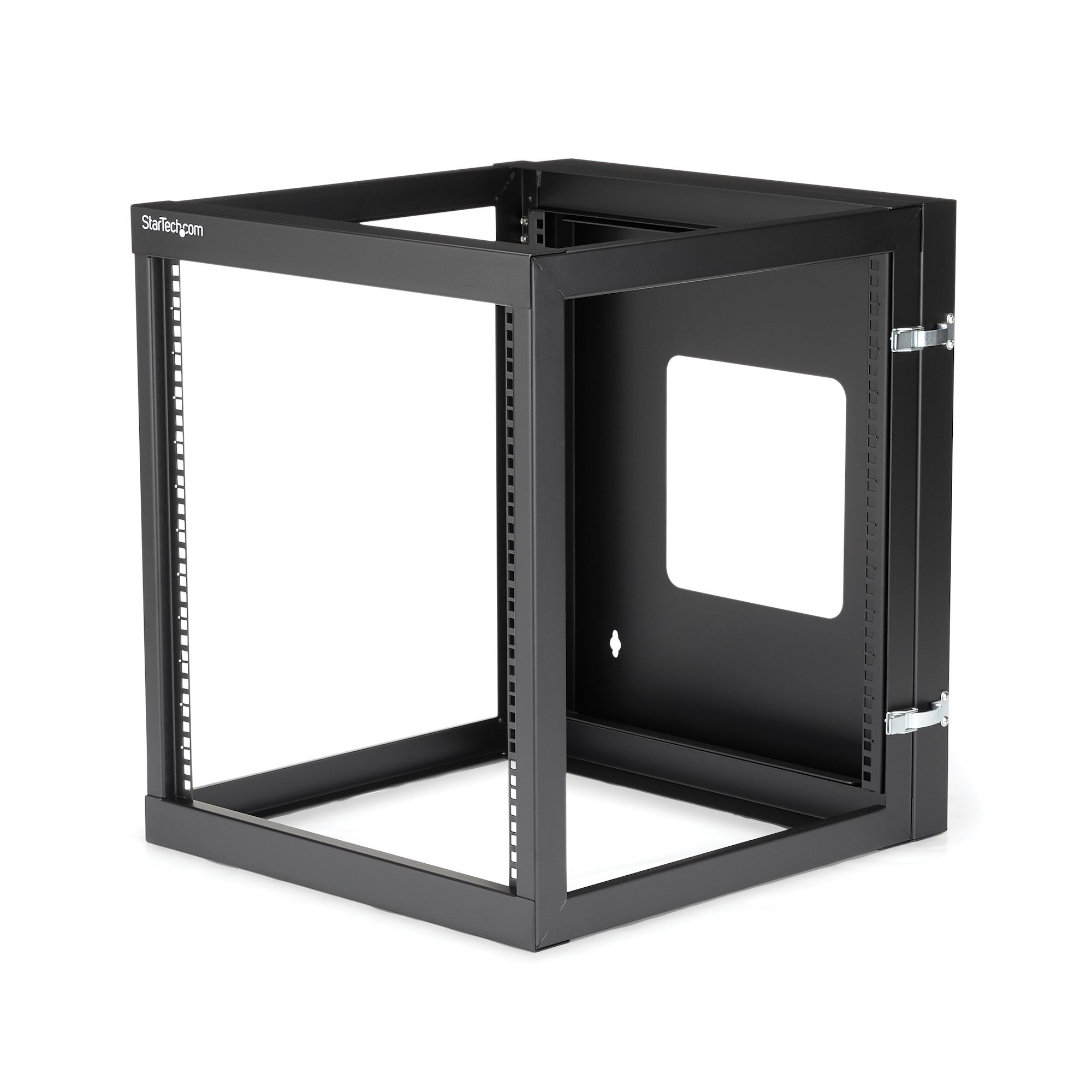

StarTech.com 4-Post 12U Hinged Wall-Mount Network Rack

StarTech.com 4-Post 12U Hinged Wall-Mount Network Rack

19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Patc

Model RK1219WALLOHEAN 5054629175347

36 specifications

TypeWall mounted rack
Weight18 kg
ColourBlack
Rack capacity12U
Width556 mm

See all specifications

Overview

Type: Wall mounted rack
Weight: 18 kg
Colour: Black
Rack capacity: 12U
Width: 556 mm

Brand: StarTech.com
Category: Rack Cabinet
Model: RK1219WALLOH
Part number: RK1219WALLOH
EAN / UPC: 5054629175347, 012300427548, 065030848855, 625657587294 +6 more
Also known as: StarTech.com 4-Post 12U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Patc

Specifications

36 specifications in 5 groups

Features

Specification	Value
Rack capacity	12U
Type	Wall mounted rack
Maximum weight capacity	63.4 kg
Product colour	Black
Material	Steel
Frame type	Open
Product design	4-post
Key lock	No
Front door key lock	No
Adjustable mounting rails	No
Number of fans	0 fan(s)
Cable management	No
Mounting hole shape	Square
Castor wheels	No
Certification	RoHS, CE, UL, TAA

Weight & dimensions

Specification	Value
Width	556 mm
Depth	600 mm
Height	647 mm
Inner depth	50.5 cm
Weight	18 kg
Mounting depth (max)	50.7 cm

Packaging data

Specification	Value
Nuts included	Yes
Number of nuts	48
Number of screws	48
Screws included	Yes
Manual	Yes
Package width	739 mm
Package depth	682 mm
Package height	768 mm
Package weight	20.7 kg

Logistics data

Specification	Value
Harmonized System (HS) code	85381000
Master (outer) case width	670 mm
Master (outer) case length	720 mm
Master (outer) case height	760 mm
Products per master (outer) case	1 pc(s)

Other features

Specification	Value
Compliance industry standards	EIA-310-D, EIA RS310-D
