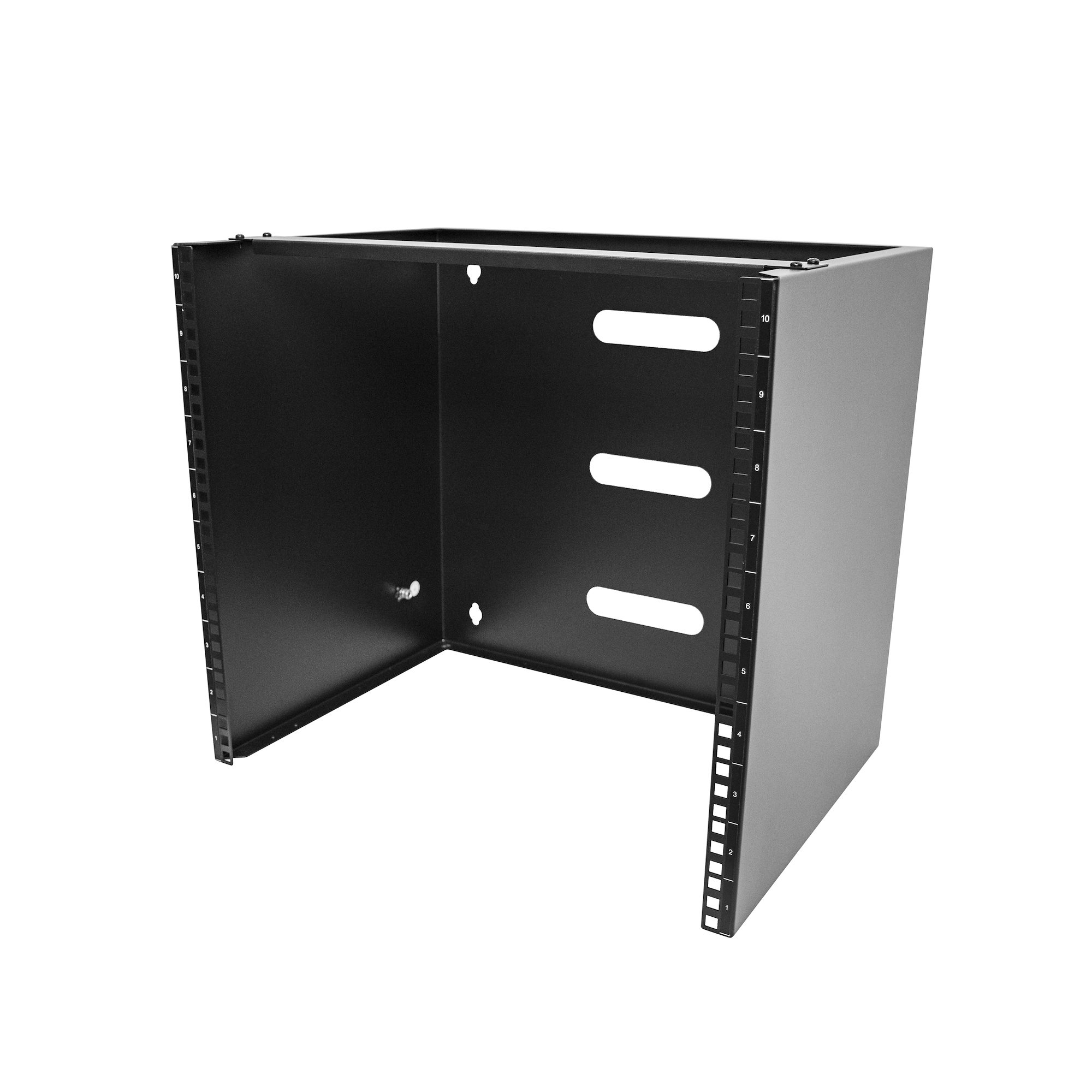

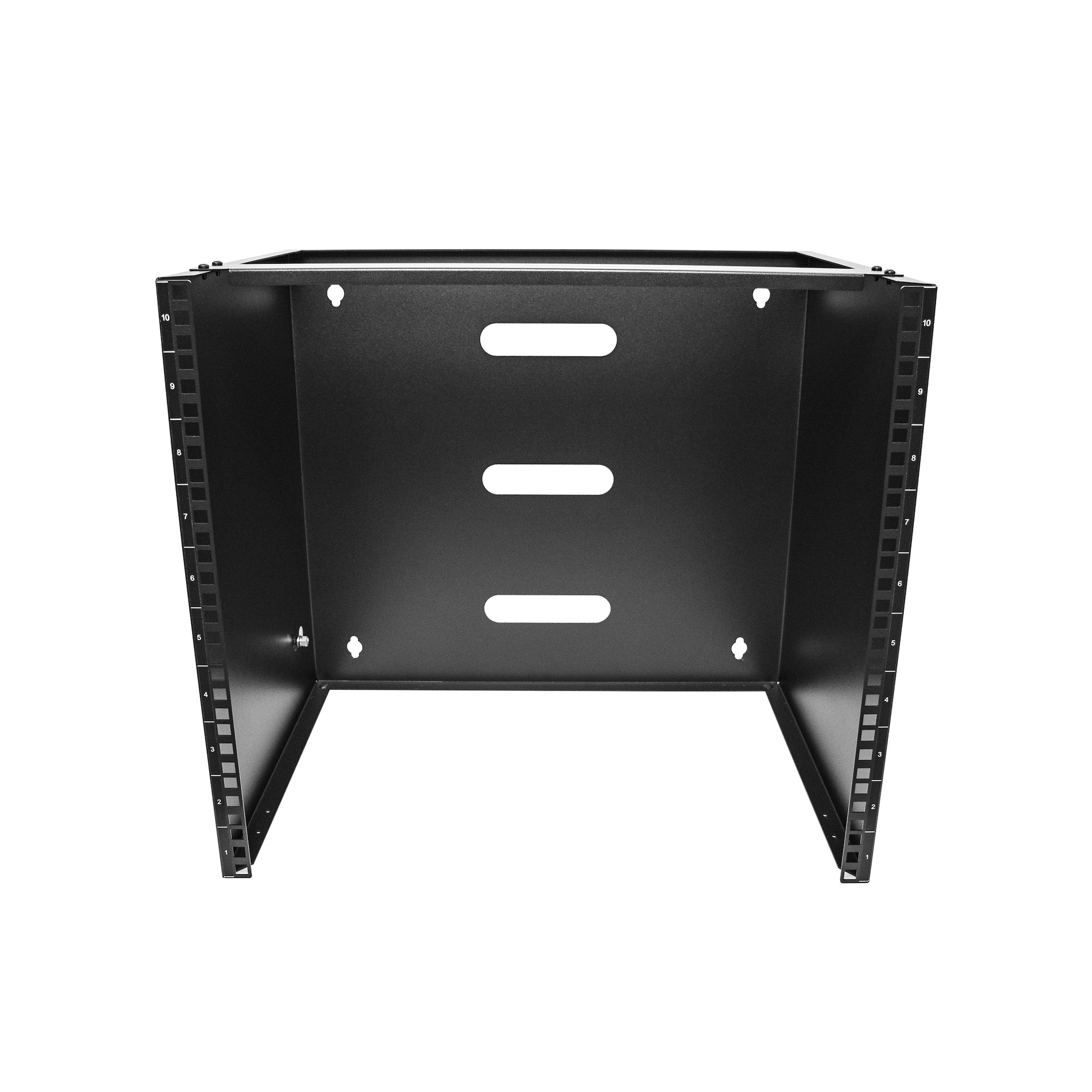

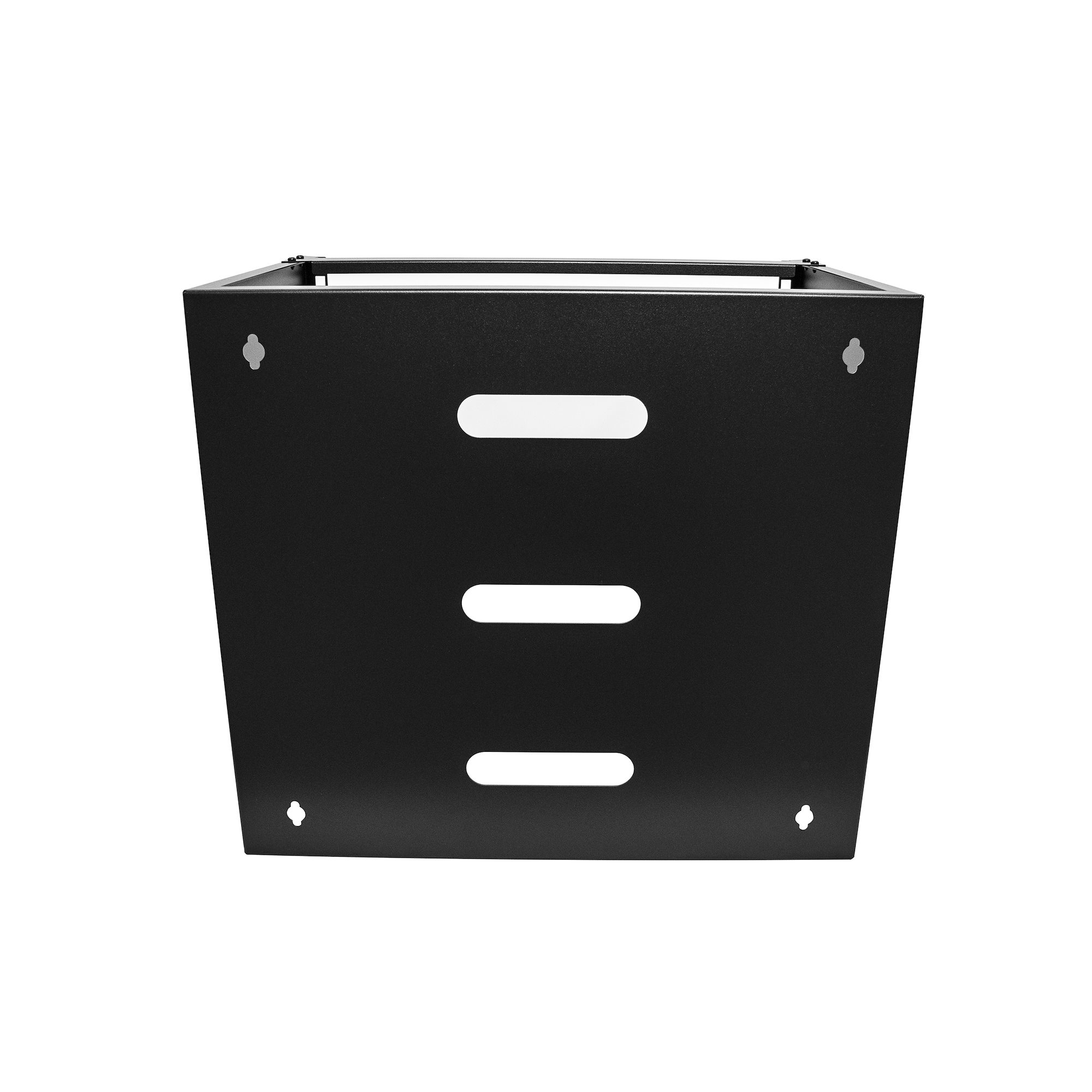

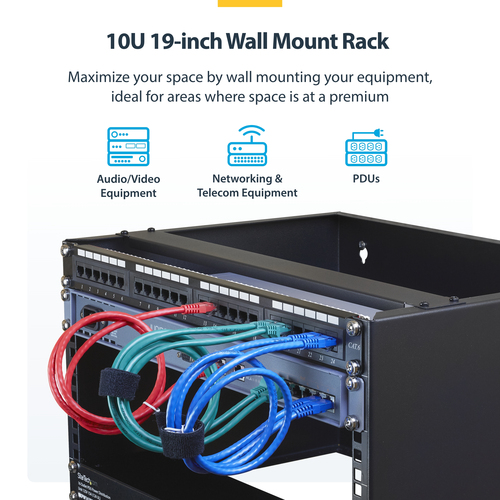

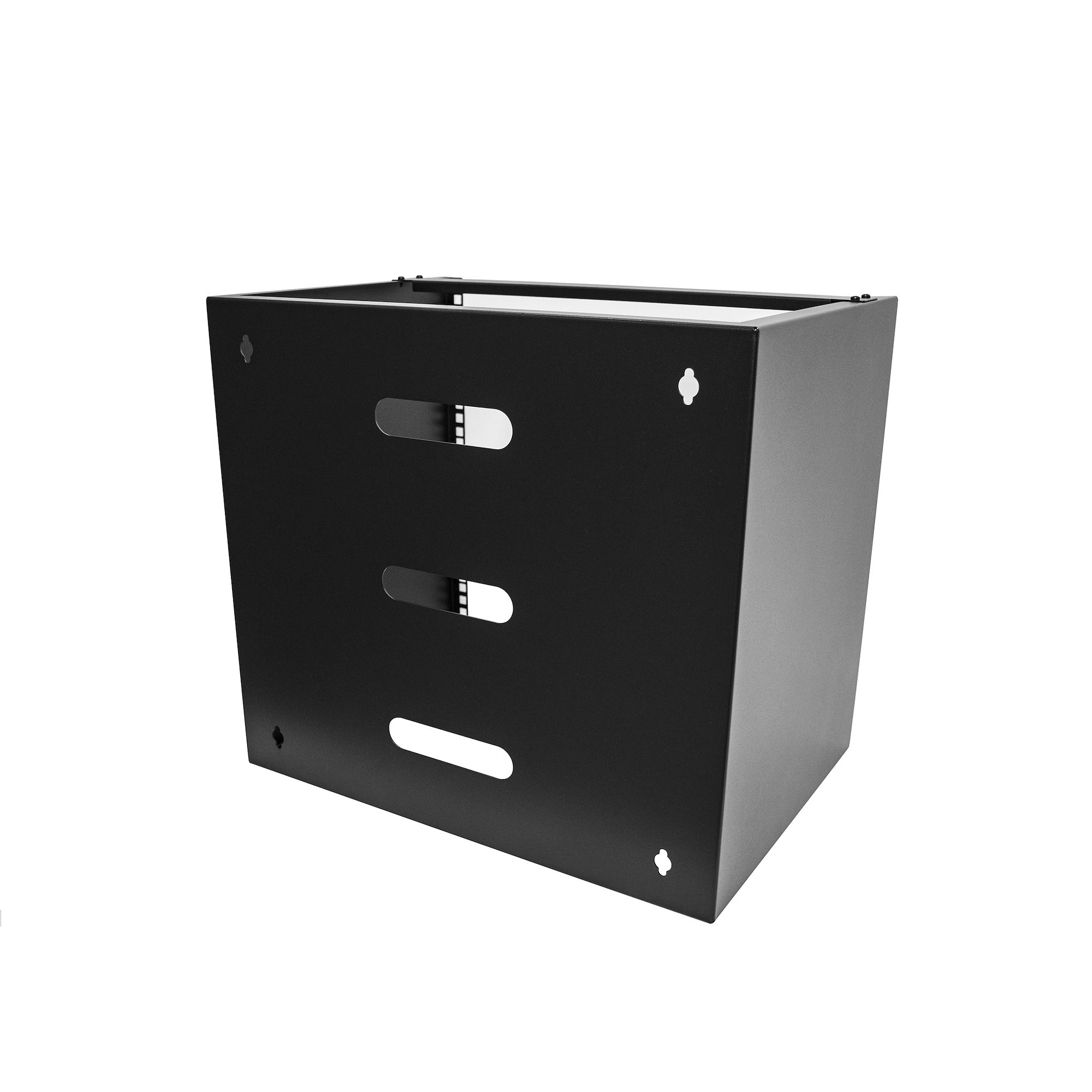

10U Wall Mount Network Rack
14" (35.5cm) Deep (Low Profile), 19" Patch Panel Bracket for Shallow Server, IT Equipment, Network Switches - 77lbs/3
Model RACK-10U-14-BRACKETEAN 065030893893
26 specifications
- TypeWall mounted rack
- Weight5 kg
- ColourBlack
- Rack capacity10U
- Width498 mm
Overview
- Type
- Wall mounted rack
- Weight
- 5 kg
- Colour
- Black
- Rack capacity
- 10U
- Width
- 498 mm
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- RACK-10U-14-BRACKET
- Part number
- RACK-10U-14-BRACKET
- EAN / UPC
- 065030893893
- Also known as
- StarTech.com 10U Wall Mount Network Rack - 14" (35.5cm) Deep (Low Profile), 19" Patch Panel Bracket for Shallow Server, IT Equipment, Network Switches - 77lbs/3
Specifications
26 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 10U |
| Type | Wall mounted rack |
| Maximum weight capacity | 35 kg |
| Product colour | Black |

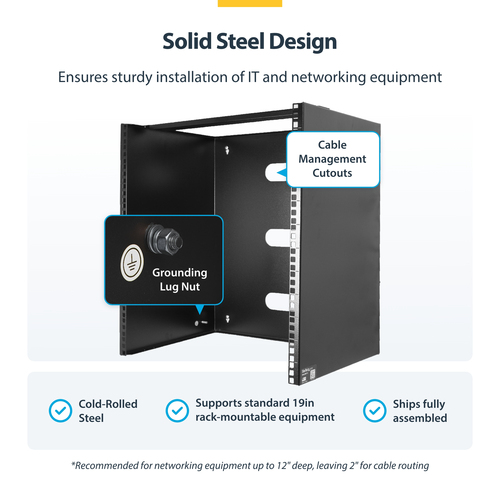

| Material | Steel |
| Product design | 2-post |
| Mounting hole shape | Square |

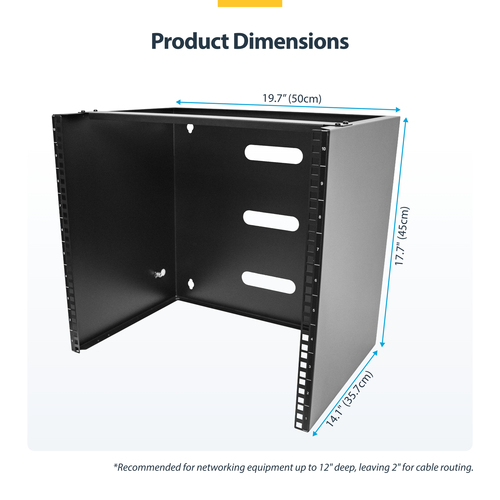

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 498 mm |
| Depth | 356 mm |
| Height | 451 mm |
| Weight | 5 kg |
| Mounting depth (max) | 30 cm |

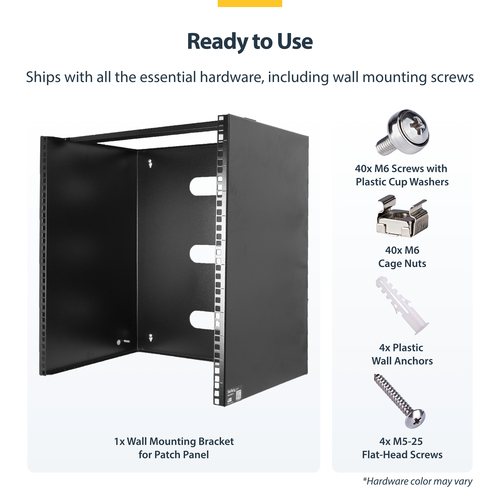

Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 40 |
| Number of screws | 44 |
| Screws included | Yes |
| Number of washers included | 40 |
| Quick installation guide | Yes |
| Package width | 425 mm |
| Package depth | 500 mm |
| Package height | 520 mm |
| Package weight | 9.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 425 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 520 mm |
| Products per master (outer) case | 1 pc(s) |
