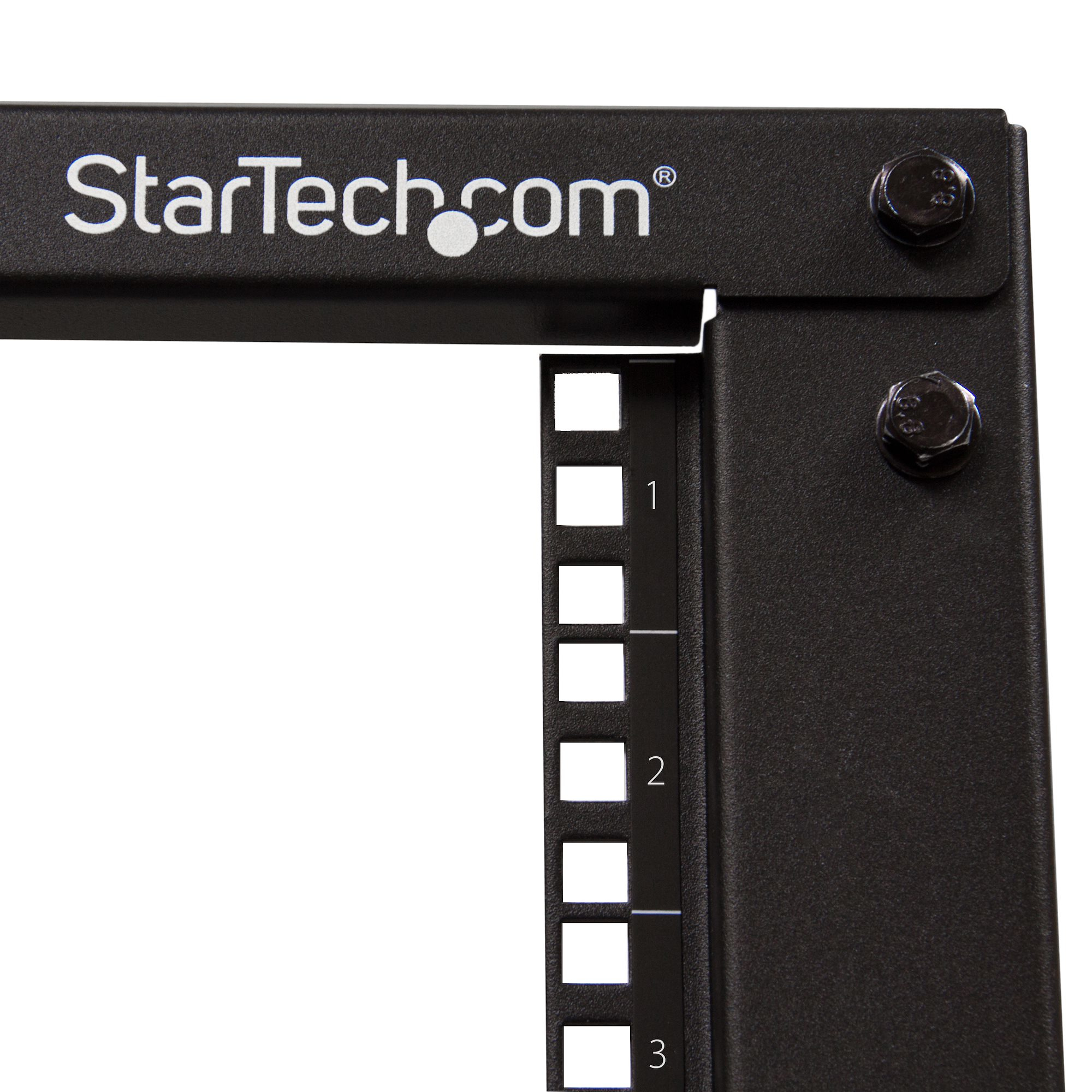

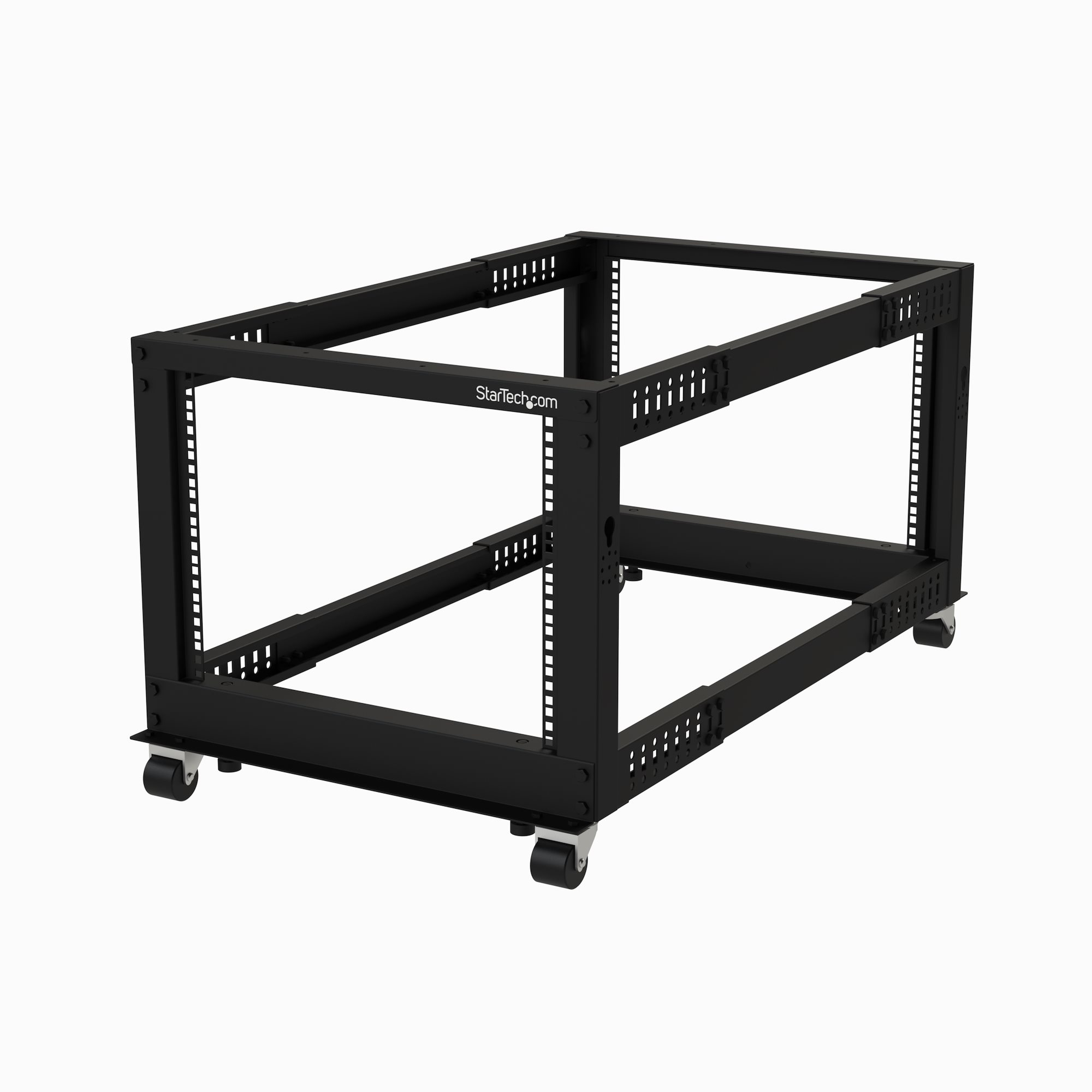

8U 4-Post Server Rack
19in Open Frame Rack with 40in (101cm) Mounting Depth and 1200lb (544kg) Weight Capacity, Mobile or Floor Mount IT Rack
Model 4POSTRACK8UEAN 065030887168
39 specifications
- TypeFreestanding rack
- Weight22.5 kg
- ColourBlack
- Rack capacity8U
- Width600 mm
- Compliance certificatesRoHS
Overview
- Type
- Freestanding rack
- Weight
- 22.5 kg
- Colour
- Black
- Rack capacity
- 8U
- Width
- 600 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- 4POSTRACK8U
- Part number
- 4POSTRACK8U
- EAN / UPC
- 065030887168
- Also known as
- StarTech.com 8U 4-Post Server Rack, 19in Open Frame Rack with 40in (101cm) Mounting Depth and 1200lb (544kg) Weight Capacity, Mobile or Floor Mount IT Rack
Specifications
39 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 8U |
| Type | Freestanding rack |
| Maximum weight capacity | 544 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 4-post |

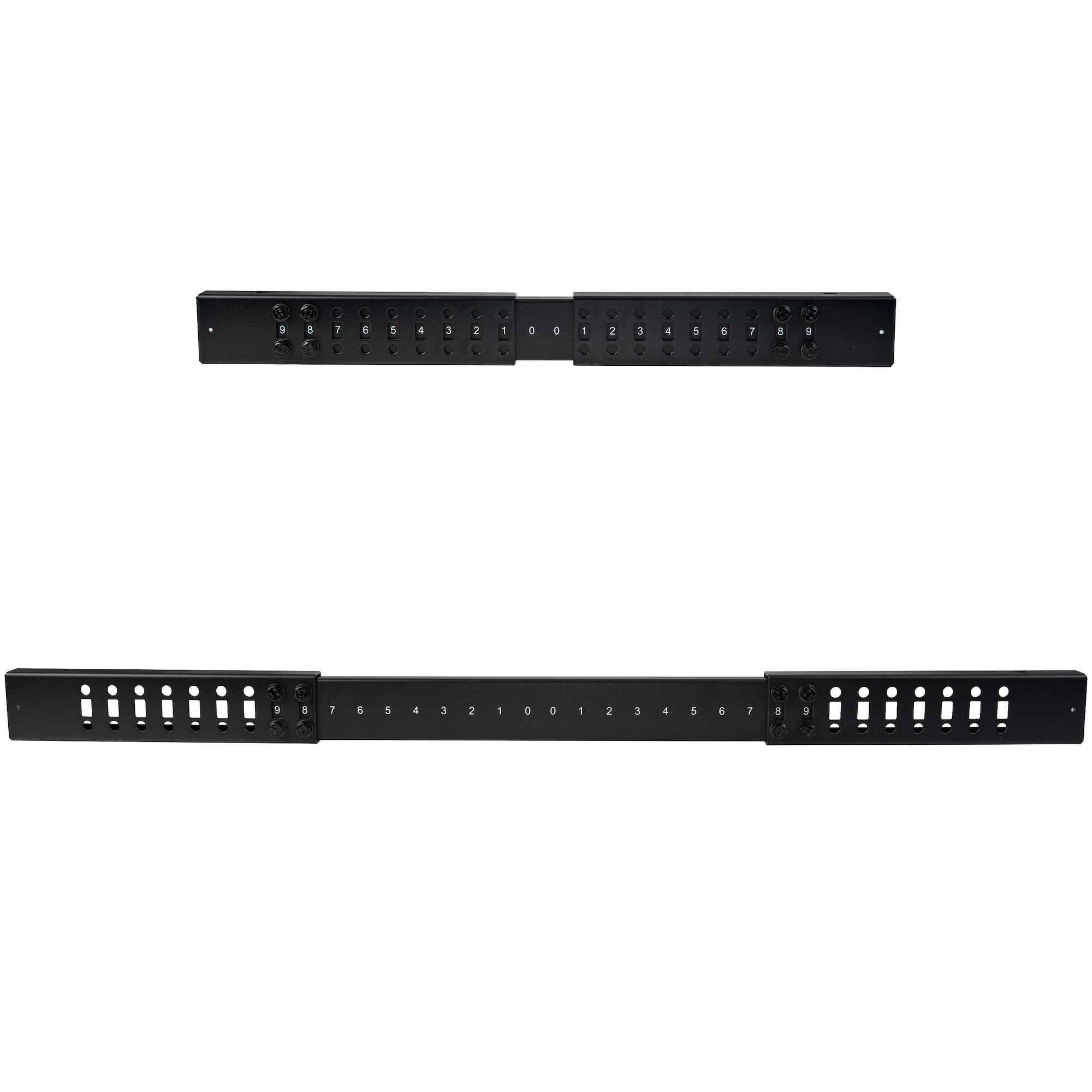

| Adjustable mounting rails | Yes |

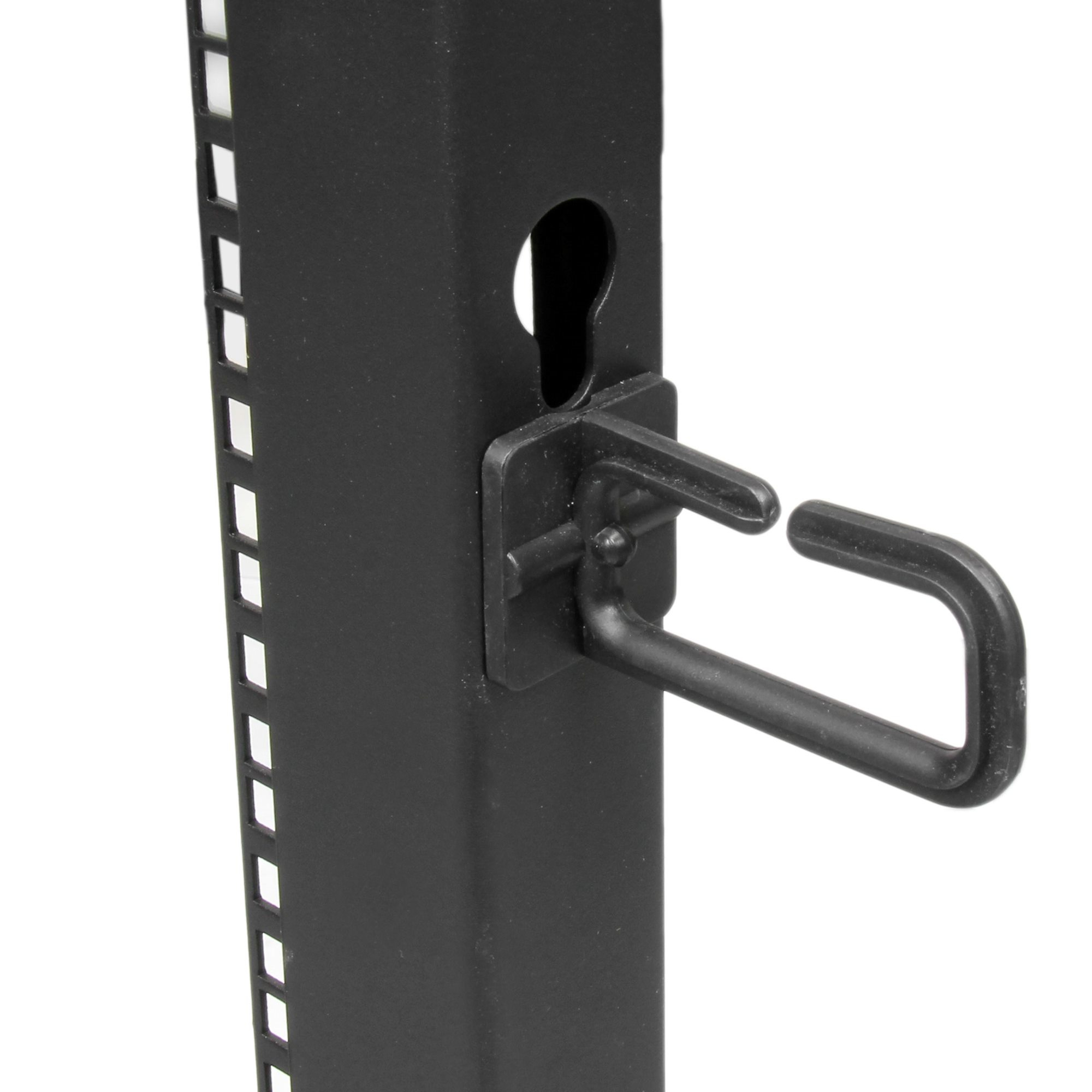

| Cable management | Yes |
| Mounting hole shape | Square |

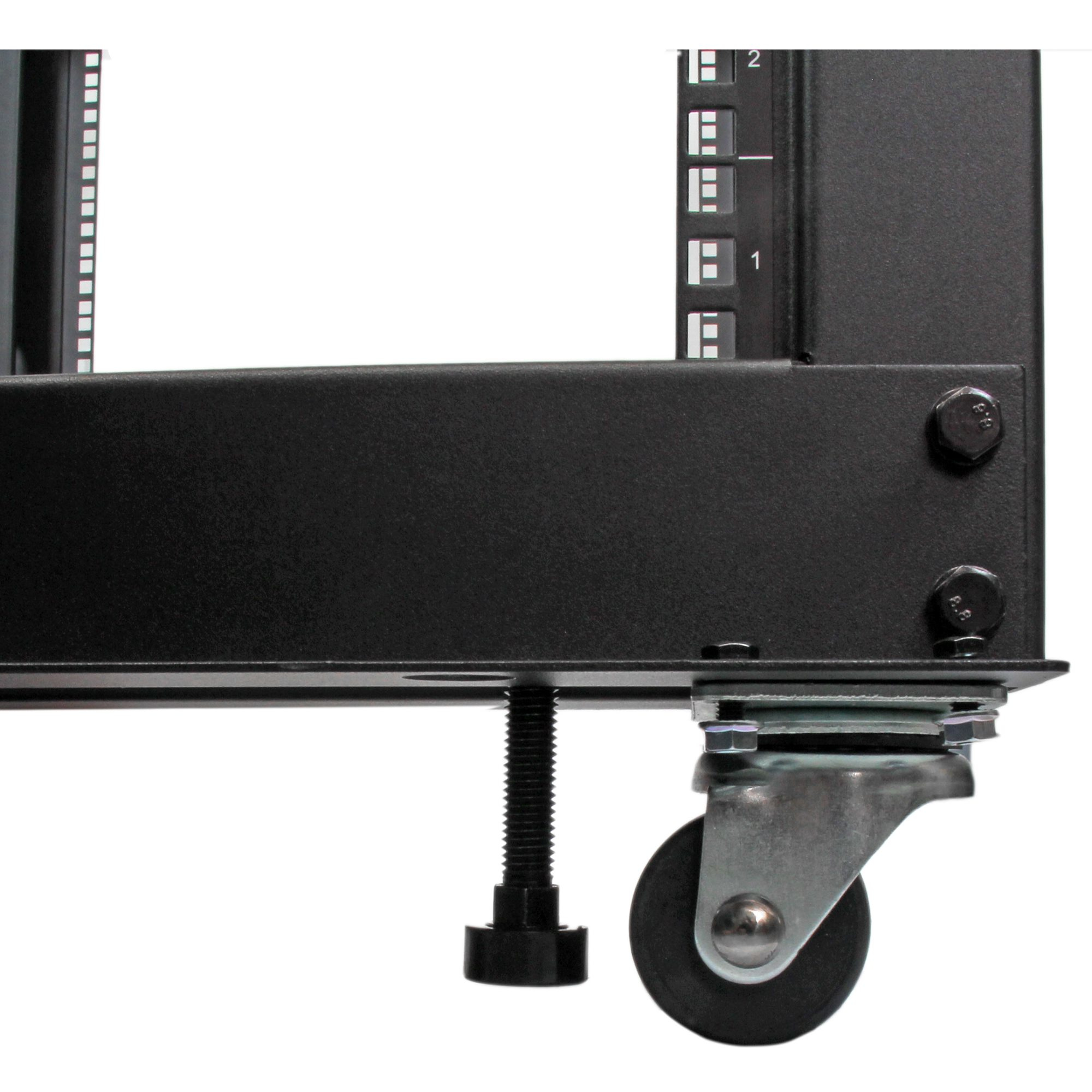

| Castor wheels | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 1100 mm |
| Height | 460 mm |
| Weight | 22.5 kg |
| Mounting depth (min) | 56.6 cm |
| Mounting depth (max) | 100 cm |

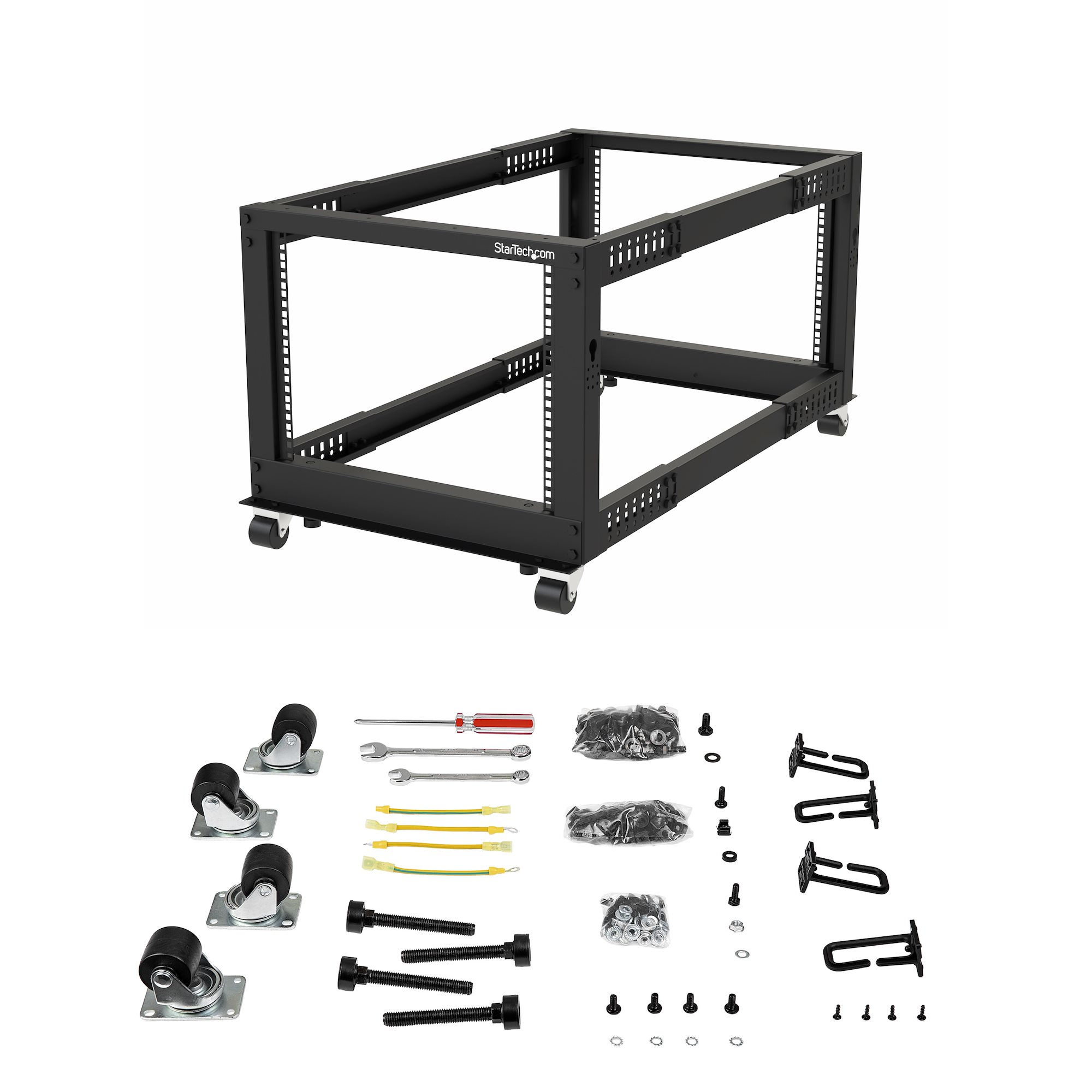

Packaging data
| Specification | Value |
|---|---|
| Number of wrenches included | 2 |
| Number of grounding wires included | 4 |
| Number of screwdrivers | 1 |
| Nuts included | Yes |
| Number of nuts | 42 |
| Number of screws | 100 |
| Screws included | Yes |
| Number of leveling feets included | 4 pc(s) |
| Number of cable management hooks included | 4 pc(s) |
| Number of washers included | 96 |
| Manual | Yes |
| Package width | 841 mm |
| Package depth | 297 mm |
| Package height | 154 mm |
| Package weight | 24.8 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 850 mm |
| Master (outer) case length | 1220 mm |
| Master (outer) case height | 460 mm |
| Products per master (outer) case | 12 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
