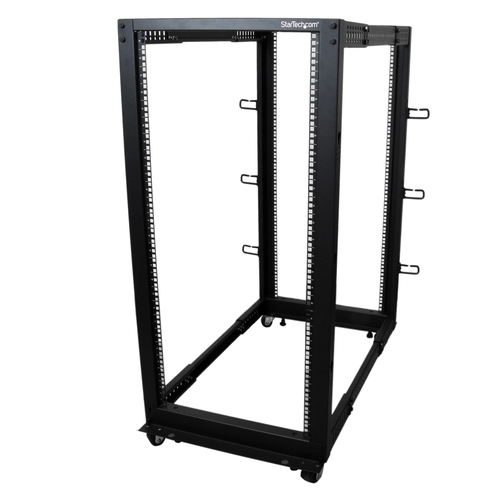

25U 4-Post Server Rack
19in Open Frame Rack with 40in (101cm) Mounting Depth and 1200lb (544kg) Weight Capacity, Mobile or Floor Mount IT Rack
Model 4POSTRACK25UEAN 7426700297237
39 specifications
- TypeFreestanding rack
- Weight33 kg
- ColourBlack
- Rack capacity25U
- Width604 mm
- Compliance certificatesRoHS
Overview
- Type
- Freestanding rack
- Weight
- 33 kg
- Colour
- Black
- Rack capacity
- 25U
- Width
- 604 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- 4POSTRACK25U
- Part number
- 4POSTRACK25U
- EAN / UPC
- 7426700297237, 065030858519, 4058829150556, 4913613102244 +3 more
- Also known as
- StarTech.com 25U 4-Post Server Rack, 19in Open Frame Rack with 40in (101cm) Mounting Depth and 1200lb (544kg) Weight Capacity, Mobile or Floor Mount IT Rack
Specifications
39 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 25U |
| Type | Freestanding rack |
| Maximum weight capacity | 544.3 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 4-post |
| Key lock | No |
| Number of fans | 0 fan(s) |
| Cable management | Yes |

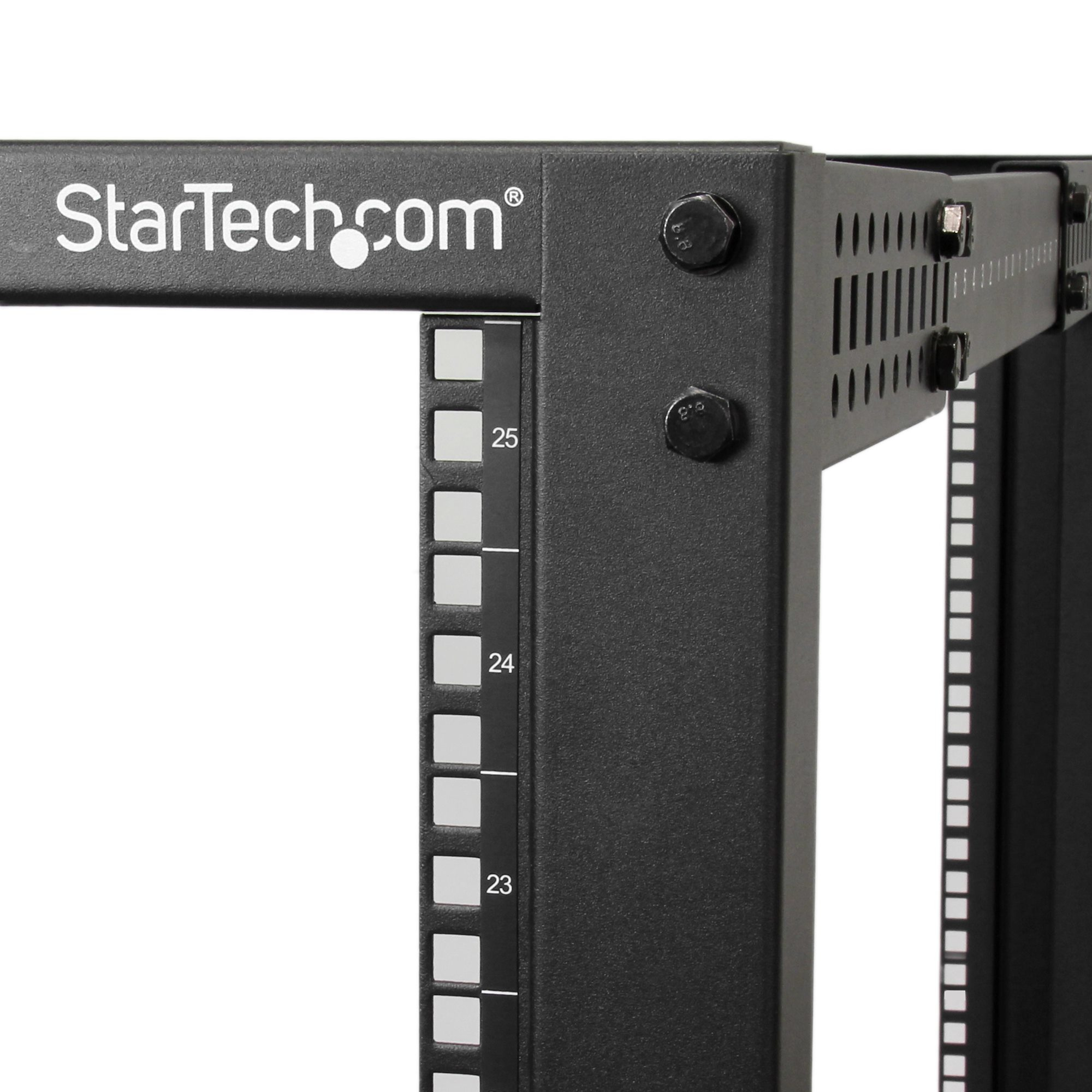

| Mounting hole shape | Square |
| Castor wheels | Yes |

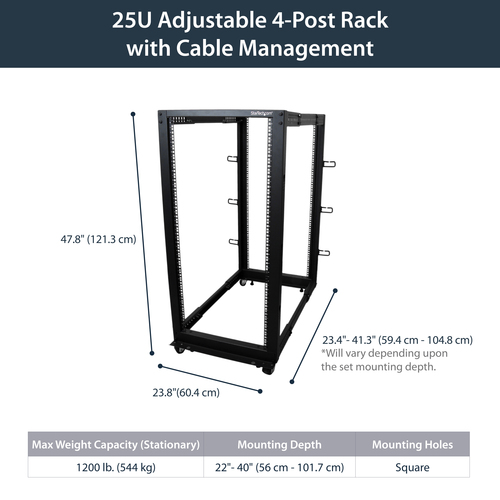

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 604 mm |
| Depth | 1000 mm |
| Height | 1200 mm |
| Inner height | 111.6 cm |
| Weight | 33 kg |
| Mounting depth (min) | 56 cm |
| Mounting depth (max) | 100 cm |

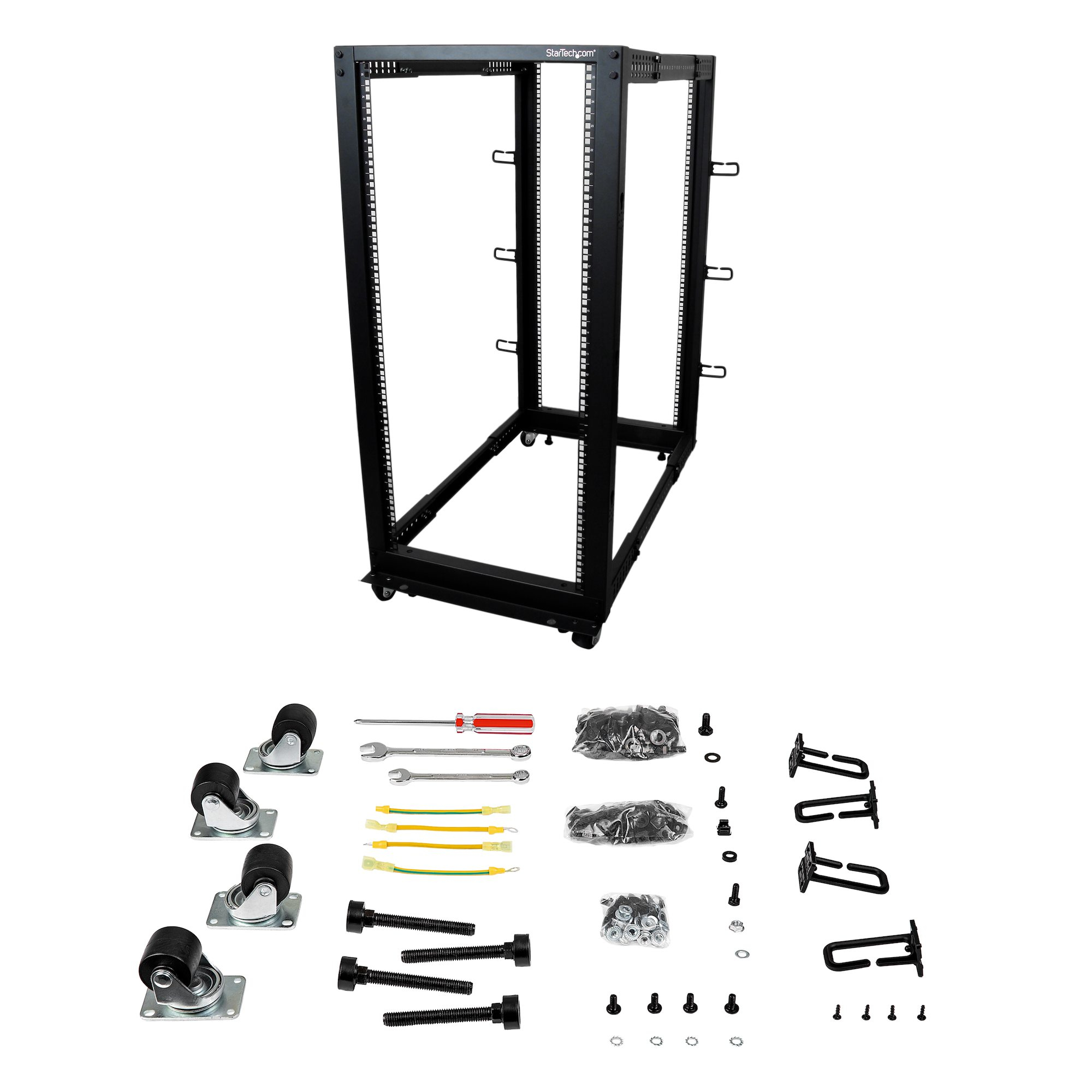

Packaging data
| Specification | Value |
|---|---|
| Number of grounding wires included | 4 |
| Nuts included | Yes |
| Number of nuts | 48 |
| Number of screws | 60 |
| Screws included | Yes |
| Number of leveling feets included | 4 pc(s) |
| Number of cable management hooks included | 12 pc(s) |
| Number of bolts | 48 |
| Number of washers included | 96 |
| Package width | 1556 mm |
| Package depth | 206 mm |
| Package height | 159 mm |
| Package weight | 35 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 630 mm |
| Master (outer) case length | 1590 mm |
| Master (outer) case height | 455 mm |
| Products per master (outer) case | 9 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
