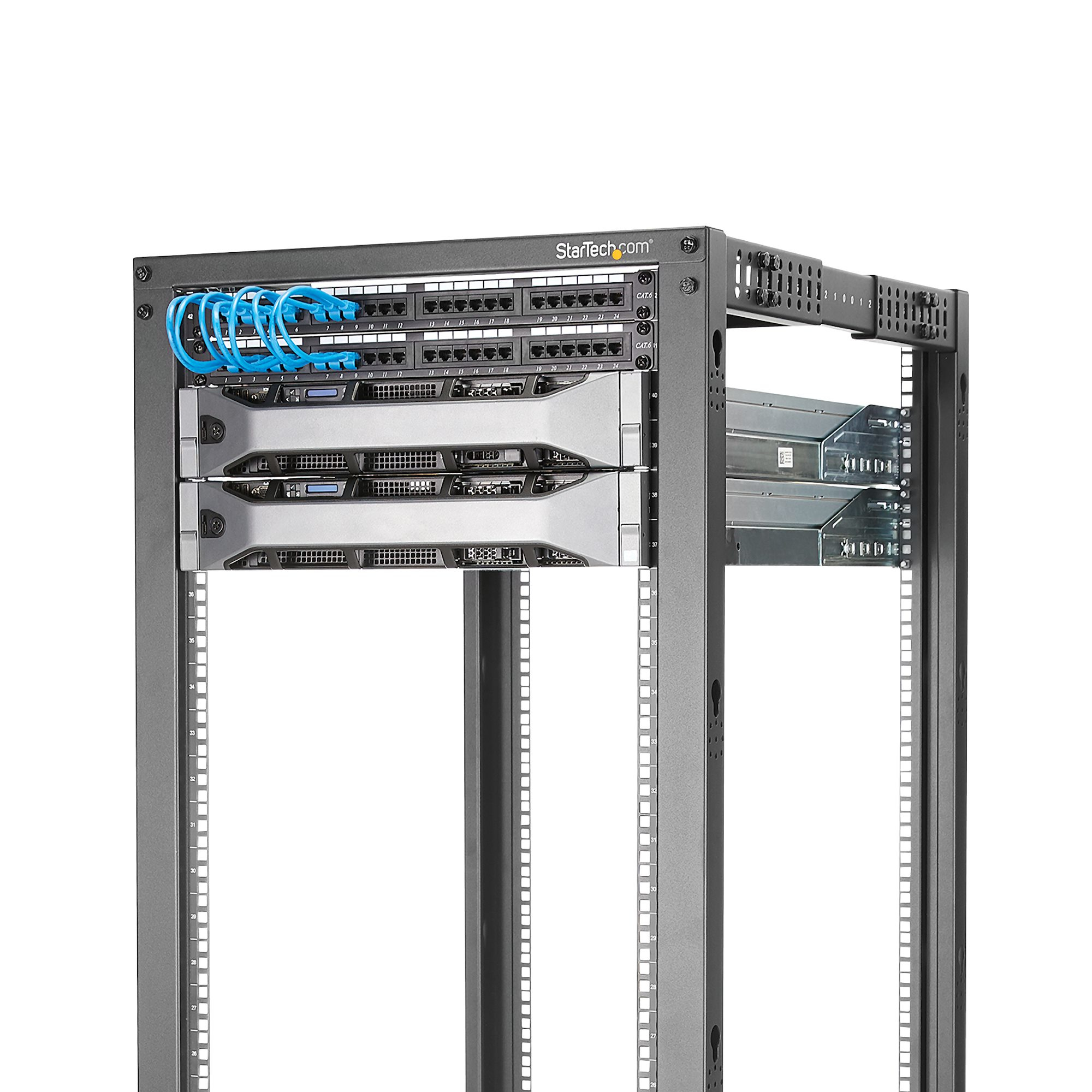

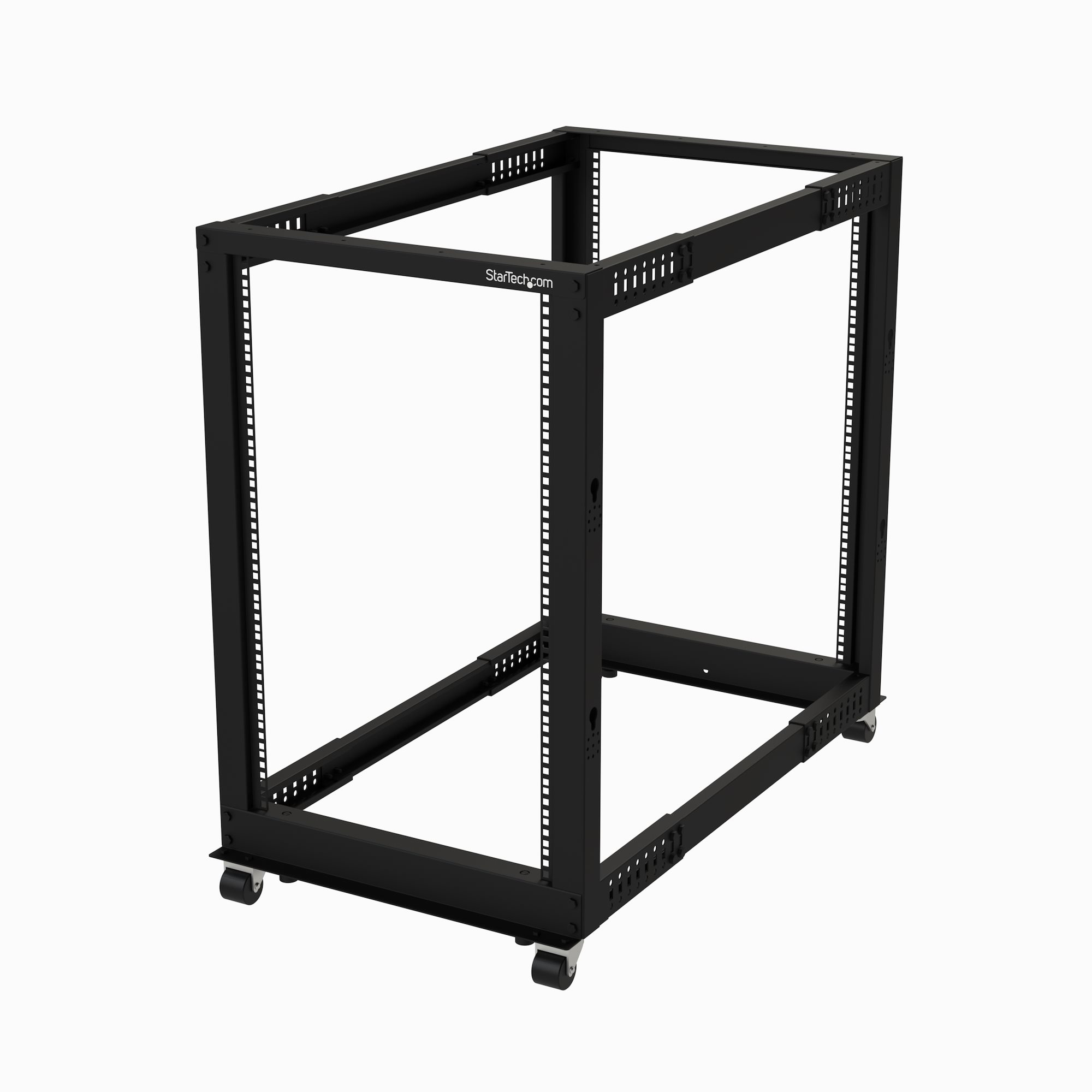

18U 4-Post Server Rack
19in Open Frame Rack with 40in (101cm) Mounting Depth and 1200lb (544kg) Weight Capacity, Mobile or Floor Mount IT Rack
Model 4POSTRACK18UEAN 065030886833
39 specifications
- TypeFreestanding rack
- Weight26.5 kg
- ColourBlack
- Rack capacity18U
- Width600 mm
- Compliance certificatesRoHS
Overview
- Type
- Freestanding rack
- Weight
- 26.5 kg
- Colour
- Black
- Rack capacity
- 18U
- Width
- 600 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Rack Cabinet
- Model
- 4POSTRACK18U
- Part number
- 4POSTRACK18U
- EAN / UPC
- 065030886833
- Also known as
- StarTech.com 18U 4-Post Server Rack, 19in Open Frame Rack with 40in (101cm) Mounting Depth and 1200lb (544kg) Weight Capacity, Mobile or Floor Mount IT Rack
Specifications
39 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 18U |
| Type | Freestanding rack |
| Maximum weight capacity | 544 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 4-post |
| Adjustable mounting rails | Yes |

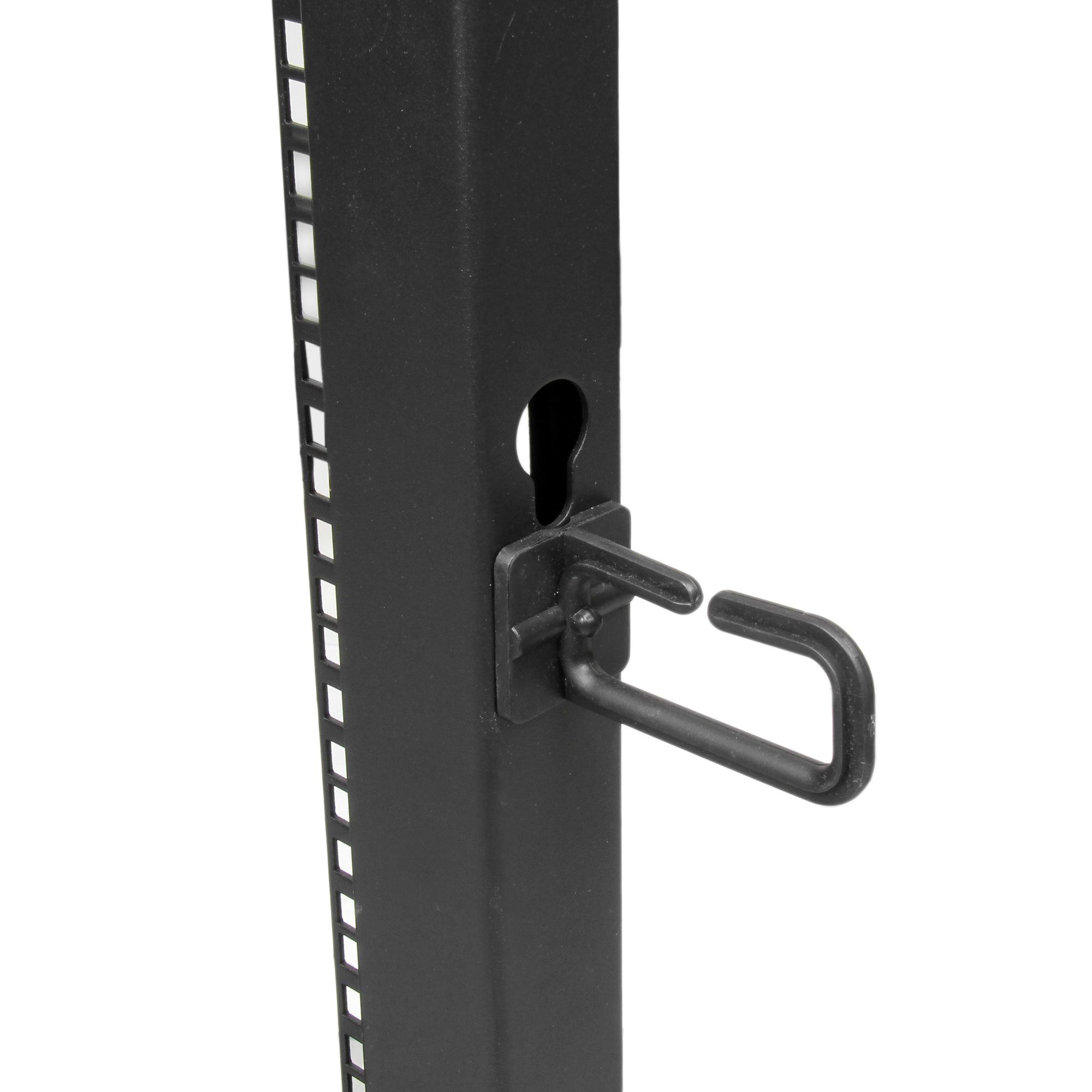

| Cable management | Yes |
| Mounting hole shape | Square |

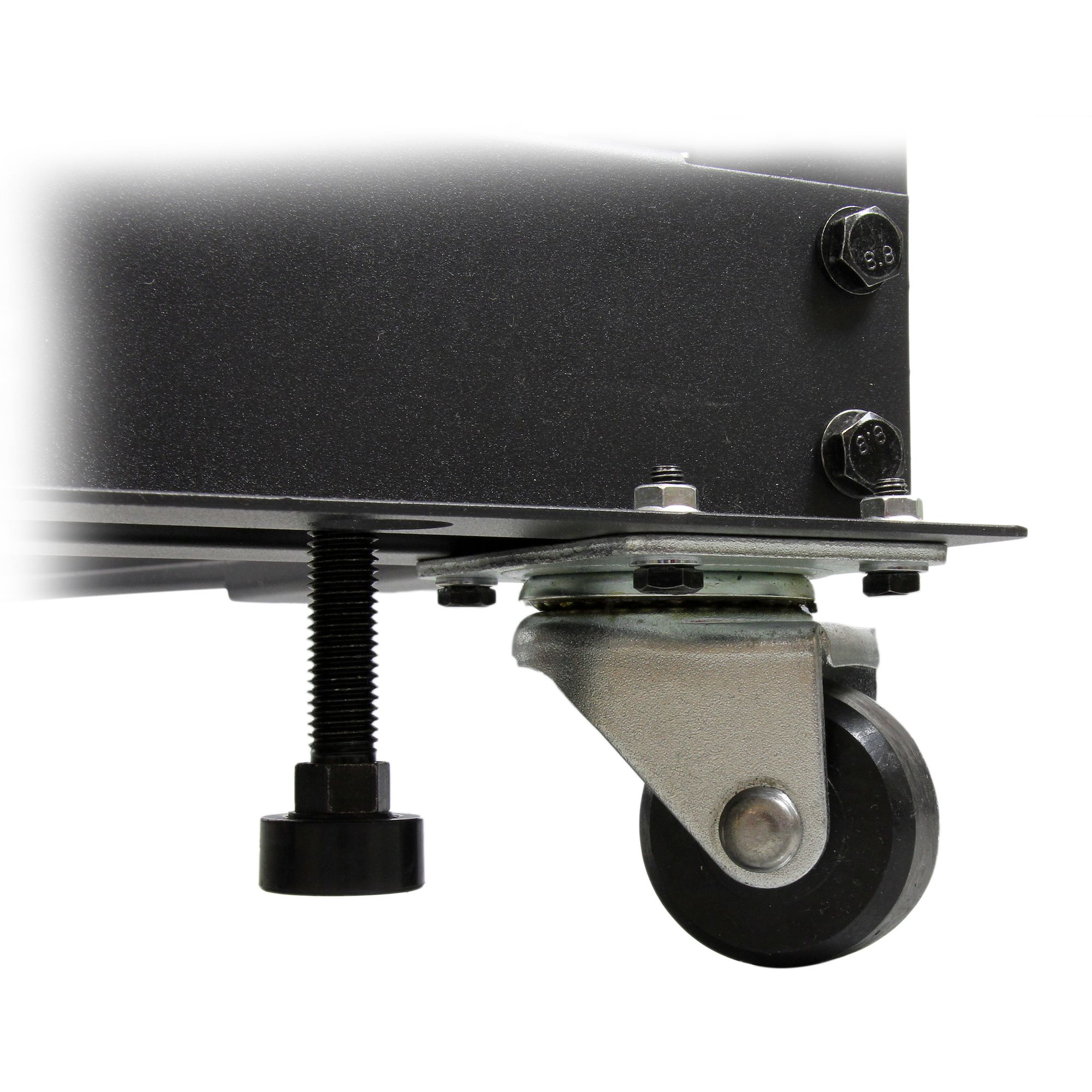

| Castor wheels | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 1100 mm |
| Height | 904 mm |
| Weight | 26.5 kg |

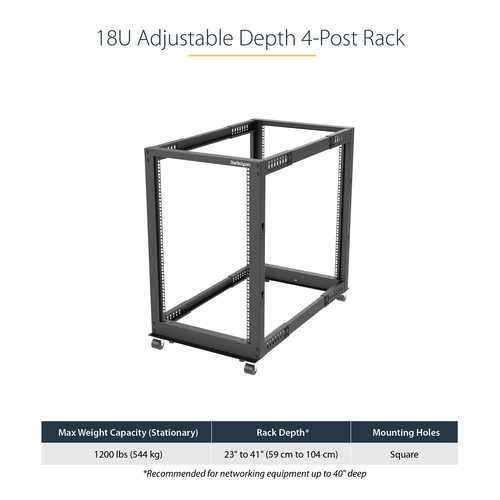

| Mounting depth (min) | 56.6 cm |
| Mounting depth (max) | 100 cm |

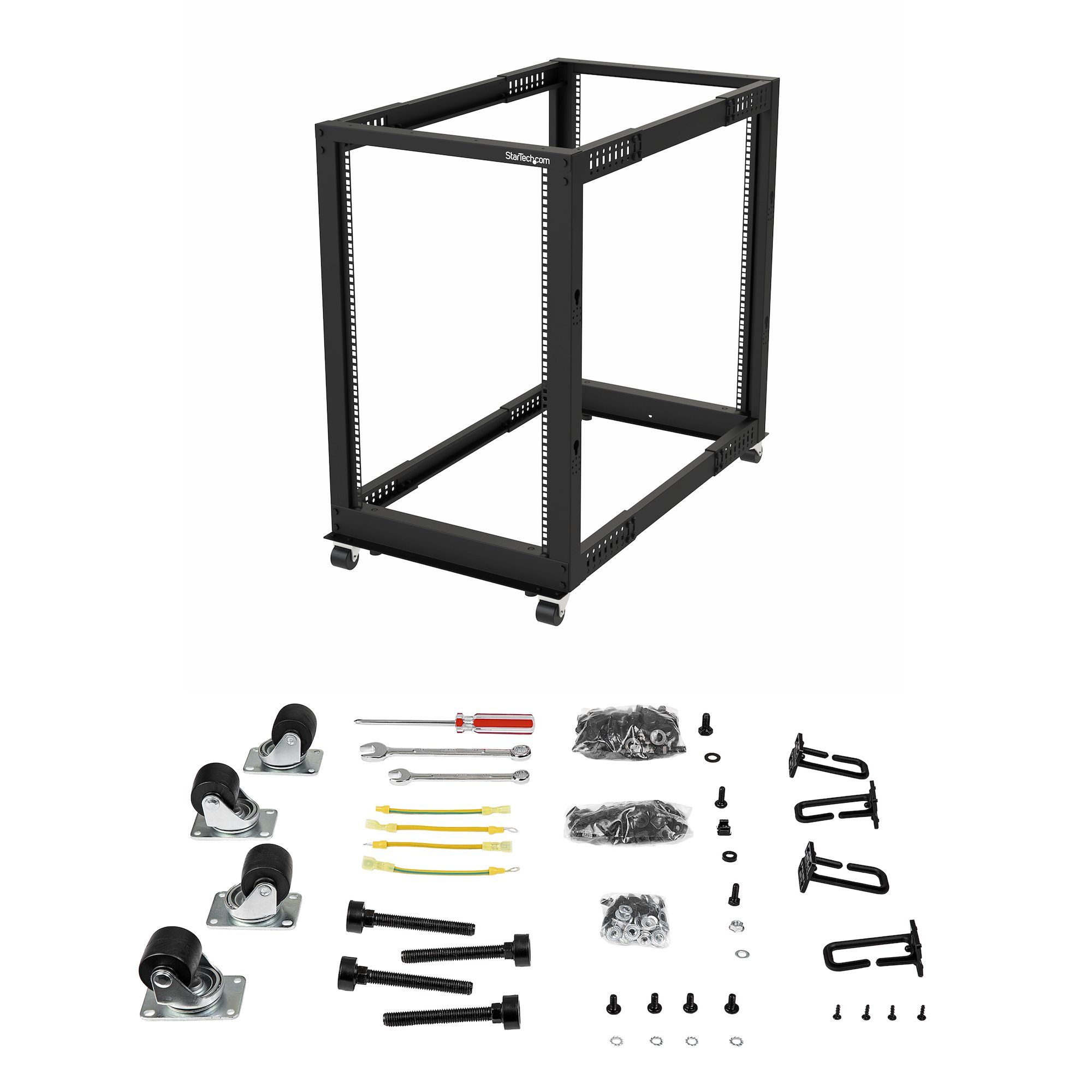

Packaging data
| Specification | Value |
|---|---|
| Number of wrenches included | 2 |
| Number of grounding wires included | 4 |
| Number of screwdrivers | 1 |
| Nuts included | Yes |
| Number of nuts | 42 |
| Number of screws | 104 |
| Screws included | Yes |
| Number of leveling feets included | 4 pc(s) |
| Number of cable management hooks included | 8 pc(s) |
| Number of washers included | 96 |
| Manual | Yes |
| Package width | 1408 mm |
| Package depth | 260 mm |
| Package height | 139 mm |
| Package weight | 29.8 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 810 mm |
| Master (outer) case length | 1445 mm |
| Master (outer) case height | 520 mm |
| Products per master (outer) case | 9 pc(s) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | EIA/ECA-310-E |
