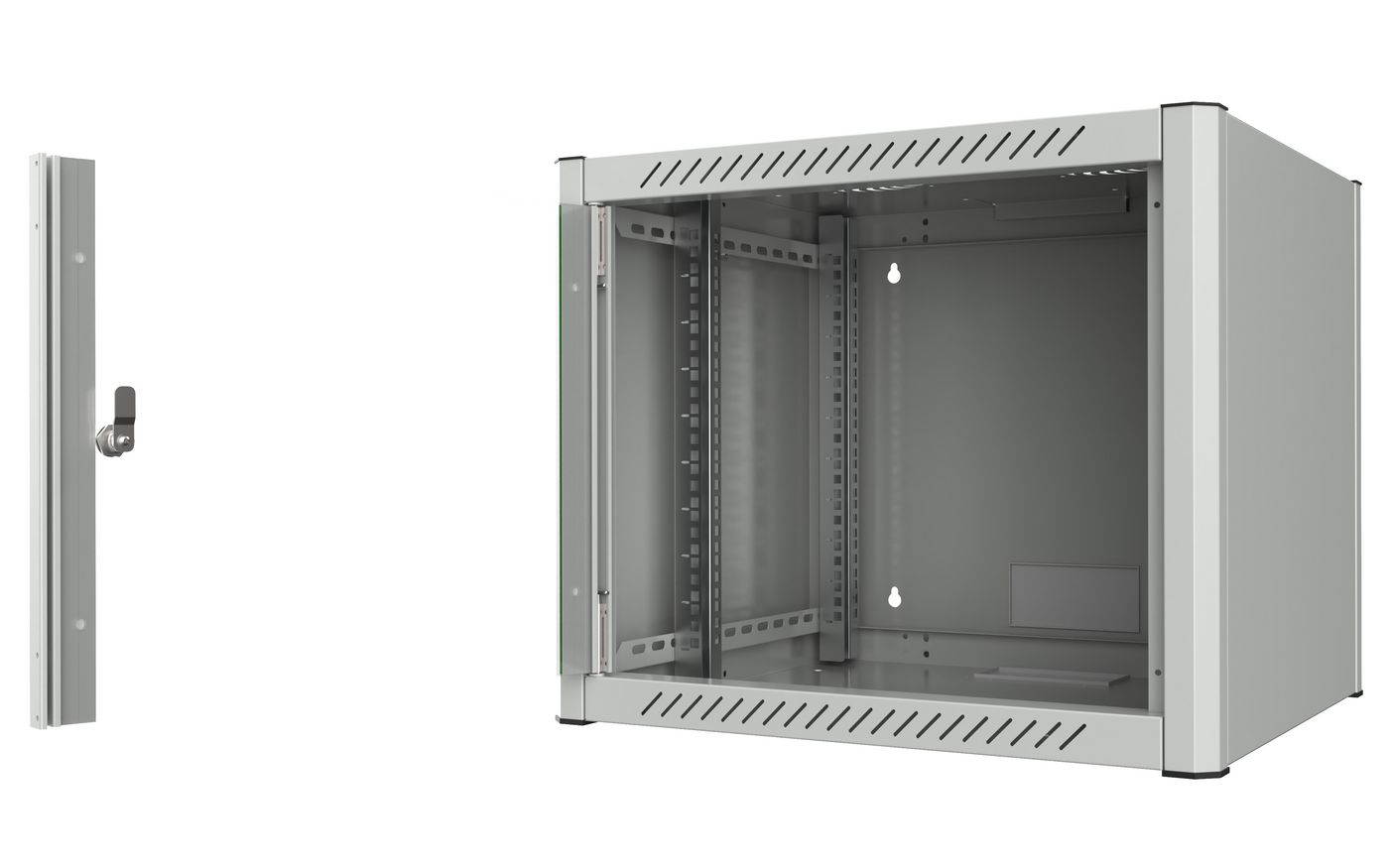

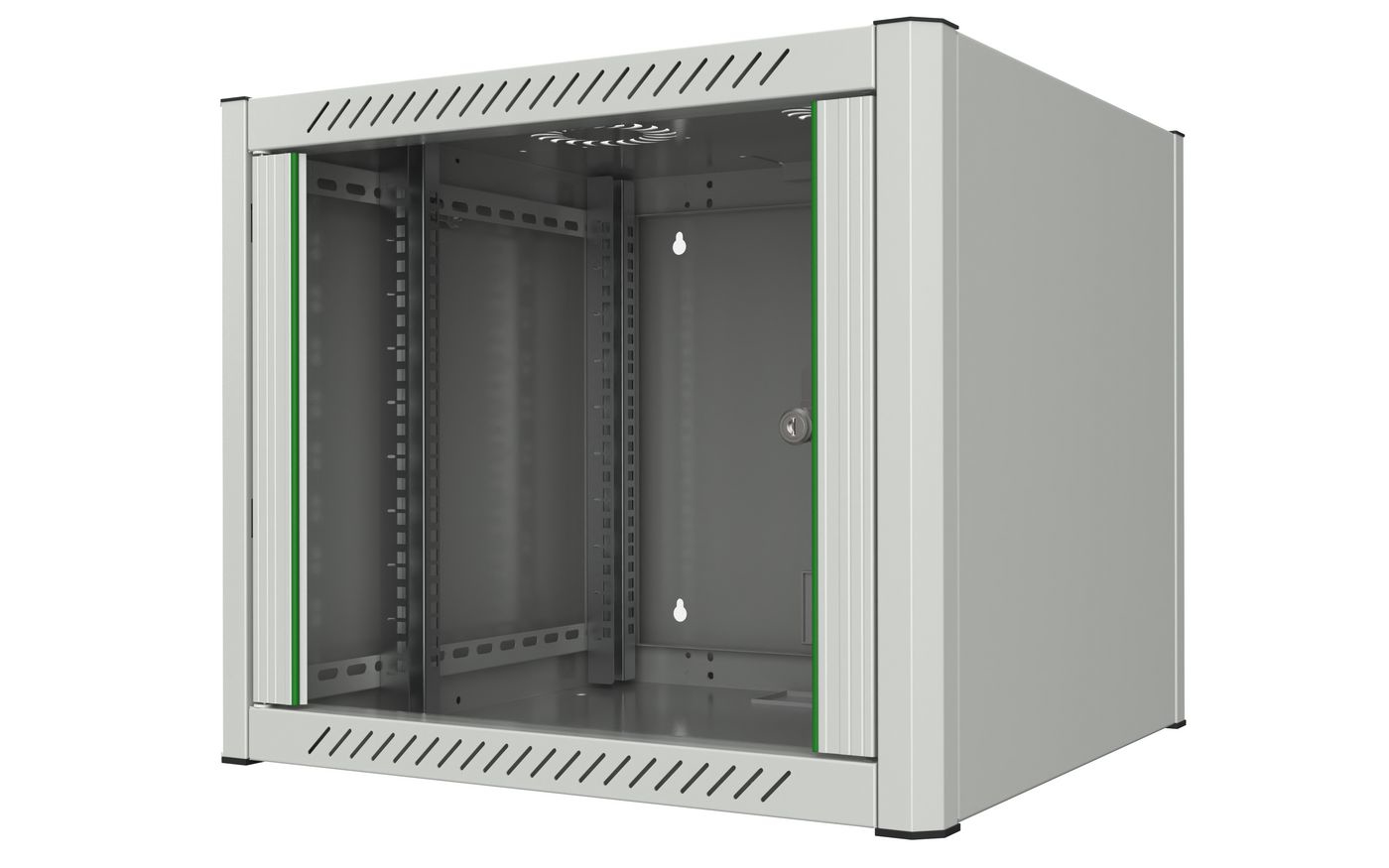

RWM09U56WH rack cabinet 9U Wall mounted rack White
Model RWM09U56WH
25 specifications
- TypeWall mounted rack
- Weight21.6 kg
- ColourWhite
- Rack capacity9U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Wall mounted rack
- Weight
- 21.6 kg
- Colour
- White
- Rack capacity
- 9U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- RWM09U56WH
- Part number
- RWM09U56WH
- Also known as
- Lanview RWM09U56WH rack cabinet 9U Wall mounted rack White
Specifications
25 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 9U |
| Type | Wall mounted rack |
| Product colour | White |
| Material | Steel |
| Frame type | Closed |
| Front door construction | Glass/Steel |
| Key lock | Yes |
| Rack rails | Yes |
| Cooling type | Passive |
| Soundproof | No |
| Mounting hole shape | Round |
| Castor wheels | No |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
| Cable entry point | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 640 mm |
| Depth | 620 mm |
| Height | 520 mm |
| Weight | 21.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 640 mm |
| Package depth | 620 mm |
| Package height | 520 mm |
| Package weight | 22.5 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 600 x 560 x 512 mm |
