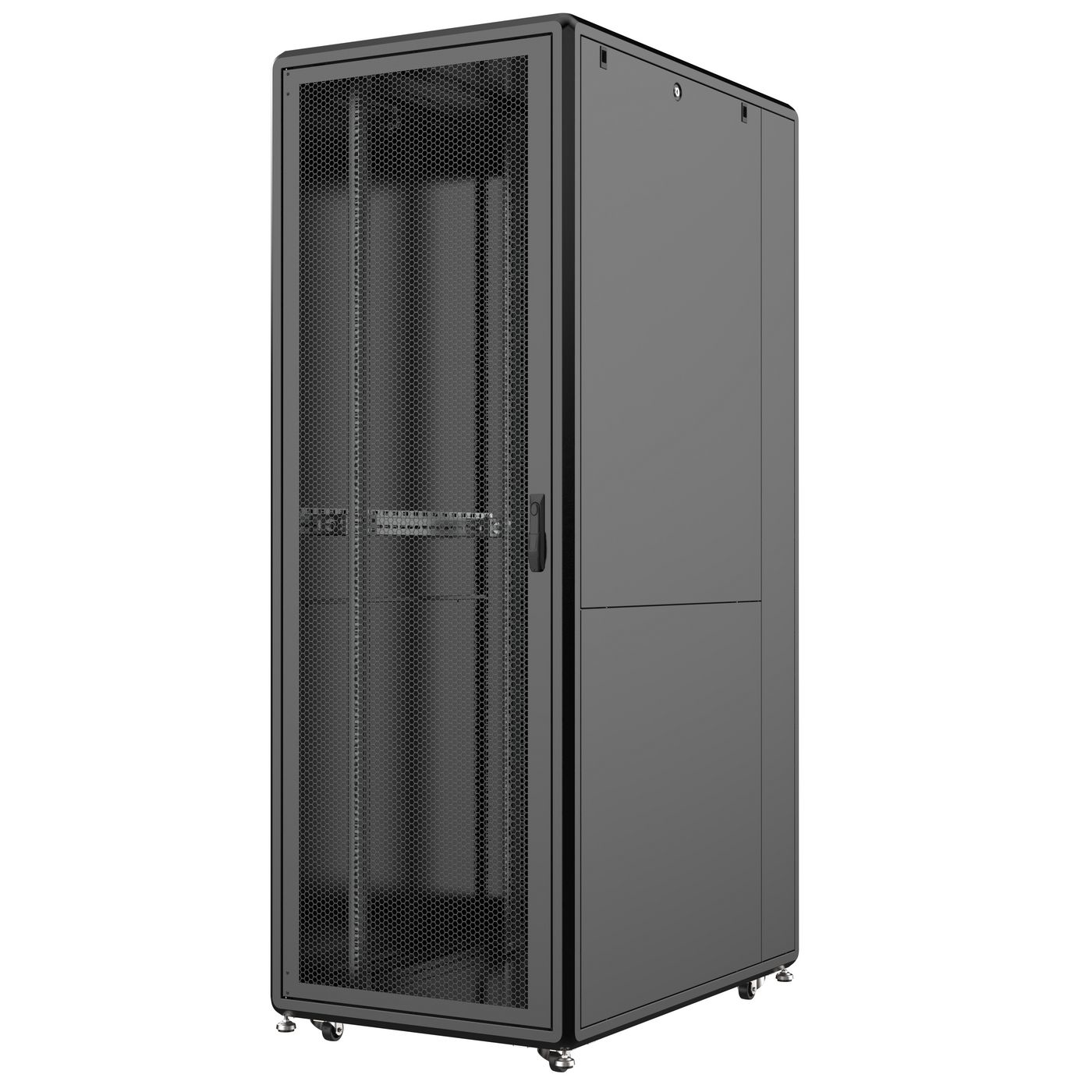

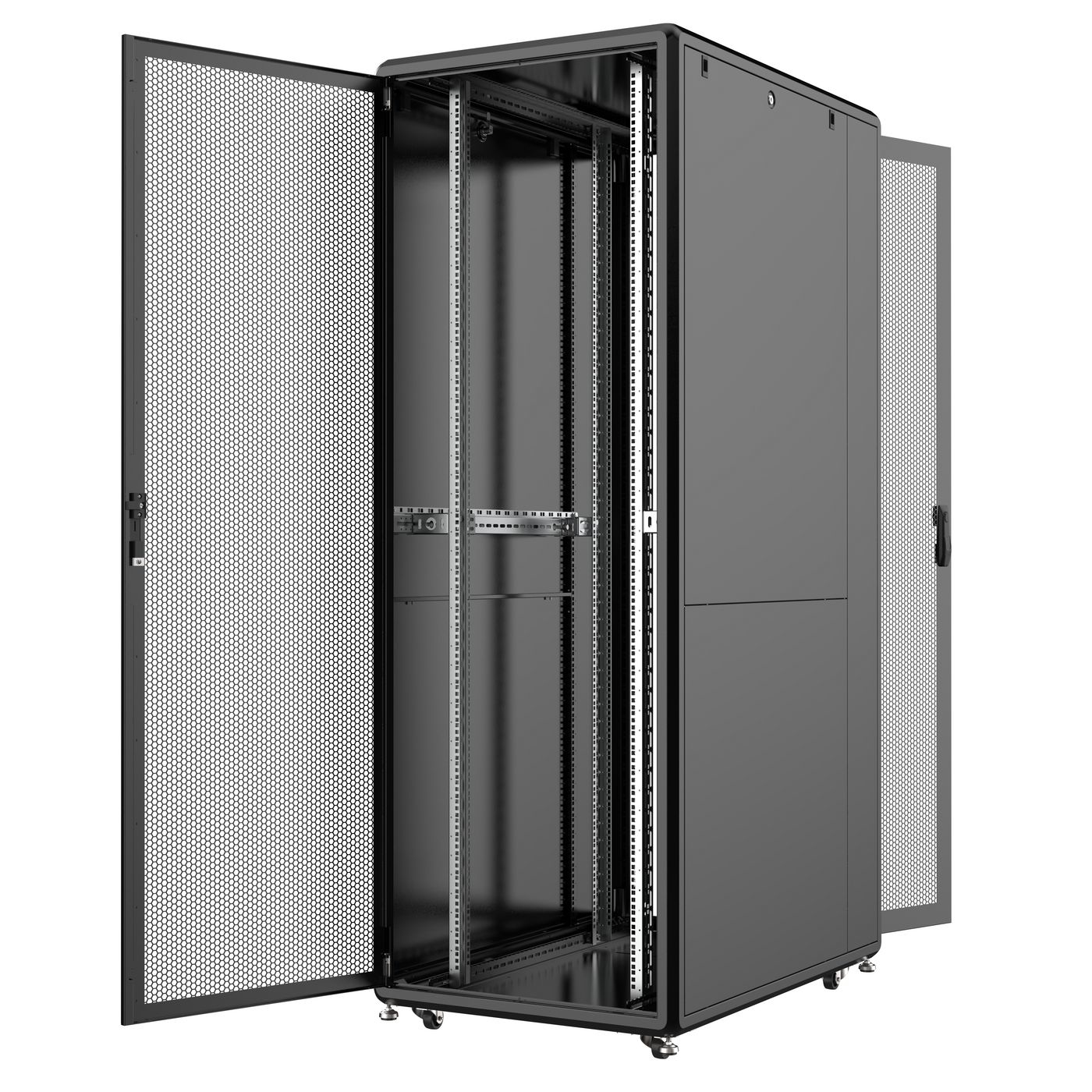

RSL46U8120BL rack cabinet 46U Freestanding rack Black
Model RSL46U8120BL
47 specifications
- TypeFreestanding rack
- Weight137.5 kg
- ColourBlack
- Rack capacity46U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Freestanding rack
- Weight
- 137.5 kg
- Colour
- Black
- Rack capacity
- 46U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- RSL46U8120BL
- Part number
- RSL46U8120BL
- Also known as
- Lanview RSL46U8120BL rack cabinet 46U Freestanding rack Black
Specifications
47 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 46U |
| Type | Freestanding rack |
| Maximum weight capacity | 2000 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Back door construction | Perforated |
| Front door construction | Perforated |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | No |
| Side panels included | Yes |
| Back door style | Grilled |
| Front door style | Grilled |
| Side panel style | Blind |
| Key lock | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Rack rails | Yes |
| Adjustable mounting rails | Yes |
| Adjustable feet | Yes |
| Front uprights | Adjustable |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Soundproof | No |
| Cable management | Yes |
| Mounting hole shape | Square |
| Stabilising foot screw | Yes |
| Castor wheels | Yes |
| Dusting brush | Yes |
| Assembly required | No |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
| Cable entry point | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 820 mm |
| Depth | 1050 mm |
| Height | 2450 mm |
| Weight | 137.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 820 mm |
| Package depth | 1050 mm |
| Package height | 2450 mm |
| Package weight | 138 kg |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEC 61587-1, IEC 60297-3-109, IEC 60297-3-100. |
| Dimensions (WxDxH) | 800 x 1200 x 2231 mm |
