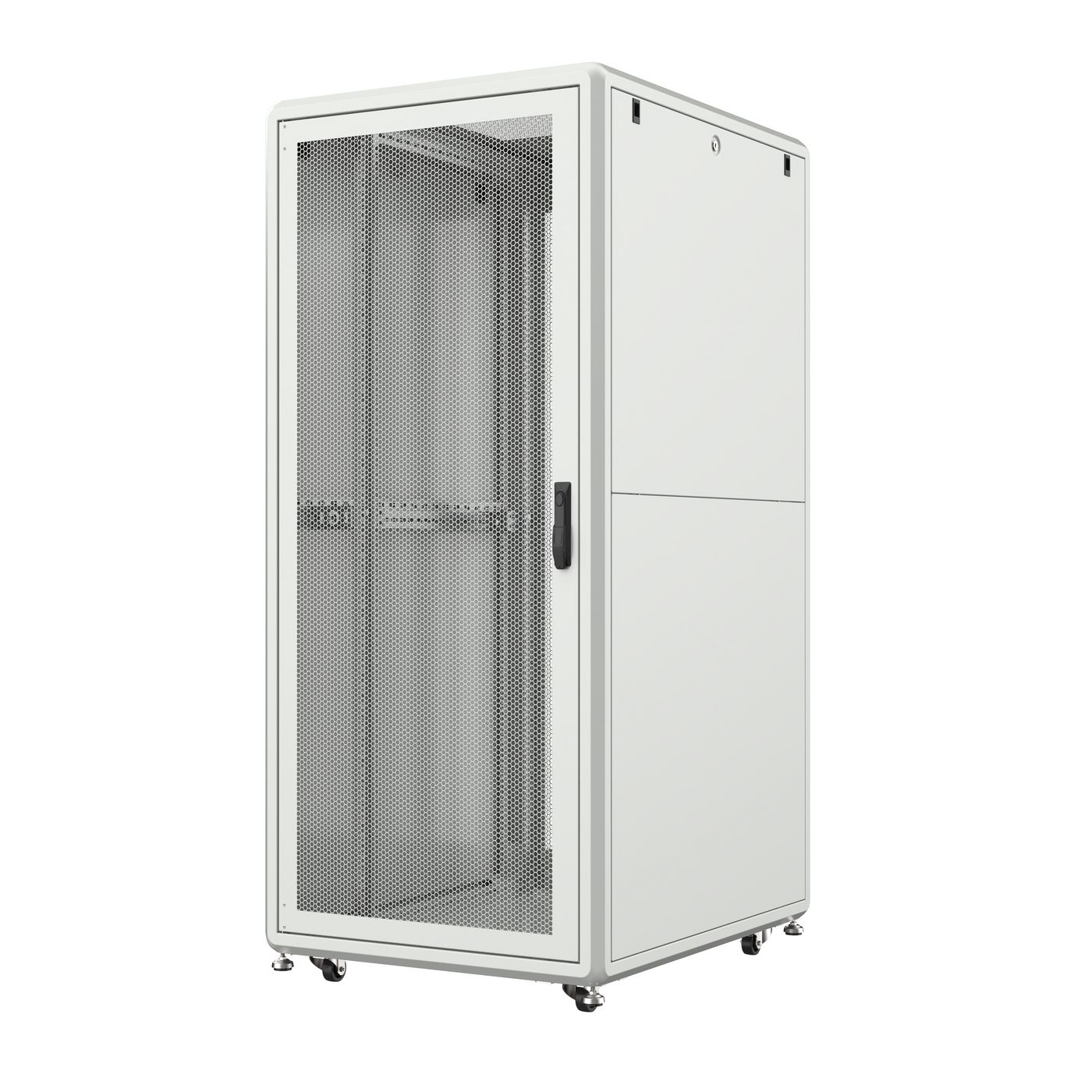

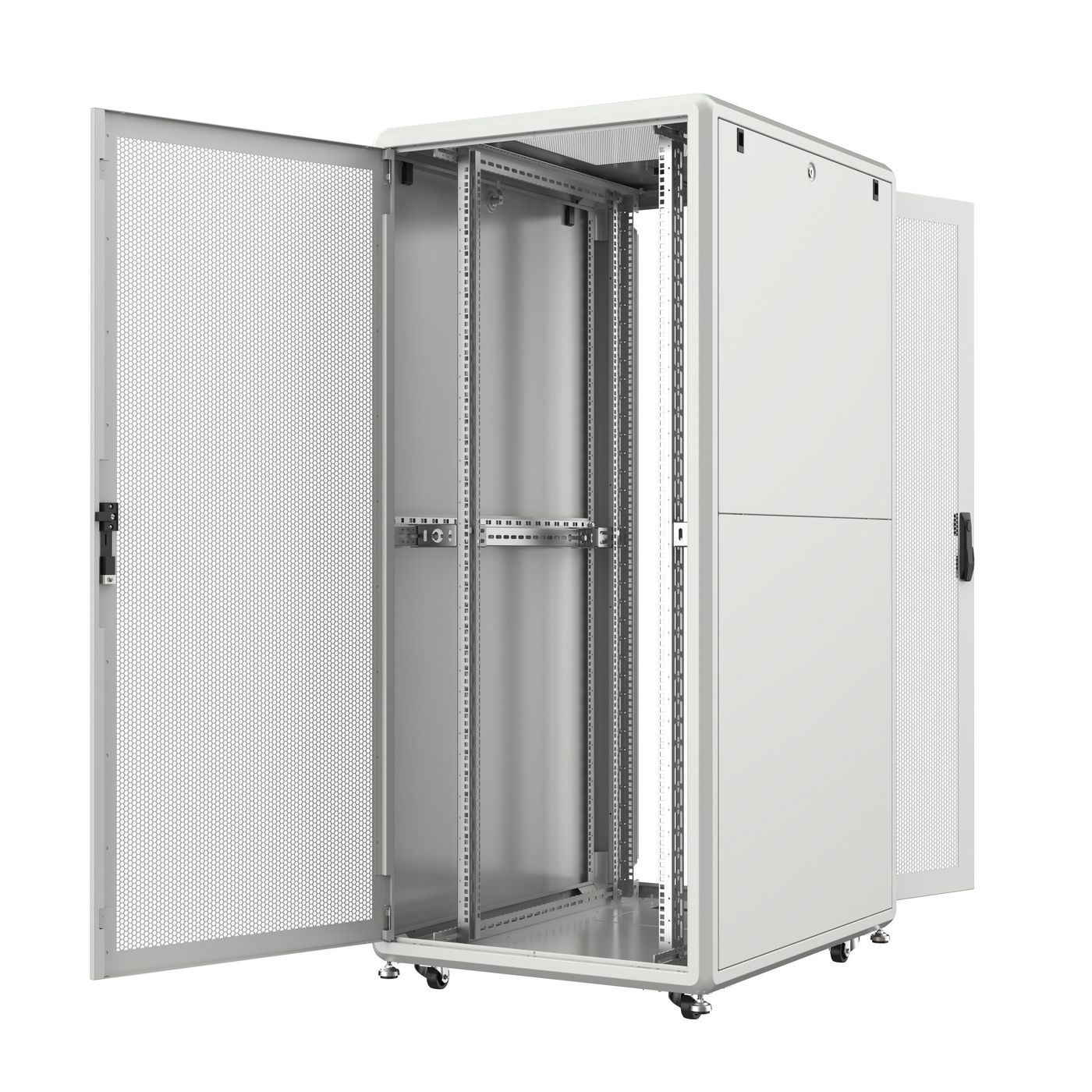

RSL36U81WH rack cabinet 36U Freestanding rack White
Model RSL36U81WH
48 specifications
- TypeFreestanding rack
- Weight112 kg
- ColourWhite
- Rack capacity36U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Freestanding rack
- Weight
- 112 kg
- Colour
- White
- Rack capacity
- 36U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- RSL36U81WH
- Part number
- RSL36U81WH
- Also known as
- Lanview RSL36U81WH rack cabinet 36U Freestanding rack White
Specifications
48 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 36U |
| Type | Freestanding rack |
| Maximum weight capacity | 600 kg |
| Product colour | White |
| Material | Steel |
| Frame type | Closed |
| Back door construction | Perforated |
| Front door construction | Perforated |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | No |
| Side panels included | Yes |
| Back door style | Grilled |
| Front door style | Grilled |
| Side panel style | Blind |
| Key lock | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Rack rails | Yes |
| Adjustable mounting rails | Yes |
| Adjustable feet | Yes |
| Front uprights | Adjustable |
| Cooling type | Active |
| Fan | 4 way |
| Number of fans | 4 fan(s) |
| Soundproof | No |
| Cable management | Yes |
| Mounting hole shape | Square |
| Stabilising foot screw | Yes |
| Castor wheels | Yes |
| Dusting brush | Yes |
| Assembly required | No |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
| Cable entry point | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 820 mm |
| Depth | 1050 mm |
| Height | 1900 mm |
| Weight | 112 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 820 mm |
| Package depth | 1050 mm |
| Package height | 1900 mm |
| Package weight | 113 kg |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEC 61587-1, IEC 60297-3-109, IEC 60297-3-100. |
| Dimensions (WxDxH) | 800 x 1000 x 1786 mm |
