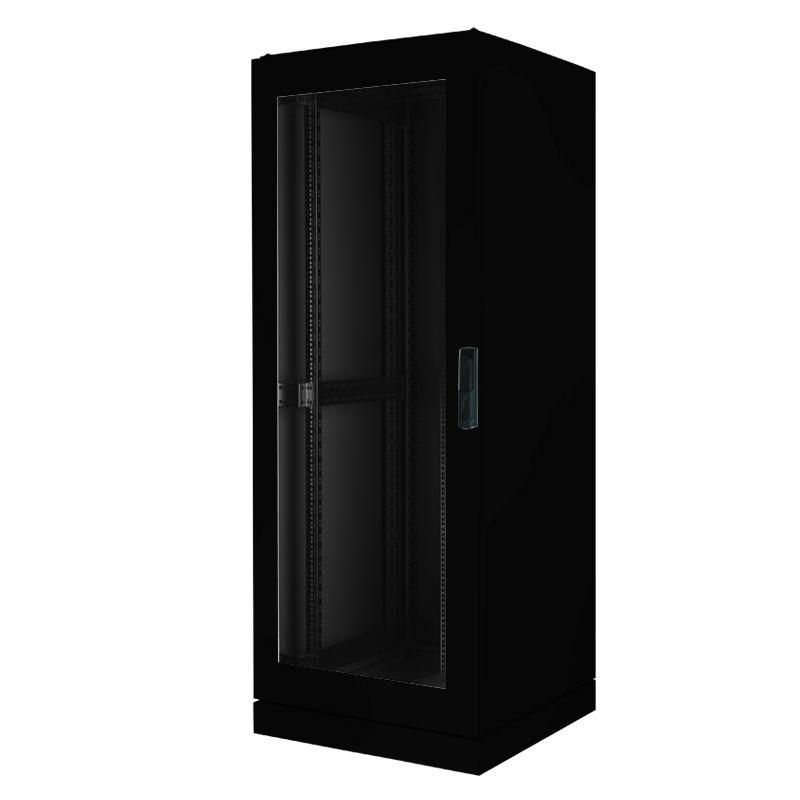

RDLIP55G22U61B rack cabinet 22U Black
Model RDLIP55G22U61B
28 specifications
- Weight31 kg
- ColourBlack
- Rack capacity22U
- Size (imperial)48.3 cm (19")
Overview
- Weight
- 31 kg
- Colour
- Black
- Rack capacity
- 22U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- RDLIP55G22U61B
- Part number
- RDLIP55G22U61B
- Also known as
- Lanview RDLIP55G22U61B rack cabinet 22U Black
Specifications
28 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 22U |
| Maximum weight capacity | 600 kg |
| Product colour | Black |
| Material | Glass |
| Frame type | Closed |
| Back door construction | Steel |
| Front door construction | Glass/Steel |
| Removable back door | Yes |
| Removable side panels | No |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rails | Yes |
| Cooling type | Passive |
| Soundproof | No |
| Castor wheels | No |
| International Protection (IP) code | IP55 |
| Preassembled | Yes |
| Cable entry point | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 650 mm |
| Depth | 1050 mm |
| Height | 1400 mm |
| Weight | 31 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 650 mm |
| Package depth | 1050 mm |
| Package height | 1400 mm |
| Package weight | 32 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 600 x 1000 x 1100 mm |
