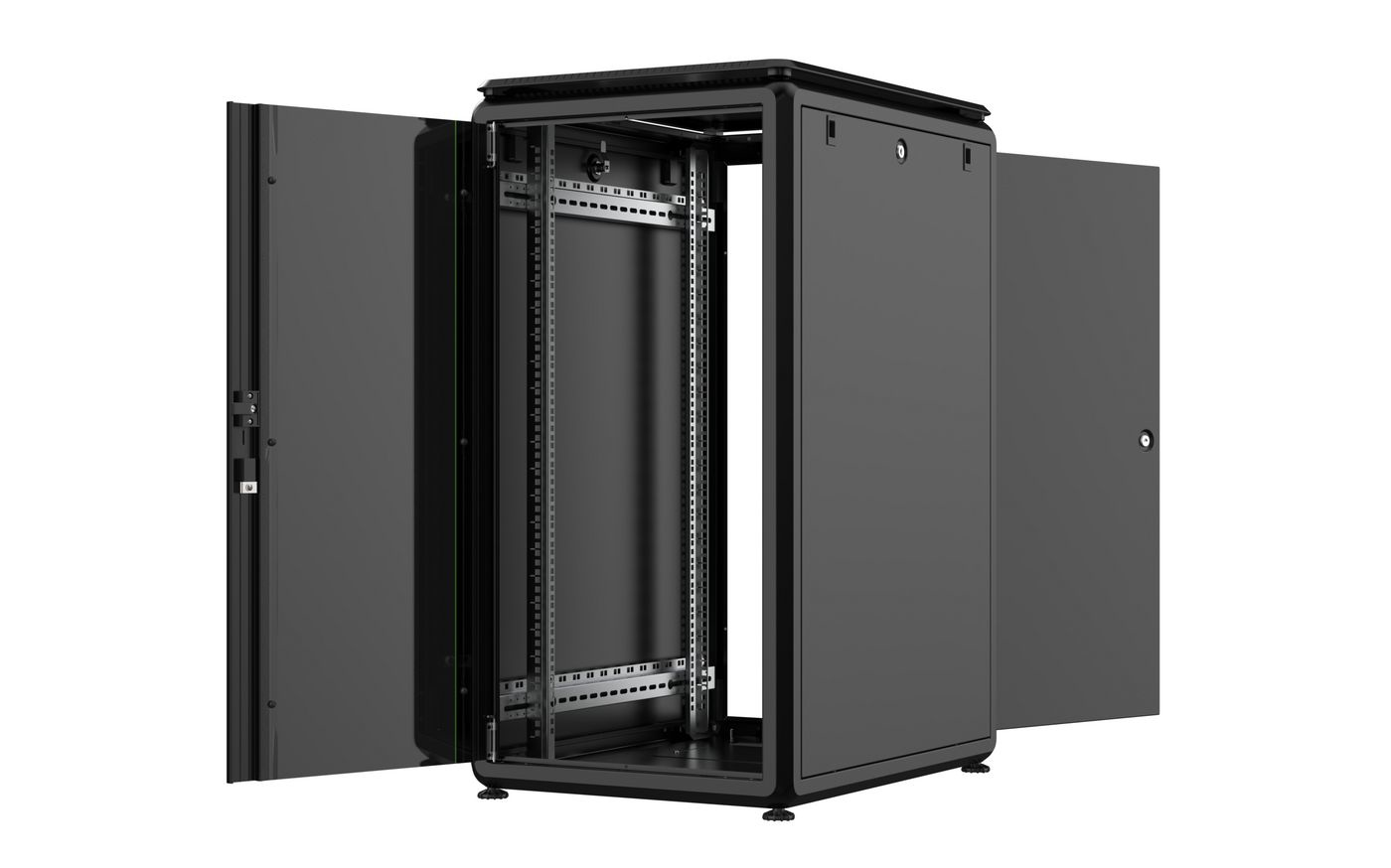

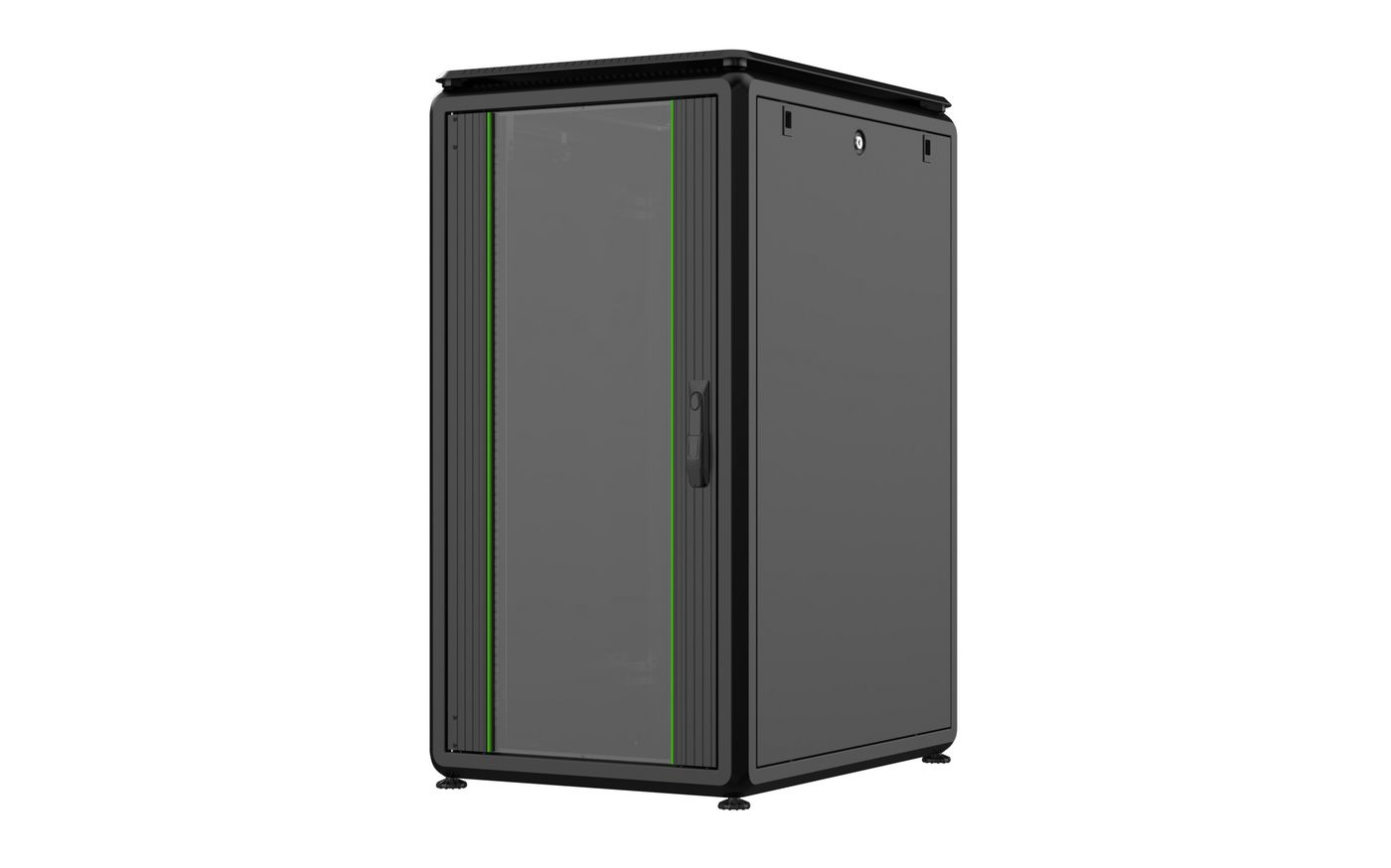

RDL22U68BL rack cabinet 22U Freestanding rack Black
Model RDL22U68BL
45 specifications
- TypeFreestanding rack
- Weight53.4 kg
- ColourBlack
- Rack capacity22U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Freestanding rack
- Weight
- 53.4 kg
- Colour
- Black
- Rack capacity
- 22U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- RDL22U68BL
- Part number
- RDL22U68BL
- Also known as
- Lanview RDL22U68BL rack cabinet 22U Freestanding rack Black
Specifications
45 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 22U |
| Type | Freestanding rack |
| Maximum weight capacity | 2000 kg |
| Product colour | Black |
| Material | Glass |
| Frame type | Closed |
| Back door construction | Steel |
| Front door construction | Glass/Steel |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | No |
| Side panels included | Yes |
| Back door style | Blind |
| Front door style | Glass door |
| Side panel style | Blind |
| Key lock | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Rack rails | Yes |
| Adjustable mounting rails | Yes |
| Adjustable feet | Yes |
| Front uprights | Adjustable |
| Cooling type | Passive |
| Soundproof | No |
| Mounting hole shape | Square |
| Stabilising foot screw | Yes |
| Castor wheels | No |
| Dusting brush | Yes |
| Assembly required | No |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
| Cable entry point | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 650 mm |
| Depth | 820 mm |
| Height | 1300 mm |
| Weight | 53.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 650 mm |
| Package depth | 820 mm |
| Package height | 1300 mm |
| Package weight | 58 kg |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEC 60297-3-109, IEC 60297-3-100, IEC 61587-1. |
| Dimensions (WxDxH) | 600 x 800 x 1164 mm |
