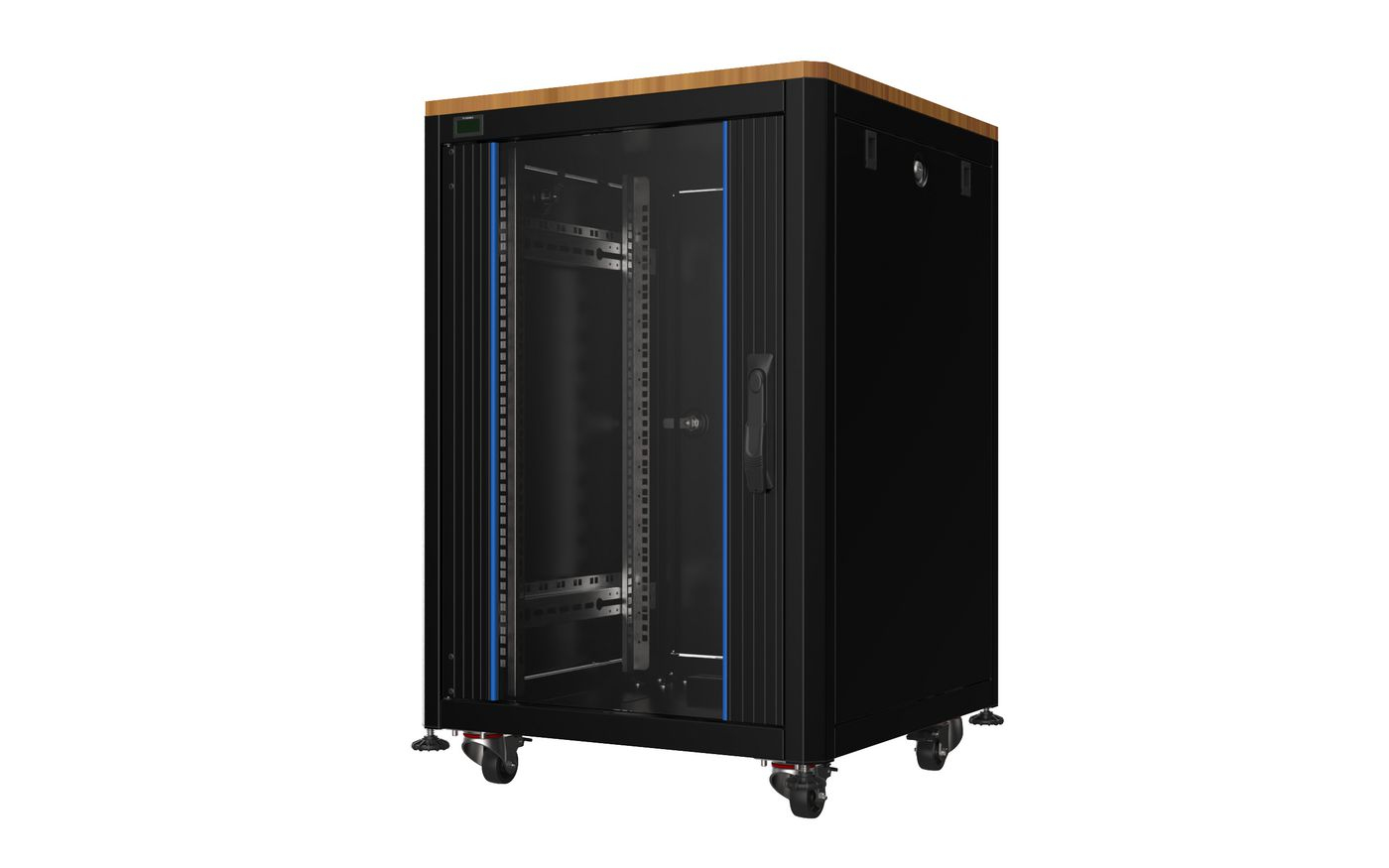

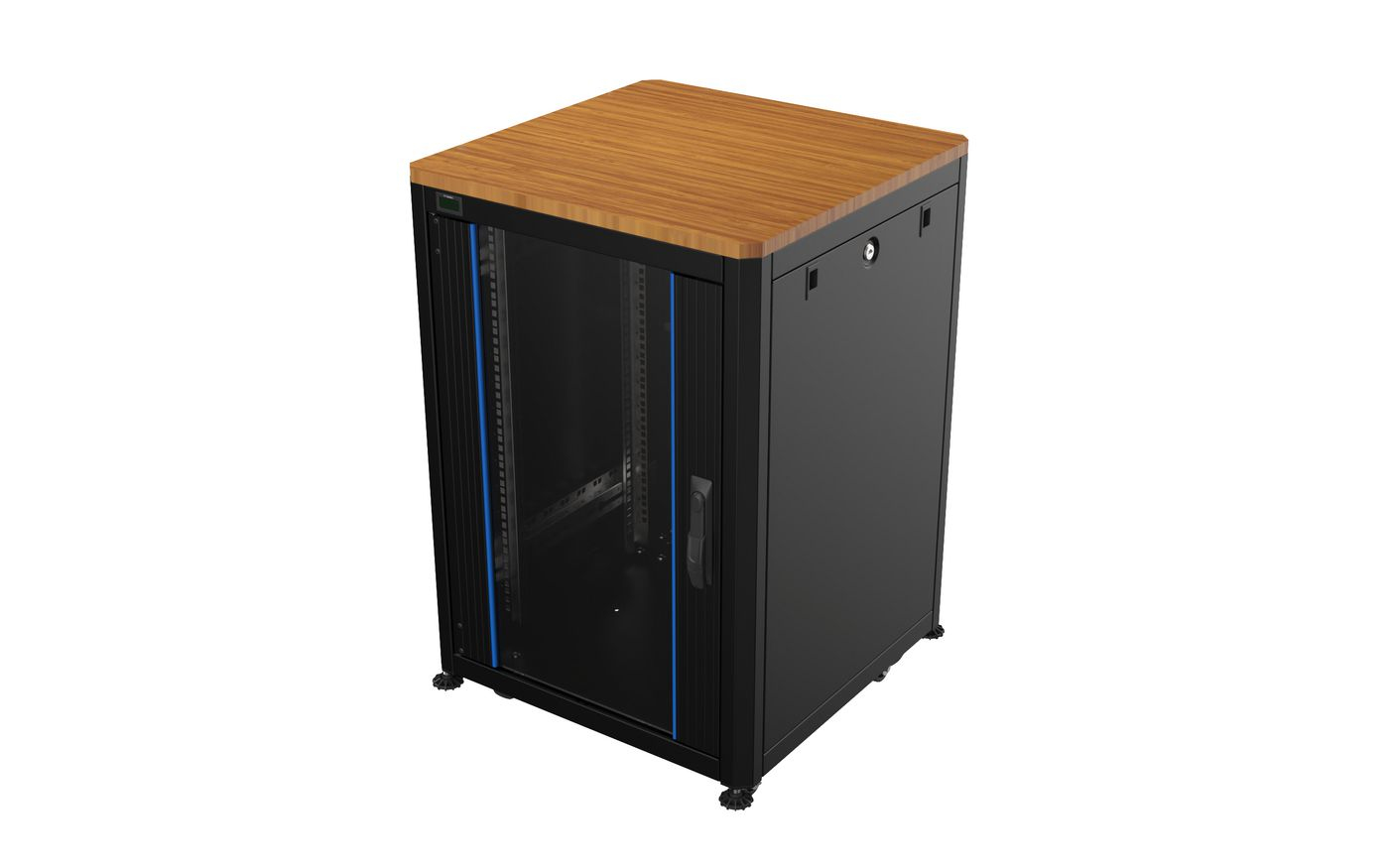

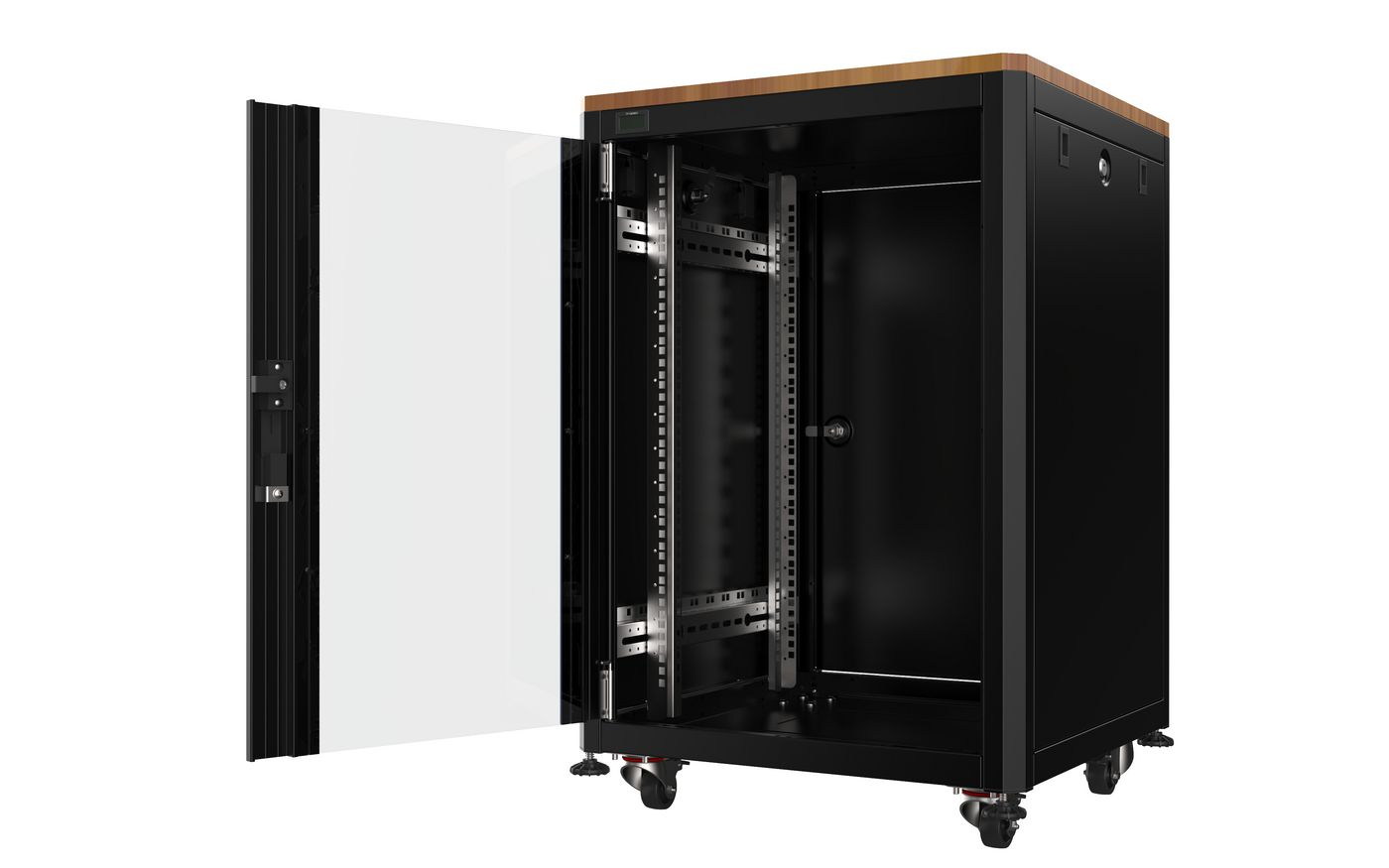

RDL17U66BL-WOODTOP rack cabinet 17U Freestanding rack Black, Blue
Model RDL17U66BL-WOODTOPEAN 5715063435731
38 specifications
- TypeFreestanding rack
- Weight40 kg
- ColourBlack, Blue
- Rack capacity17U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Freestanding rack
- Weight
- 40 kg
- Colour
- Black, Blue
- Rack capacity
- 17U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- RDL17U66BL-WOODTOP
- Part number
- RDL17U66BL-WOODTOP
- EAN / UPC
- 5715063435731
- Also known as
- Lanview RDL17U66BL-WOODTOP rack cabinet 17U Freestanding rack Black, Blue
Specifications
38 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 17U |
| Type | Freestanding rack |
| Maximum weight capacity | 600 kg |
| Maximum weight capacity (rolling) | 300 kg |
| Product colour | Black, Blue |
| Back door construction | Steel |
| Front door construction | Glass/Steel |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | No |
| Side panels included | Yes |
| Back door style | Blind |
| Front door style | Glass door |
| Key lock | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Rack rails | Yes |
| Adjustable mounting rails | Yes |
| Adjustable feet | Yes |
| Soundproof | No |
| Mounting hole shape | Square |
| Castor wheels | Yes |
| Assembly required | No |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
| Cable entry point | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 650 mm |
| Depth | 650 mm |
| Height | 964 mm |
| Weight | 40 kg |
Packaging data
| Specification | Value |
|---|---|
| Grounding kit | Yes |
| Package width | 650 mm |
| Package depth | 650 mm |
| Package height | 964 mm |
| Package weight | 45 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 600 x 600 x 914 mm |
