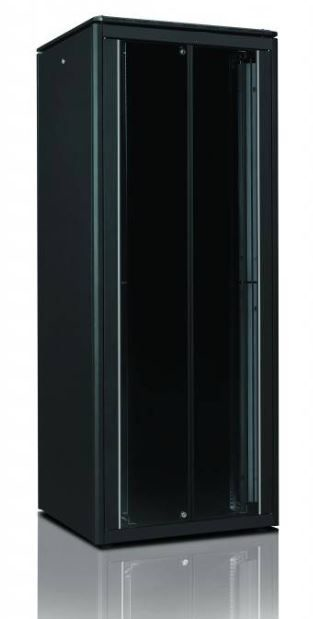

LVR80100B-GD rack cabinet 42U Freestanding rack Black
Model LVR80100B-GDEAN 5704174969600
40 specifications
- TypeFreestanding rack
- Weight132 kg
- ColourBlack
- Rack capacity42U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Freestanding rack
- Weight
- 132 kg
- Colour
- Black
- Rack capacity
- 42U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- LVR80100B-GD
- Part number
- LVR80100B-GD
- EAN / UPC
- 5704174969600
- Also known as
- Lanview LVR80100B-GD rack cabinet 42U Freestanding rack Black
Specifications
40 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 600 kg |
| Maximum weight capacity (rolling) | 600 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Front door construction | Glass |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 2 mm |
| Rack rails | Yes |
| Adjustable depth | No |
| Adjustable feet | Yes |
| Cooling type | Passive |
| Fan | Prepared to install 4 fans |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 800 mm |
| Depth | 1000 mm |
| Height | 1980 mm |
| Weight | 132 kg |
| Width (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 40 |
| Number of leveling feets included | 4 pc(s) |
| Quick installation guide | Yes |
| Package width | 880 mm |
| Package depth | 1080 mm |
| Package height | 2120 mm |
| Package weight | 136 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
Other features
| Specification | Value |
|---|---|
| Chassis type | Rack cabinet |
| Compliance industry standards | Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric, ETSI and 19’ international standard |
| Dimensions (WxDxH) | 800 x 1000 x 1980 mm |
