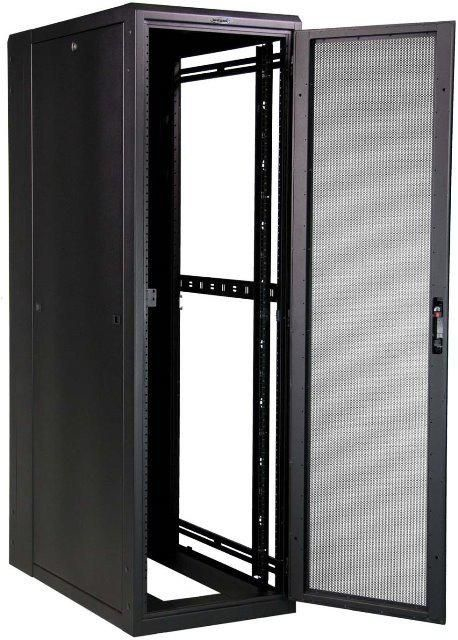

LVR244030 rack cabinet 42U Freestanding rack Black
Model LVR244030EAN 5704174318323
42 specifications
- TypeFreestanding rack
- Weight56 kg
- ColourBlack
- Rack capacity42U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Freestanding rack
- Weight
- 56 kg
- Colour
- Black
- Rack capacity
- 42U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- LVR244030
- Part number
- LVR244030
- EAN / UPC
- 5704174318323
- Also known as
- Lanview LVR244030 rack cabinet 42U Freestanding rack Black
Specifications
42 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
| Maximum weight capacity (rolling) | 800 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Back door construction | Perforated |
| Front door construction | Perforated |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 1.2 mm |
| Rack rails | Yes |
| Adjustable feet | Yes |
| Cooling type | Passive |
| Fan | Prepared to install 4 fans |
| Castor wheels | Yes |
| International Protection (IP) code | IP20 |
| Preassembled | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 1000 mm |
| Height | 2080 mm |
| Weight | 56 kg |
| Width (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 40 |
| Number of leveling feets included | 4 pc(s) |
| Quick installation guide | Yes |
| Package width | 640 mm |
| Package depth | 2000 mm |
| Package height | 2180 mm |
| Package weight | 70 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
Other features
| Specification | Value |
|---|---|
| Chassis type | Rack cabinet |
| Compliance industry standards | Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric, ETSI and 19’ international standard |
| Dimensions (WxDxH) | 600 x 1000 x 2080 mm |
