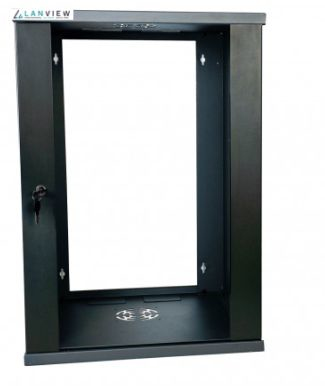

LVR242510 rack cabinet 10U Wall mounted rack Black
Model LVR242510EAN 5704174318217
30 specifications
- TypeWall mounted rack
- Weight15.3 kg
- ColourBlack
- Rack capacity10U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Wall mounted rack
- Weight
- 15.3 kg
- Colour
- Black
- Rack capacity
- 10U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- LVR242510
- Part number
- LVR242510
- EAN / UPC
- 5704174318217
- Also known as
- Lanview LVR242510 rack cabinet 10U Wall mounted rack Black
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 10U |
| Type | Wall mounted rack |
| Maximum weight capacity | 30 kg |
| Maximum weight capacity (rolling) | 30 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Front door construction | Tempered glass |
| Side panel construction | Steel |
| Removable front door | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 1.5 mm |
| Rack rails | Yes |
| Cooling type | Passive |
| Fan | Possibility to install 1 fan |
| International Protection (IP) code | IP20 |
| Preassembled | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 500 mm |
| Depth | 500 mm |
| Height | 488 mm |
| Weight | 15.3 kg |
| Width (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Wall mounting kit | Yes |
| Package weight | 15.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
Other features
| Specification | Value |
|---|---|
| Chassis type | Wall mount |
| Dimensions (WxDxH) | 500 x 500 x 488 mm |
