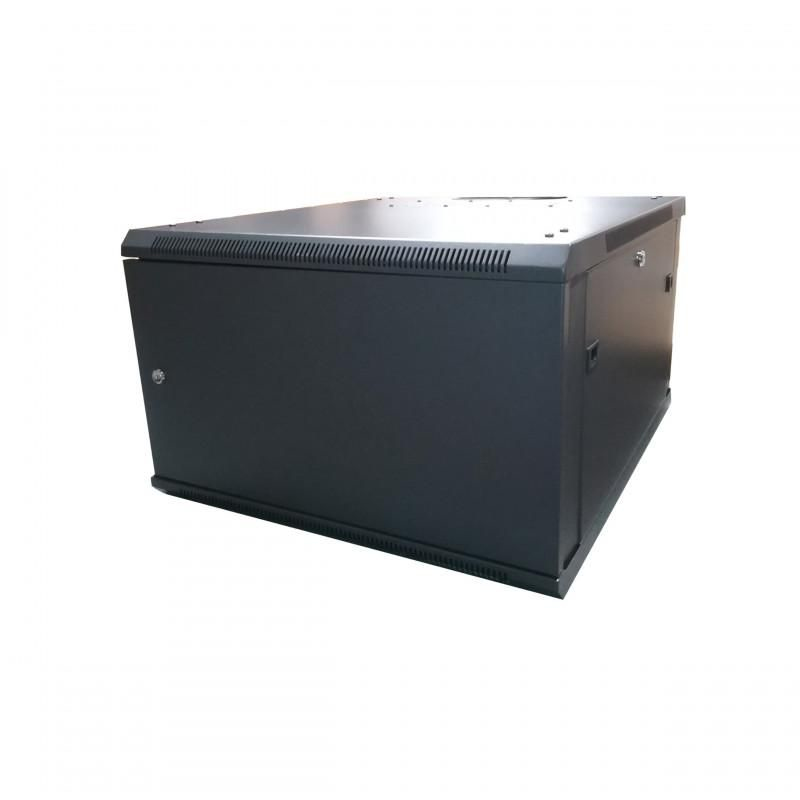

LVR242219 rack cabinet 7U Wall mounted rack Black
Model LVR242219EAN 5704174318194
39 specifications
- TypeWall mounted rack
- Weight24 kg
- ColourBlack
- Rack capacity7U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Wall mounted rack
- Weight
- 24 kg
- Colour
- Black
- Rack capacity
- 7U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- LVR242219
- Part number
- LVR242219
- EAN / UPC
- 5704174318194, 5706683026119
- Also known as
- Lanview LVR242219 rack cabinet 7U Wall mounted rack Black
Specifications
39 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 7U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Maximum weight capacity (rolling) | 60 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 1.5 mm |
| Rack rails | Yes |
| Adjustable depth | No |
| Adjustable mounting rails | Yes |
| Adjustable feet | No |
| Cooling type | Passive |
| Fan | Possibility to install 2 fans |
| Assembly required | Yes |
| International Protection (IP) code | IP20 |
| Preassembled | No |
| Certification | ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 700 mm |
| Height | 386 mm |
| Weight | 24 kg |
| Width (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Wall mounting kit | Yes |
| Mounting hardware included in set | Wall mount |
| Package weight | 25 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85381000 |
Other features
| Specification | Value |
|---|---|
| Chassis type | Wall mount |
| Dimensions (WxDxH) | 600 x 700 x 386 mm |
