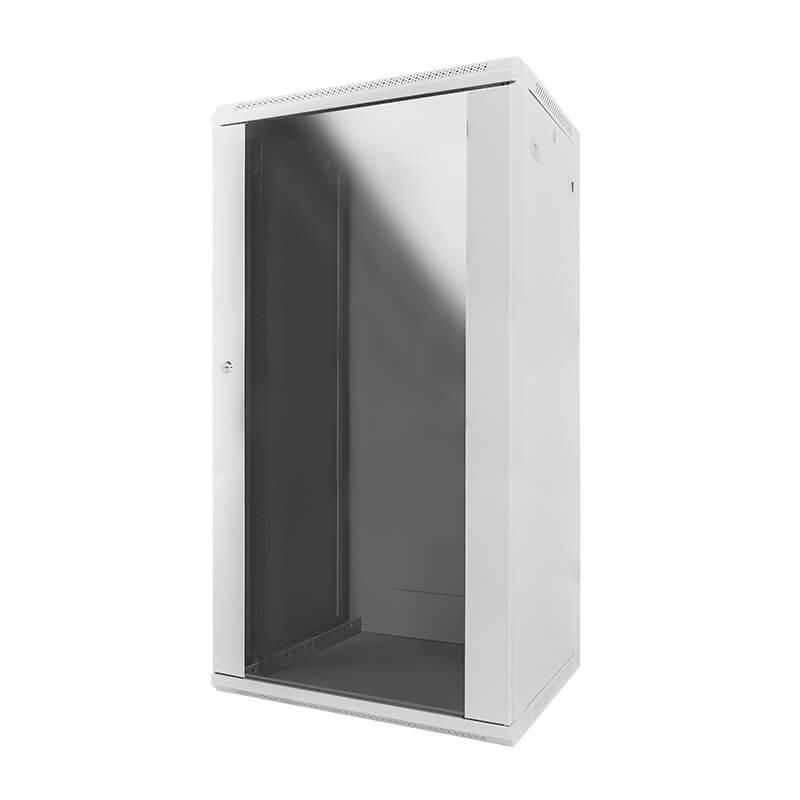

LVR242045W rack cabinet 16U Wall mounted rack White
Model LVR242045WEAN 5704174558606
32 specifications
- TypeWall mounted rack
- Weight31 kg
- ColourWhite
- Rack capacity16U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Wall mounted rack
- Weight
- 31 kg
- Colour
- White
- Rack capacity
- 16U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- LVR242045W
- Part number
- LVR242045W
- EAN / UPC
- 5704174558606
- Also known as
- Lanview LVR242045W rack cabinet 16U Wall mounted rack White
Specifications
32 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 16U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Maximum weight capacity (rolling) | 60 kg |
| Product colour | White |
| Material | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable front door | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Cooling type | Passive |
| Fan | Possibility to install 2 fans |
| Number of fans | 2 fan(s) |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 450 mm |
| Height | 450 mm |
| Weight | 31 kg |
| Width (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Wall mounting kit | Yes |
| Mounting hardware included in set | Wall mount |
| Package width | 620 mm |
| Package depth | 470 mm |
| Package height | 848 mm |
| Package weight | 31.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
Other features
| Specification | Value |
|---|---|
| Chassis type | Wall mount |
| Dimensions (WxDxH) | 600 x 450 x 816 mm |
