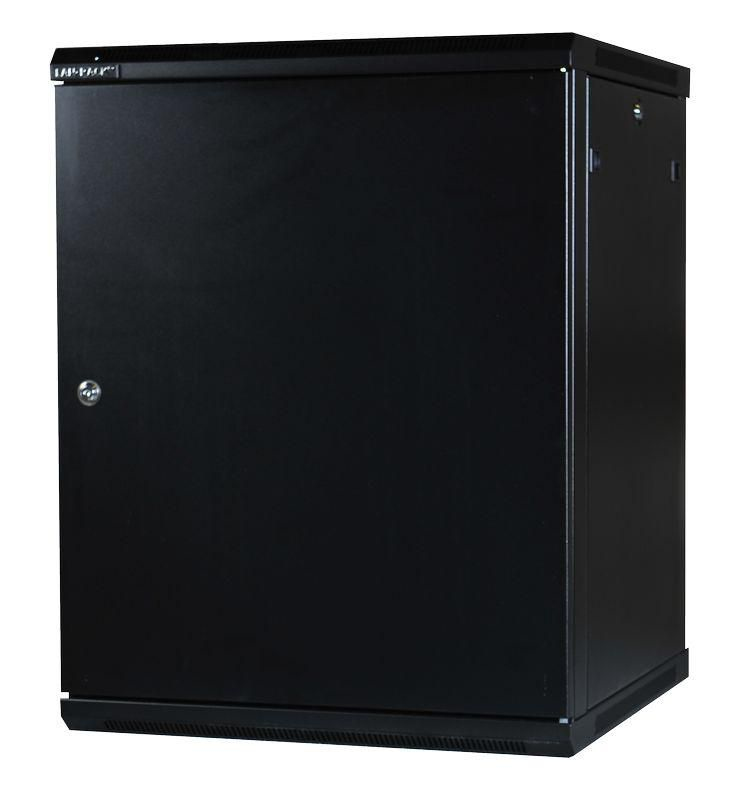

LVR242040 rack cabinet 15U Wall mounted rack Black
Model LVR242040EAN 5704174318118
40 specifications
- TypeWall mounted rack
- Weight34.6 kg
- ColourBlack
- Rack capacity15U
- Size (imperial)48.3 cm (19")
- Compliance certificatesRoHS
Overview
- Type
- Wall mounted rack
- Weight
- 34.6 kg
- Colour
- Black
- Rack capacity
- 15U
- Size (imperial)
- 48.3 cm (19")
- Compliance certificates
- RoHS
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- LVR242040
- Part number
- LVR242040
- EAN / UPC
- 5704174318118
- Also known as
- Lanview LVR242040 rack cabinet 15U Wall mounted rack Black
Specifications
40 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 15U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Maximum weight capacity (rolling) | 60 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 1.5 mm |
| Rack rails | Yes |
| Cooling type | Passive |
| Fan | Possibility to install 2 fans |
| International Protection (IP) code | IP20 |
| Preassembled | No |
| Certification | ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 769 mm |
| Weight | 34.6 kg |
| Width (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Wall mounting kit | Yes |
| Quick installation guide | Yes |
| Mounting hardware included in set | Wall mount |
| Package width | 640 mm |
| Package depth | 900 mm |
| Package height | 230 mm |
| Package weight | 39 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
Other features
| Specification | Value |
|---|---|
| Chassis type | Wall mount |
| Compliance industry standards | Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric, ETSI and 19’ international standard |
| Dimensions (WxDxH) | 600 x 600 x 769 mm |
