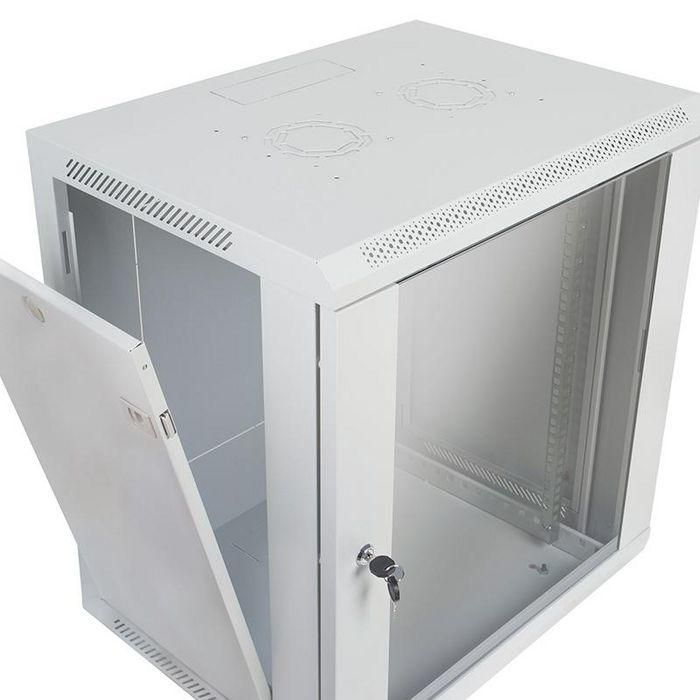

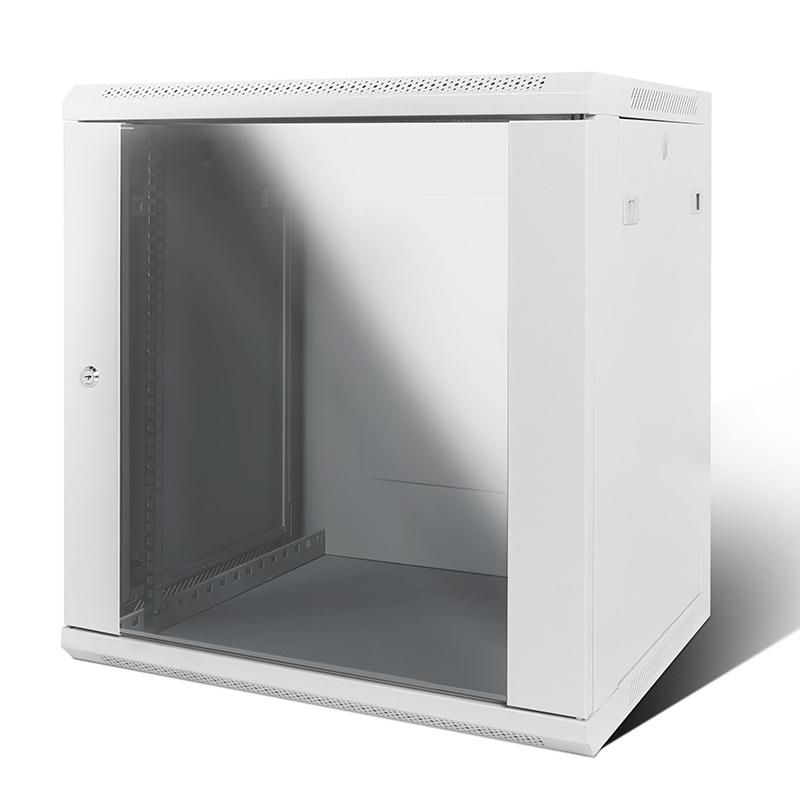

LVR240025W rack cabinet 9U Wall mounted rack White
Model LVR240025WEAN 5704174558583
33 specifications
- TypeWall mounted rack
- Weight17 kg
- ColourWhite
- Rack capacity9U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Wall mounted rack
- Weight
- 17 kg
- Colour
- White
- Rack capacity
- 9U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- LVR240025W
- Part number
- LVR240025W
- EAN / UPC
- 5704174558583
- Also known as
- Lanview LVR240025W rack cabinet 9U Wall mounted rack White
Specifications
33 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 9U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Maximum weight capacity (rolling) | 60 kg |
| Product colour | White |
| Material | Steel |
| Front door construction | Glass |
| Side panel construction | Steel |
| Removable front door | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Cooling type | Passive |
| Fan | Possibility to install 2 fans |
| Number of fans | 2 fan(s) |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 450 mm |
| Height | 367 mm |
| Weight | 17 kg |
| Width (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Wall mounting kit | Yes |
| Mounting hardware included in set | Wall mount |
| Package width | 620 mm |
| Package depth | 470 mm |
| Package height | 540 mm |
| Package weight | 17.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
Other features
| Specification | Value |
|---|---|
| Chassis type | Wall mount |
| Dimensions (WxDxH) | 600 x 450 x 416 mm |
