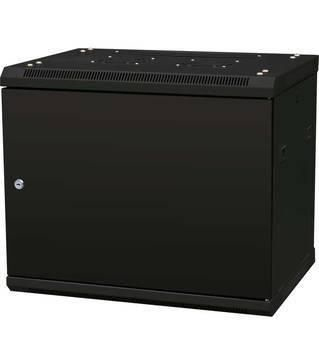

LVR240019 rack cabinet 6U Wall mounted rack Black
Model LVR240019EAN 5704174317951
36 specifications
- TypeWall mounted rack
- Weight18.8 kg
- ColourBlack
- Rack capacity6U
- Size (imperial)48.3 cm (19")
- Compliance certificatesRoHS
Overview
- Type
- Wall mounted rack
- Weight
- 18.8 kg
- Colour
- Black
- Rack capacity
- 6U
- Size (imperial)
- 48.3 cm (19")
- Compliance certificates
- RoHS
- Brand
- Lanview
- Category
- Rack Cabinet
- Model
- LVR240019
- Part number
- LVR240019
- EAN / UPC
- 5704174317951
- Also known as
- Lanview LVR240019 rack cabinet 6U Wall mounted rack Black
Specifications
36 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 1.5 mm |
| Rack rails | Yes |
| Adjustable depth | No |
| Adjustable mounting rails | Yes |
| Adjustable feet | No |
| Cooling type | Passive |
| Assembly required | Yes |
| International Protection (IP) code | IP20 |
| Preassembled | No |
| Certification | ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 450 mm |
| Height | 367 mm |
| Weight | 18.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Wall mounting kit | Yes |
| Package width | 170 mm |
| Package depth | 700 mm |
| Package height | 540 mm |
| Package weight | 20.5 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
