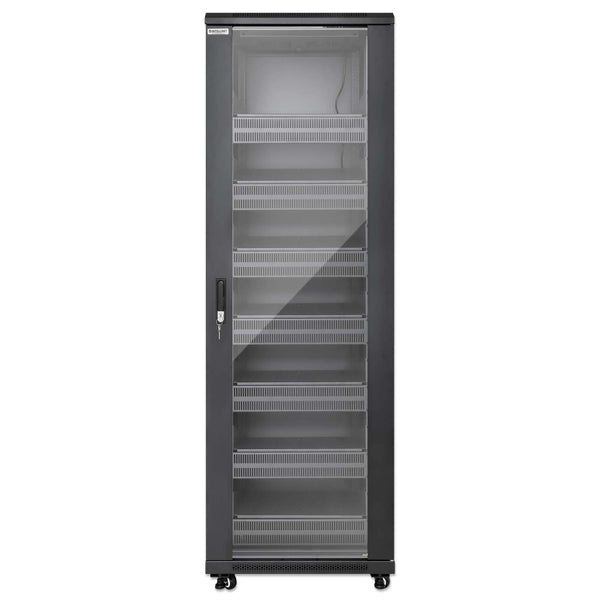

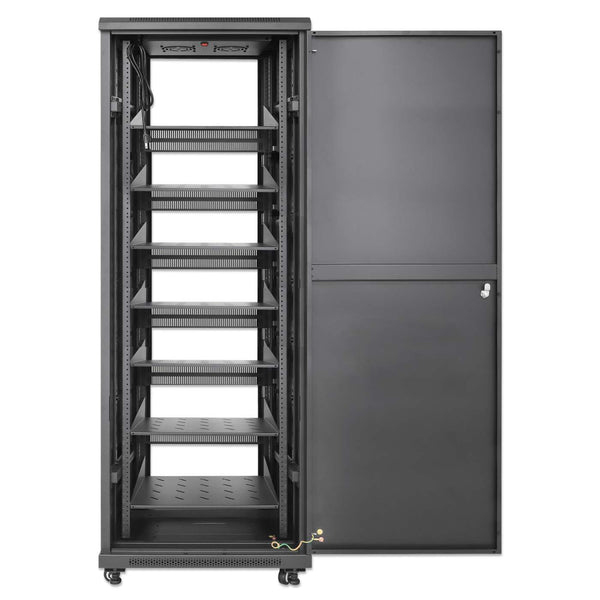

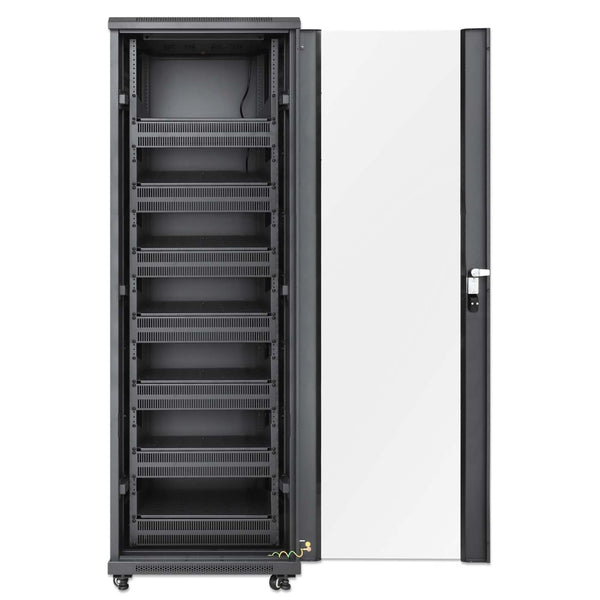

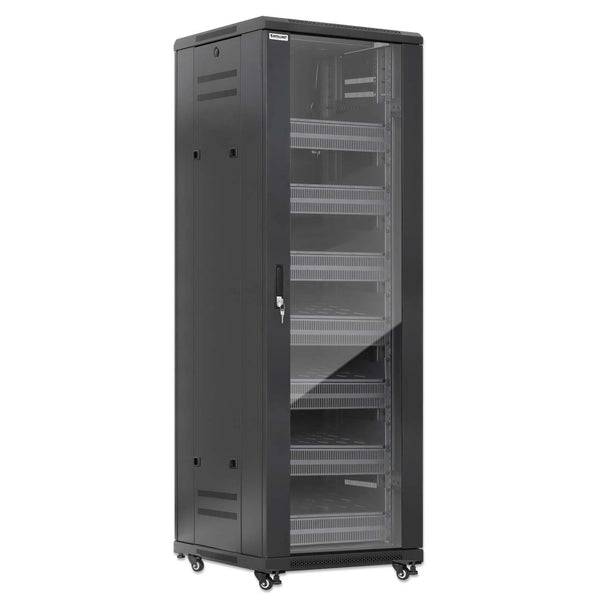

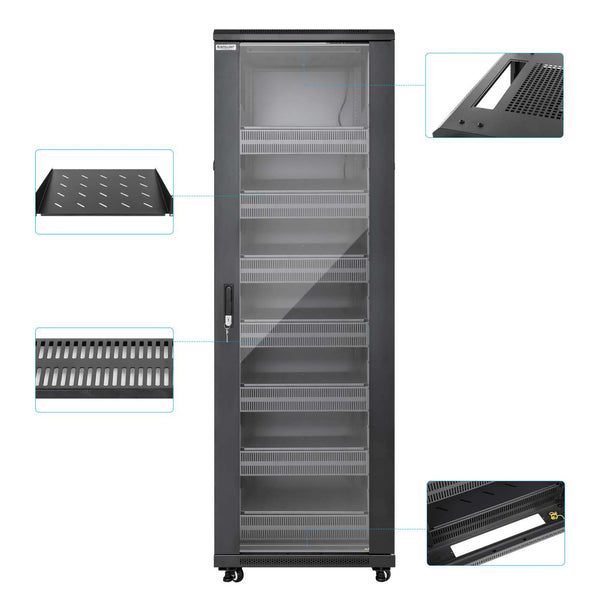

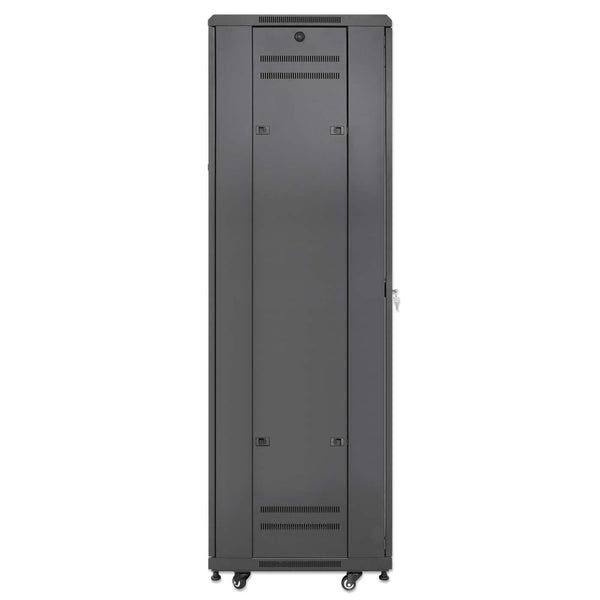

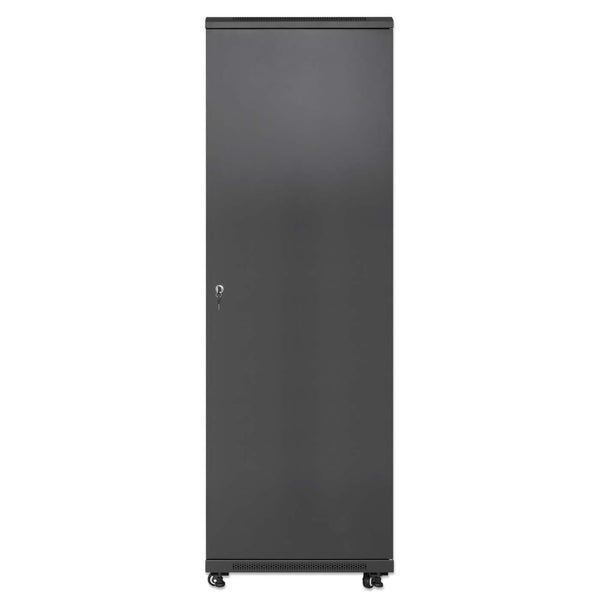

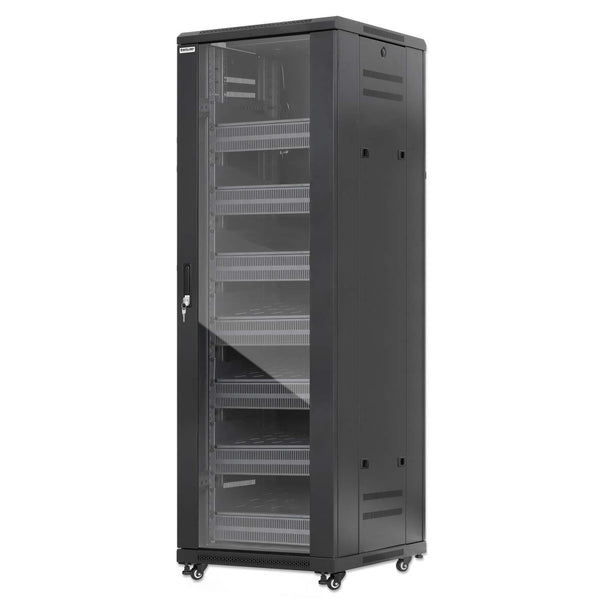

Pro Line Network Cabinet with Integrated Fans, 38U
Model 716246EAN 766623716246
32 specifications
- Noise46 dB
- TypeFreestanding rack
- Weight96 kg
- ColourBlack
- Rack capacity38U
- Power supply19 W
Overview
- Noise
- 46 dB
- Type
- Freestanding rack
- Weight
- 96 kg
- Colour
- Black
- Rack capacity
- 38U
- Power supply
- 19 W
- Brand
- Intellinet
- Category
- Rack Cabinet
- Model
- 716246
- Part number
- 716246
- EAN / UPC
- 766623716246
- Also known as
- Intellinet Pro Line Network Cabinet with Integrated Fans, 38U
Specifications
32 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 38U |
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
| Maximum weight capacity (rolling) | 320 kg |
| Product colour | Black |
| Material | Steel, Tempered glass |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 2 mm |
| Adjustable mounting rails | Yes |
| Adjustable feet | Yes |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Fan performance | 86 cfm |
| Noise level | 46 dB |
| International Protection (IP) code | IP20 |
Power
| Specification | Value |
|---|---|
| Power supply | 19 W |
| AC input frequency | 60 Hz |
| Input current | 0.27 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 70% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 600 mm |
| Height | 1806 mm |
| Weight | 96 kg |
Packaging data
| Specification | Value |
|---|---|
| Number of screws | 40 |
| Screws included | Yes |
| Package weight | 106 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, UL, ANSI, Electronic Industries Alliance (EIA) |
