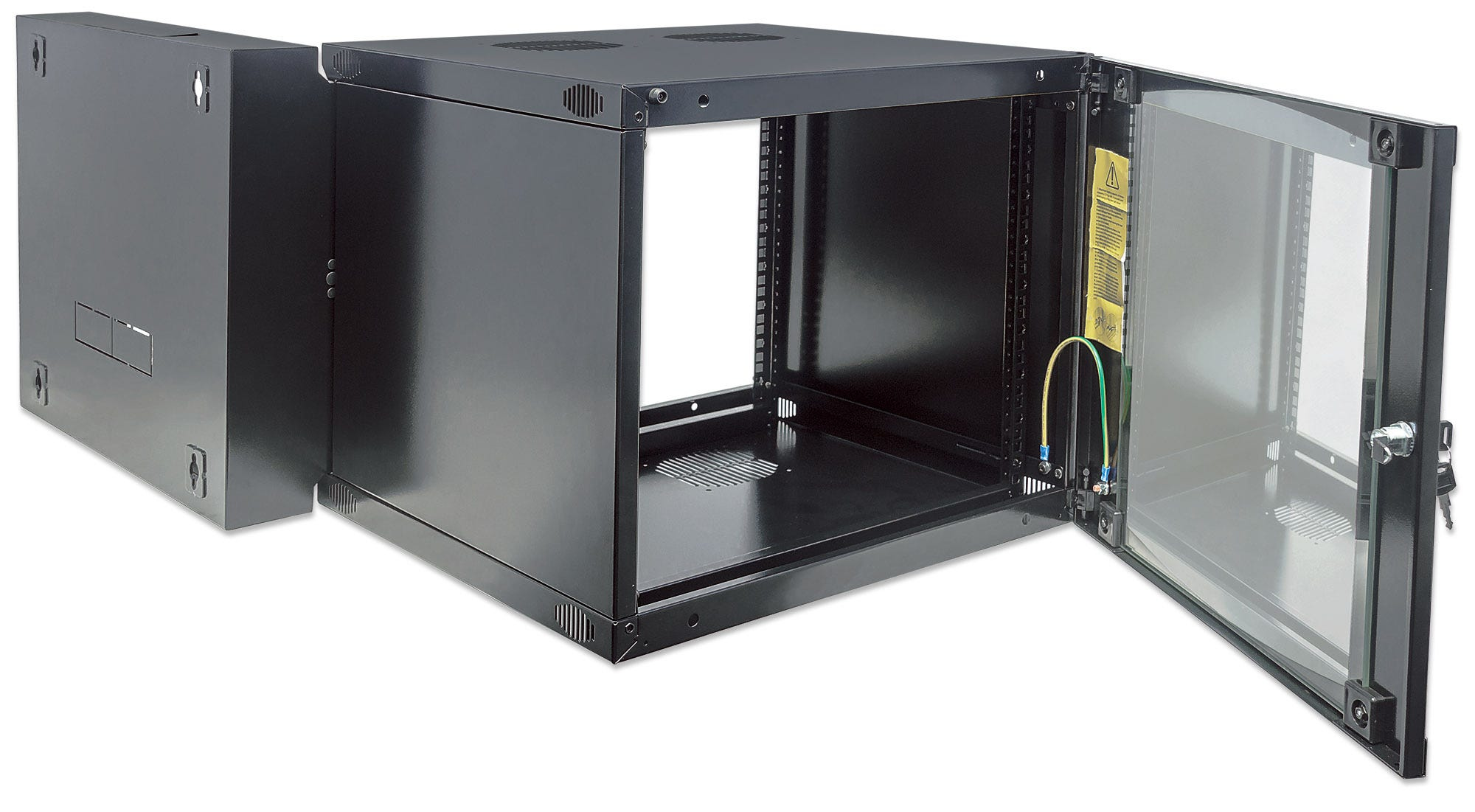

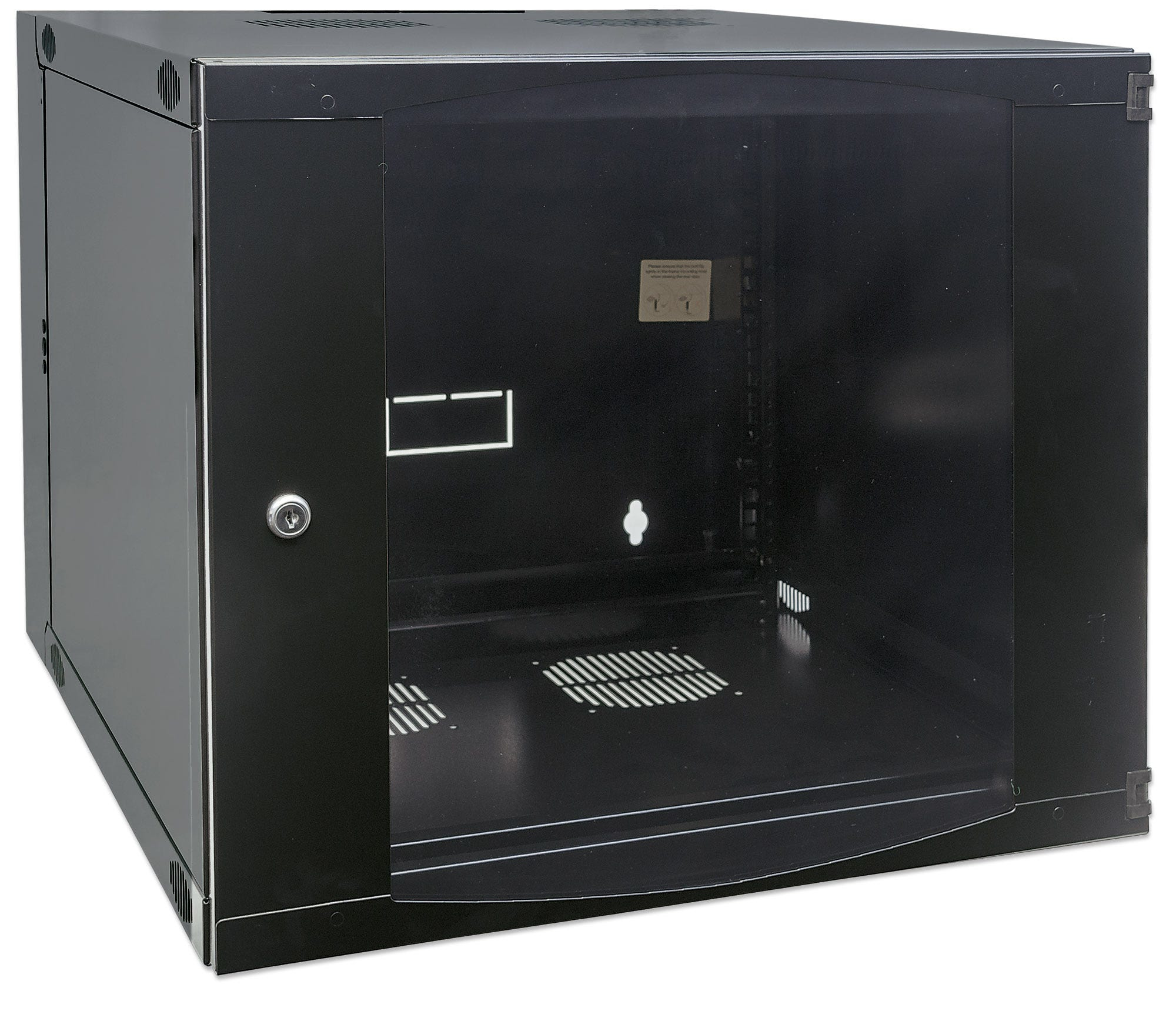

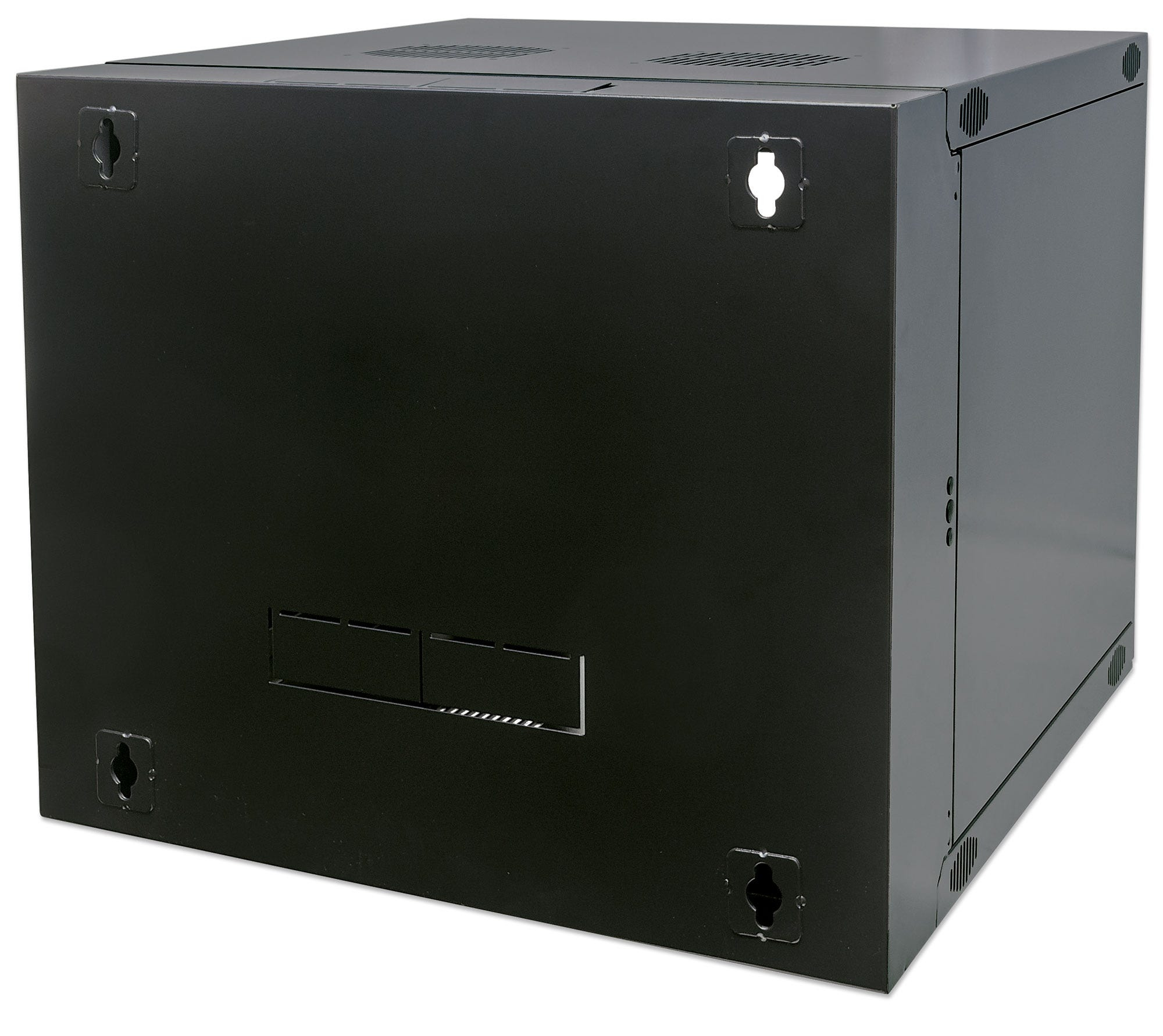

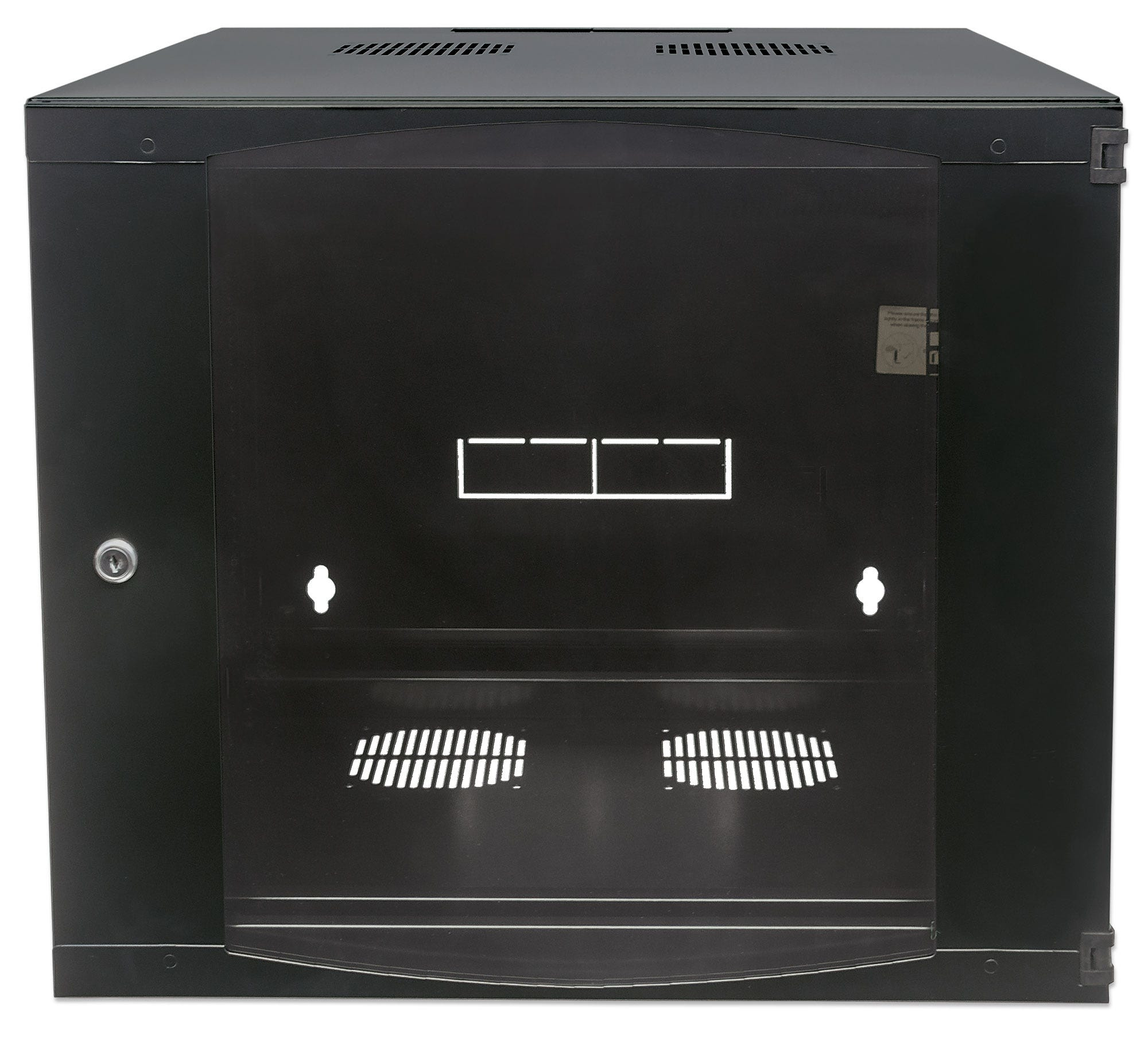

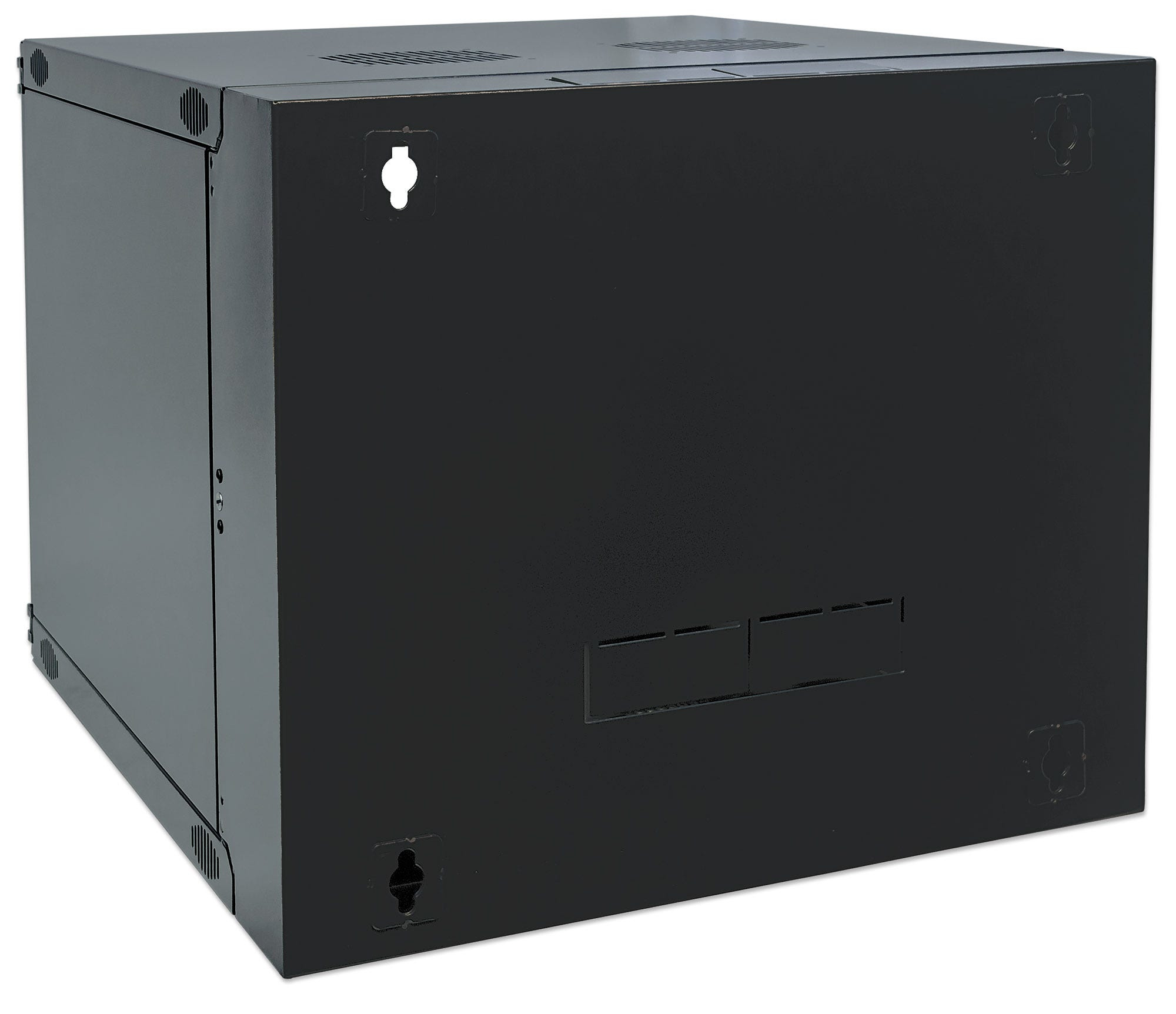

19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 6U
450mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabin
Model 713740EAN 766623713740
19 specifications
- TypeWall mounted rack
- Weight15 kg
- ColourBlack
- Rack capacity6U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Wall mounted rack
- Weight
- 15 kg
- Colour
- Black
- Rack capacity
- 6U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Intellinet
- Category
- Rack Cabinet
- Model
- 713740
- Part number
- 713740
- EAN / UPC
- 766623713740
- Also known as
- Intellinet 19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 6U, 450mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabin
Specifications
19 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 30 kg |
| Product colour | Black |
| Material | Glass, SPCC |
| Frame type | Closed |
| Front door construction | Glass |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 540 mm |
| Depth | 450 mm |
| Height | 327 mm |
| Weight | 15 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
