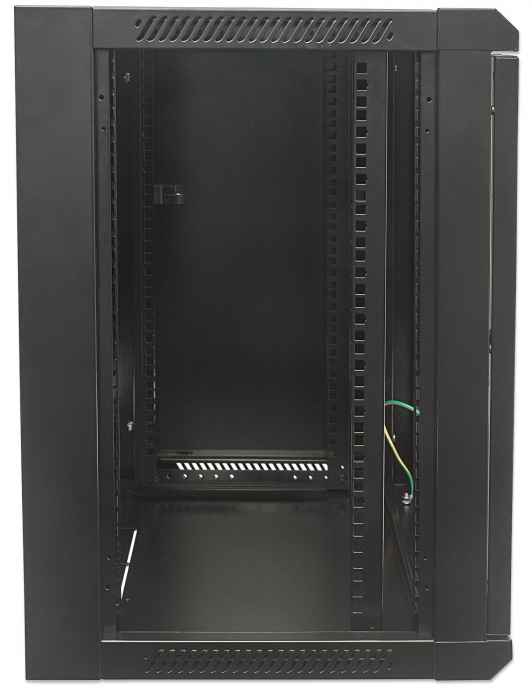

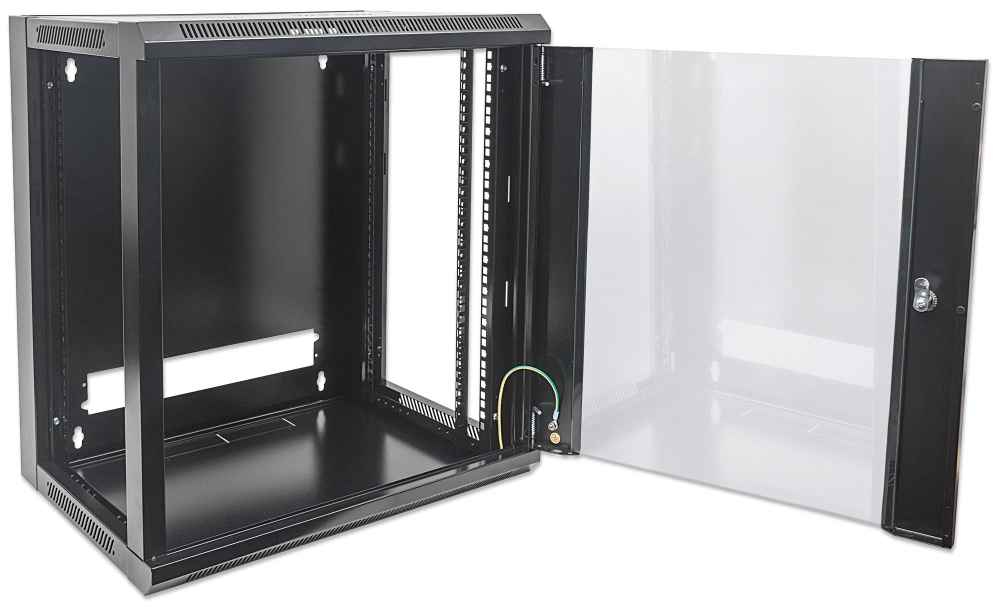

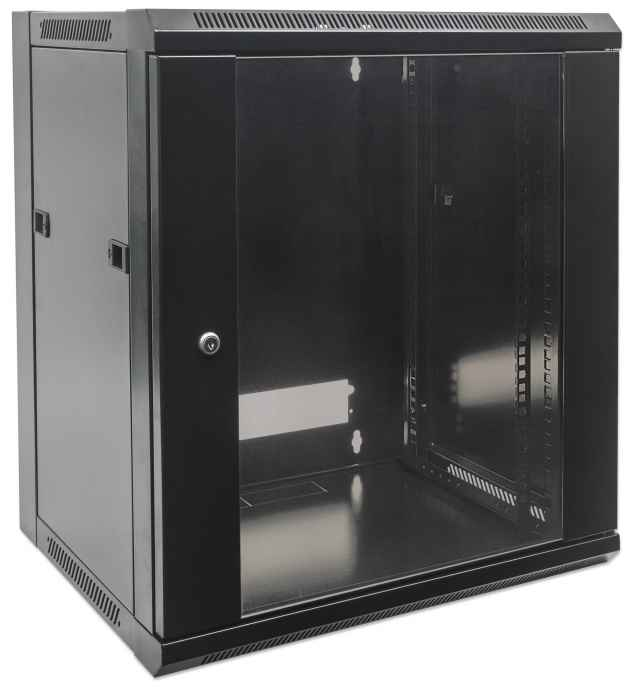

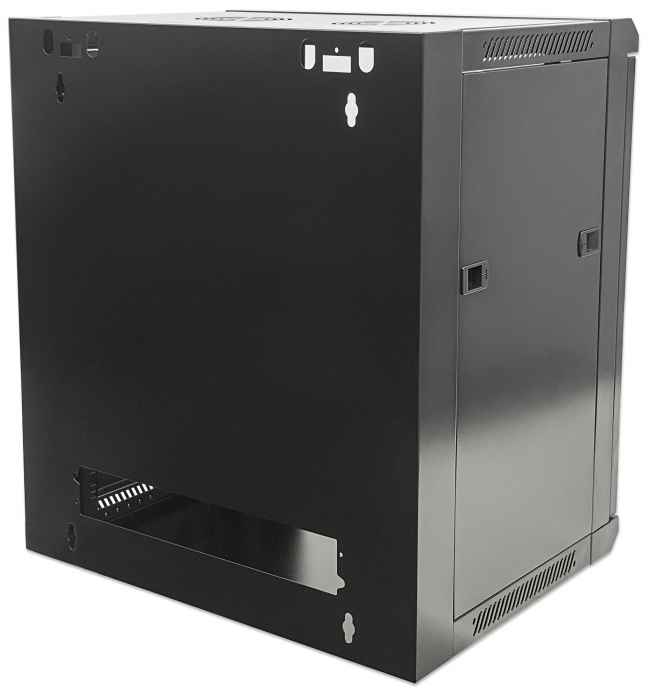

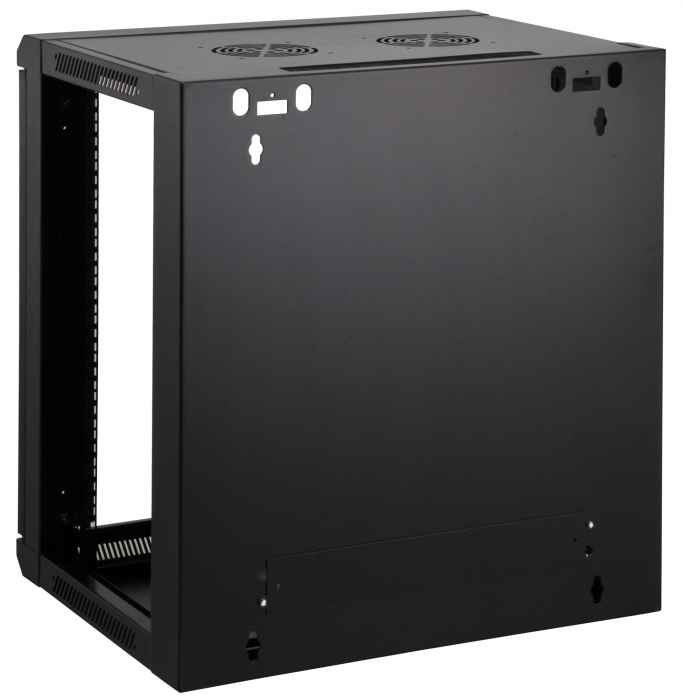

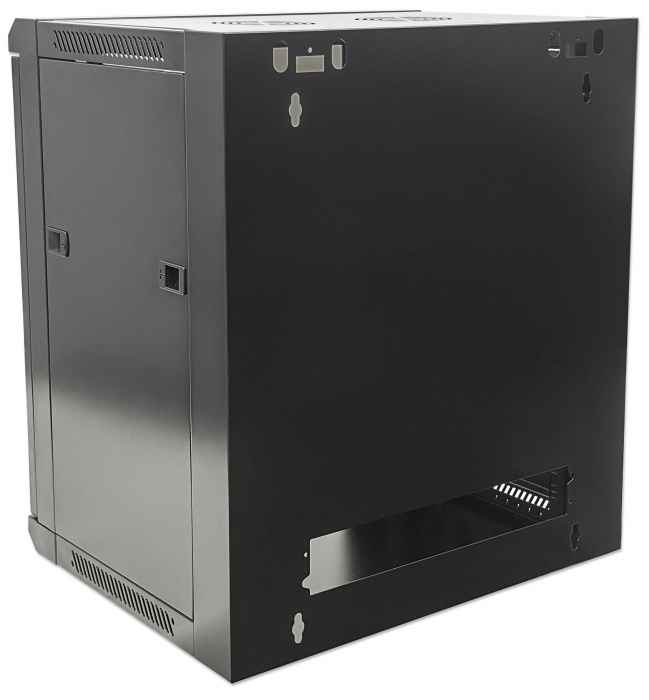

19" Network Cabinet - Wall Mount (Standard), 6U
450mm Deep, Black, Flatpack, Max 60kg, Suitable also for use on desk or floor, Usable Depth 270mm to
Model 711715EAN 766623711715
18 specifications
- TypeWall mounted rack
- Weight15 kg
- ColourBlack
- Rack capacity6U
- Size (imperial)48.3 cm (19")
Overview
- Type
- Wall mounted rack
- Weight
- 15 kg
- Colour
- Black
- Rack capacity
- 6U
- Size (imperial)
- 48.3 cm (19")
- Brand
- Intellinet
- Category
- Rack Cabinet
- Model
- 711715
- Part number
- 711715
- EAN / UPC
- 766623711715, 17666237117159, 7666237117152
- Also known as
- Intellinet 19" Network Cabinet - Wall Mount (Standard), 6U, 450mm Deep, Black, Flatpack, Max 60kg, Suitable also for use on desk or floor, Usable Depth 270mm to
Specifications
18 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Product colour | Black |
| Material | SPCC |
| Frame type | Closed |
| Front door construction | Glass |
| Removable side panels | Yes |
| Side panels included | Yes |
| Adjustable depth | Yes |
| Adjustable mounting rails | Yes |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 570 mm |
| Depth | 450 mm |
| Height | 370 mm |
| Weight | 15 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
