Eco Mount 19' Cabinet, 07U
540X400MM, RAL7035 Grey
Model EWM-07-5440-GEAN 4015867235942
67 specifications
- TypeWall mounted rack
- Weight9.06 kg
- ColourLight grey
- Rack capacity7U
- Size (imperial)31 cm (12.2")
- Pallet net height190 cm
Overview
- Type
- Wall mounted rack
- Weight
- 9.06 kg
- Colour
- Light grey
- Rack capacity
- 7U
- Size (imperial)
- 31 cm (12.2")
- Pallet net height
- 190 cm
- Brand
- Equip
- Category
- Rack Cabinet
- Model
- EWM-07-5440-G
- Part number
- EWM-07-5440-G
- EAN / UPC
- 4015867235942
- Also known as
- Equip Eco Mount 19' Cabinet, 07U, 540X400MM, RAL7035 Grey
Specifications
67 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 7U |
| Type | Wall mounted rack |
| Product colour | Light grey |
| Material | Steel |
| Frame type | Closed |
| Product design | 2-post |
| Back door construction | Steel |
| Front door construction | Tempered glass |
| Side panel construction | Steel |
| Removable back door | No |
| Removable front door | Yes |
| Removable side panels | No |
| Side panels included | No |

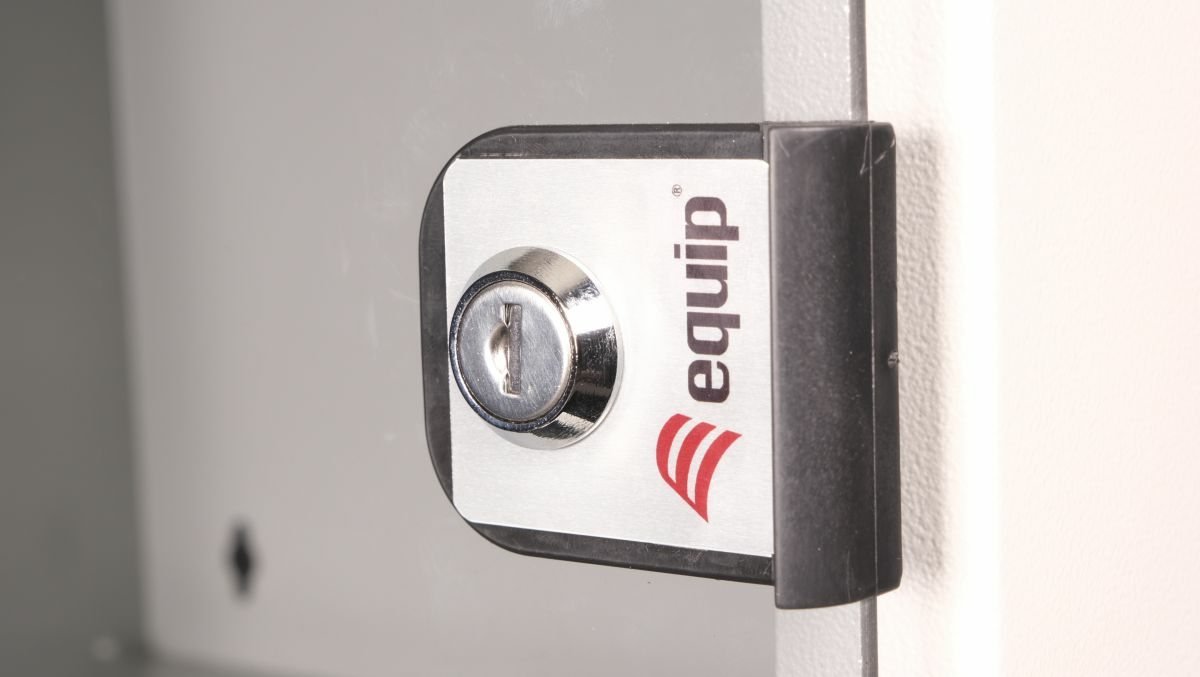

| Key lock | Yes |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |
| Rack rail thickness | 1.5 mm |
| Rack rails | No |
| Adjustable depth | No |
| Adjustable stand | No |
| Adjustable feet | No |
| Cooling type | Passive |
| Soundproof | No |
| Main PDU | No |
| Monitoring | No |
| Cable management | No |
| Mounting hole shape | Square |
| Stabilising foot screw | No |
| Castor wheels | No |
| Door opening angle | 200° |
| Assembly required | No |
| Preassembled | Yes |
| Built-in UPS | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 31 cm (12.2") |
| Width | 174 mm |
| Depth | 400 mm |
| Height | 330 mm |
| Inner width | 49.5 cm |
| Inner depth | 39.5 cm |
| Inner height | 31.2 cm |
| Weight | 9.06 kg |
| Mounting depth (min) | 36 cm |
| Mounting depth (max) | 38 cm |
Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 10 |
| Number of screws | 10 |
| Screws included | Yes |
| Plinth panel | No |
| Temperature sensor | No |
| Grounding kit | No |
| Mounting kit | No |
| Wall mounting kit | Yes |
| Quick installation guide | No |
| Manual | No |
| Package width | 465 mm |
| Package depth | 577 mm |
| Package height | 174 mm |
Technical details
| Specification | Value |
|---|---|
| Pallet net height | 190 cm |
| Pallet net length | 110 cm |
| Pallet net width | 130 cm |
| Total carbon footprint (kg of CO2e) | 1.5493 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Turkey |
| Harmonized System (HS) code | 853710980019 |
Other features
| Specification | Value |
|---|---|
| Layers per pallet | 10 pc(s) |
| Master (outer) cases per pallet | 50 pc(s) |
| Products per pallet | 50 pc(s) |
