Eco Mount 10' Cabinet, 06U
300X300MM, RAL7035 Grey
Model EWM-06-3030-GEAN 4015867235850
67 specifications
- TypeWall mounted rack
- Weight4.58 kg
- ColourGrey
- Rack capacity6U
- Size (imperial)21.1 cm (8.3")
- Pallet net height2.01 m
Overview
- Type
- Wall mounted rack
- Weight
- 4.58 kg
- Colour
- Grey
- Rack capacity
- 6U
- Size (imperial)
- 21.1 cm (8.3")
- Pallet net height
- 2.01 m
- Brand
- Equip
- Category
- Rack Cabinet
- Model
- EWM-06-3030-G
- Part number
- EWM-06-3030-G
- EAN / UPC
- 4015867235850
- Also known as
- Equip Eco Mount 10' Cabinet, 06U, 300X300MM, RAL7035 Grey
Specifications
67 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Product colour | Grey |
| Material | Steel |
| Frame type | Closed |
| Product design | 2-post |
| Back door construction | Steel |
| Front door construction | Tempered glass |
| Side panel construction | Steel |
| Removable back door | No |
| Removable front door | Yes |
| Removable side panels | No |
| Side panels included | No |

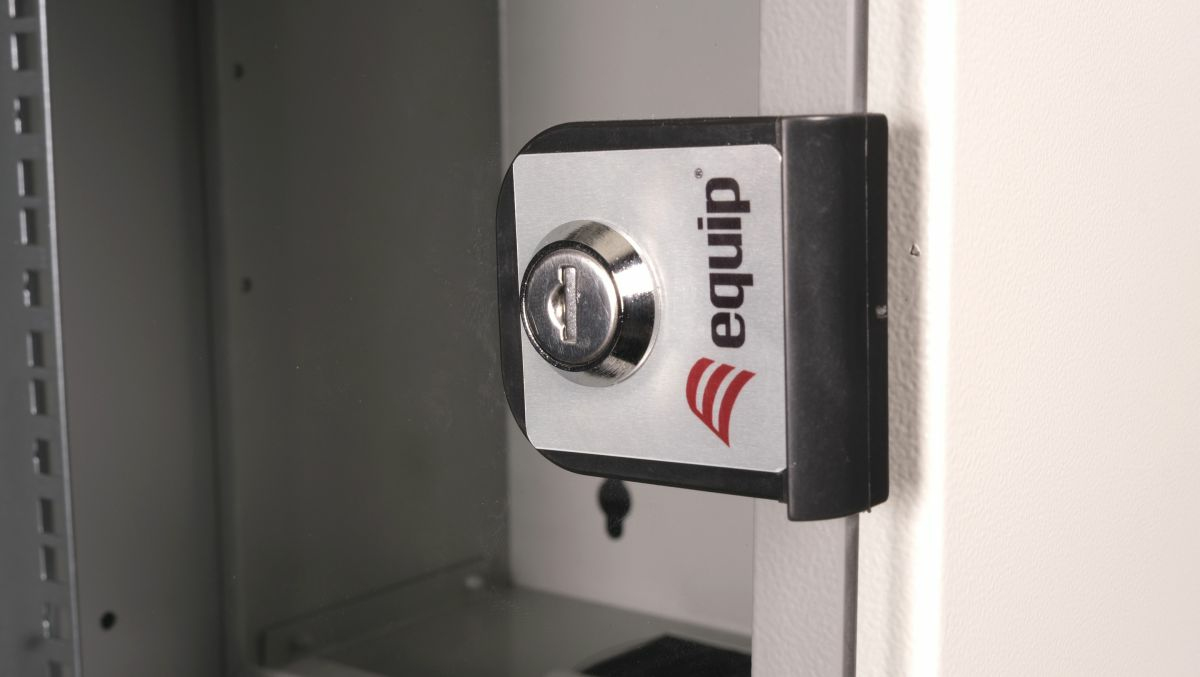

| Key lock | Yes |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |
| Rack rail thickness | 1.5 mm |
| Rack rails | No |
| Adjustable depth | No |
| Adjustable stand | No |
| Adjustable feet | No |
| Cooling type | Passive |
| Soundproof | No |
| Main PDU | No |
| Monitoring | No |
| Cable management | No |
| Mounting hole shape | Square |
| Stabilising foot screw | No |
| Castor wheels | No |
| Door opening angle | 200° |
| Assembly required | No |
| Preassembled | Yes |
| Built-in UPS | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 21.1 cm (8.3") |
| Width | 153 mm |
| Depth | 300 mm |
| Height | 330 mm |
| Inner width | 30 cm |
| Inner depth | 28.5 cm |
| Inner height | 26.7 cm |
| Weight | 4.58 kg |
| Mounting depth (min) | 17 cm |
| Mounting depth (max) | 27 cm |
Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 10 |
| Number of screws | 10 |
| Screws included | Yes |
| Plinth panel | No |
| Temperature sensor | No |
| Grounding kit | No |
| Mounting kit | No |
| Wall mounting kit | Yes |
| Quick installation guide | No |
| Manual | No |
| Package width | 349 mm |
| Package depth | 330 mm |
| Package height | 153 mm |
Technical details
| Specification | Value |
|---|---|
| Pallet net height | 2.01 m |
| Pallet net length | 110 cm |
| Pallet net width | 130 cm |
| Total carbon footprint (kg of CO2e) | 0.7832 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Turkey |
| Harmonized System (HS) code | 853710980019 |
Other features
| Specification | Value |
|---|---|
| Layers per pallet | 12 pc(s) |
| Master (outer) cases per pallet | 144 pc(s) |
| Products per pallet | 144 pc(s) |
