Safe Outdoor 19' Cabinet, 16U
600X600MM, RAL7035 Grey
Model ESO-16-6060-GEAN 4015867232439
69 specifications
- TypeWall mounted rack
- Weight49 kg
- ColourLight grey
- Rack capacity16U
- Size (imperial)49.5 cm (19.5")
- Pallet gross weight434 kg
Overview
- Type
- Wall mounted rack
- Weight
- 49 kg
- Colour
- Light grey
- Rack capacity
- 16U
- Size (imperial)
- 49.5 cm (19.5")
- Pallet gross weight
- 434 kg
- Brand
- Equip
- Category
- Rack Cabinet
- Model
- ESO-16-6060-G
- Part number
- ESO-16-6060-G
- EAN / UPC
- 4015867232439
- Also known as
- Equip Safe Outdoor 19' Cabinet, 16U, 600X600MM, RAL7035 Grey
Specifications
69 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 16U |
| Type | Wall mounted rack |
| Product colour | Light grey |
| Material | Steel |
| Frame type | Closed |
| Product design | 2-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable back door | No |
| Removable front door | Yes |
| Removable side panels | No |
| Side panels included | No |

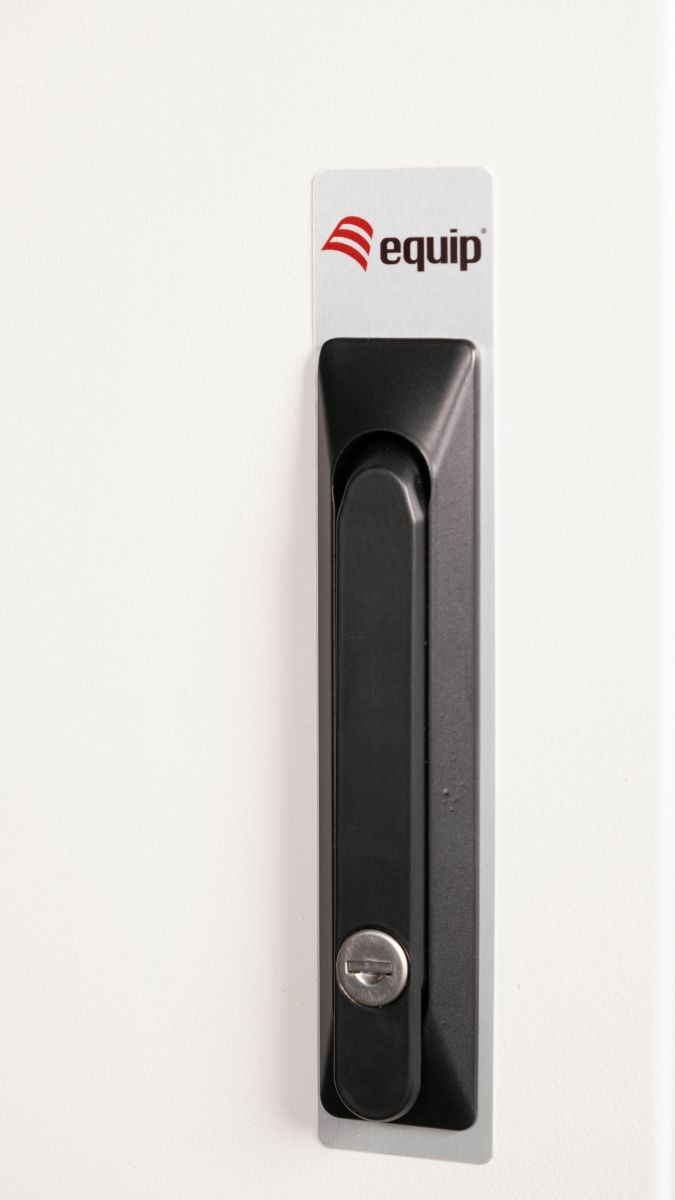

| Key lock | Yes |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |
| Rack rail thickness | 1.5 mm |
| Rack rails | No |
| Adjustable depth | No |
| Adjustable stand | Yes |
| Adjustable feet | No |

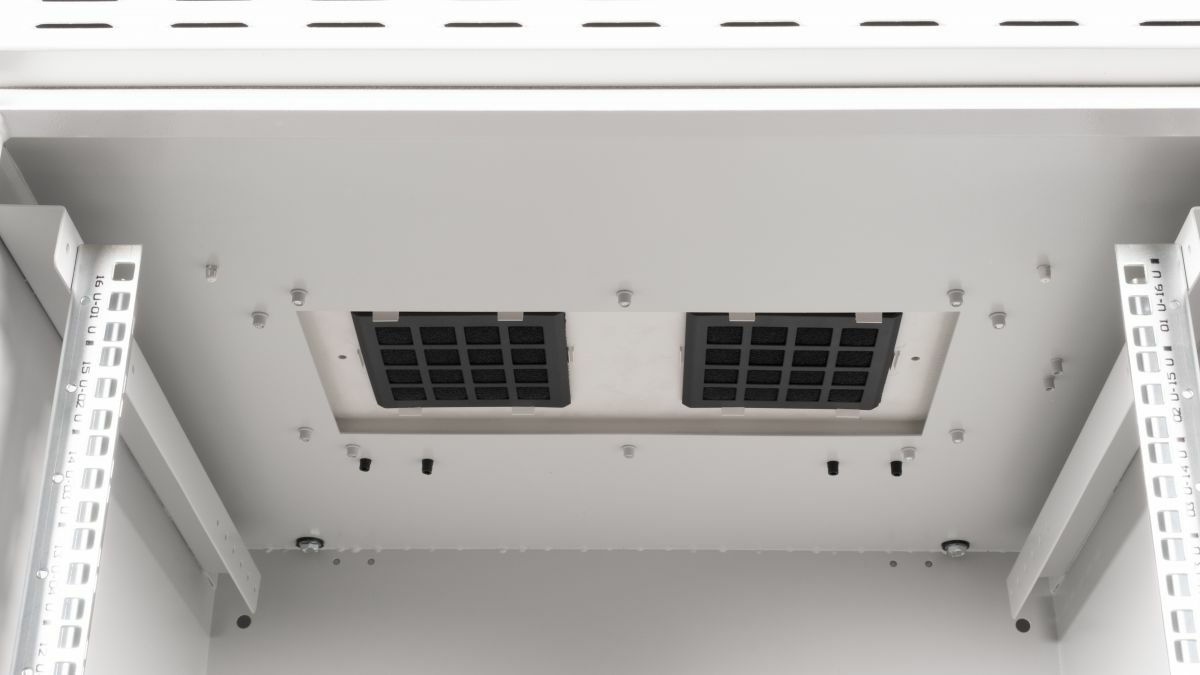

| Cooling type | Passive |
| Soundproof | No |
| Main PDU | No |
| Monitoring | No |
| Cable management | No |
| Mounting hole shape | Square |
| Stabilising foot screw | No |
| Castor wheels | No |
| Door opening angle | 140° |
| Assembly required | No |
| International Protection (IP) code | IP55 |
| Preassembled | Yes |
| Built-in UPS | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 49.5 cm (19.5") |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 891 mm |
| Inner width | 59.5 cm |
| Inner depth | 59.5 cm |
| Inner height | 71.1 cm |
| Weight | 49 kg |
| Mounting depth (min) | 26 cm |
| Mounting depth (max) | 53.5 cm |
Packaging data
| Specification | Value |
|---|---|
| Nuts included | Yes |
| Number of nuts | 1 |
| Screws included | No |
| Plinth panel | No |
| Temperature sensor | No |
| Grounding kit | Yes |
| Mounting kit | No |
| Wall mounting kit | Yes |
| Quick installation guide | No |
| Manual | No |
| Package width | 690 mm |
| Package depth | 630 mm |
| Package height | 910 mm |
Technical details
| Specification | Value |
|---|---|
| Pallet gross weight | 434 kg |
| Pallet net height | 2 m |
| Pallet net length | 130 cm |
| Pallet net weight | 18 kg |
| Pallet net width | 130 cm |
| Total carbon footprint (kg of CO2e) | 8.379 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Turkey |
| Harmonized System (HS) code | 853710980019 |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Layers per pallet | 2 pc(s) |
| Master (outer) cases per pallet | 8 pc(s) |
