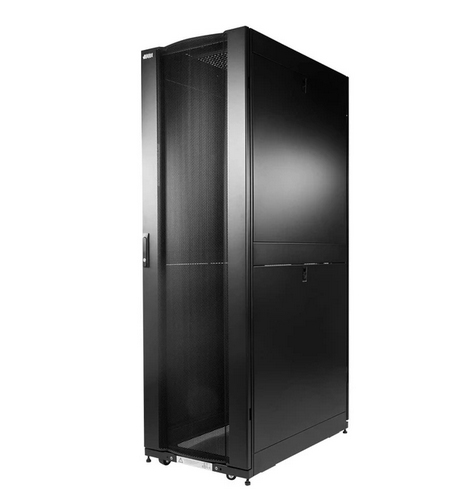

RE48U120BU rack cabinet 48U Freestanding rack
Model RE48U120BU
30 specifications
- TypeFreestanding rack
- Weight160 kg
- Rack capacity48U
- Size (imperial)48.3 cm (19")
- Compliance certificatesCE, RoHS
Overview
- Type
- Freestanding rack
- Weight
- 160 kg
- Rack capacity
- 48U
- Size (imperial)
- 48.3 cm (19")
- Compliance certificates
- CE, RoHS
- Brand
- ATEN
- Category
- Rack Cabinet
- Model
- RE48U120BU
- Part number
- RE48U120BU
- Also known as
- ATEN RE48U120BU rack cabinet 48U Freestanding rack
Specifications
30 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 48U |
| Type | Freestanding rack |
| Maximum weight capacity | 1300 kg |
| Maximum weight capacity (rolling) | 1000 kg |
| Material | SPCC |
| Frame type | Closed |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Adjustable feet | Yes |
| Cooling type | Passive |
| Cable management | Yes |
| Castor wheels | Yes |
| International Protection (IP) code | IP20 |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 1200 mm |
| Height | 2259 mm |
| Weight | 160 kg |
| Mounting depth (min) | 27 cm |
| Mounting depth (max) | 84 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 650 mm |
| Package depth | 2420 mm |
| Package height | 1350 mm |
| Package weight | 197 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
