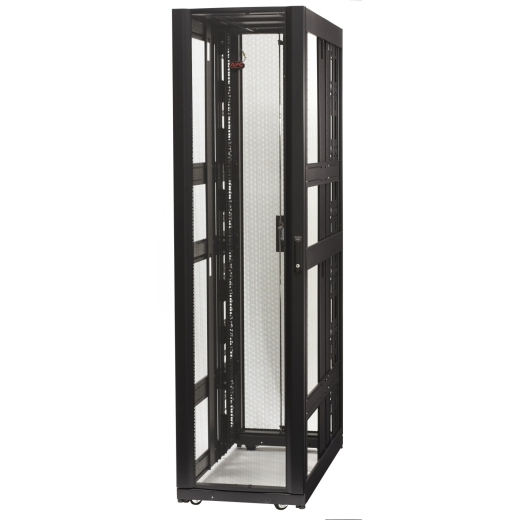

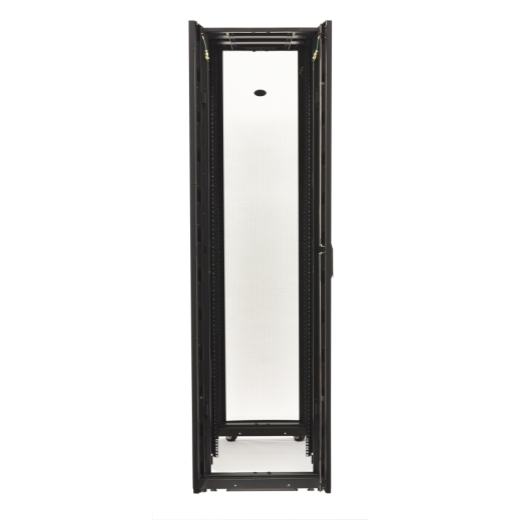

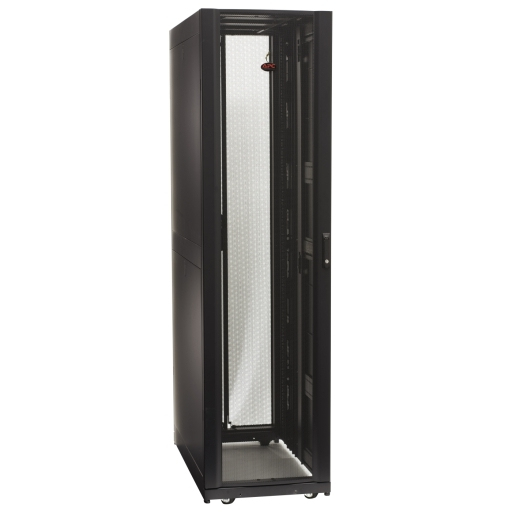

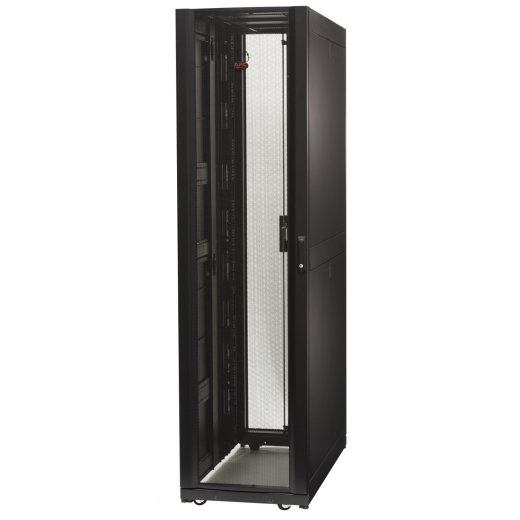

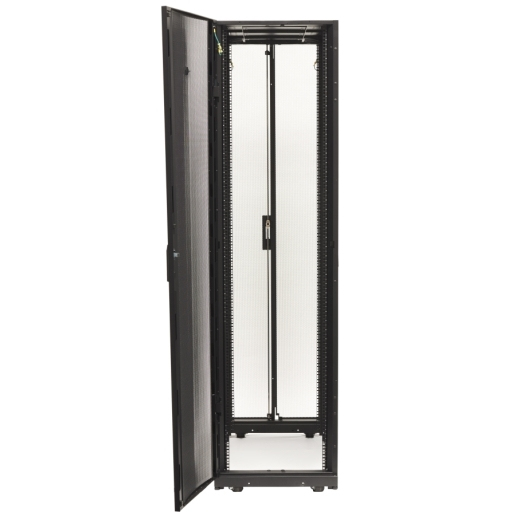

NetShelter SX3K
Model NetShelter SX3KPart no. AR9300SP-R
23 specifications
- TypeFreestanding rack
- Weight184.6 kg
- ColourBlack
- Rack capacity42U
- Size (imperial)48.3 cm (19")
- Compliance certificatesRoHS
Overview
- Type
- Freestanding rack
- Weight
- 184.6 kg
- Colour
- Black
- Rack capacity
- 42U
- Size (imperial)
- 48.3 cm (19")
- Compliance certificates
- RoHS
- Brand
- APC
- Category
- Rack Cabinet
- Model
- NetShelter SX3K
- Part number
- AR9300SP-R
- Also known as
- APC NetShelter SX3K 42U Freestanding rack Black
Specifications
23 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 1931.82 kg |
| Product colour | Black |

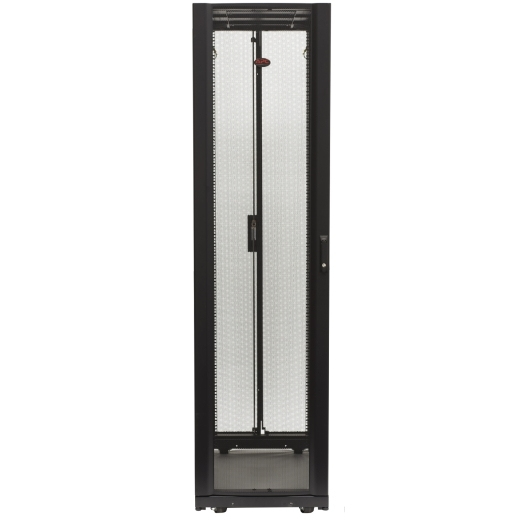

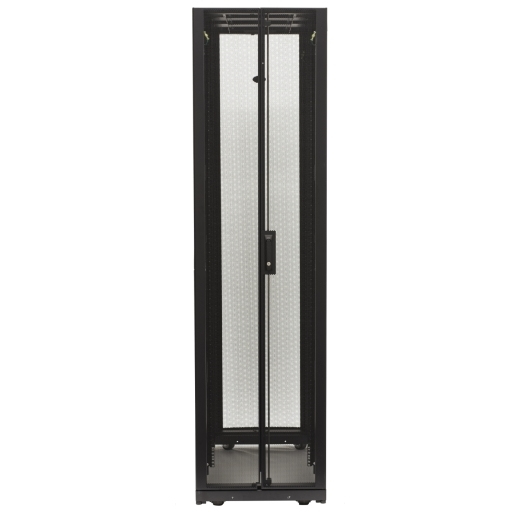

| Front door construction | Perforated |
| Side panels included | Yes |
| Castor wheels | Yes |
| International Protection (IP) code | IP20 |
| Certification | REACH UL 2416, UL 60950-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 1200 mm |
| Height | 1991 mm |
| Weight | 184.6 kg |
| Mounting depth (min) | 19.1 cm |
| Mounting depth (max) | 104.8 cm |

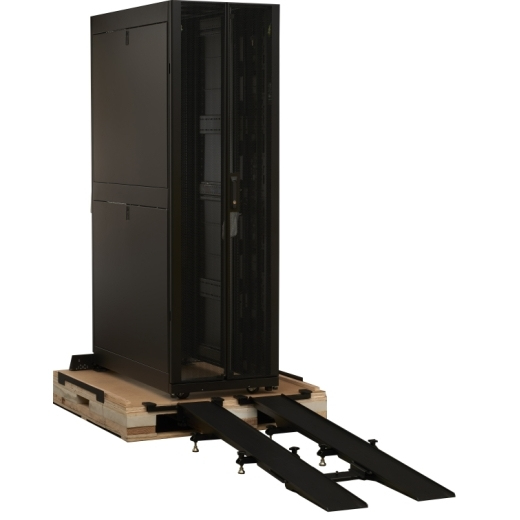

Packaging data
| Specification | Value |
|---|---|

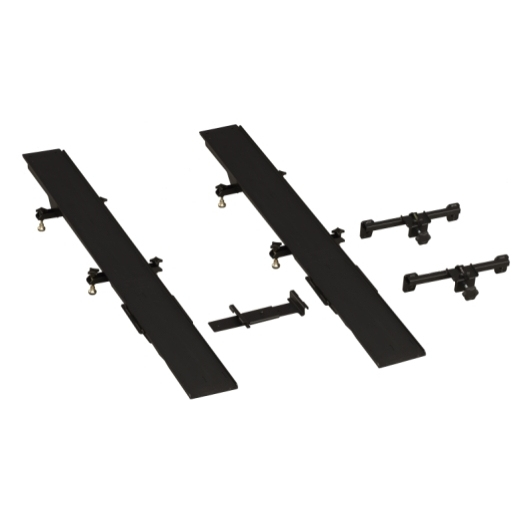

| Mounting kit | Yes |
| Manual | Yes |
| Package width | 1105 mm |
| Package depth | 1321 mm |
| Package height | 2179 mm |
| Package weight | 277.6 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
