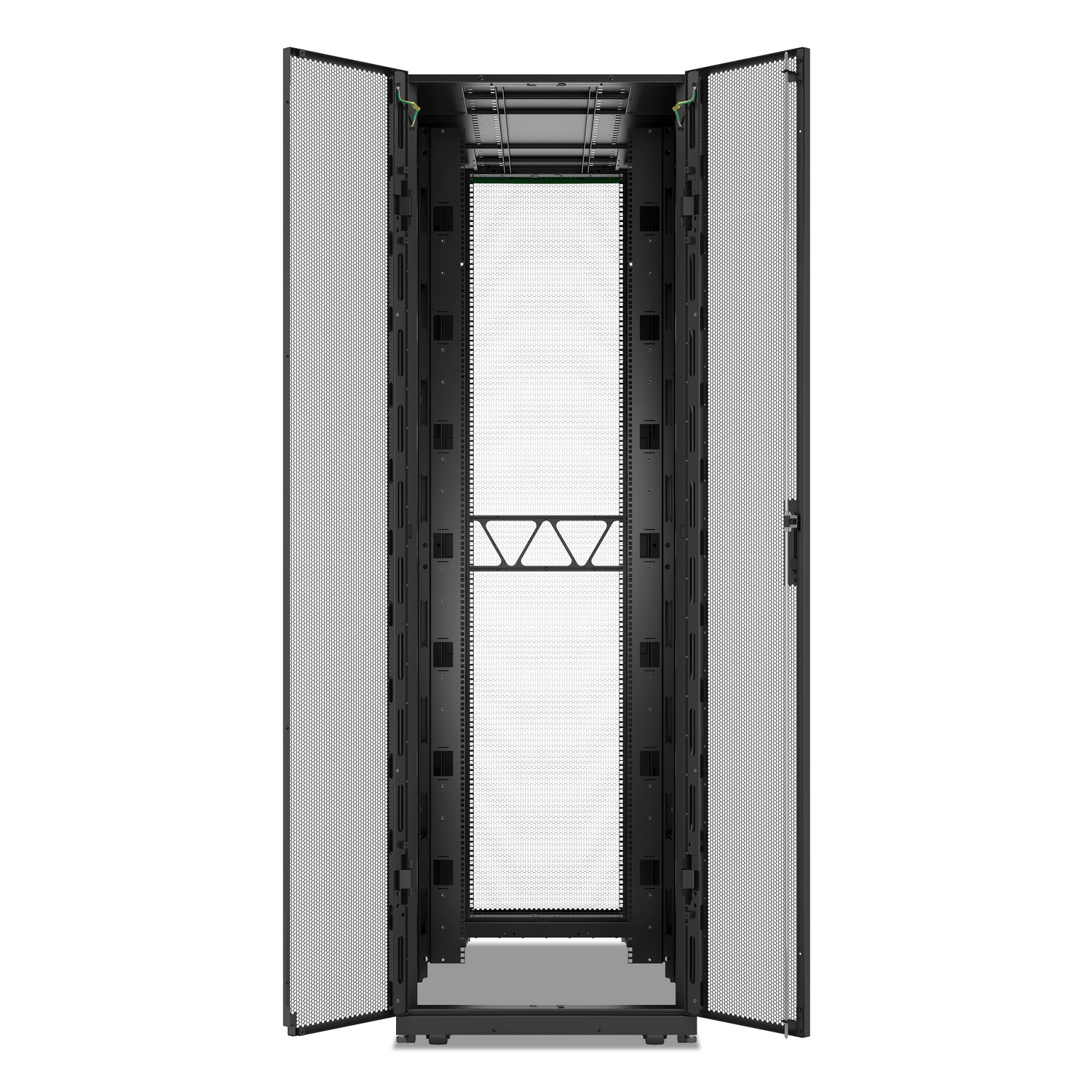

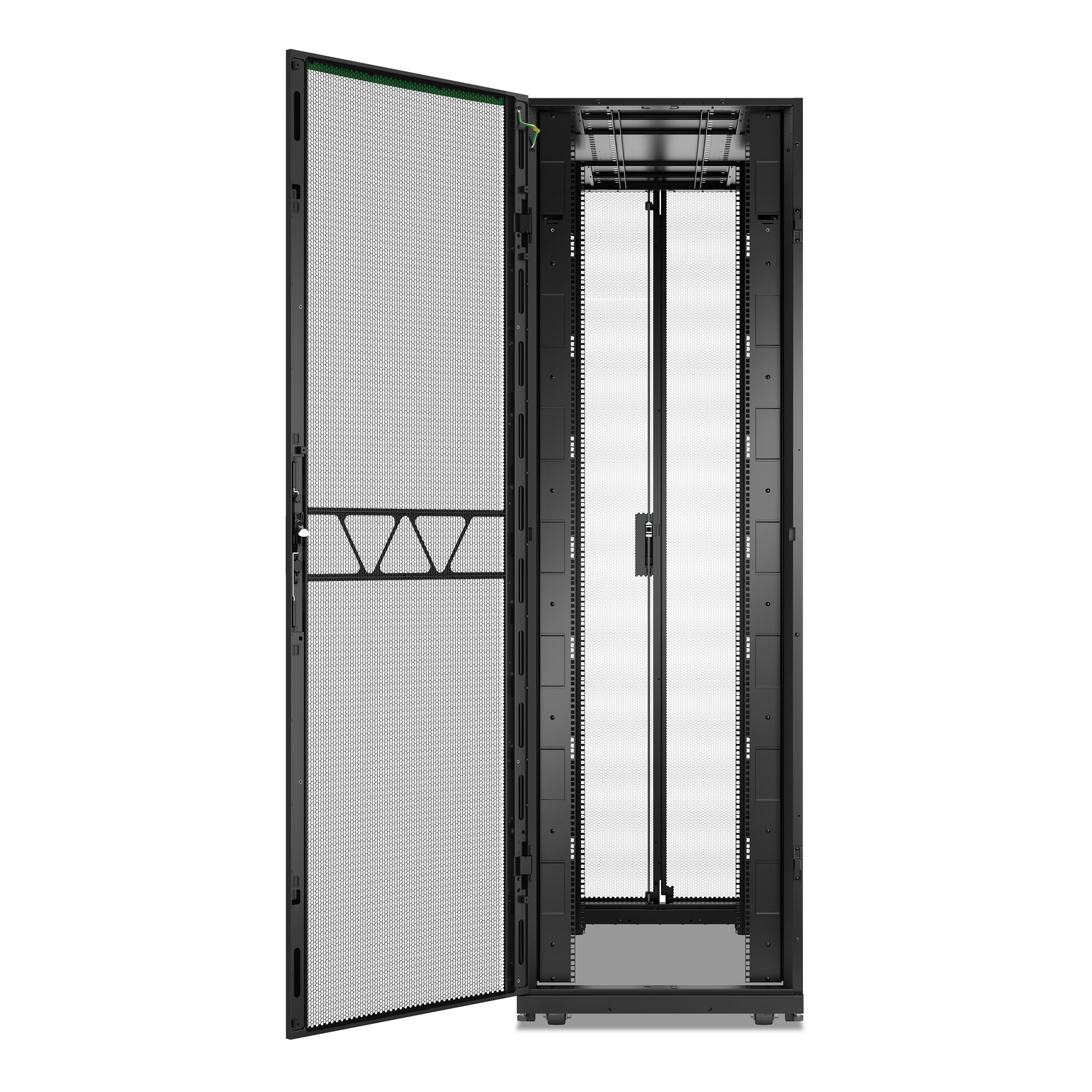

NetShelter SX Advanced Rack, High Strength, 52U, 2436H x
750W x 1295D mm, with Shock Package, Black
Model AR9558SPB2EAN 731304762607
27 specifications
- TypeFreestanding rack
- Weight305 kg
- ColourBlack
- Rack capacity52U
- Size (imperial)48.3 cm (19")
- Battery replacement accessibilityNon-removable
Overview
- Type
- Freestanding rack
- Weight
- 305 kg
- Colour
- Black
- Rack capacity
- 52U
- Size (imperial)
- 48.3 cm (19")
- Battery replacement accessibility
- Non-removable
- Brand
- APC
- Category
- Rack Cabinet
- Model
- AR9558SPB2
- Part number
- AR9558SPB2
- EAN / UPC
- 731304762607
- Also known as
- APC NetShelter SX Advanced Rack, High Strength, 52U, 2436H x 750W x 1295D mm, with Shock Package, Black
Specifications
27 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 52U |
| Type | Freestanding rack |
| Product colour | Black |
| Certification | EIA-310E UL 2416 |

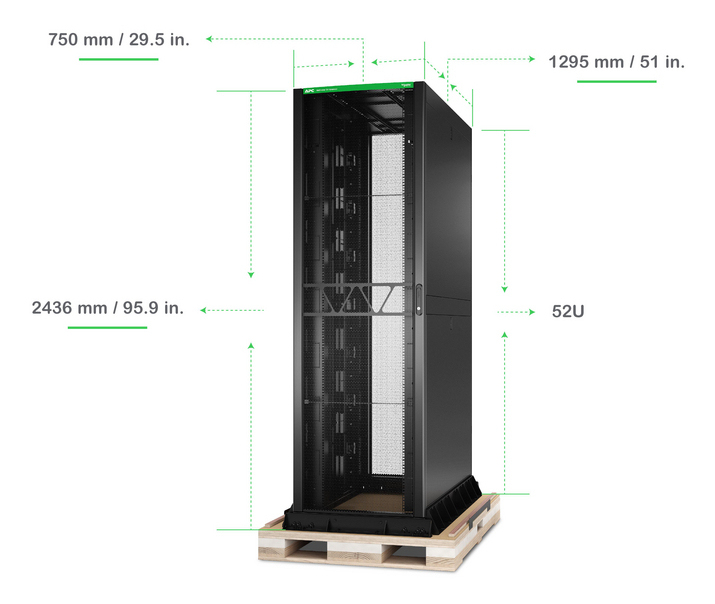

Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 750 mm |
| Depth | 1295 mm |
| Height | 2436 mm |
| Weight | 305 kg |
| Mounting depth (min) | 29.2 cm |
| Mounting depth (max) | 114.3 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1105 mm |
| Package depth | 1460 mm |
| Package height | 2670 mm |
| Package weight | 39 kg |
Battery
| Specification | Value |
|---|---|
| Battery replacement accessibility | Non-removable |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Preferred mounting position | no preference |
| Removable battery | No |
| Total carbon footprint (kg of CO2e) | 3178.640416532829 |
| Packaging without single use plastic | No |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Sustainable packaging | No |
| Take-back system | No |
| Warranty period | 5 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 9403208000 |
