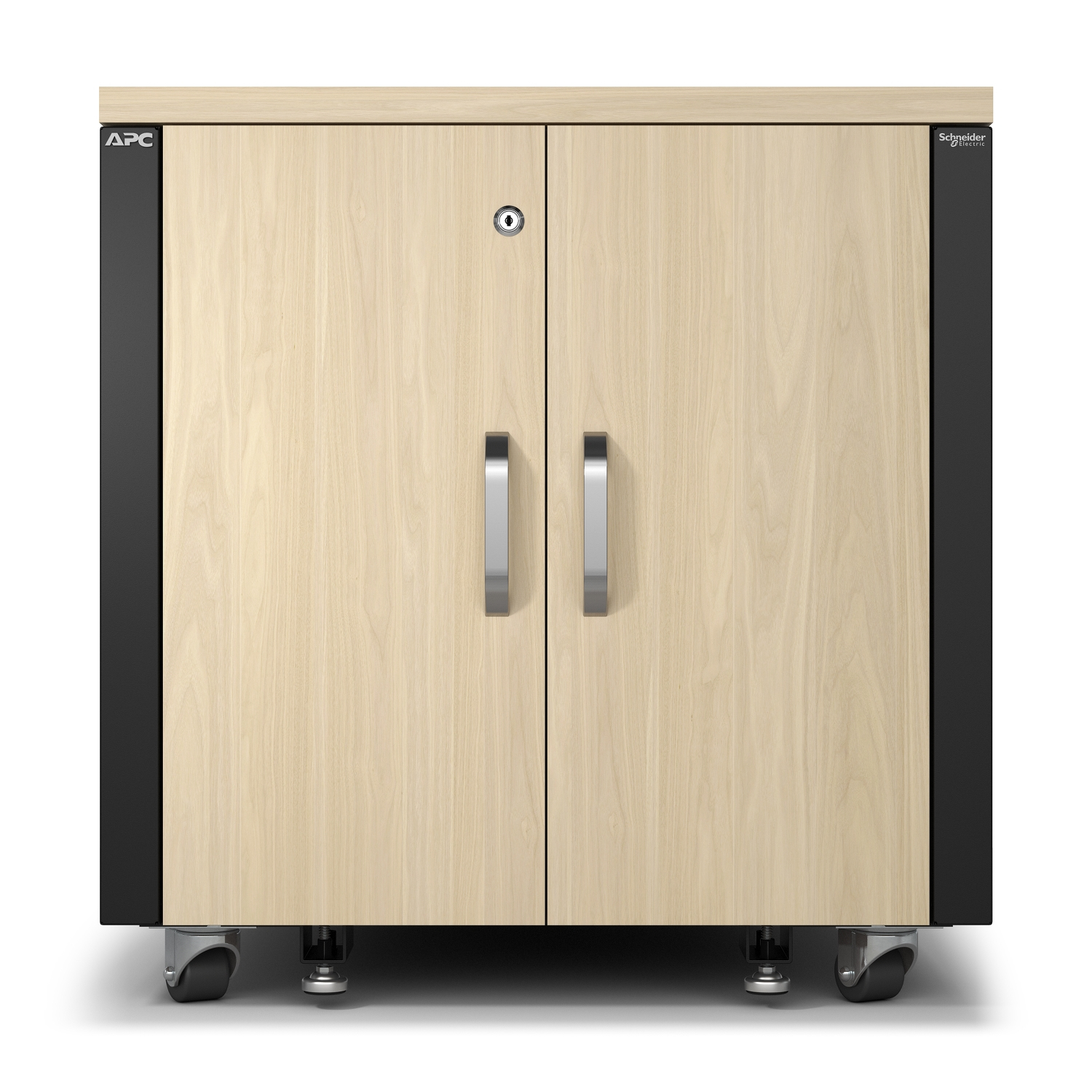

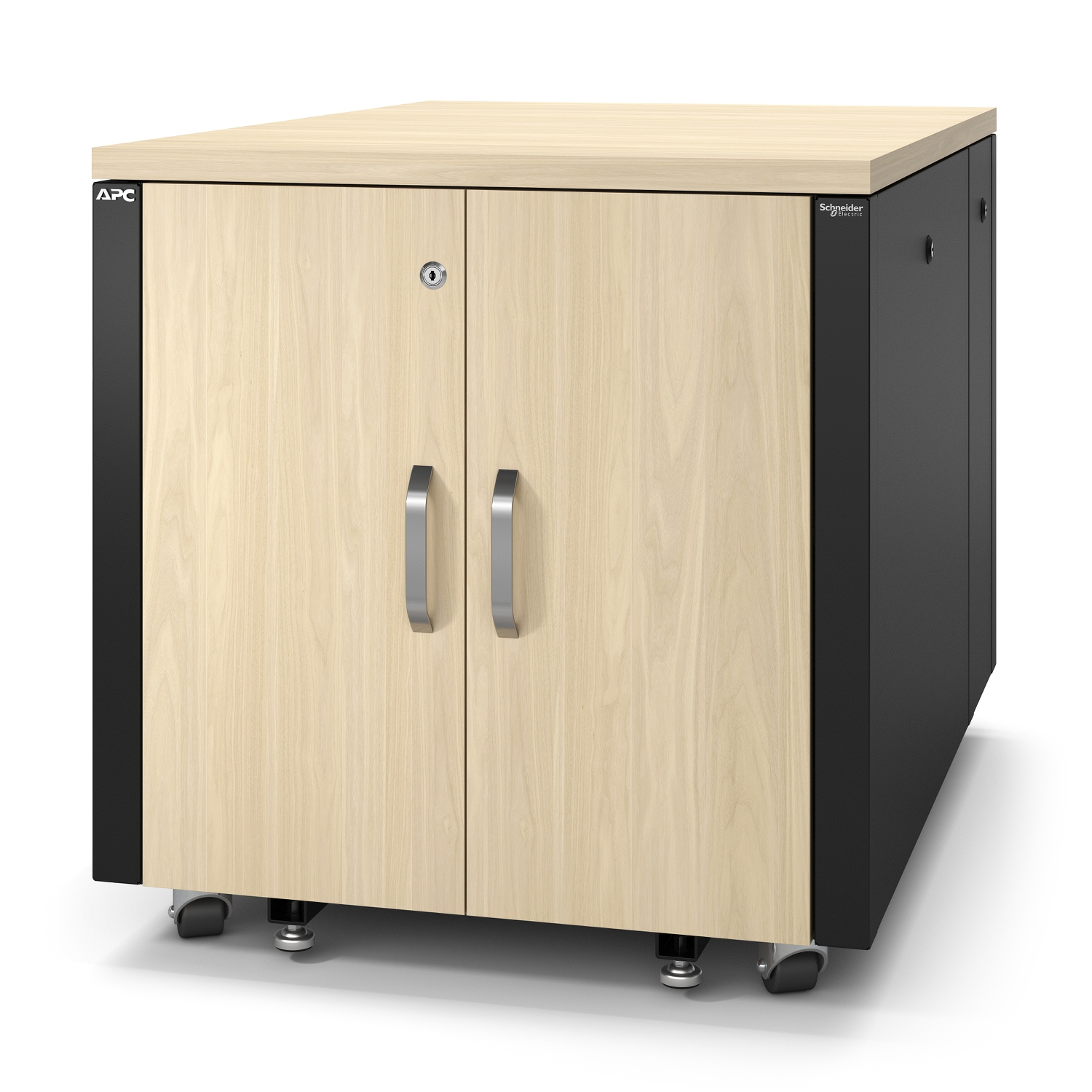

NetShelter Soundproof, 12U, Server Rack Enclosure, Maple
Model AR4012AEAN 731304621720
25 specifications
- TypeFreestanding rack
- Weight114 kg
- ColourBlack, Maple colour
- Rack capacity12U
- AC input voltage230 V
- Size (imperial)48.3 cm (19")
Overview
- Type
- Freestanding rack
- Weight
- 114 kg
- Colour
- Black, Maple colour
- Rack capacity
- 12U
- AC input voltage
- 230 V
- Size (imperial)
- 48.3 cm (19")
- Brand
- APC
- Category
- Rack Cabinet
- Model
- AR4012A
- Part number
- AR4012A
- EAN / UPC
- 731304621720, 2220009014084
- Also known as
- APC NetShelter Soundproof, 12U, Server Rack Enclosure, Maple
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 12U |
| Type | Freestanding rack |
| Maximum weight capacity | 840 kg |
| Product colour | Black, Maple colour |
| Front door construction | Wood veneer |
| Front door style | Blind |
| Front door key lock | Yes |
| Soundproof | Yes |
| Main PDU | Yes |
| PDU types | Basic |
| Number of C13 couplers | 4 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 750 mm |
| Depth | 1130.4 mm |
| Height | 785 mm |
| Weight | 114 kg |
| Mounting depth (min) | 69 cm |
| Mounting depth (max) | 83 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 820 mm |
| Package depth | 1200 mm |
| Package height | 899 mm |
| Package weight | 158 kg |
Technical details
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 479.42 |
