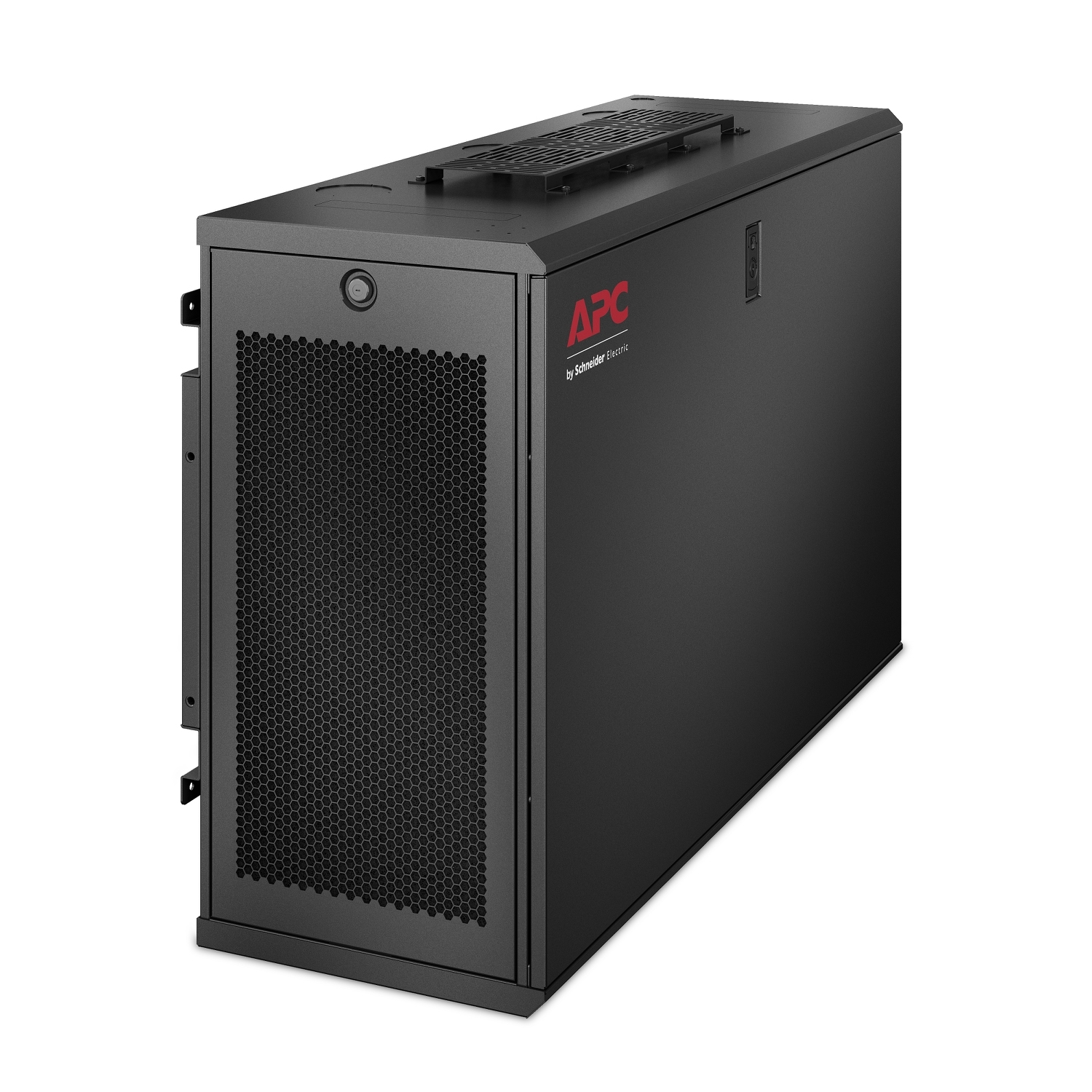

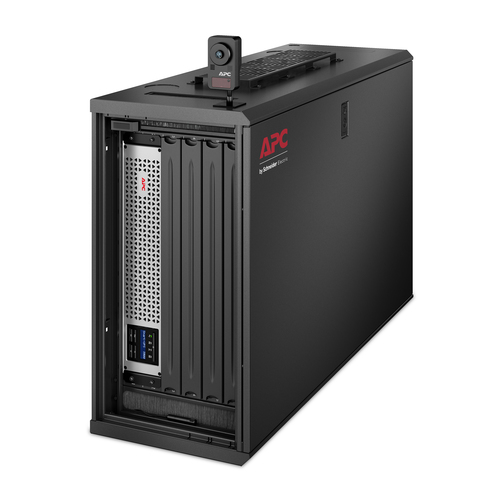

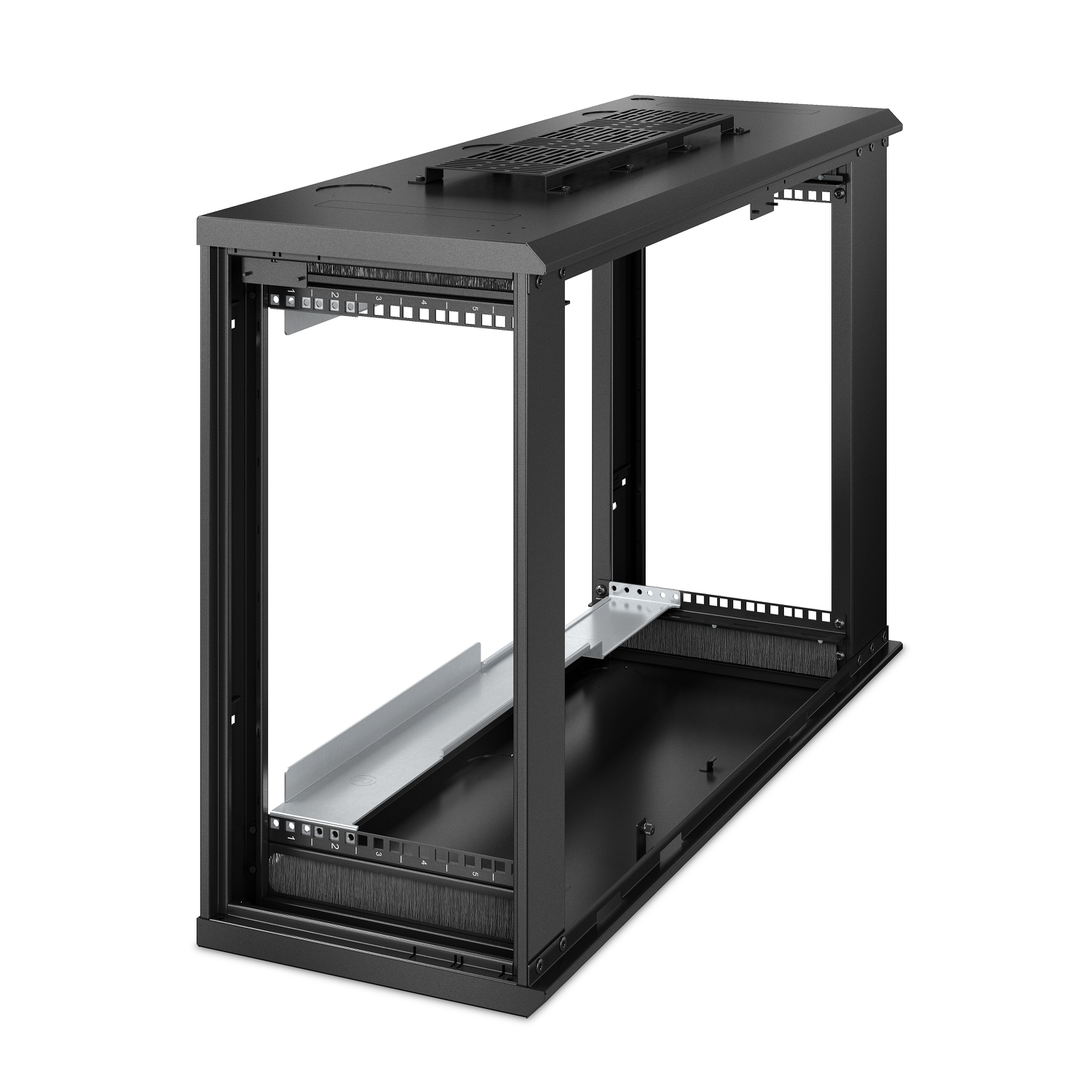

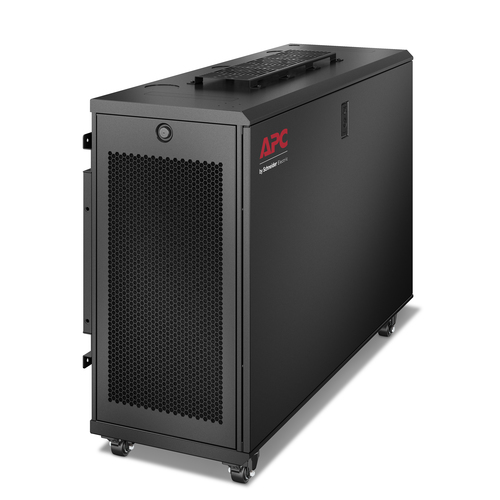

NetShelter 6U Low-Profile Wallmount Rack Enclosure Cabinet
230V Server Depth
Model AR106VIEAN 731304402015
26 specifications
- TypeWall mounted rack
- Weight36.3 kg
- ColourBlack
- Rack capacity6U
- AC input voltage230 V
- Size (imperial)48.3 cm (19")
Overview
- Type
- Wall mounted rack
- Weight
- 36.3 kg
- Colour
- Black
- Rack capacity
- 6U
- AC input voltage
- 230 V
- Size (imperial)
- 48.3 cm (19")
- Brand
- APC
- Category
- Rack Cabinet
- Model
- AR106VI
- Part number
- AR106VI
- EAN / UPC
- 731304402015
- Also known as
- APC NetShelter 6U Low-Profile Wallmount Rack Enclosure Cabinet 230V Server Depth
Specifications
26 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 113 kg |
| Product colour | Black |
| Material | Steel |

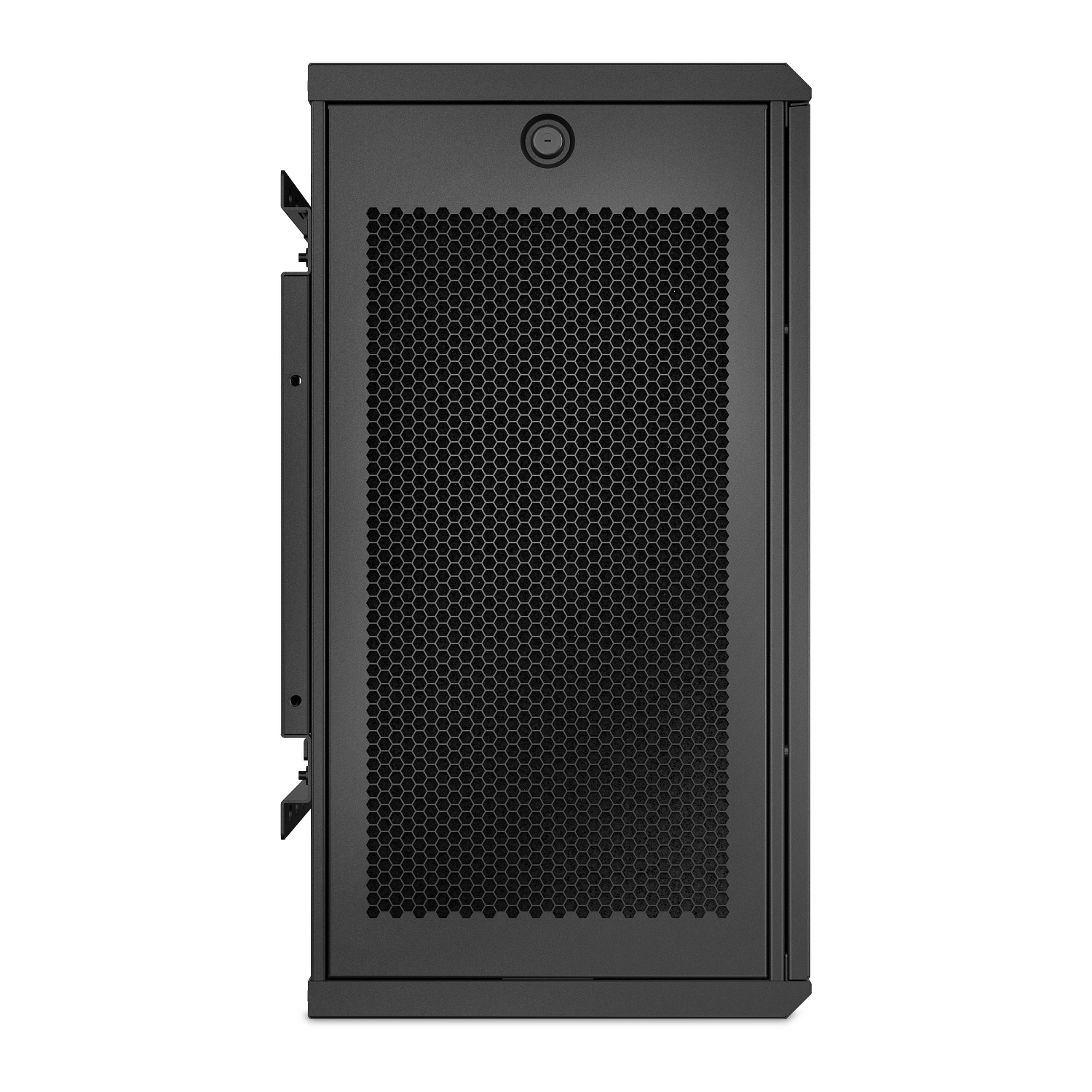

| Front door construction | Perforated |
| Key lock | Yes |
| Cooling type | Active |

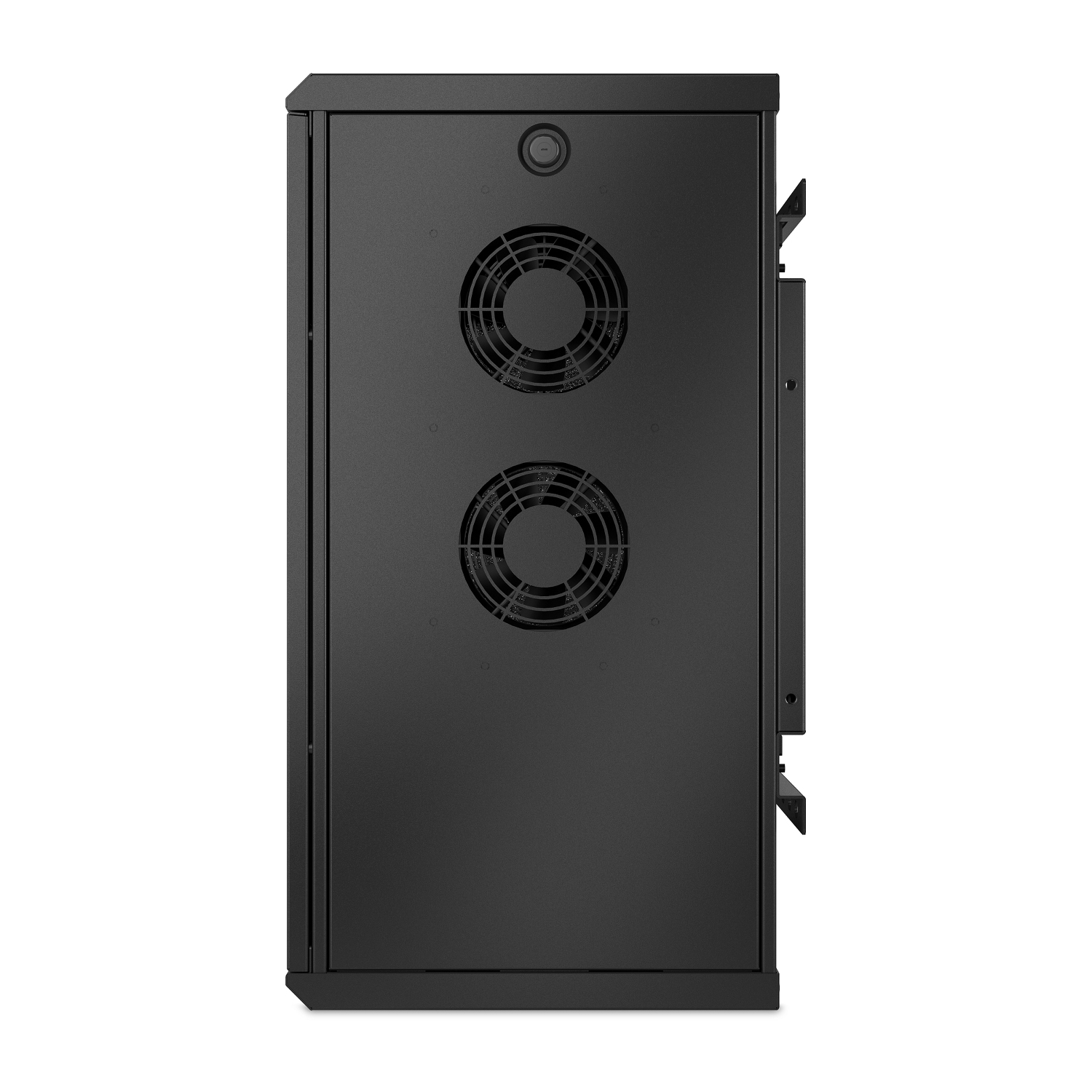

| Number of fans | 2 fan(s) |
| Preassembled | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 353 mm |
| Depth | 968 mm |
| Height | 648 mm |
| Weight | 36.3 kg |
| Mounting depth (min) | 76.2 cm |
| Mounting depth (max) | 76.2 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1064 mm |
| Package depth | 734 mm |
| Package height | 427 mm |
| Package weight | 44.9 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Total carbon footprint (kg of CO2e) | 136.27 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85381000 |
